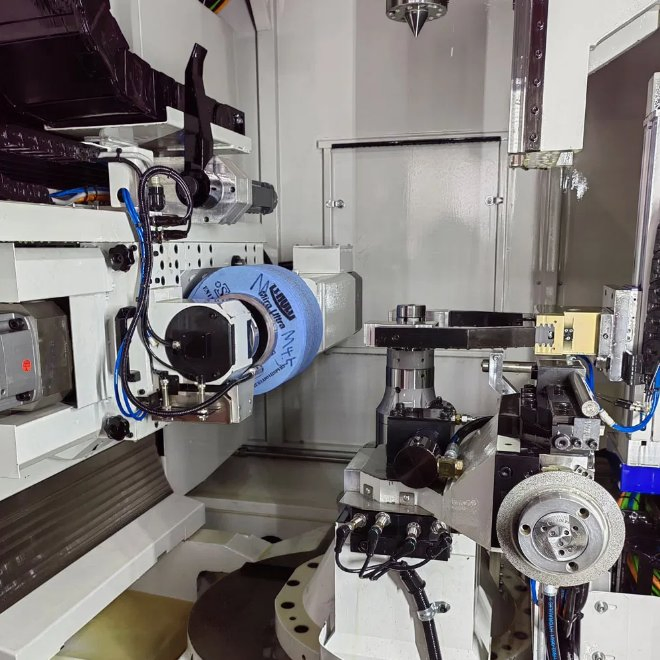

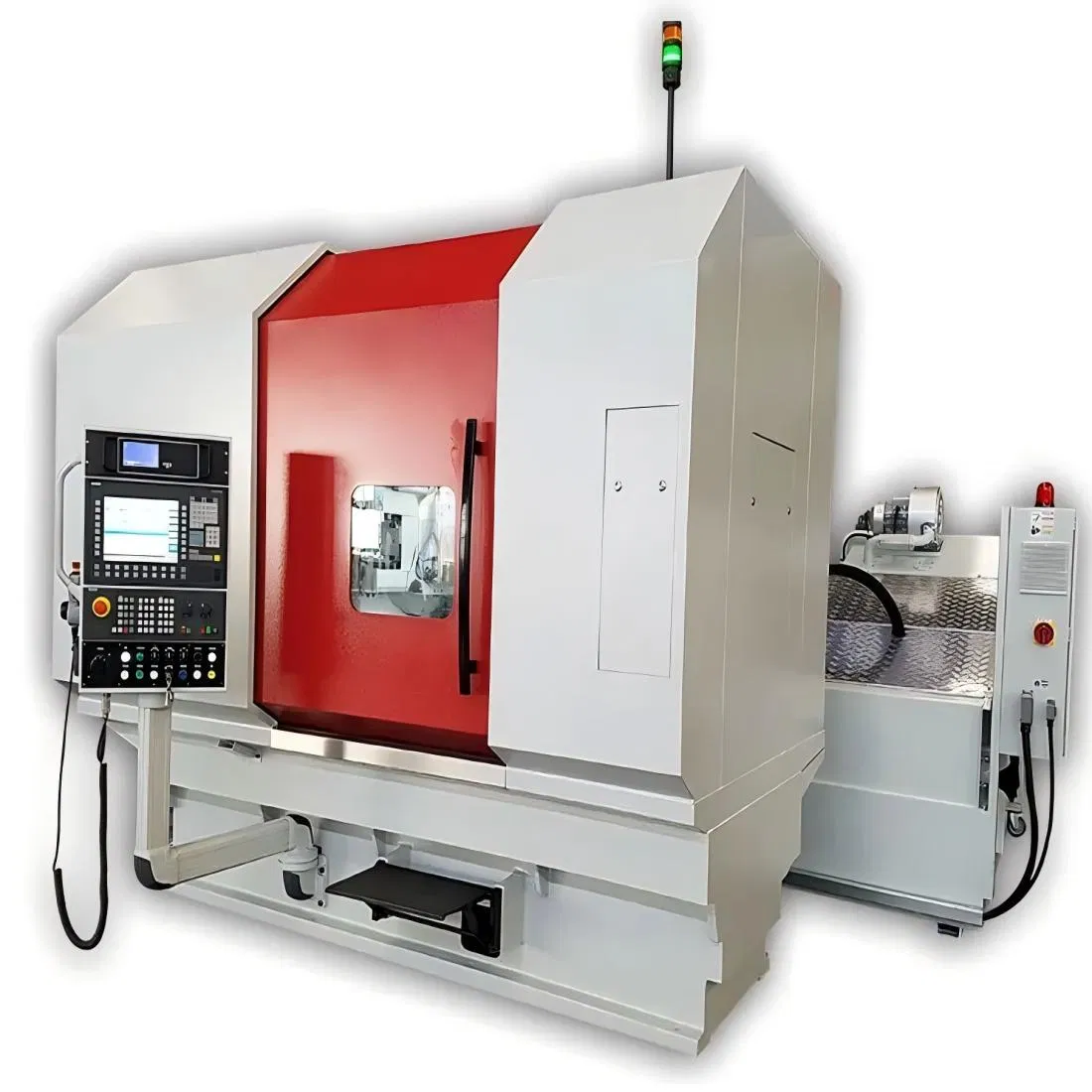

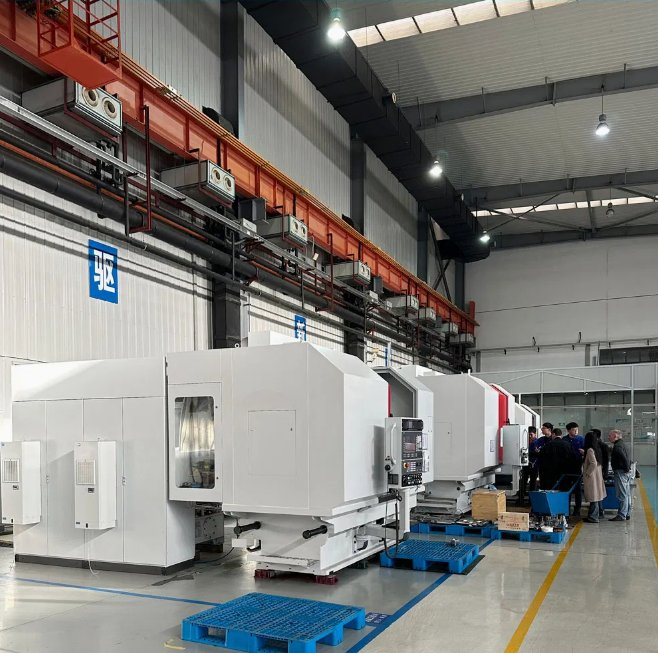

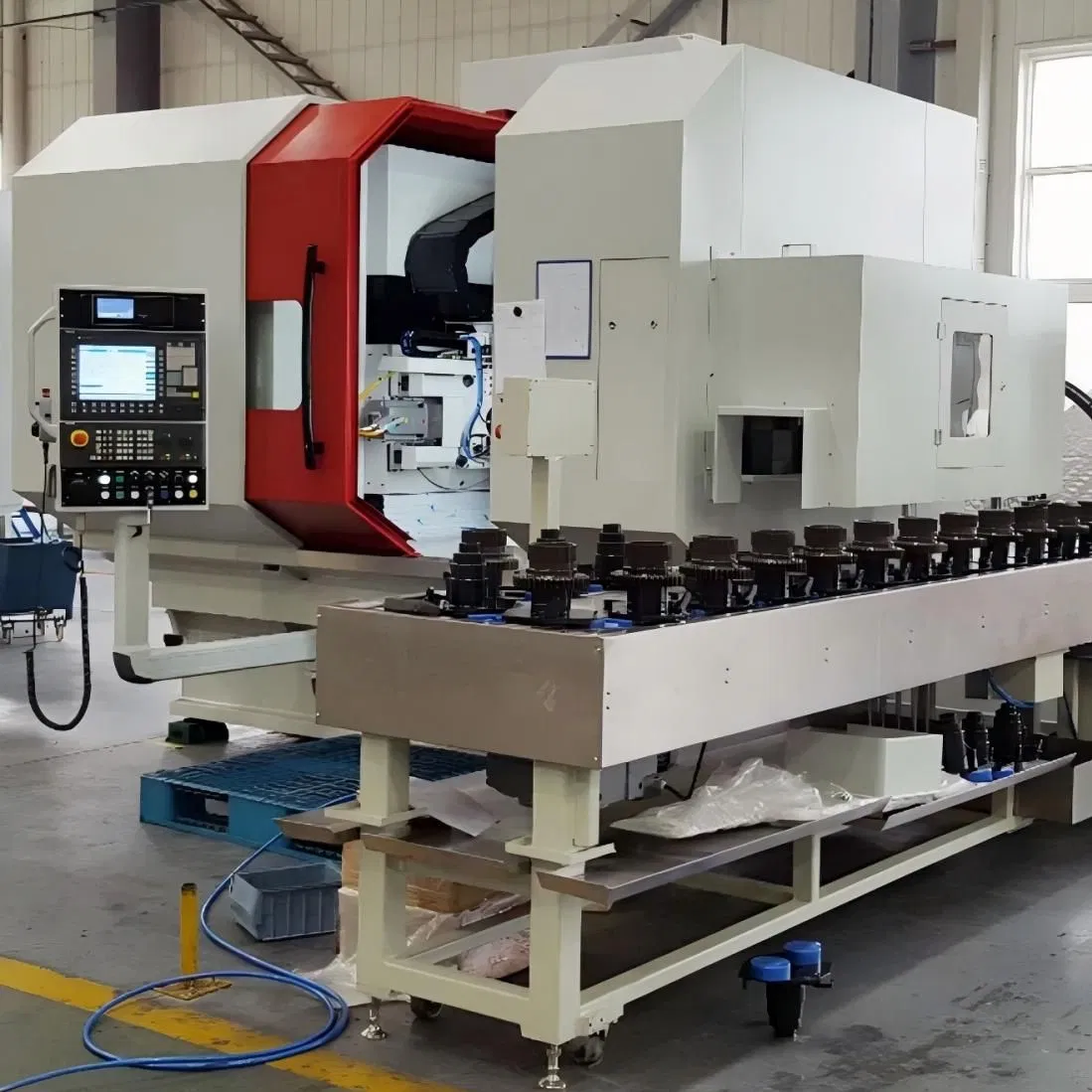

Advanced Worm Gear Grinding Equipment for Precision Engineering

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

📊

Overview & Basic Info

Model NO.

GGM7238

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance

High-End CNC Machine Tools

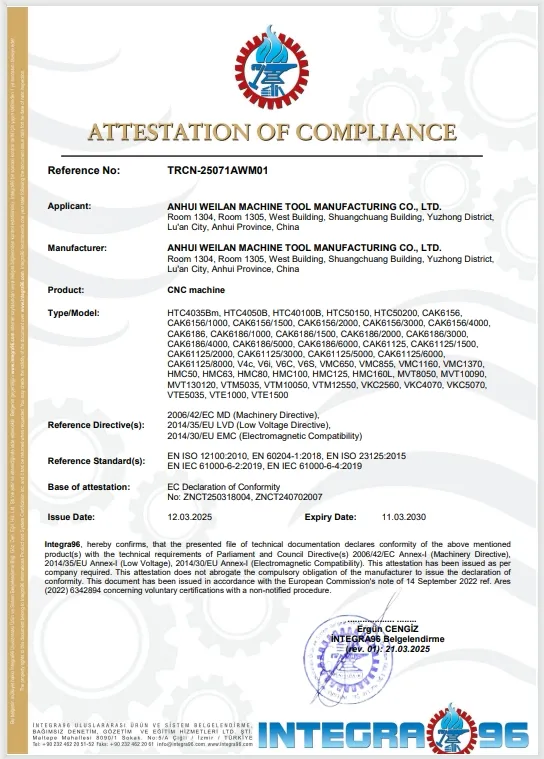

Certification

CE, ISO 9001

Condition

New

Max Workpiece Helix Angle

±45

Max Workpiece Module

6/8mm

⚙️

Product Description

📋

Technical Parameters

Project	Parameters	Unit
Maximum workpiece diameter	φ320/360	mm
Maximum workpiece tooth width	280	mm
Maximum workpiece module	6-8	mm
Maximum workpiece helix angle	±45	°
Horizontal distance (Grinding wheel to table center)	90~360	mm
Maximum vertical movement of grinding wheel (Y-axis)	250	mm
Maximum speed of grinding wheel (Y-axis)	7000	mm/min
Vertical distance (Wheel center to table surface)	130~450	mm
Grinding wheel spindle power (B-axis)	3000~6000	rpm
Equipment dimensions (L x W x H)	4300x5600x3500	mm
Main machine weight	about 10000	kg

🚢

Packaging & Shipping

For a seamless experience, our shipping fees and delivery dates are tailored to your specific logistical needs. We focus on secure, heavy-duty wooden box packaging to ensure the integrity of high-precision CNC equipment during international transit.

🛡️

Our Advantages & Service

Transaction Security: Enjoy peace of mind with secure payment systems safeguarded by advanced SSL encryption and data protection protocols. We ensure your transactions are safe and offer a standard refund policy that empowers your purchasing decisions.

After Sales Guarantee: We stand by our products with robust after-sales support. Claim a refund effortlessly if your order fails to ship, arrives incomplete, or encounters quality issues. Our platform guarantees protection for all verified transactions.

🏢

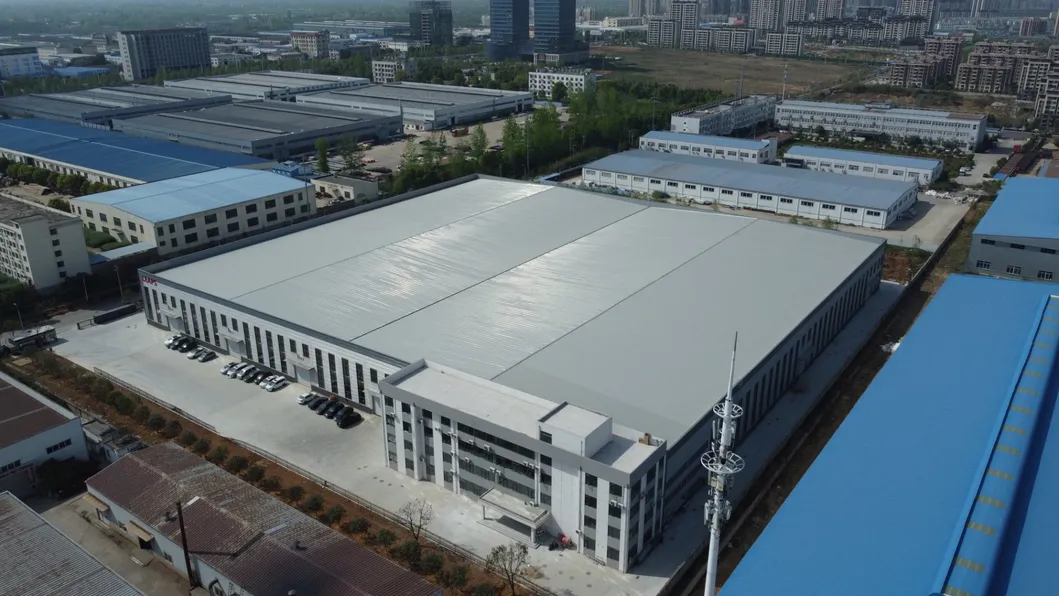

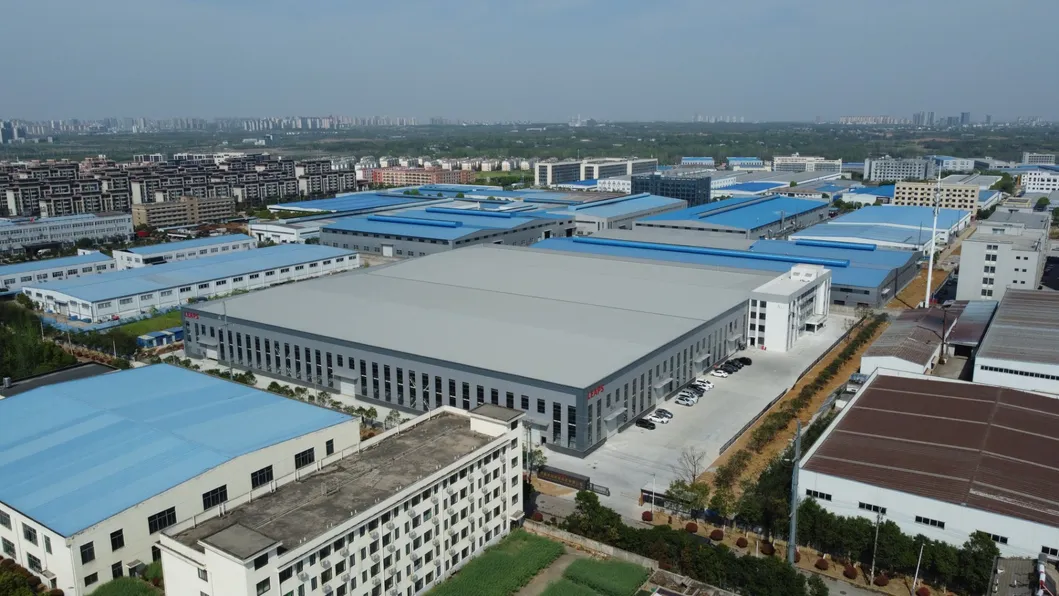

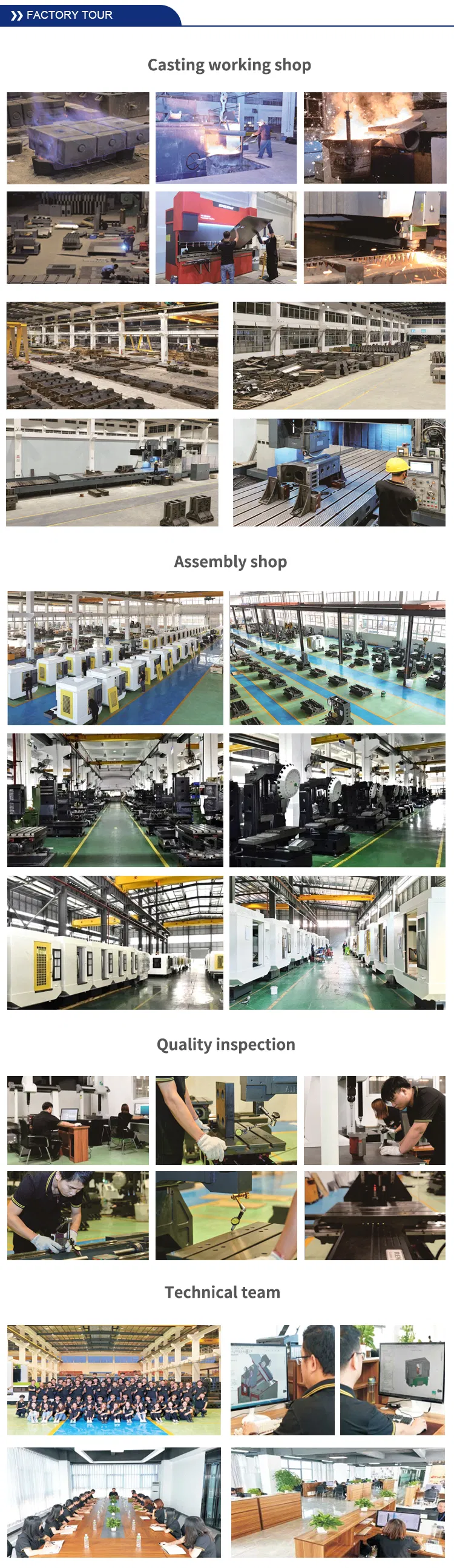

Production Environment

❓

Frequently Asked Questions

Why do similar looking products have different prices?

While appearance may be similar, the internal models, technical parameters, and specific configurations differ. Higher configurations involving precision components naturally result in price variations.

Do you offer customized machine tool services?

Yes, we provide customization based on your specific processing requirements. Please provide detailed specifications and work-piece drawings for a tailored solution.

How do I choose the most suitable machine tool for my needs?

We recommend sharing your product drawings, dimensions, and material types. Our engineering team will match the appropriate model based on your production volume and precision requirements.

What axis configurations are available for these tools?

We offer 3-axis, 4-axis, and 5-axis machine tools. The final quotation depends on the choice of NC controller, motor brands, and rotary table dimensions.

How is shipping handled for heavy machinery?

We typically provide FOB quotations. As shipping fees fluctuate by country and season, we first finalize the equipment price and then coordinate with reliable forwarders for the most competitive freight quote.

What is the typical lead time for standard models?

Standard models usually have a defined production cycle, while customized units take longer. Please consult our team for current stock status and specific delivery schedules.
