Basic Info.
Model NO.VMD-650
ApplicationMetal
Process UsageMetal-Cutting CNC Machine Tools
Movement MethodContour Control
Control MethodSemi-Closed Loop Control
Numerical ControlCNC/MNC
CertificationCE, ISO 9001
ConditionNew
Max Drilling Depth220mm
Table Size700*520mm
X/Y/Z Axis Travel600/500/300mm
Load Weight500kgs
Product Description
Drilling is the most basic process in machining operation, and also the process with the widest range in application fields. Traditional drilling equipment like bench drills and radial drills often keep laborers' hands bound to the machine, repeating work without consistent quality. With the arrival of the CNC era, the birth of CNC depth drills has thoroughly changed the situation. It not only frees laborers' hands but also solves the bottleneck of depth drill processing, making it possible for one-time drilling to achieve high processing quality, automatic chip removal, CNC positioning, and automatic processing.

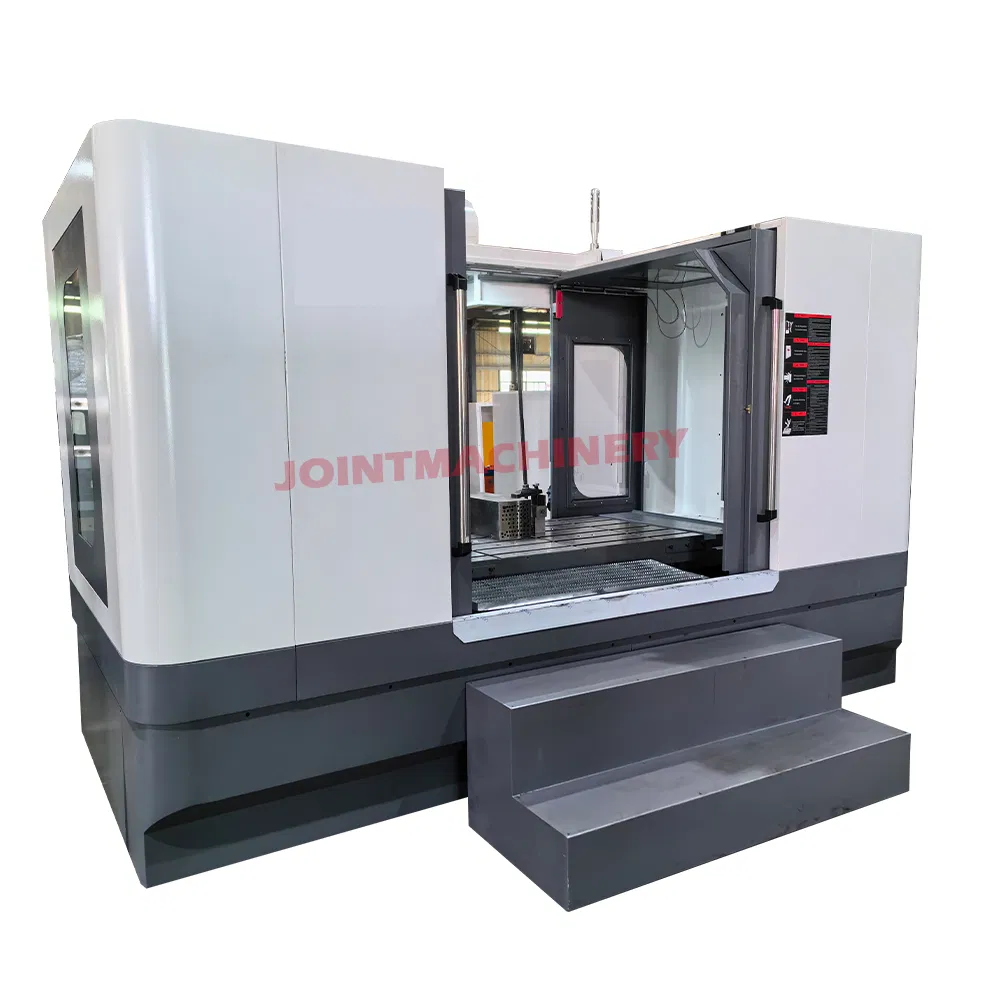

3 Axis CNC Deep Hole Drilling

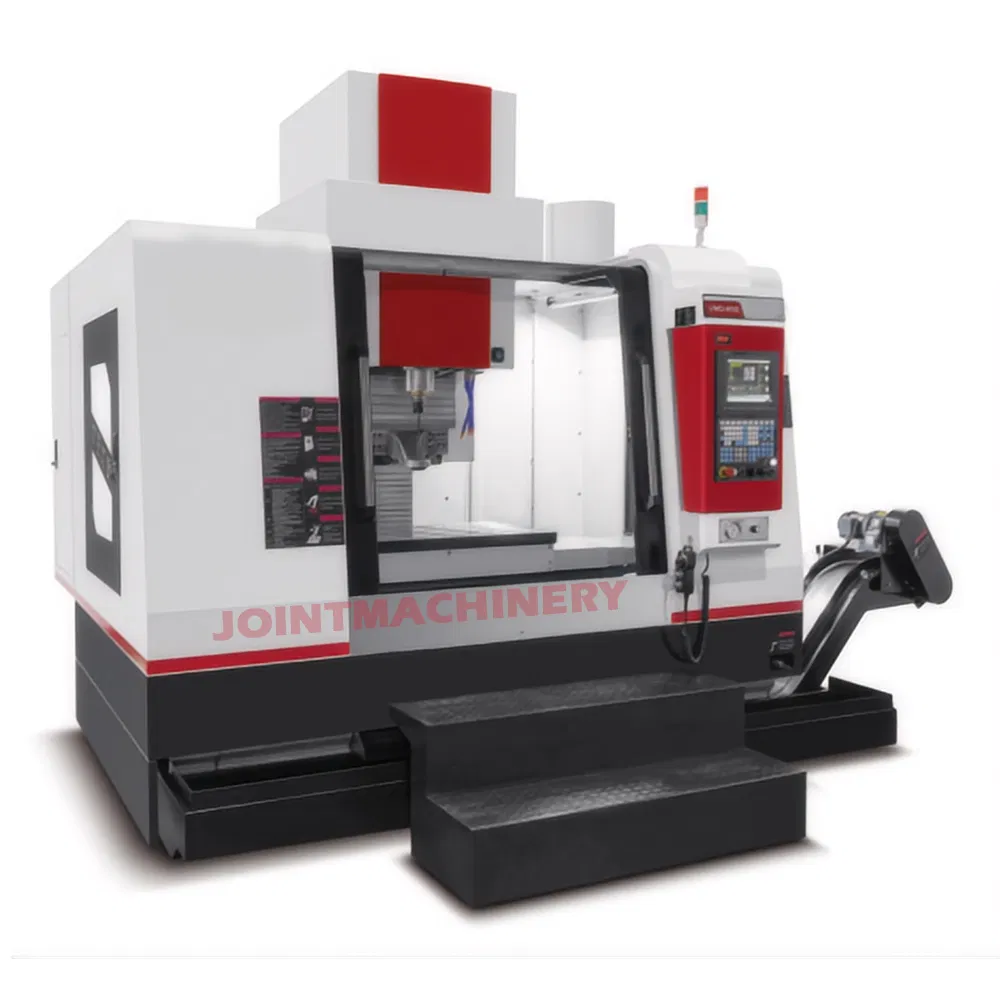

4 Axis Vertical CNC Deep Hole Drilling

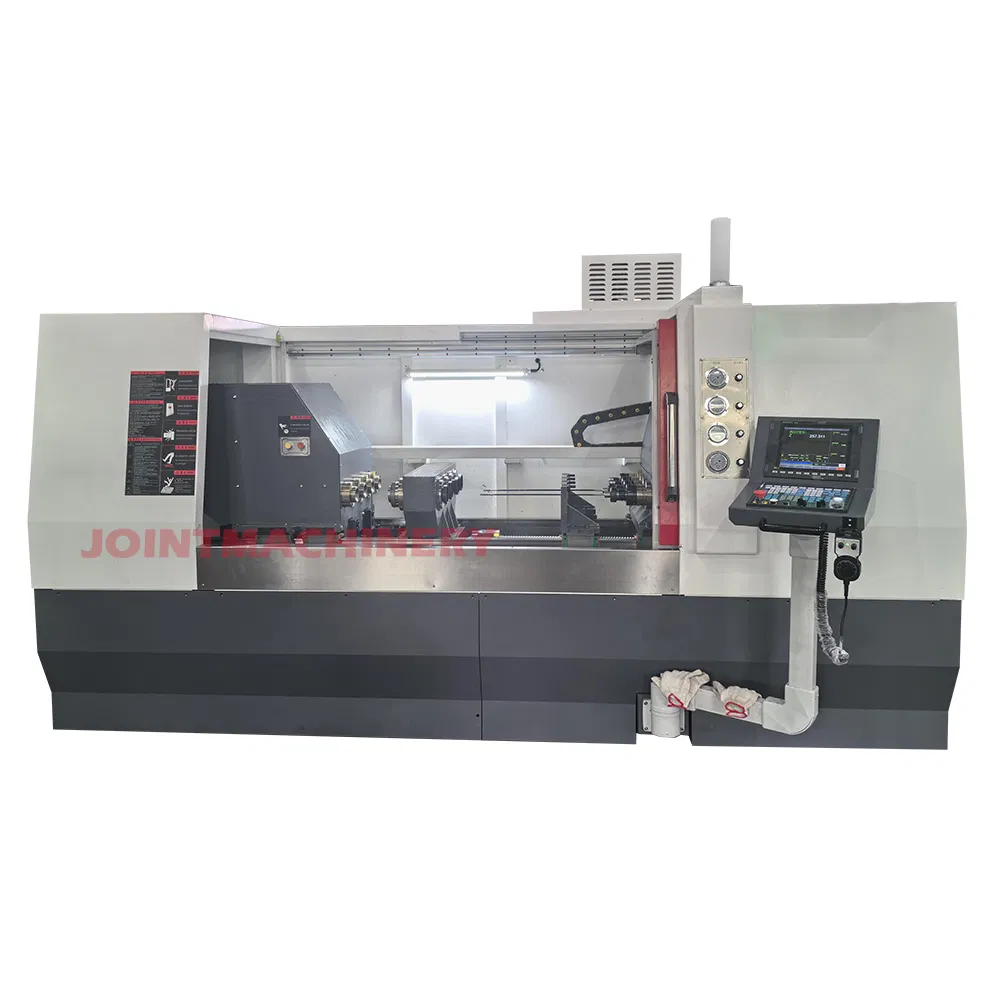

Multi-Spindle CNC Deep Hole Drilling

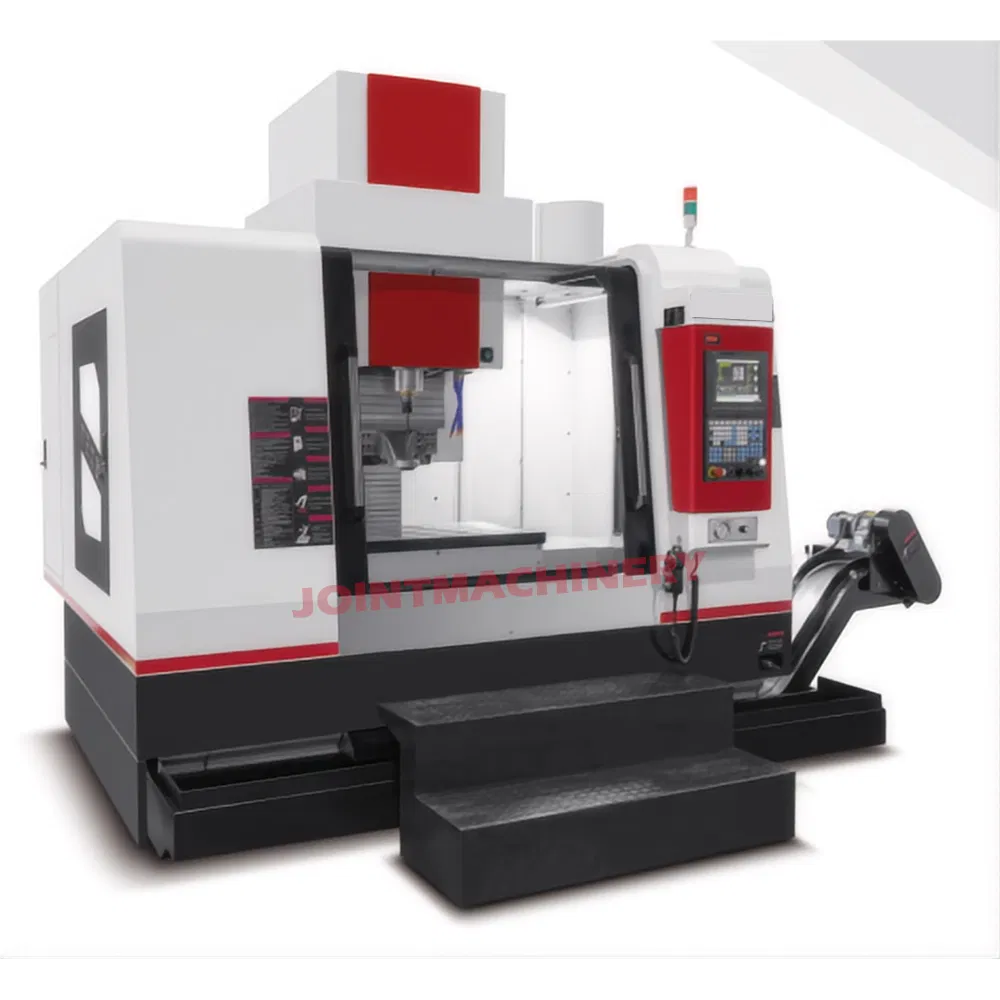

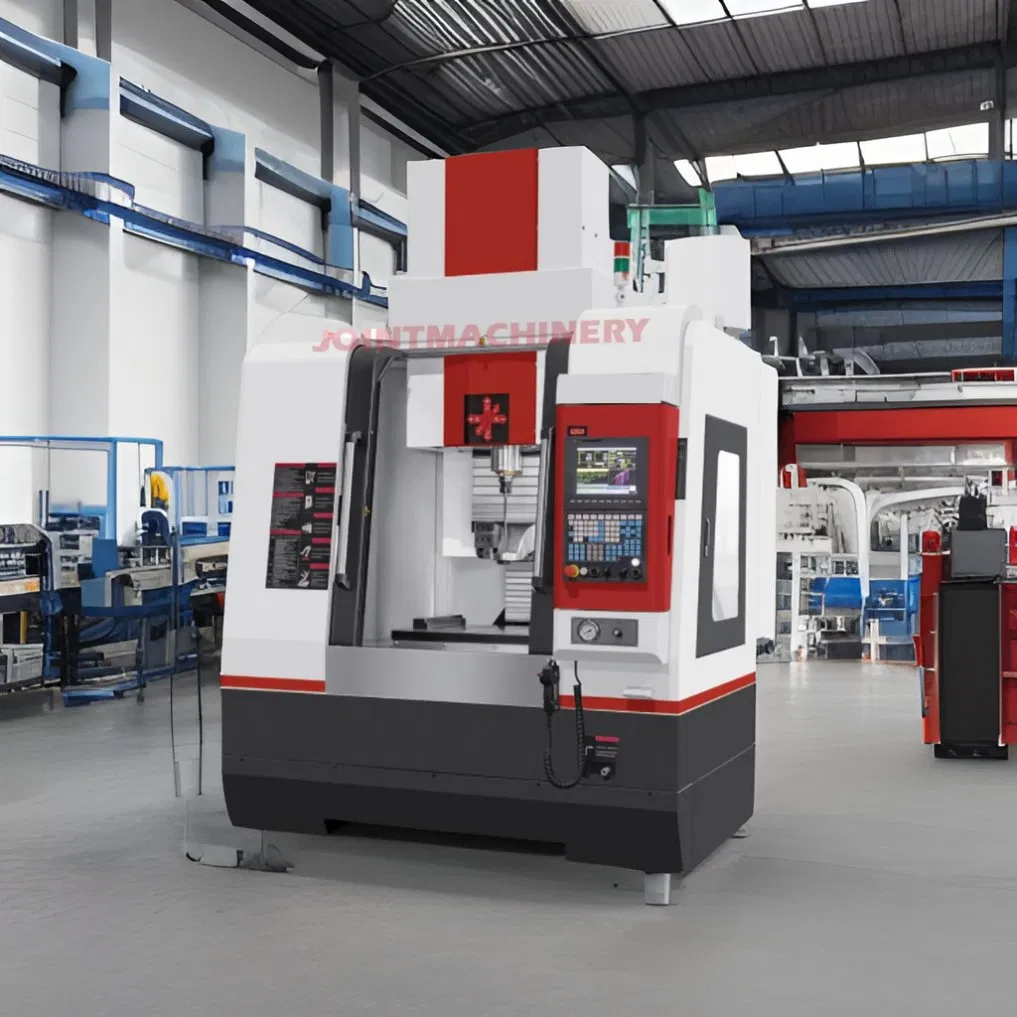

4-Axis Vertical CNC Deep Hole Drilling Machine:

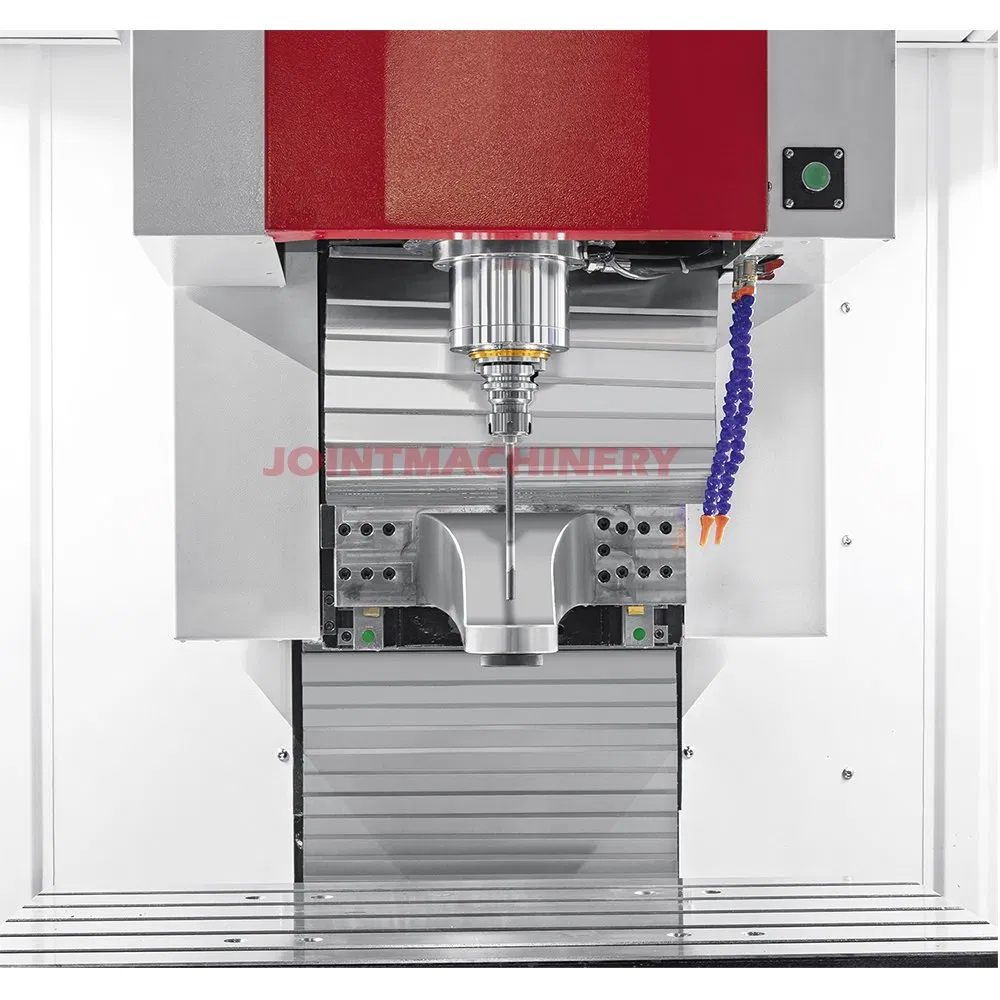

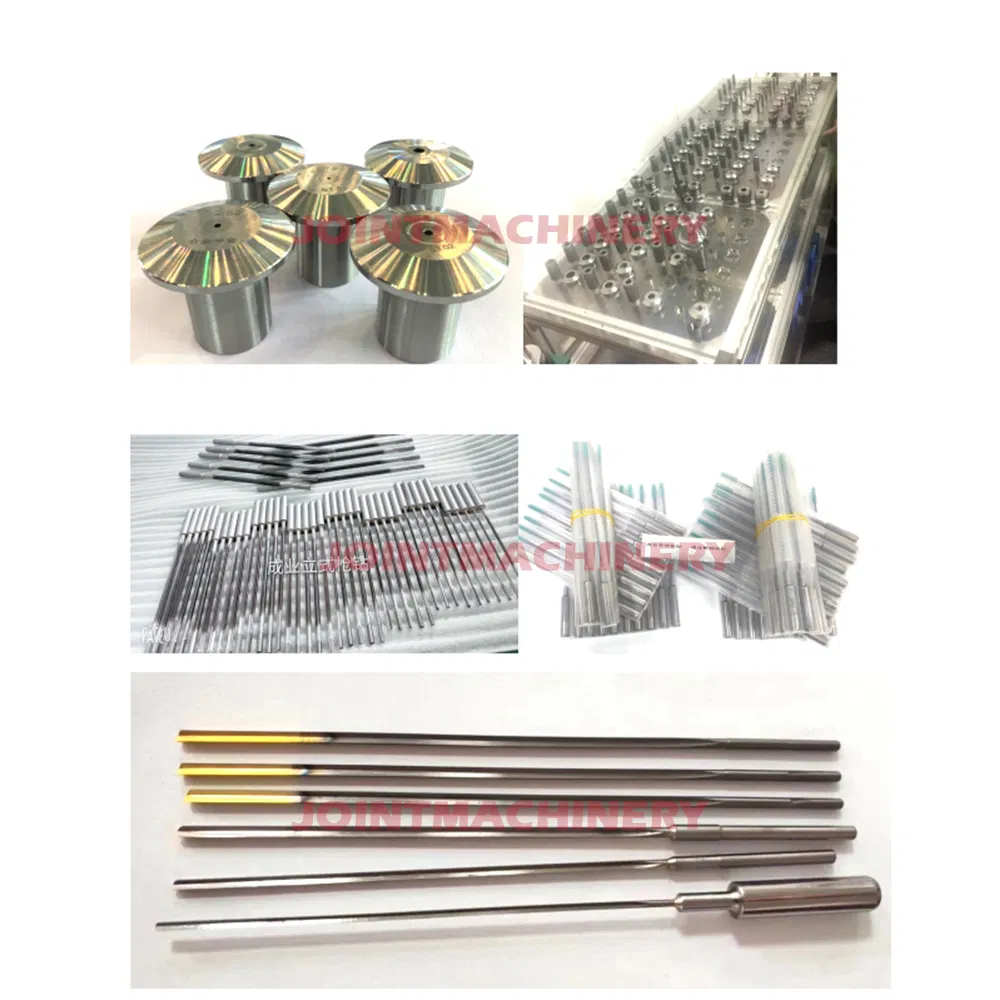

Equipped with a special short gun drill to work on small hole processes, especially for inject pinhole batch processing. High precision, high speed, and easy operation. Widely used for medical equipment, spaceflight, hydraulic oil pumps, and auto spare parts.
| Model |
Unit |
VMD-650 |
| Inner diameter of drilling | mm | 1.5-20 |
| Max drilling depth | mm | 220 |
| Table size | mm | 700*520 |
| X/Y/Z axis travel | mm | 600*500*300 |
| Z2 axis travel | mm | 300 |
| Drilling cutting speed | m/min | 1-300 |
| Spindle taper | - | BT40 |
| Max spindle rotary speed | rpm | 10000 |
| Spindle motor power | kw | 7.5-11 |
| Machine weight | kgs | 4500 |
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A1: We are a factory focused on CNC machine production.
Q2: What are your terms of payment?
A2: 30% as a deposit, and the remaining 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please share your requirements or product drawings with us. Our engineers will help you select the most suitable model for your needs.
Q4: What kind of packaging do you use for shipment?
A4: Machines are packed using export standard packaging, which is waterproof and anti-rust to ensure safe overseas transportation.
Q5: How long is the warranty for the machines?
A5: The warranty period is 12 months. We provide repair parts free of charge during this time for any quality-related issues.
Q6: What is the maximum drilling capacity of the VMD-650?
A6: The machine supports an inner diameter range of 1.5-20mm and a maximum drilling depth of 220mm.
