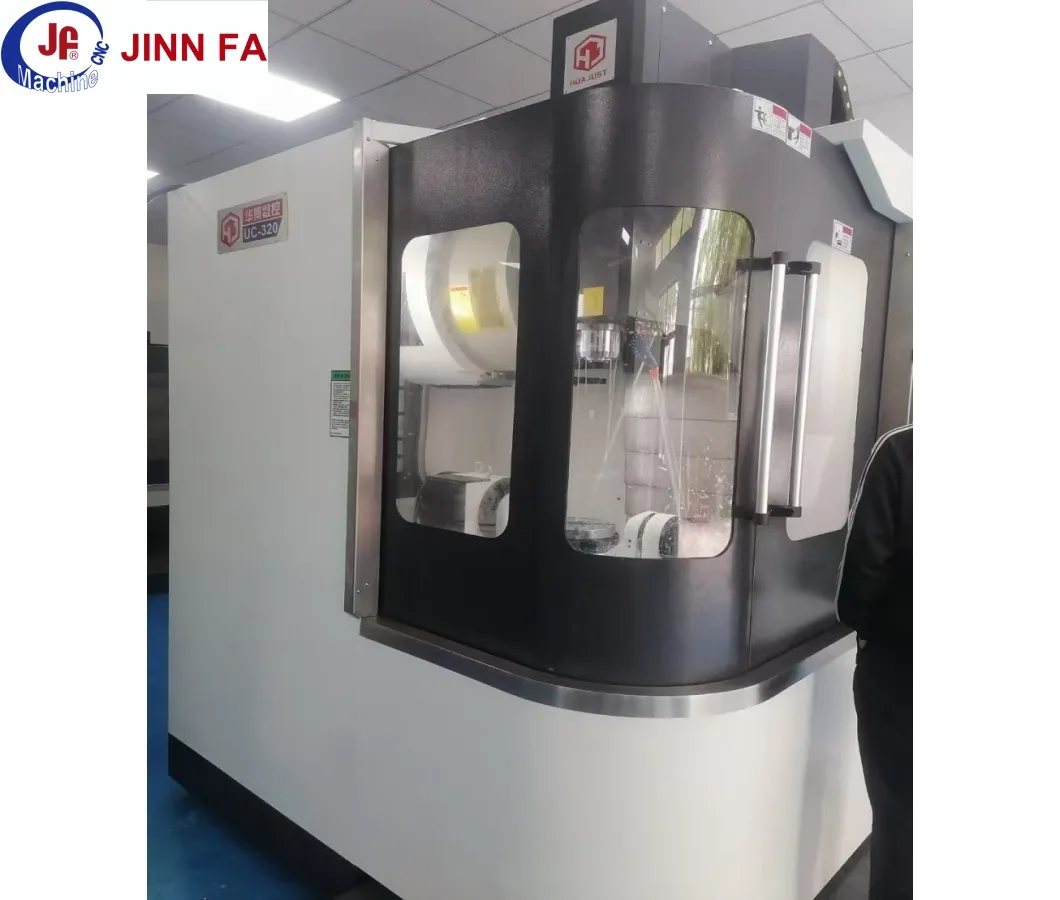

UC-320 FIVE-AXIS FEATURE:

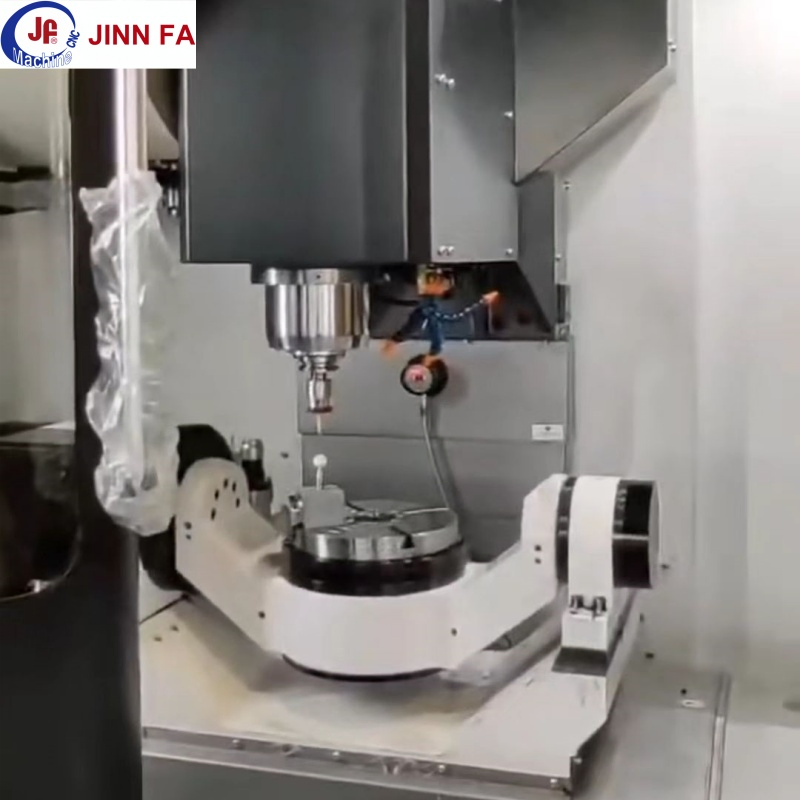

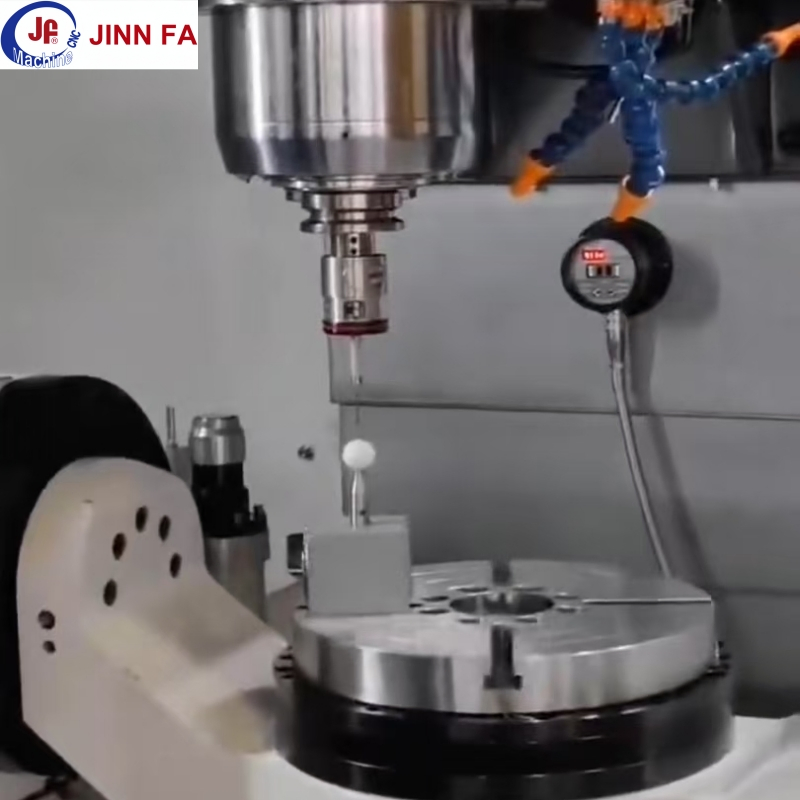

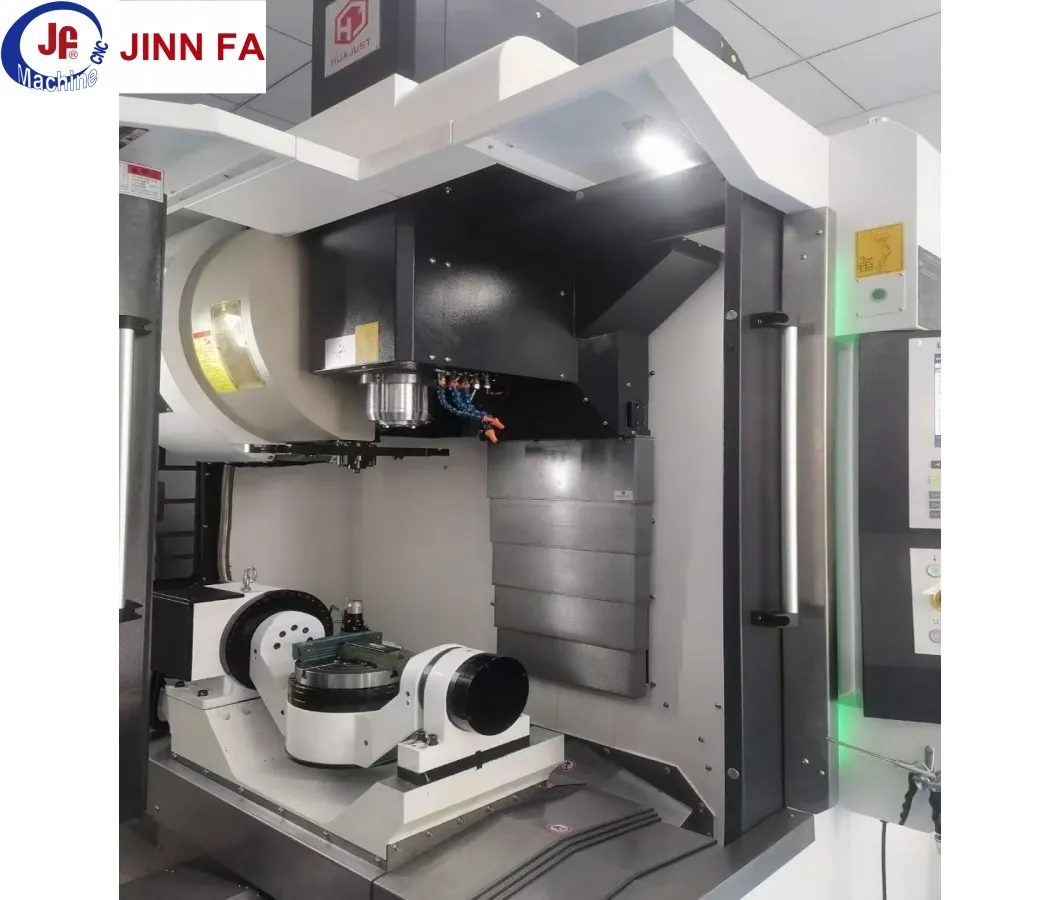

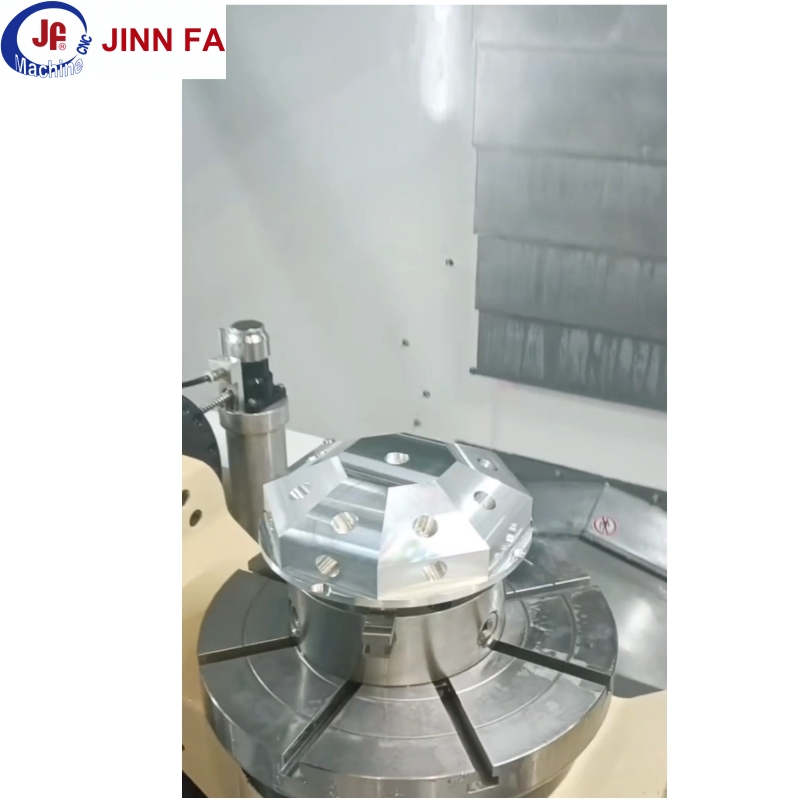

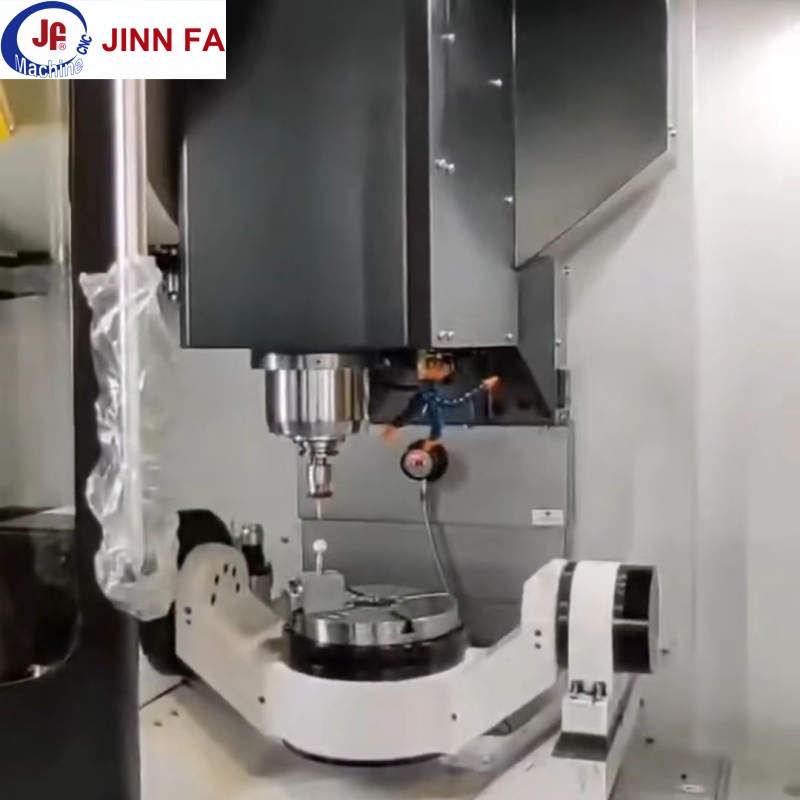

The UC series is characterized by a mechanical structure consisting of a spindle and a tilting and rotating worktable, which reserves a large processing area to suppress interference between the workpiece and the tool. The tool can be fed vertically, horizontally, and at any angle enabling a variety of processing with a small number of tools. Moreover, it has a large range of motion to accommodate applications and fixtures with complex shapes.
The UC series can integrate all processes from materials to finished products on a single machine tool. Concentrating the processes into turning and milling processes is expected to achieve the following effects:
| MODEL | UNIT | UC-260 | UC-320 |
|---|---|---|---|
| BASIC SPECIFICATION | |||
| Travel XYZ | mm | 700×550×520 | |
| Spindle nose to work surface | mm | 100-620(horizontal) | |
| A axis rotation angle | mm | -120°~120° | |
| C axis rotation angle | mm | 360° | |
| Spindle | |||
| spindle motor | kw | 11 | |
| spindle speed | rpm | 10-12000 | |
| spindle inner taper hole | - | BT40 | |
| Feed axis | |||
| Rapid feed rate(X/Y/Z) | m/min | 36/36/36 | |
| Positioning accuracy | mm | ±0.005 | |
| A/C five-axis parameters | |||
| Five axis type | - | Dual DD direct drive motors | |
| Disk diameter | mm | Φ260 | Φ320 |
| Maximum processing diameter | mm | Φ380 | Φ480 |
| Load | kg | 60(Vertical) / 60(Horizontal) | |
Gang tool lathes are more cost-effective due to simpler tool changes. Standard axis servos and leadscrews handle all work efficiently.
Simpler moving parts reduce tolerance stack-up and slop, making the machine better suited for moving parts across shorter distances.
Utilizes slide motion for tool changes, eliminating the need for turret indexing and significantly speeding up the process.
Fast setup times with simple tool sets and the ability to switch blocks quickly for specific production requirements.
Fewer moving parts mean less prone to errors and malfunctions, ensuring long-term robust performance.
