| Category | Details | Supplementary Notes |
|---|---|---|
| Product Name | Carbide Multi-scenario Cutting Inserts | Including inserts for turning, milling, threading, and grooving |
| Applicable Scenarios | Turning, Milling, Threading, Grooving | Covering face milling, profile milling, internal/external grooving |
| Applicable Materials | Carbon steel, alloy steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium alloys | Models matched to high hardness/high viscosity materials |
| Technical Parameters | Thickness: 2.0-6.0mm; Bore: 3.175-12.7mm; Coating: TiN, TiAlN, AlCrN | Edge options: Sharp edge or 15°/20° chamfered edge |
| Implemented Standards | ISO, ANSI, JIS international standards | Compliance with international cutting tool industry specifications |
Product hardness exceeds HRA 90, offering 3–10 times the service life of traditional high-speed steel tools. Resists high-temperature wear and oxidation.
Maintains stable hardness even at 800–1000 °C. Ideal for high-speed and dry cutting environments without edge chipping.
Processed by high-precision grinding for sharp edges and smooth finish. Meets IT5–IT7 tolerance grades and Ra ≤ 0.8 μm surface quality.
Optimized alloy composition and edge design (chamfered/rounded) enhance toughness for heavy-load rough machining.
Our product range covers four core machining scenarios: turning, milling, threading, and grooving, compatible with all standard cutting equipment.

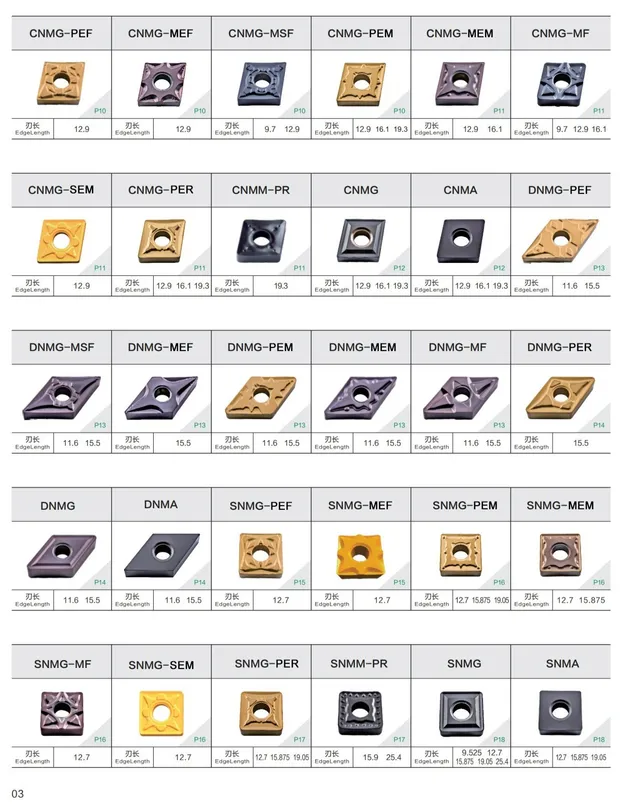

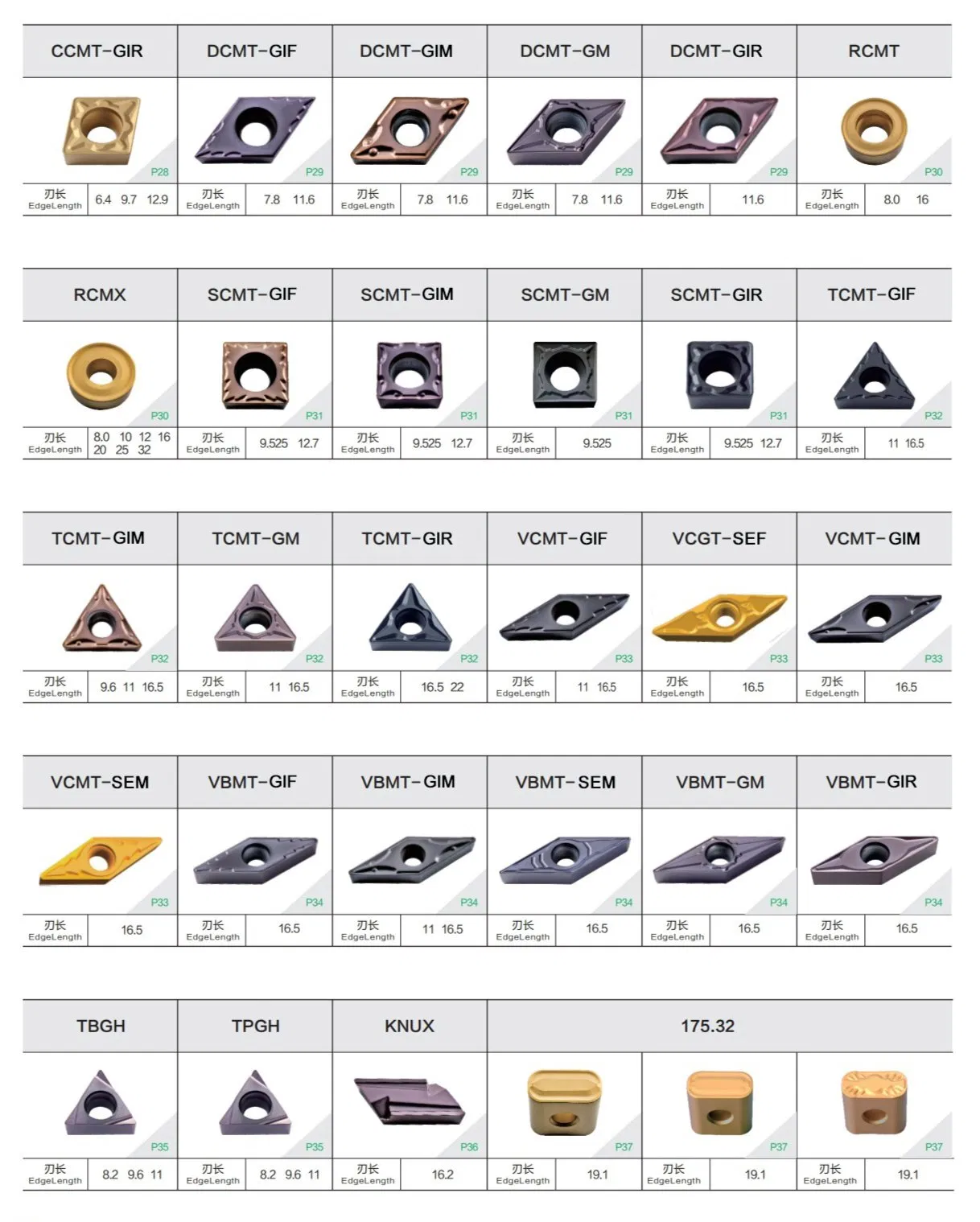

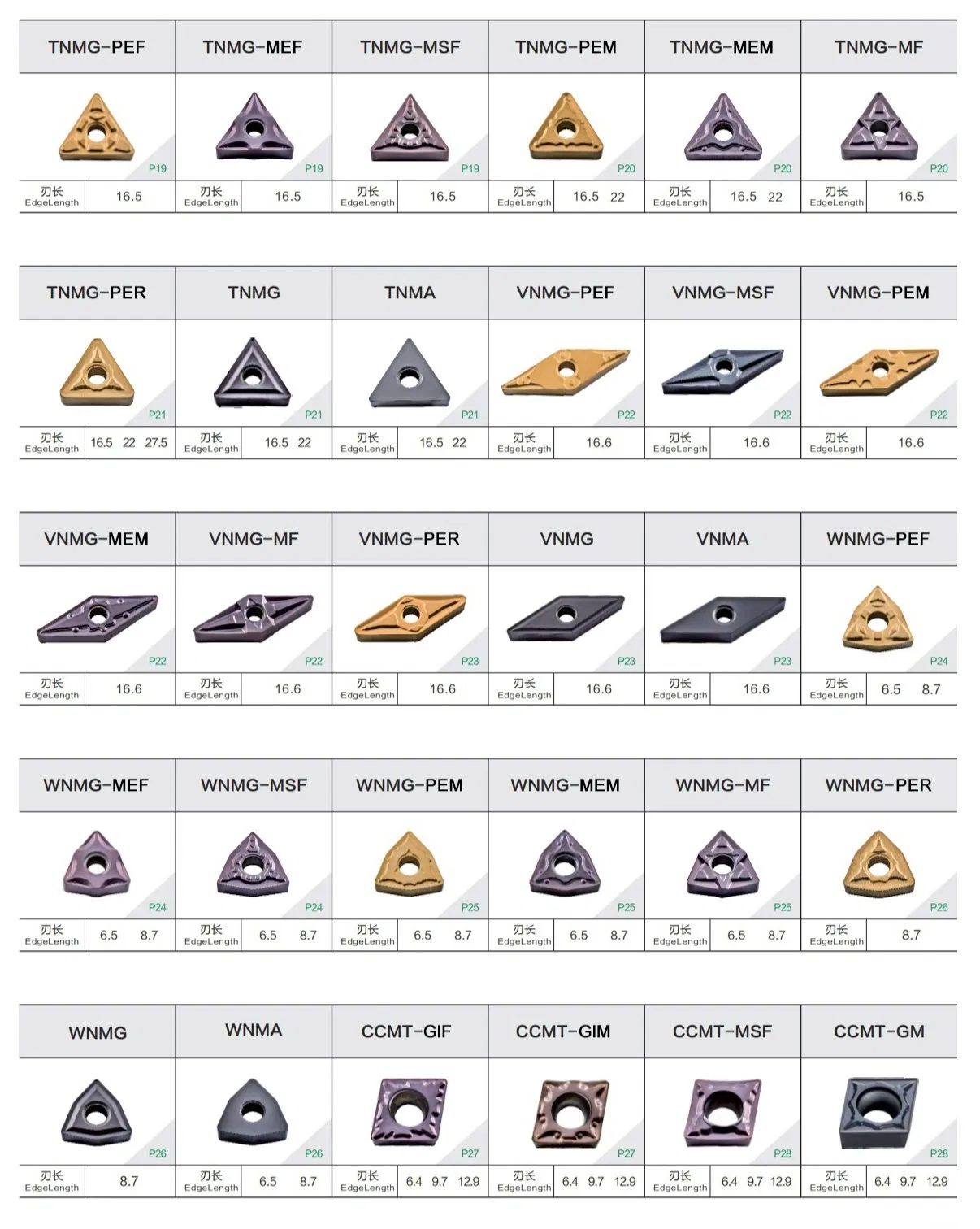

Models: CCMT09T304, WNMG0804, CNMG1204, DNMG1506. Suitable for roughing to finishing with various nose radii (R0.2–R1.2).
Models: APMT1604, SEMT1204, RPMT10T3, APKT0602. Types: Shoulder, round-nose, ball-end milling. Supports dry and wet cutting.

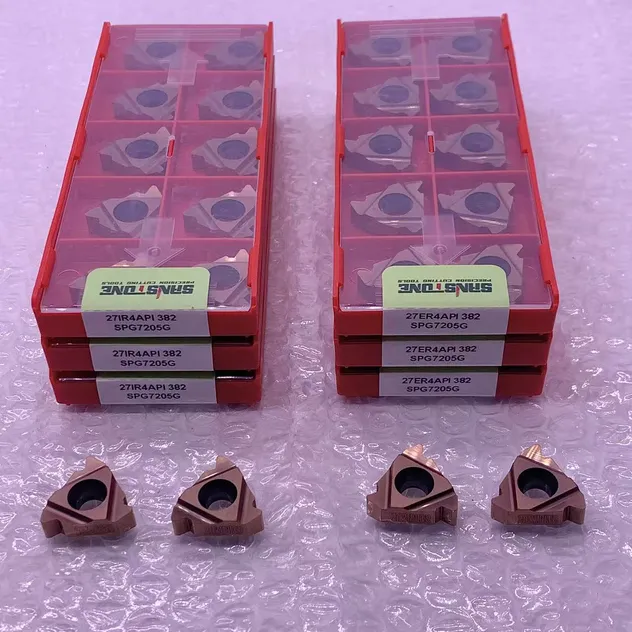

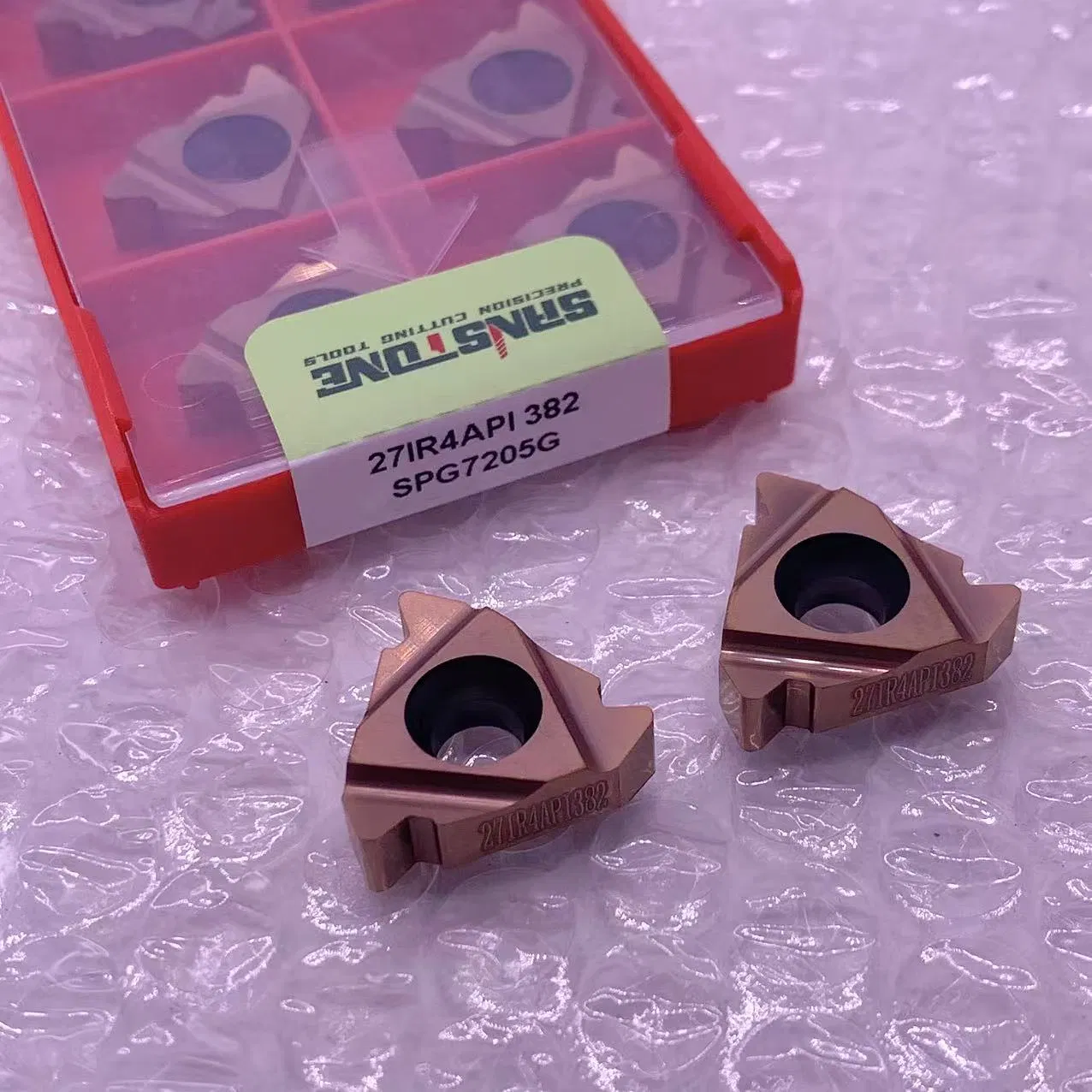

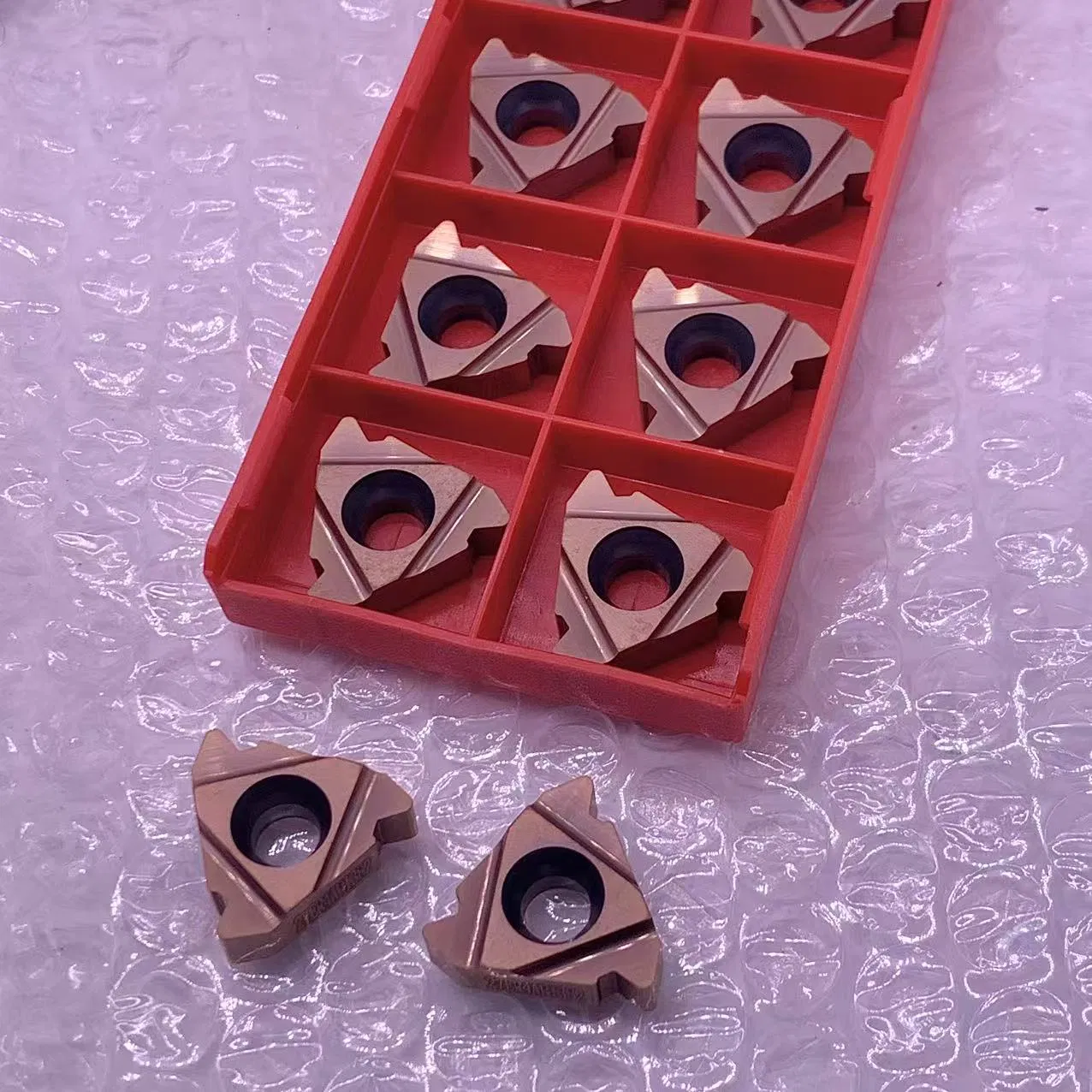

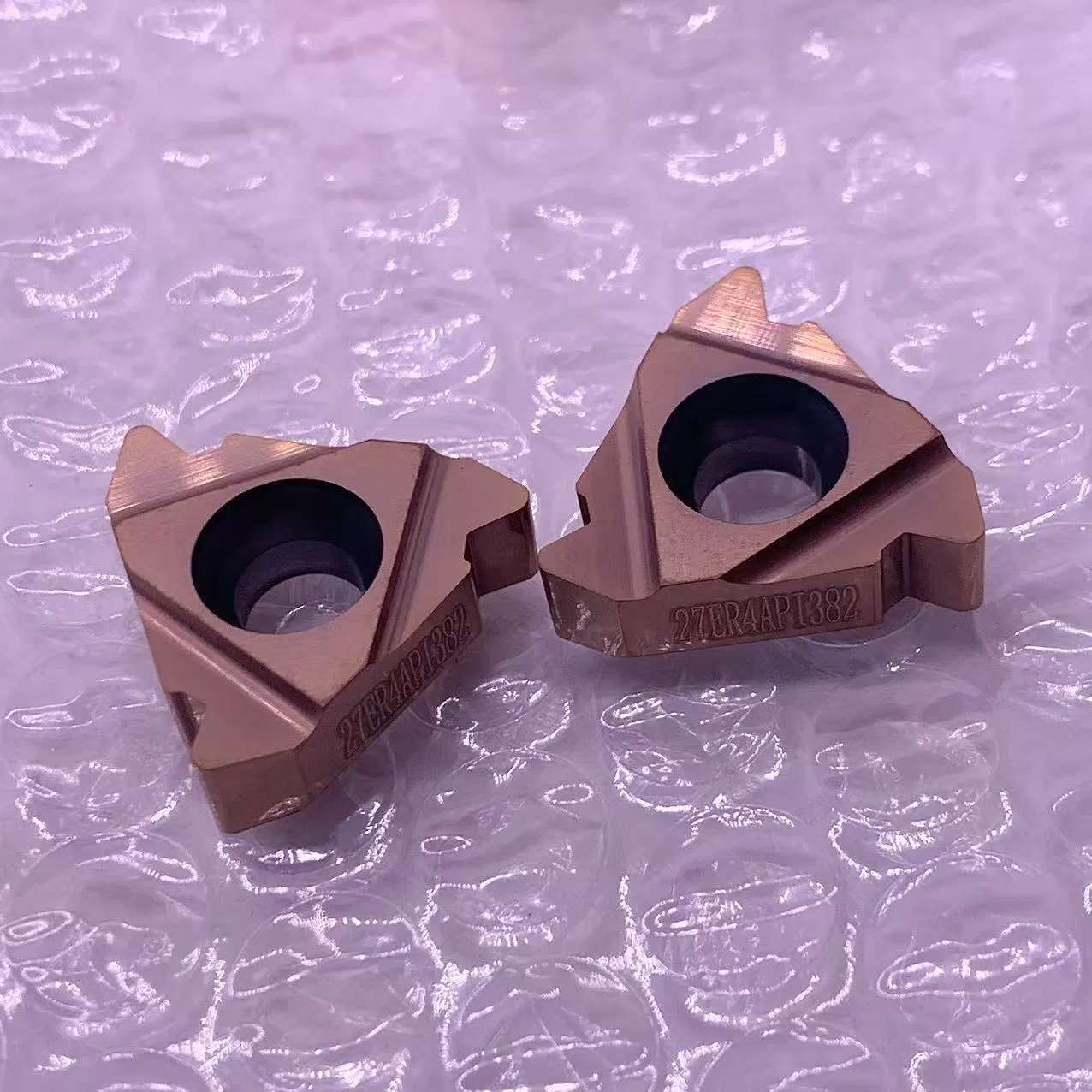

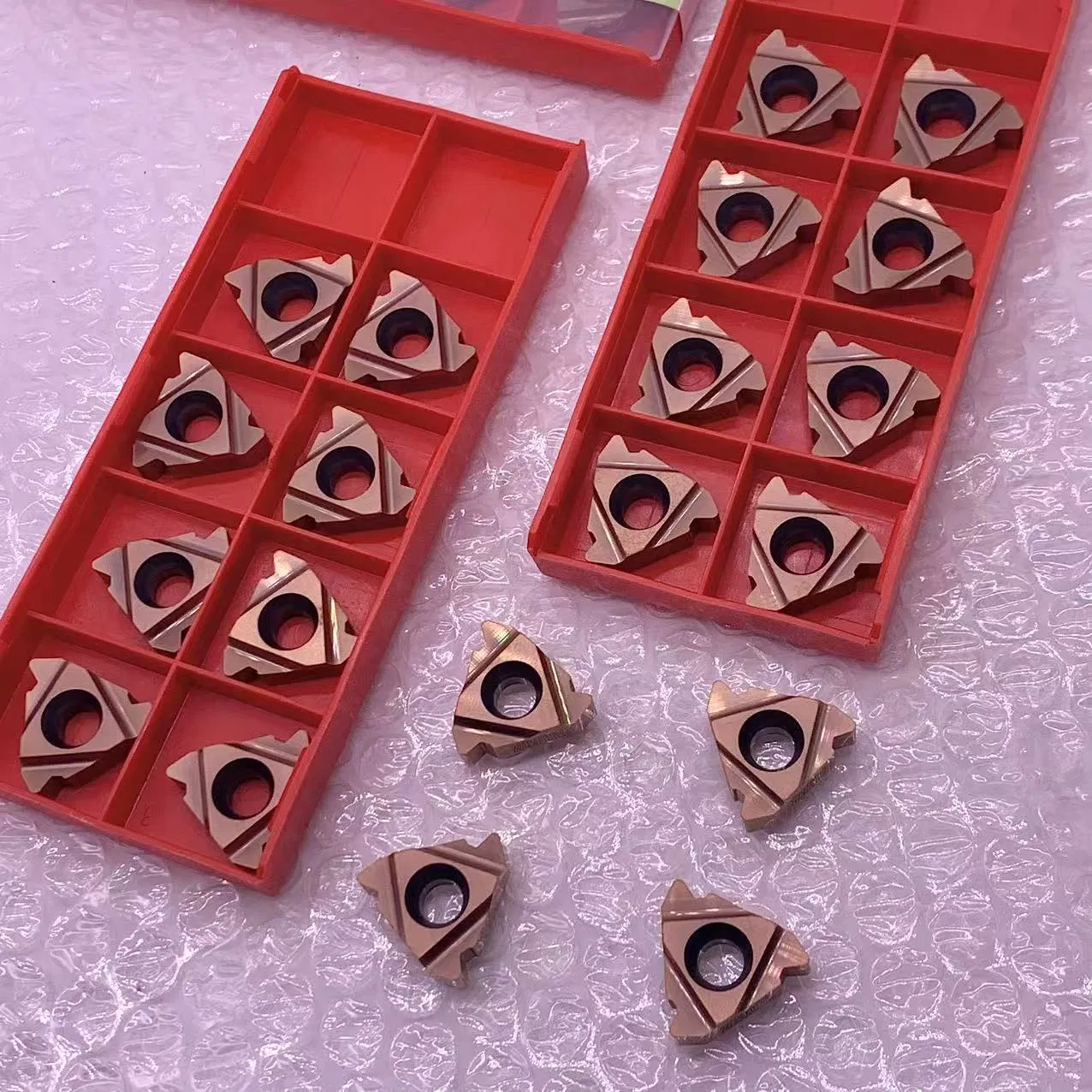

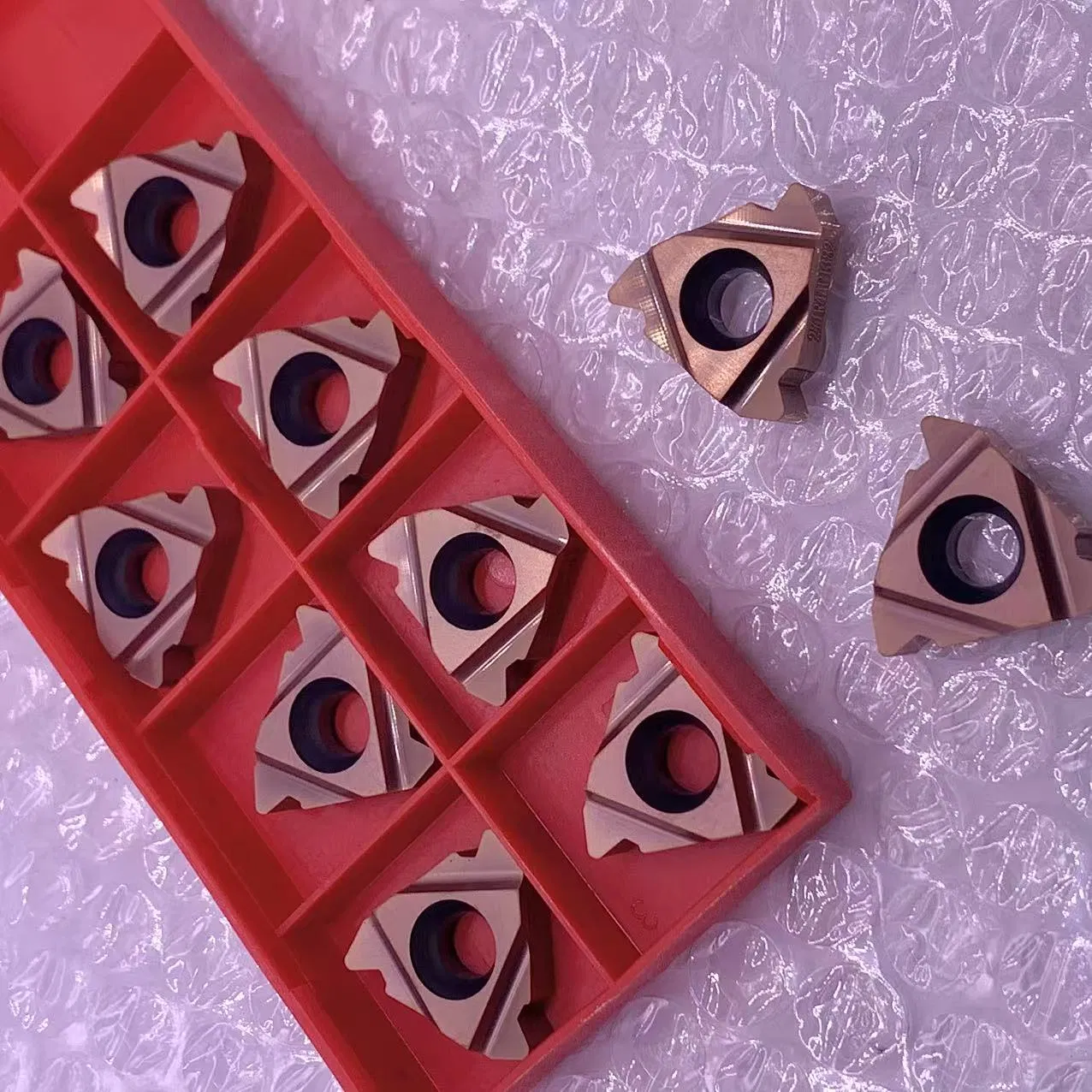

Standards: ISO Metric, UN, BSP. Pitch range: 0.5–3.0 mm. Nose angle: 60° (general) or 30° (trapezoidal).
Models: MGMN200/300/400, TGF32R100. Groove width: 1.0–5.0 mm. Optimized for interrupted cutting and high impact loads.
We cooperate with top international couriers including SF International, FedEx, UPS, DHL, and AMX. We cover 200+ countries/regions with delivery times ranging from 3-7 workdays for key routes. Custom shock-absorbing packaging ensures tool protection during transit.
