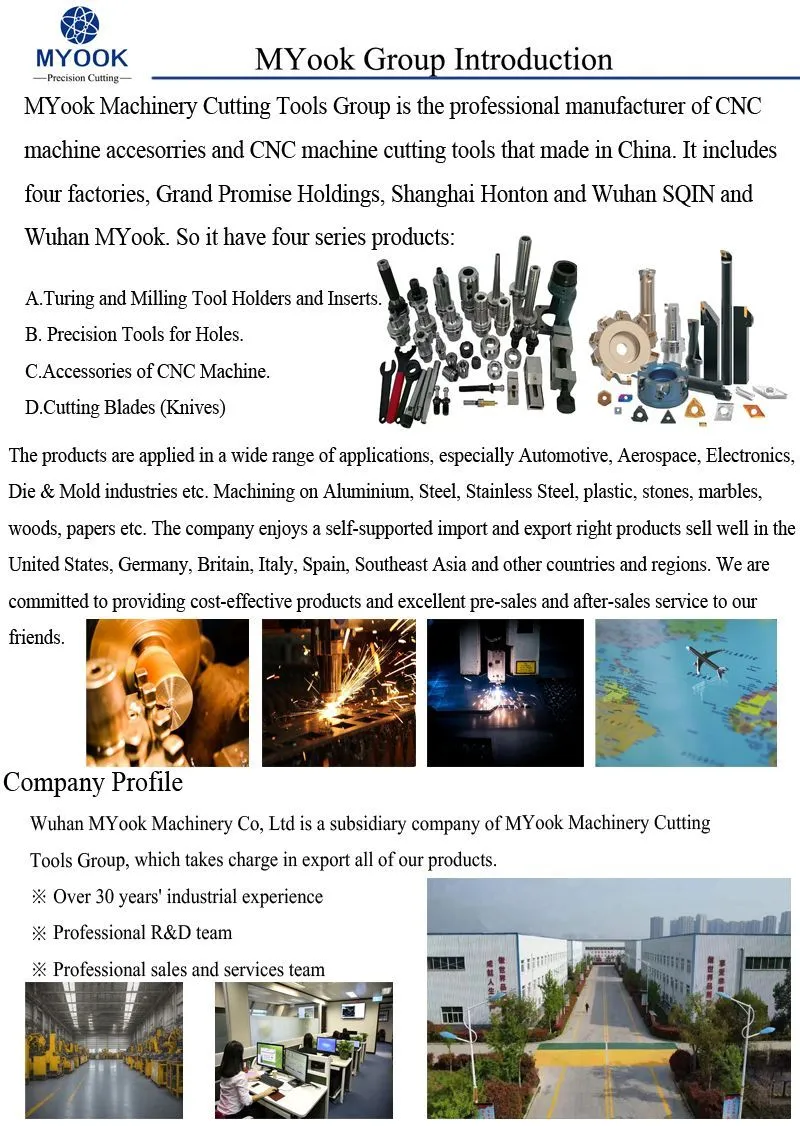

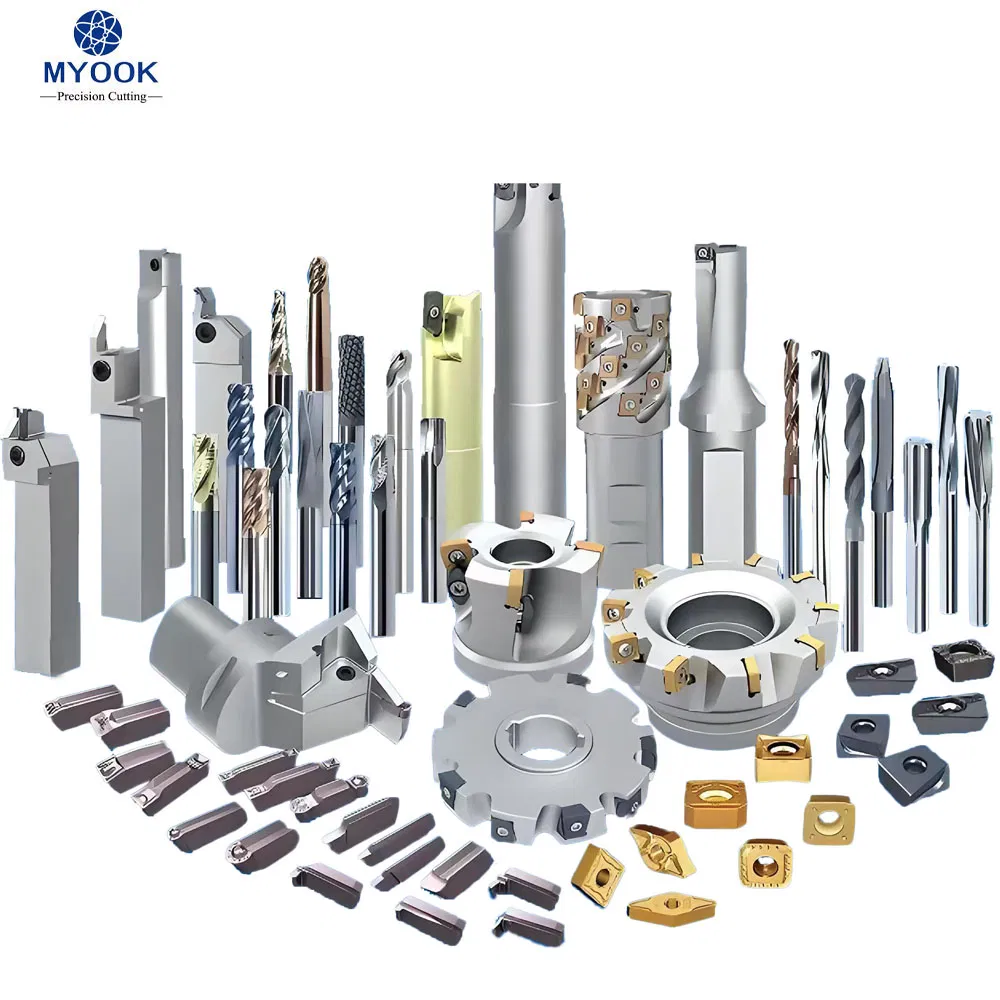

Our group maintains strong technical expertise in CNC indexable tool holders and carbide inserts, including turning tool holders & milling tool holders (for external & internal machining), threading tool holders, and grooving tool holders. All sizes of carbide inserts are available to ensure a perfect fit.
Excellent wear and abrasive resistance for long-term use.
Large stock availability ensures fast delivery for your projects.
Attractive pricing combined with high quality and professional service.
Advanced technical support to solve all processing solutions.

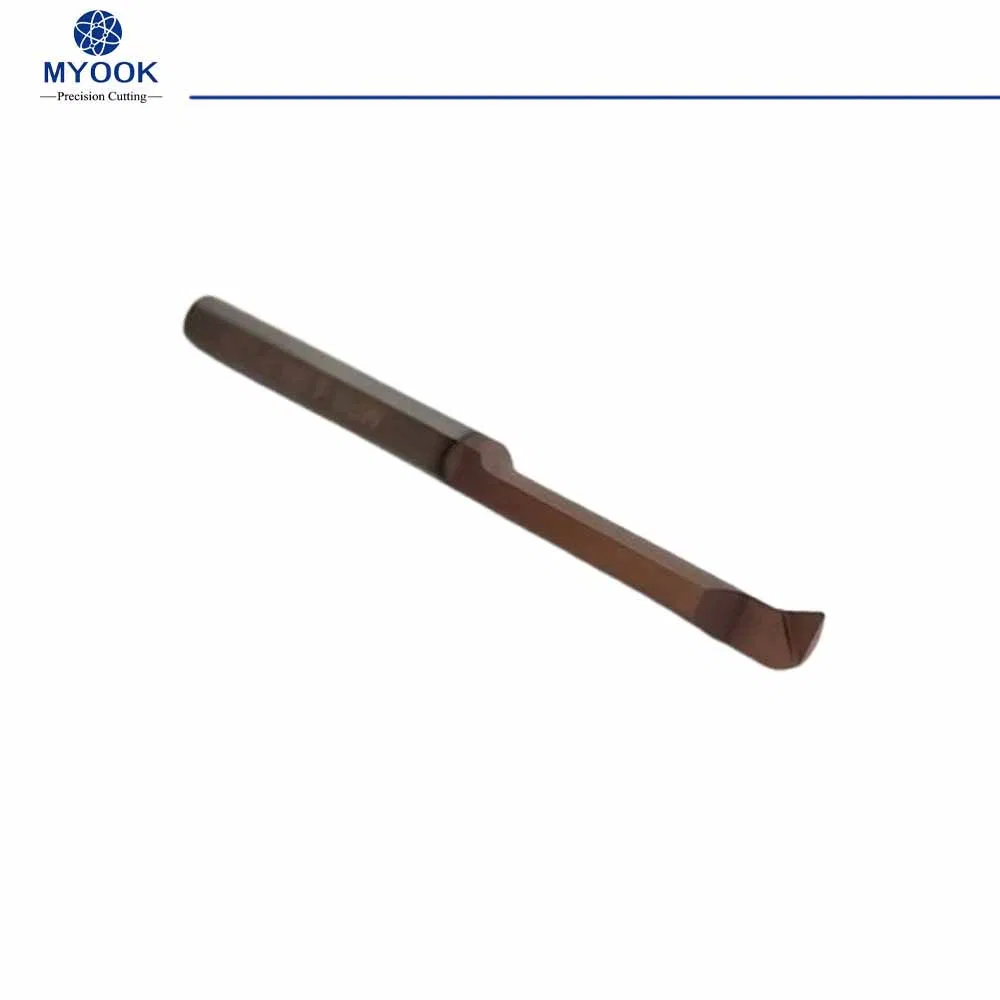

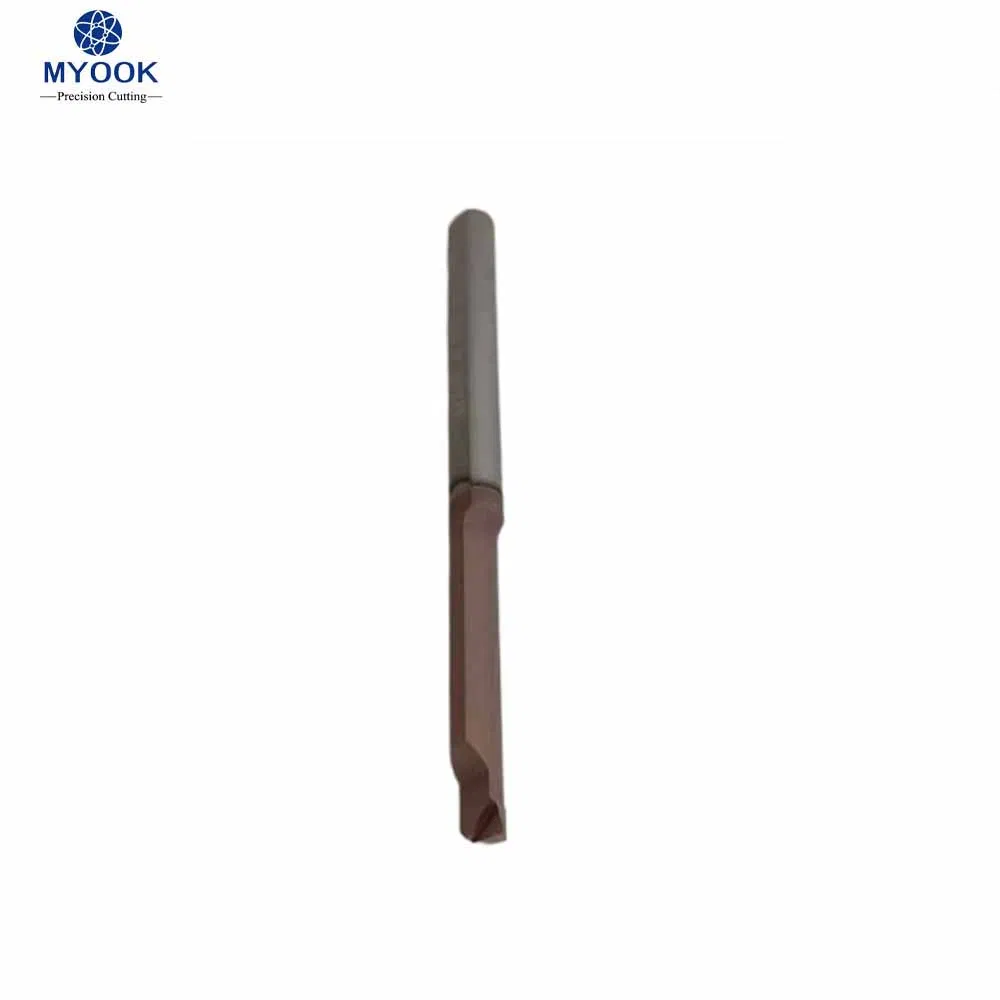

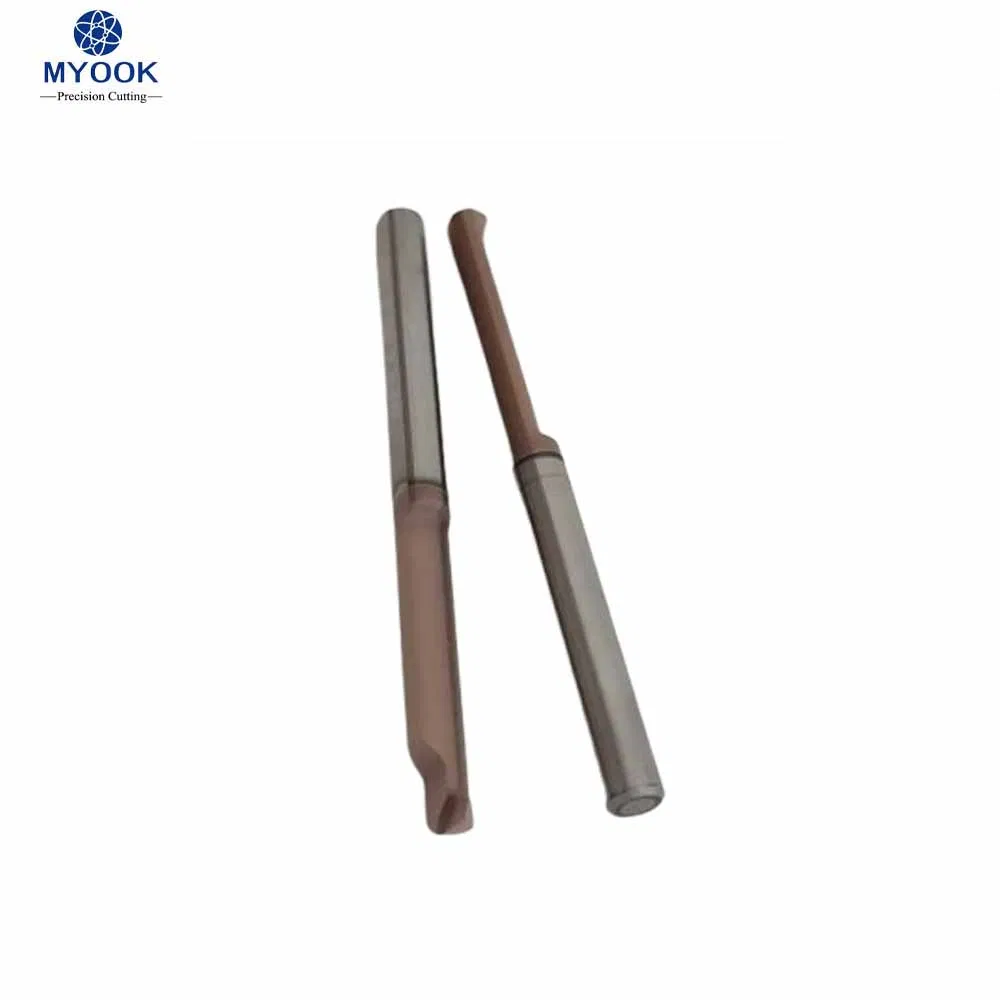

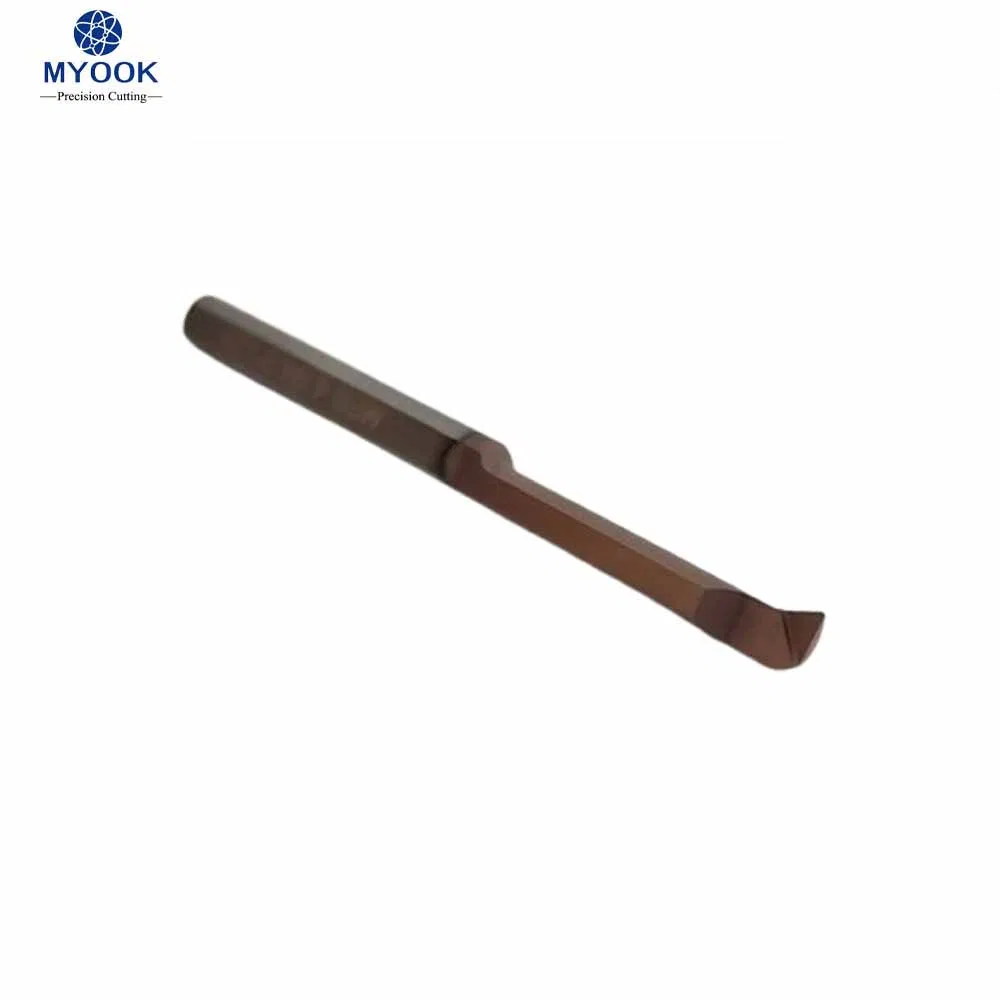

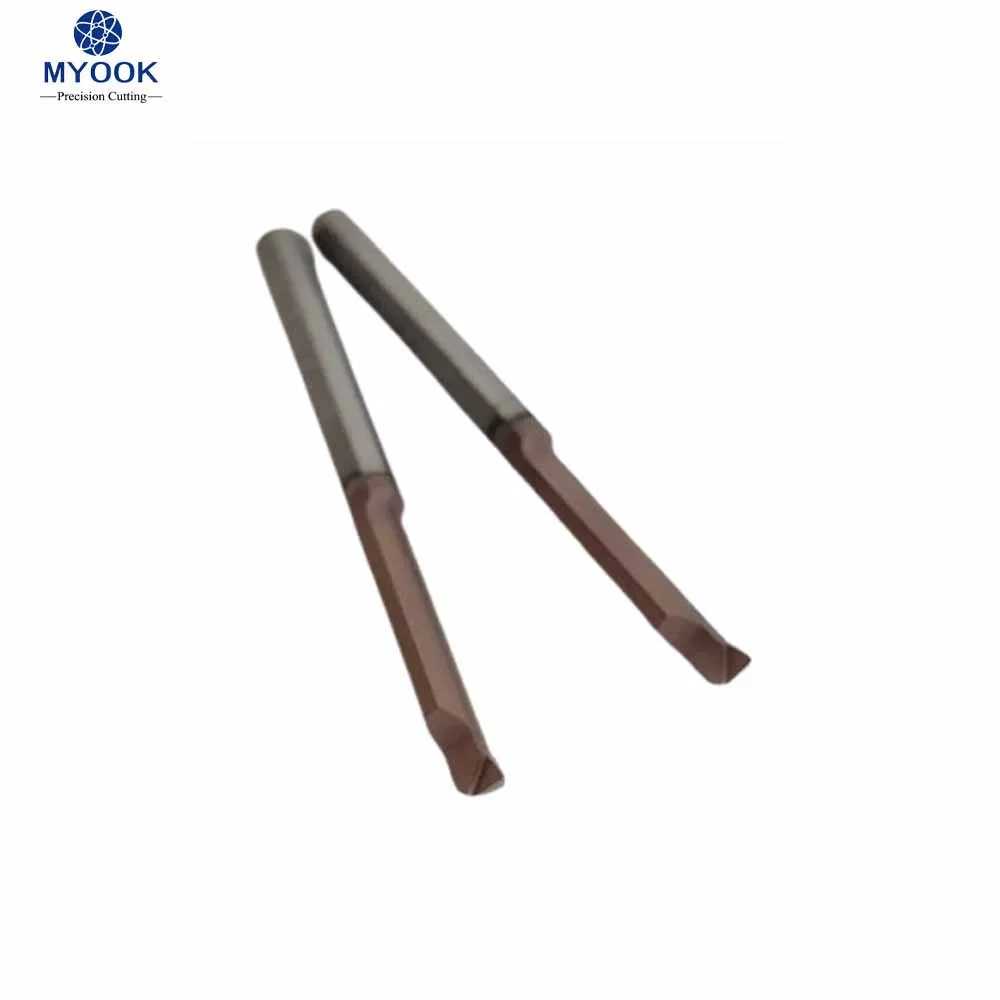

Standard model data for Micro-Groove Boring Bar. Custom or special model requirements can be accommodated upon request.

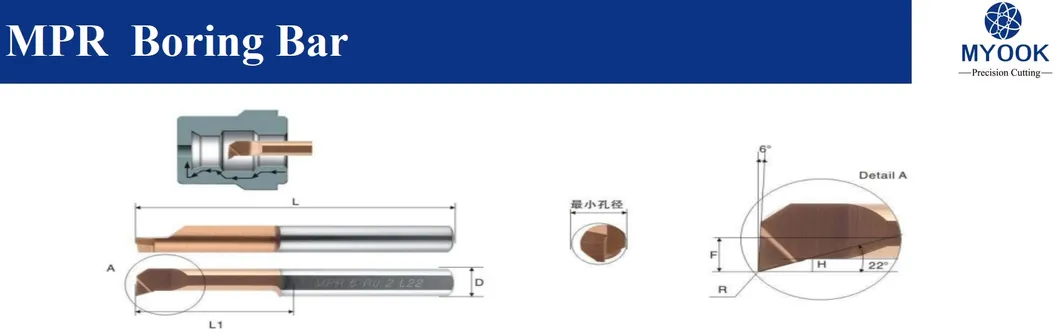

| D | Type | L | L1 | R | H | F | Minimum Hole |
|---|---|---|---|---|---|---|---|
| 2.0 | MPR 2 R0.1 L10 | 50 | 10 | 0.10 | 0.5 | 0.8 | 2.1 |
| 2.0 | MPR 2 R0.15 L5 | 50 | 5 | 0.15 | 0.5 | 0.8 | 2.1 |
| 3.0 | MPR 3 R0.15 L15 | 50 | 15 | 0.15 | 0.7 | 1.3 | 3.1 |
| 3.0 | MPR 3 R0.2 L22 | 50 | 22 | 0.20 | 0.7 | 1.3 | 3.1 |
| 4.0 | MPR 4 R0.15 L15 | 50 | 15 | 0.15 | 0.8 | 1.7 | 4.1 |

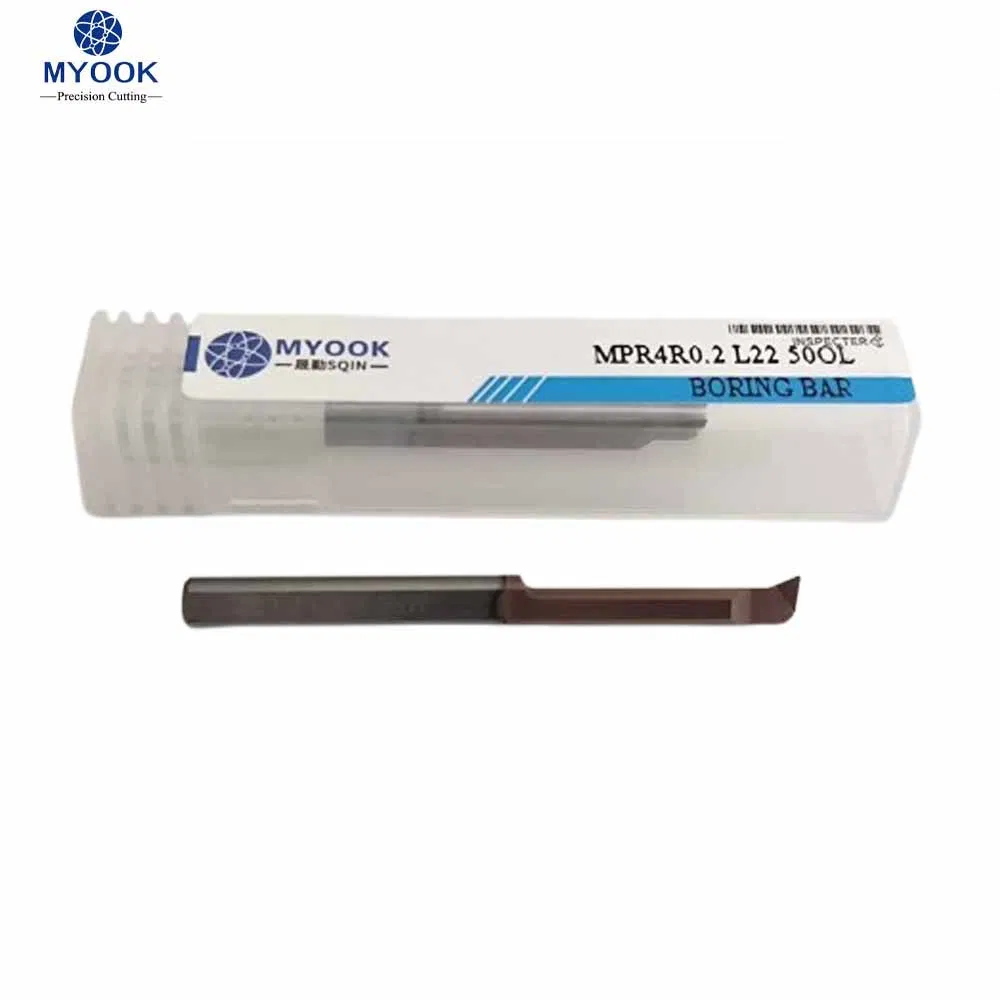

| 4.0 | MPR 4 R0.2 L22 | 50 | 22 | 0.20 | 0.8 | 1.7 | 4.1 |
| 5.0 | MPR 5 R0.2 L22 | 50 | 22 | 0.20 | 1.2 | 2.1 | 5.1 |
| 6.0 | MPR 6 R0.2 L30 | 80 | 40 | 0.40 | 1.4 | 2.8 | 6.1 |
