| Bore diameter range(mm) | 60-420 |
| Center height(mm) | 450 |
| Maximum depth range of boring hole(mm) | 1000-3000 |
| Chuck diameter(mm) | 325 |
| Central frame clamping diameter range(mm) | 20-180(Standard) / 50-400(Special) |
| Main spindle speed range | 70-1200r/min (Level 12) |
| Main motor | 15kW |
| Feed rate range(mm/min) | 5~2000 stepless |
| Feed motor | 4.5kW servo motor |
| Cooling system flow rate(L/min) | 80 / 180 / 280 |

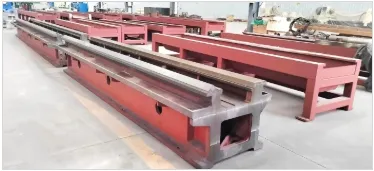

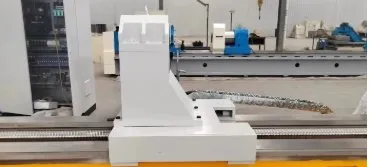

Machine Tool Bed
Made of high strength cast iron with reinforced internal plate design for maximum rigidity.

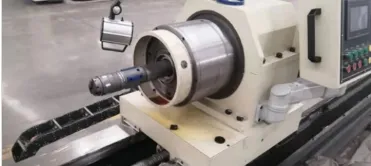

Oil Pressure Head
Key part for tool oil supply, drilling guidance, and supporting the workpiece.
Control System

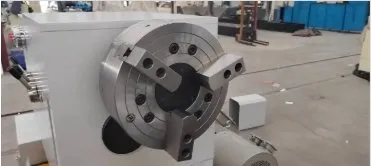

Three-jaw Chuck
Foundation Support

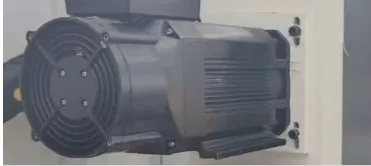

Servo Motor
High-performance servo motor brand for precision feed control.

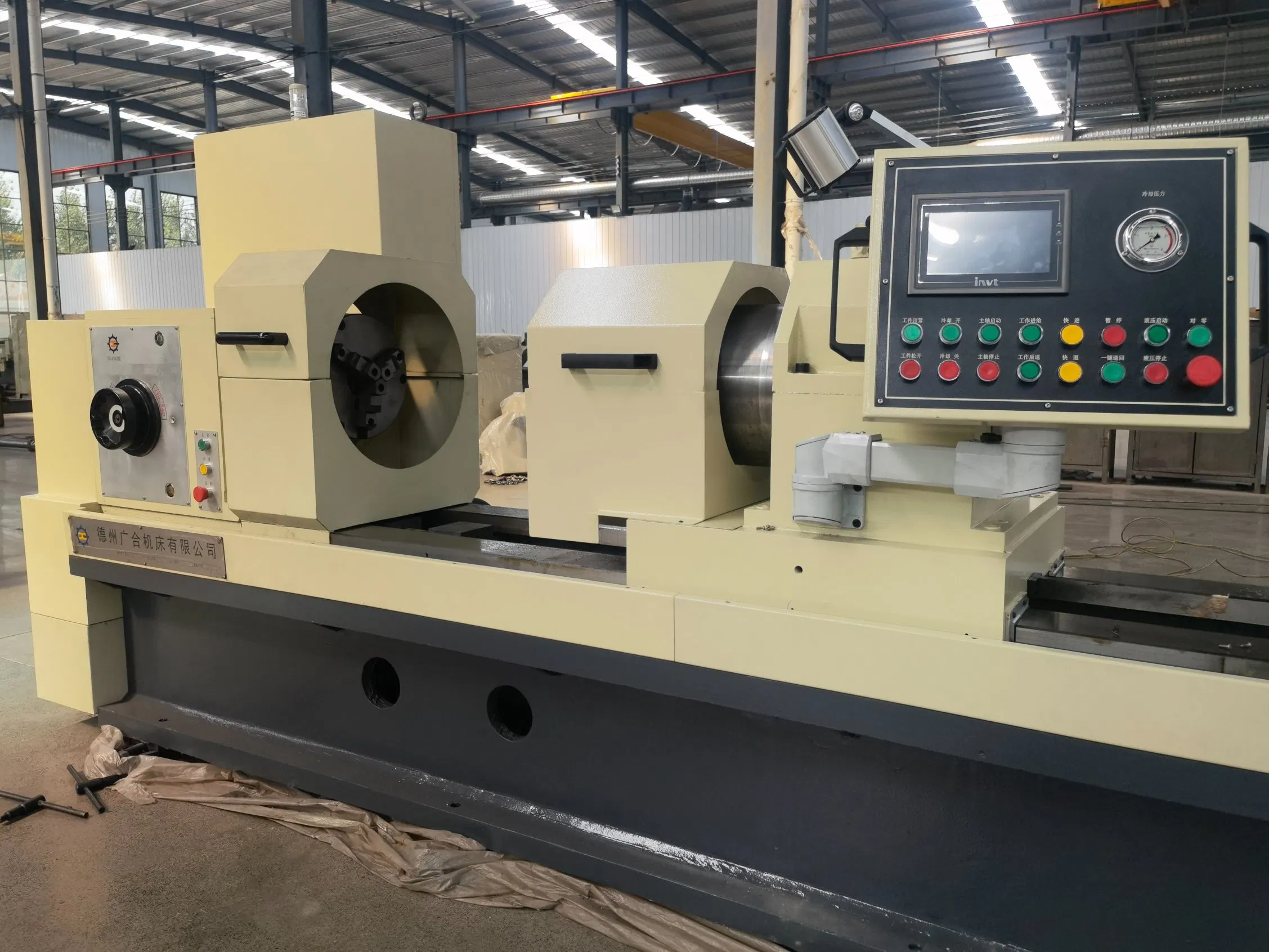

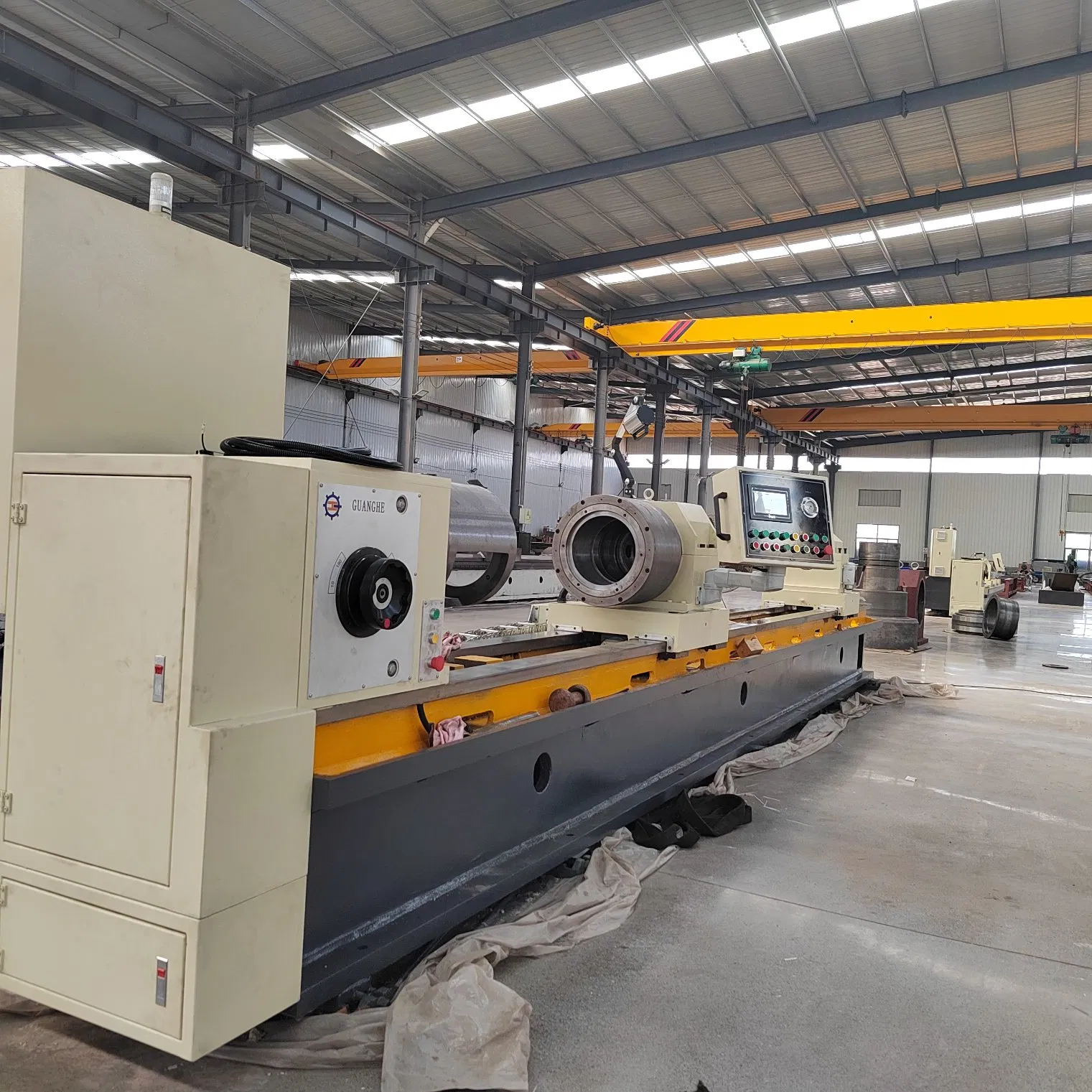

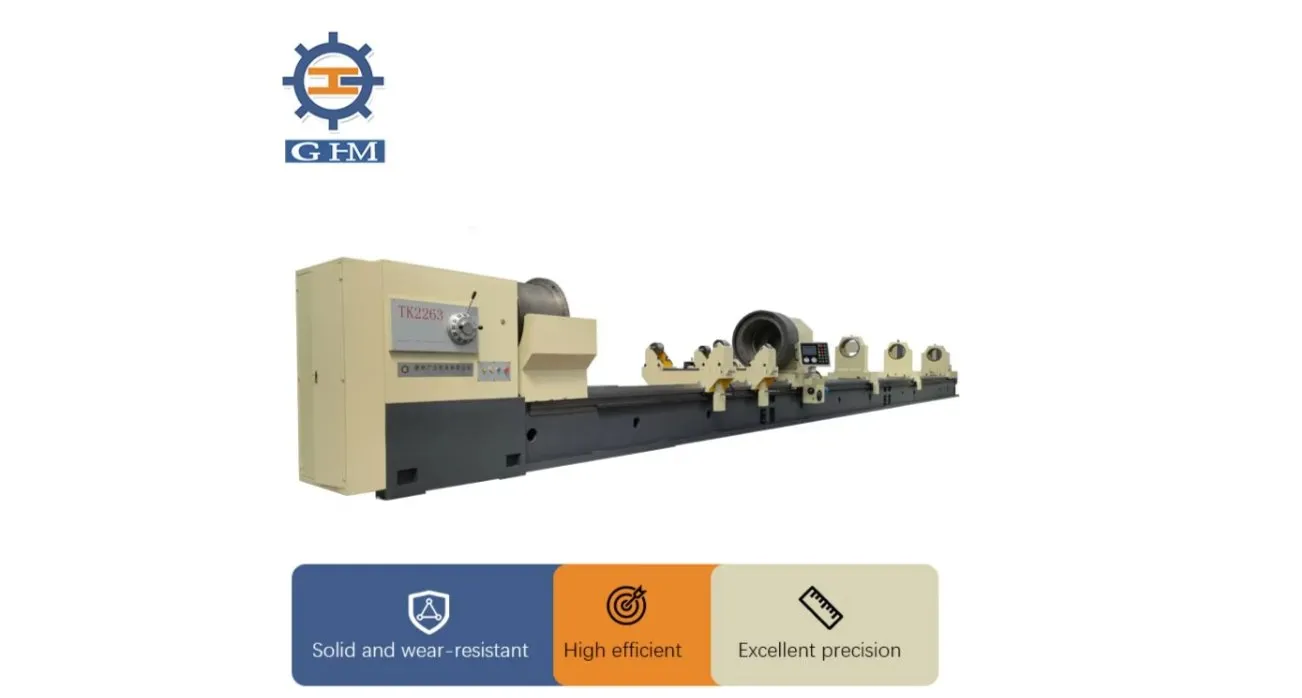

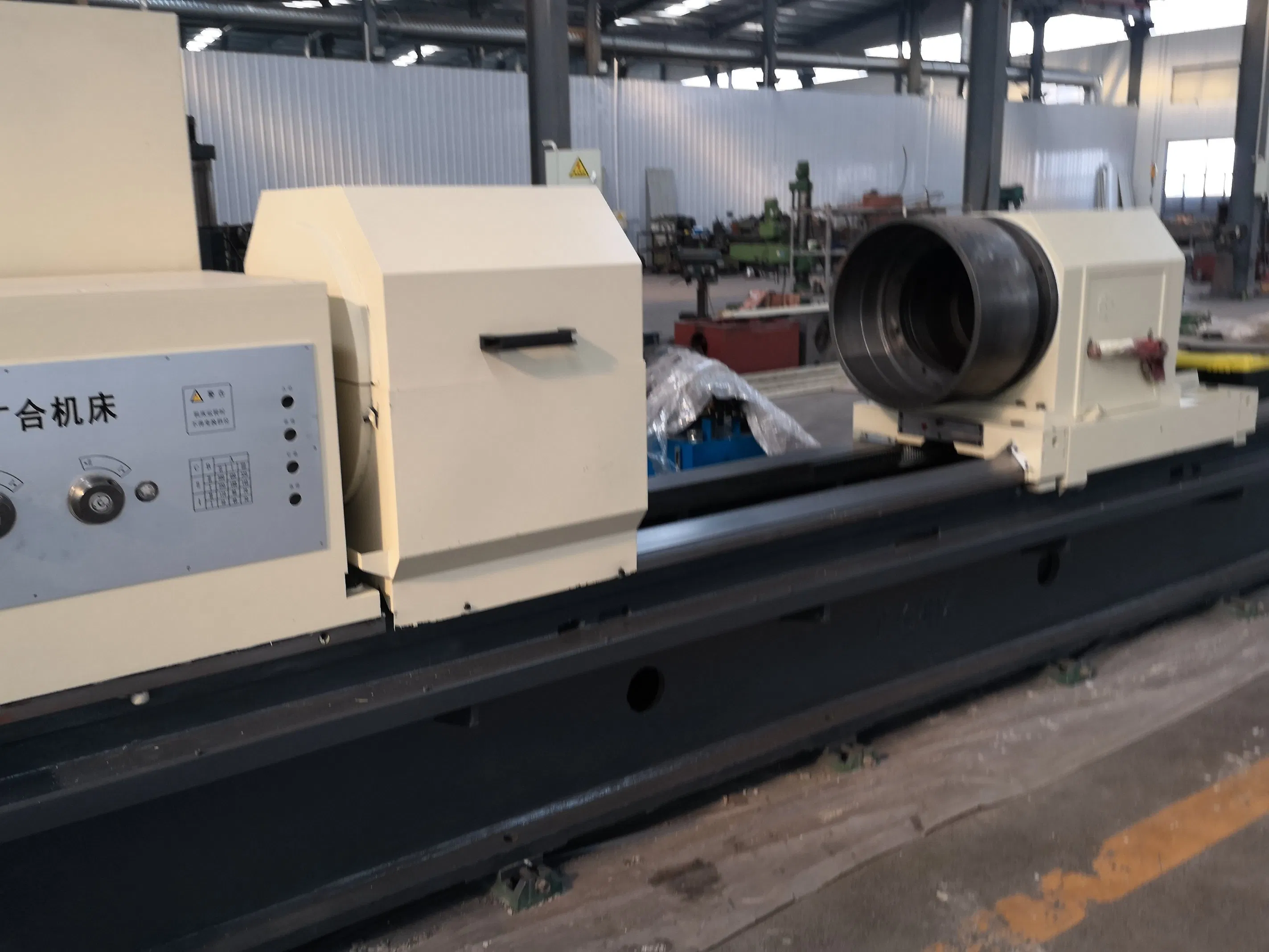

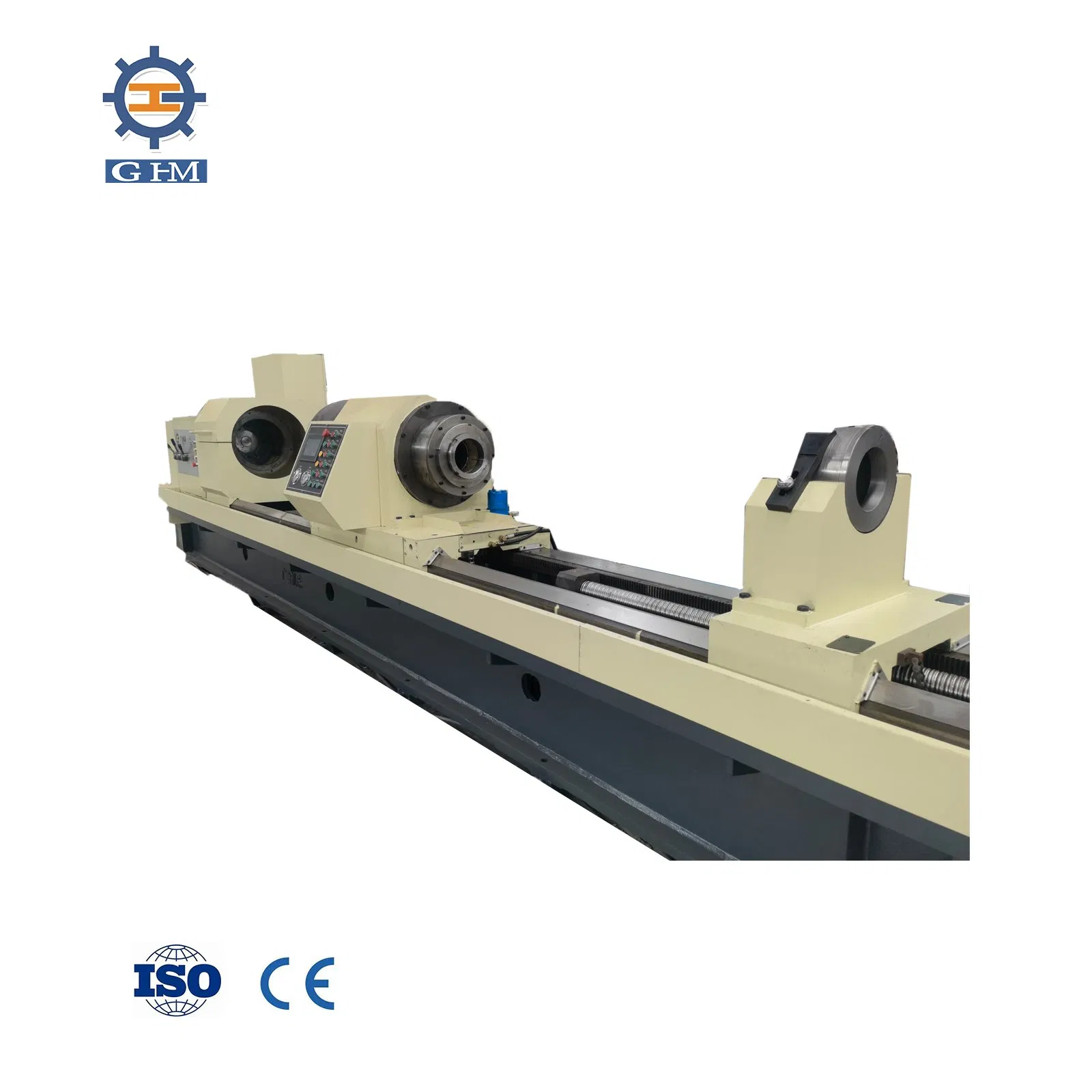

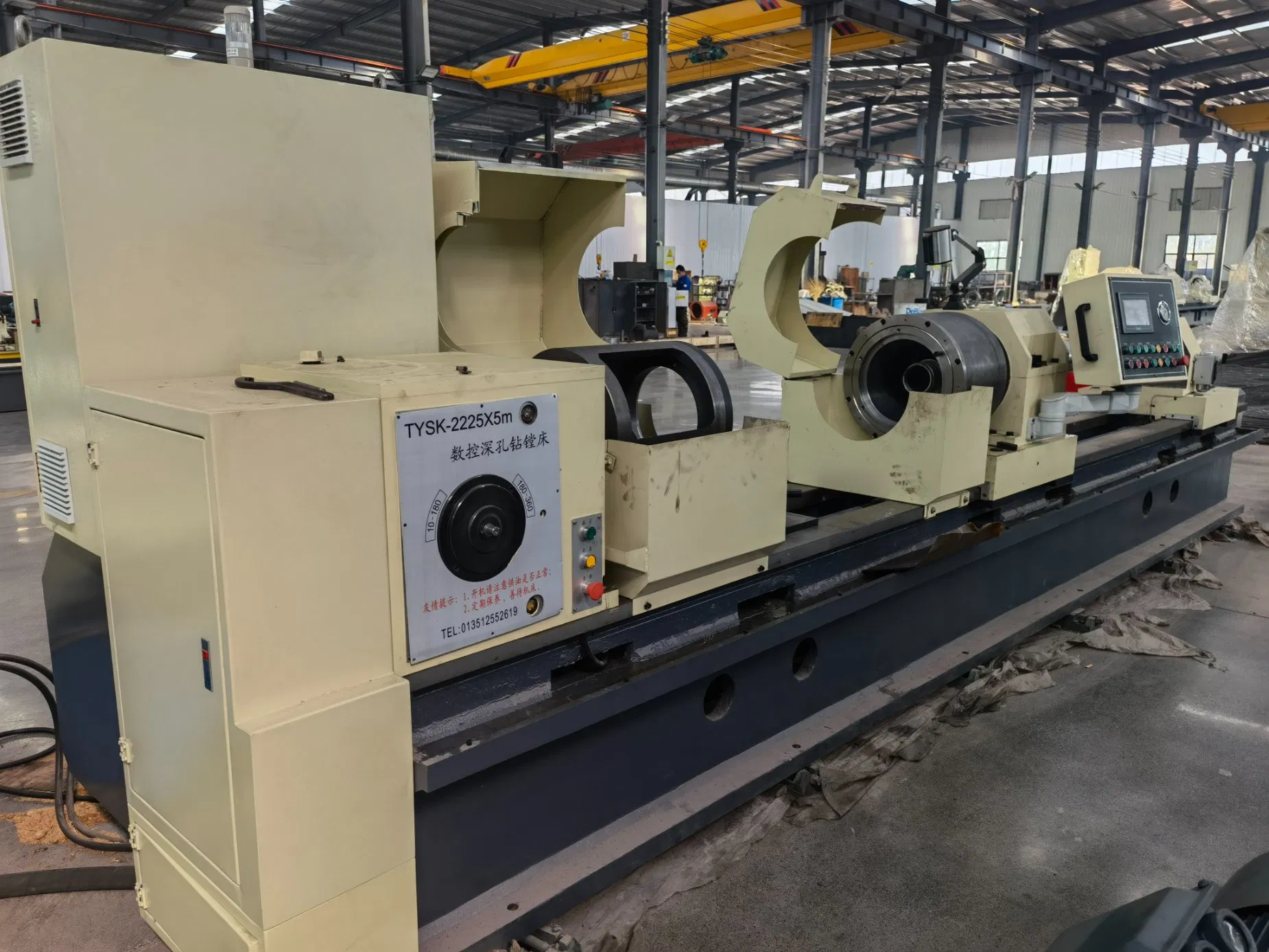

CNC Deep Hole Drilling and Boring

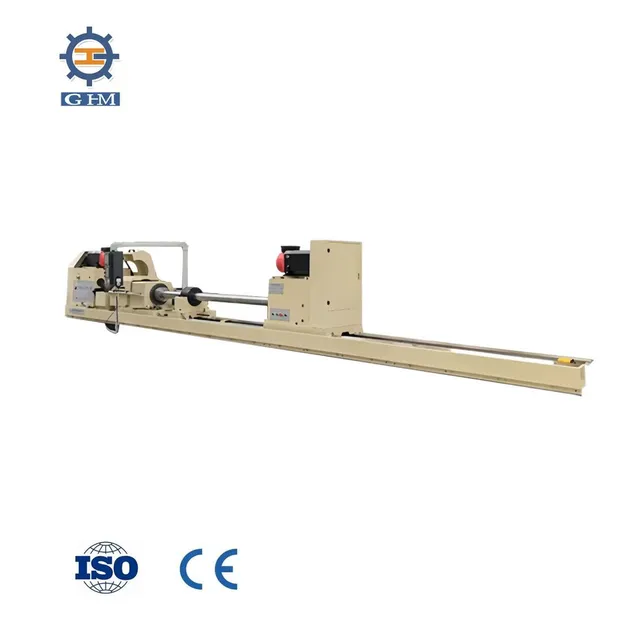

CNC Scraping and Rolling Machine
CNC Deep Hole Honing Machine

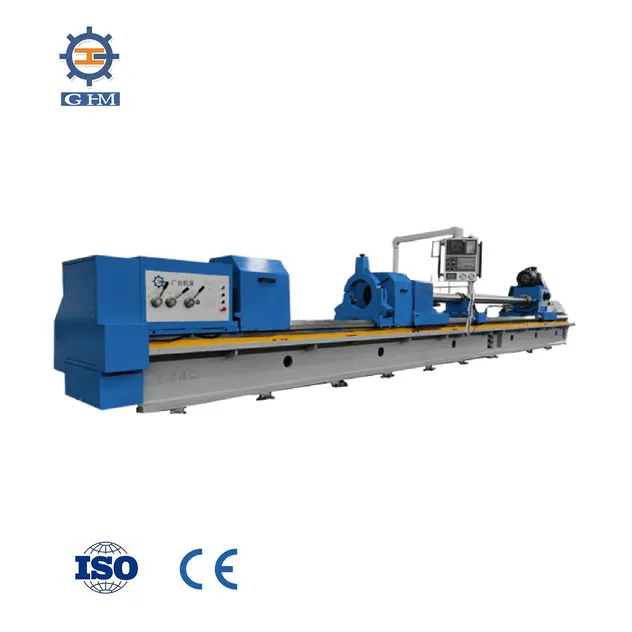

Deep hole drilling machines utilize specific techniques such as BTA drilling and spray suction drilling to process precision holes with a length-to-diameter ratio greater than 10. This represents an advanced and efficient hole machining technology, ensuring high consistency and accuracy in production.
Our equipment is designed to handle challenging materials and complex chip-breaking requirements, making it ideal for high-end manufacturing of gun barrels, hydraulic cylinders, and machine tool spindles.
