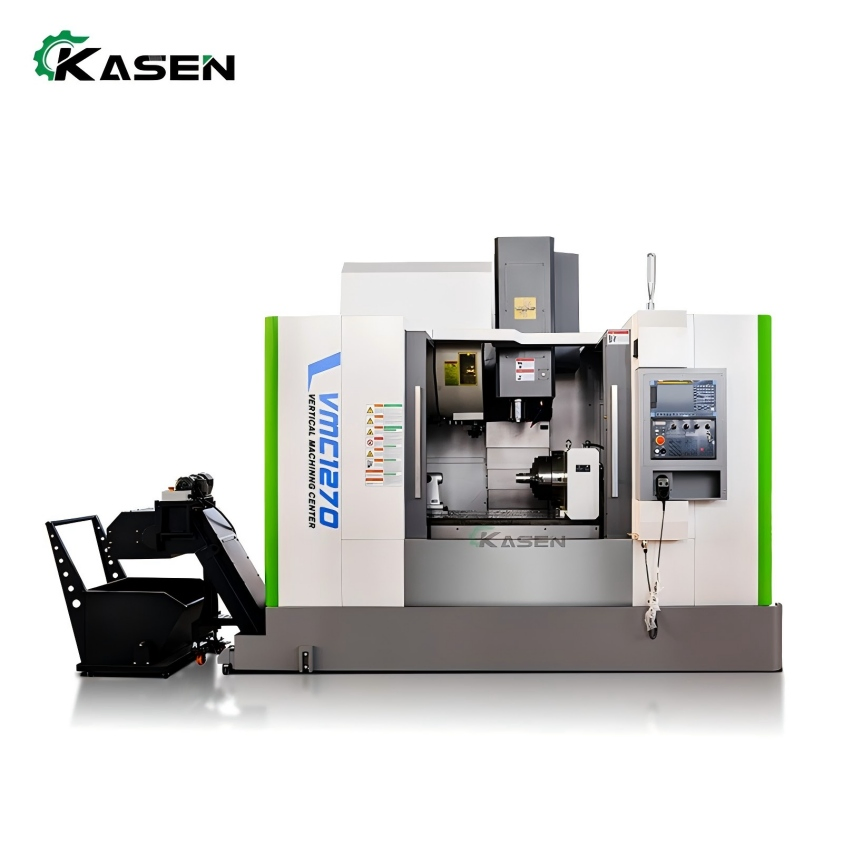

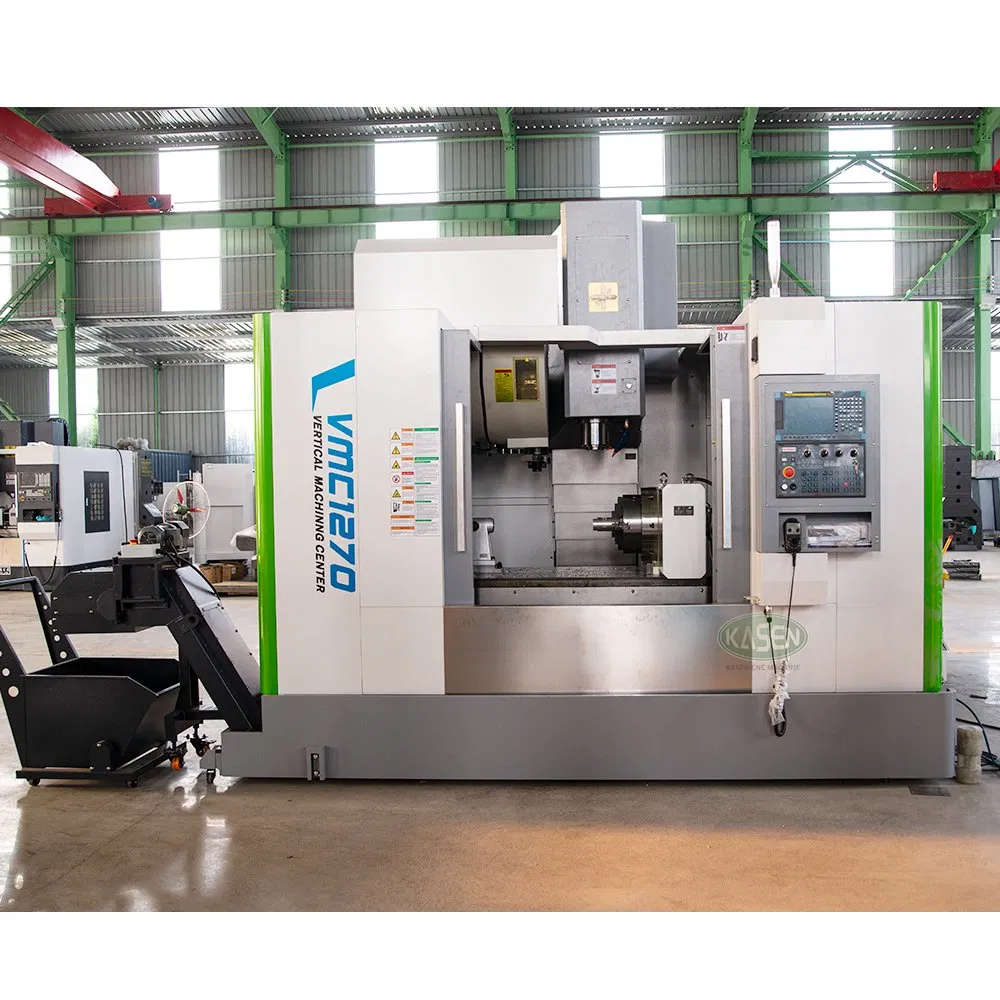

High-Speed 24 Tool Magazine CNC Milling Machine Vmc1270 Metal Machining

Customization:	Available
After-sales Service:	Online Support
Warranty:	2 Years

📋 Basic Info.

Model NO.

VMC1270

Application

Metal

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

X .Y.Z Axis Travel

1200X700X600mm

Table Size

1300X700mm

Spindle Speed

8000rpm

Main Motor Power

11kw

Max. Table Load

1200kg

ATC

24

Certification

GS, CE, RoHS, ISO 9001

Condition

New

⚙️ Product Description

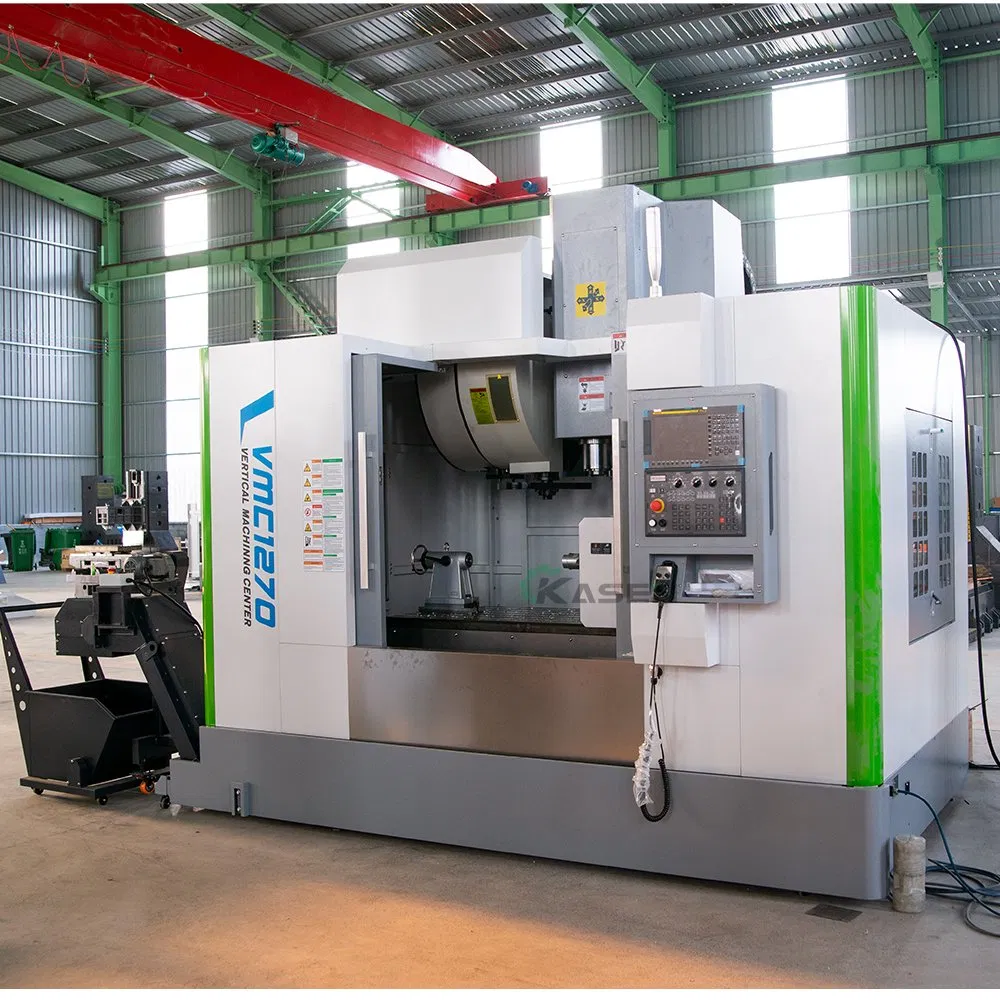

VMC1270 High Precision And Quality Machine Bt40 Cnc Vertical Machining Center

Key Features

Complete casting process body for maximum stability

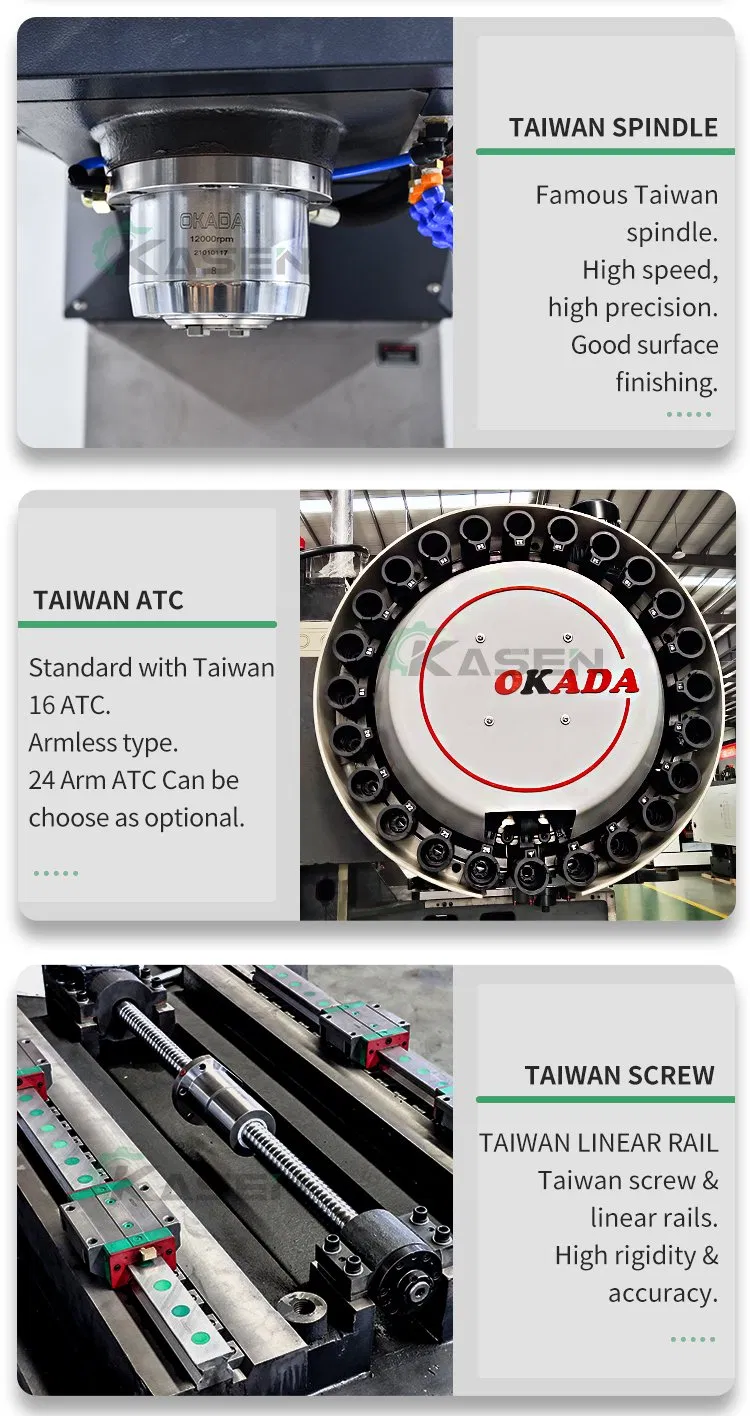

High-speed Taiwan Spindle (Customizable speed)
Precision Taiwan Ball Screw and Locking Nut
Japanese NSK Bearings and Germany R+W Coupling
Automatic Lubrication System included

Optional Configurations

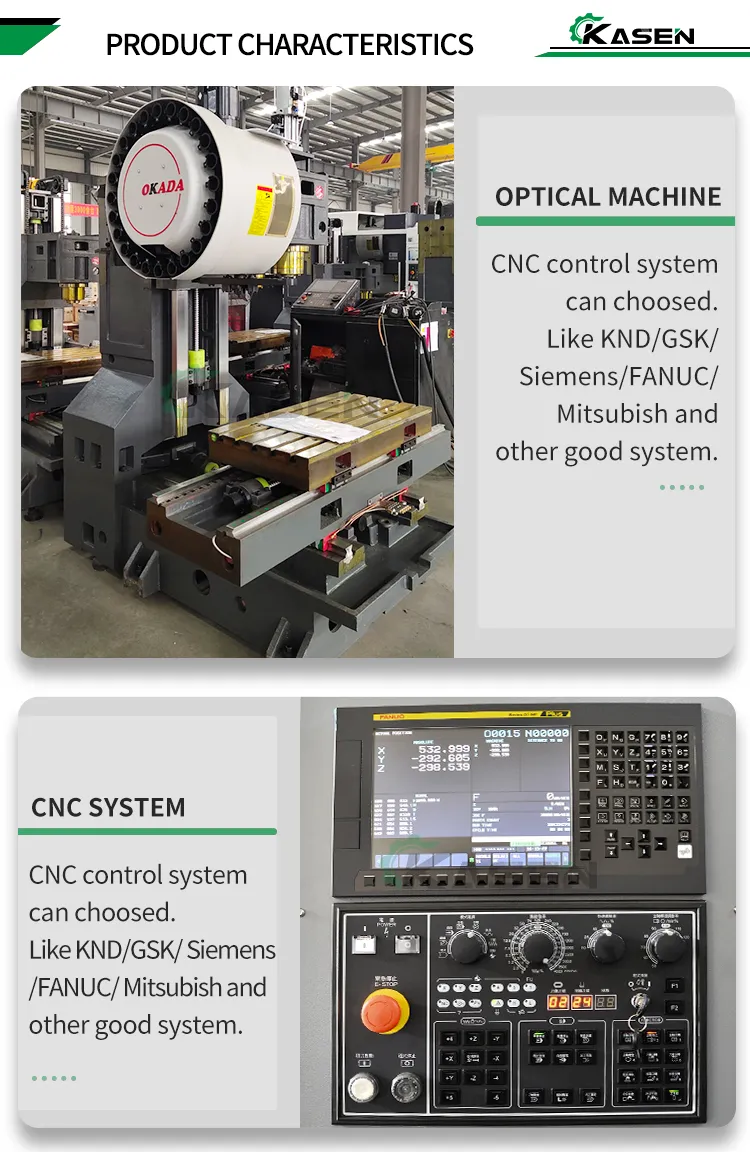

Systems: Syntec, Siemens, Fanuc, Mitsubishi

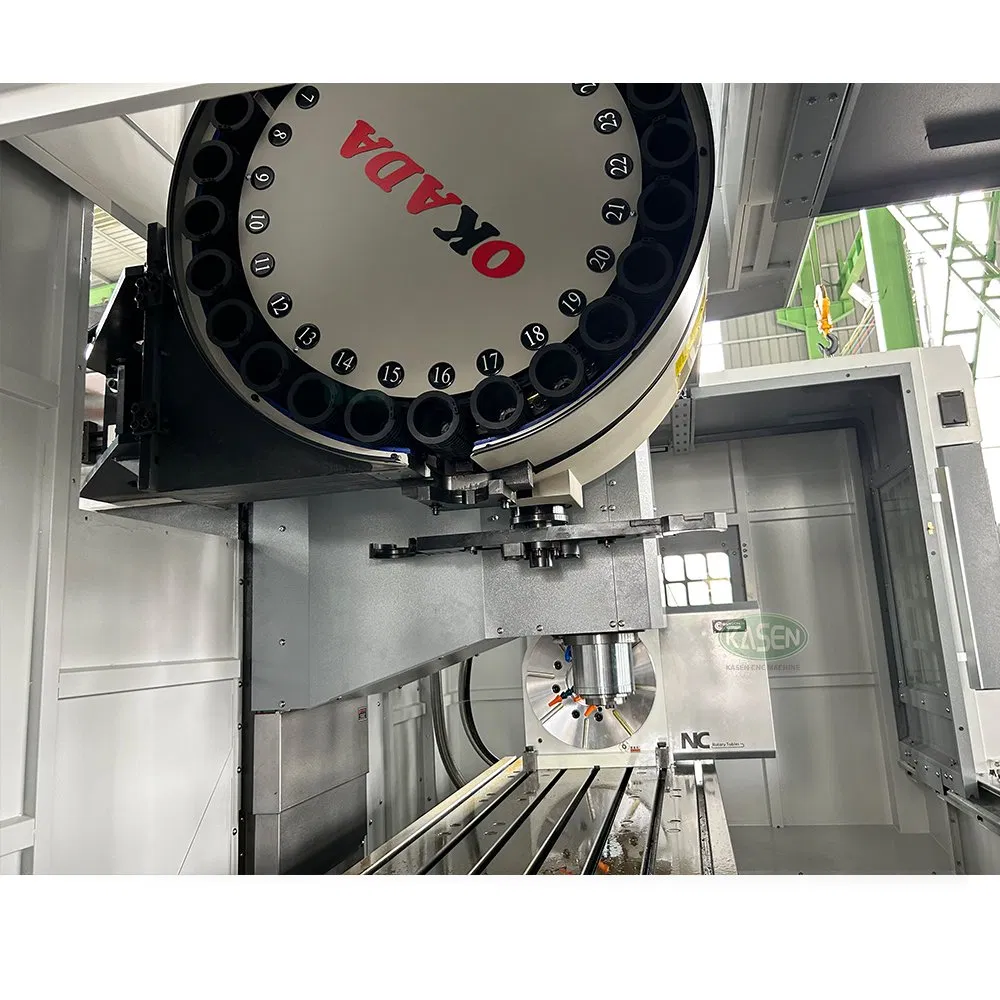

24 Arm Tool Magazine
4th Axis & 5th Axis capabilities
Spindle Oil Cooling & Chip Conveyor
Direct-connected electric spindle 12000RPM

📊 Main Technical Specifications

Specifications	Units	VMC1270
Table size	mm	1300x700
X/Y/Z axis travel	mm	1200/700/600
Max. worktable load	kg	1200
Spindle speed	rpm	8000 (Optional: 10000)
Spindle taper	-	BT50/BT40
Main motor power	kw	11/15
X/Y/Z rapid traverse	m/min	24/24/18
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine	-	Arm 24
Machine weight	kg	9500

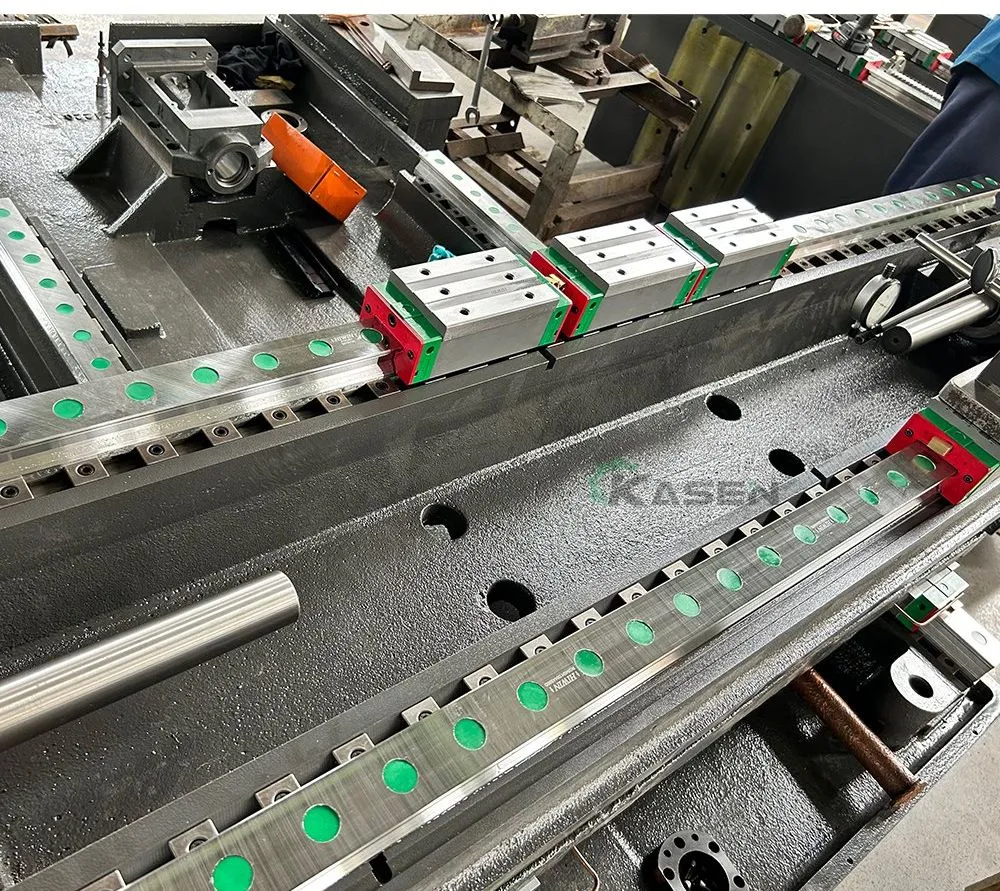

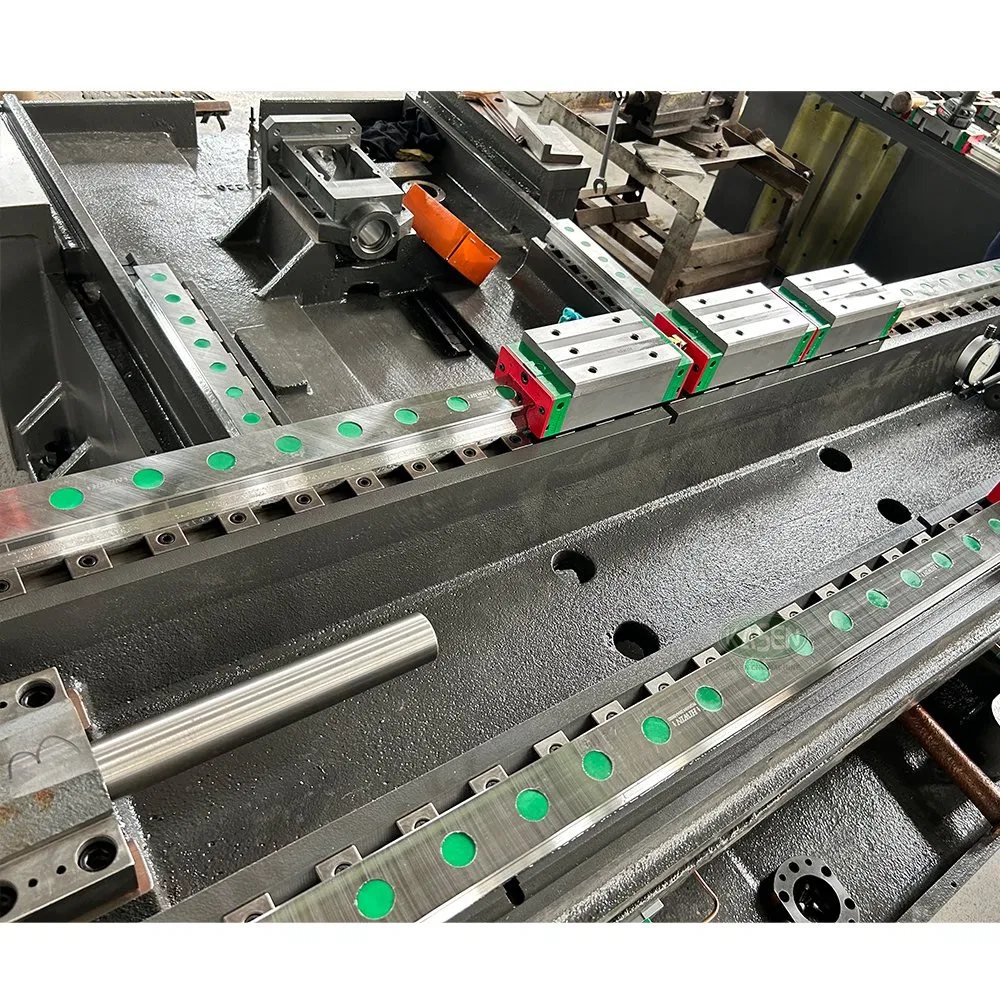

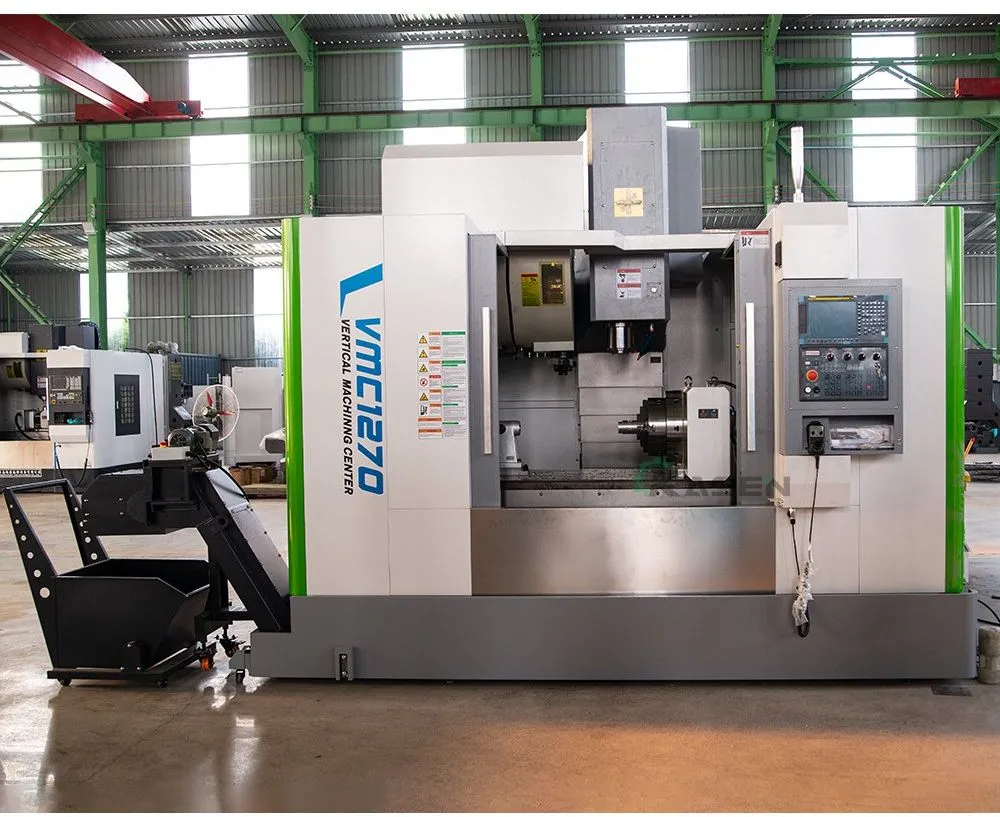

🖼️ Detailed Photos

🛠️ After Sales Service

1. Warranty

General 13 months after B/L date. During this period, parts damaged due to quality issues (excluding human error) are replaced free of charge.

2. Quick Response

Expert technical support specialists available 24/7 to provide assistance whenever you face pressing issues.

3. Online Support

Technical solutions delivered via video and instant messaging for immediate troubleshooting and guidance.

❓ FAQ

🔵 1. What is the standard warranty for this machine?

The warranty period is one year. If parts are damaged due to non-human factors, we provide new replacement parts free of charge.

🔵 2. How do you provide after-sales technical support?

We offer comprehensive online support. Customers can send videos or pictures of the issue, and our technicians provide step-by-step solutions.

🔵 3. What kind of packaging is used for shipment?

We use export-standard fumigation-free plywood cases with a sturdy steel base for maximum protection during transit.

🔵 4. What are the accepted payment terms?

Typically, we require a 30% initial payment upon ordering, with the remaining 70% balance due before shipment via T/T.

🔵 5. What is the Minimum Order Quantity (MOQ)?

The MOQ for our CNC Machining Centers is 1 set.

🔵 6. Can the machine configuration be customized?

Yes, we offer various options including different CNC systems (Fanuc, Siemens, etc.), additional axes, and specific tool magazine capacities.
