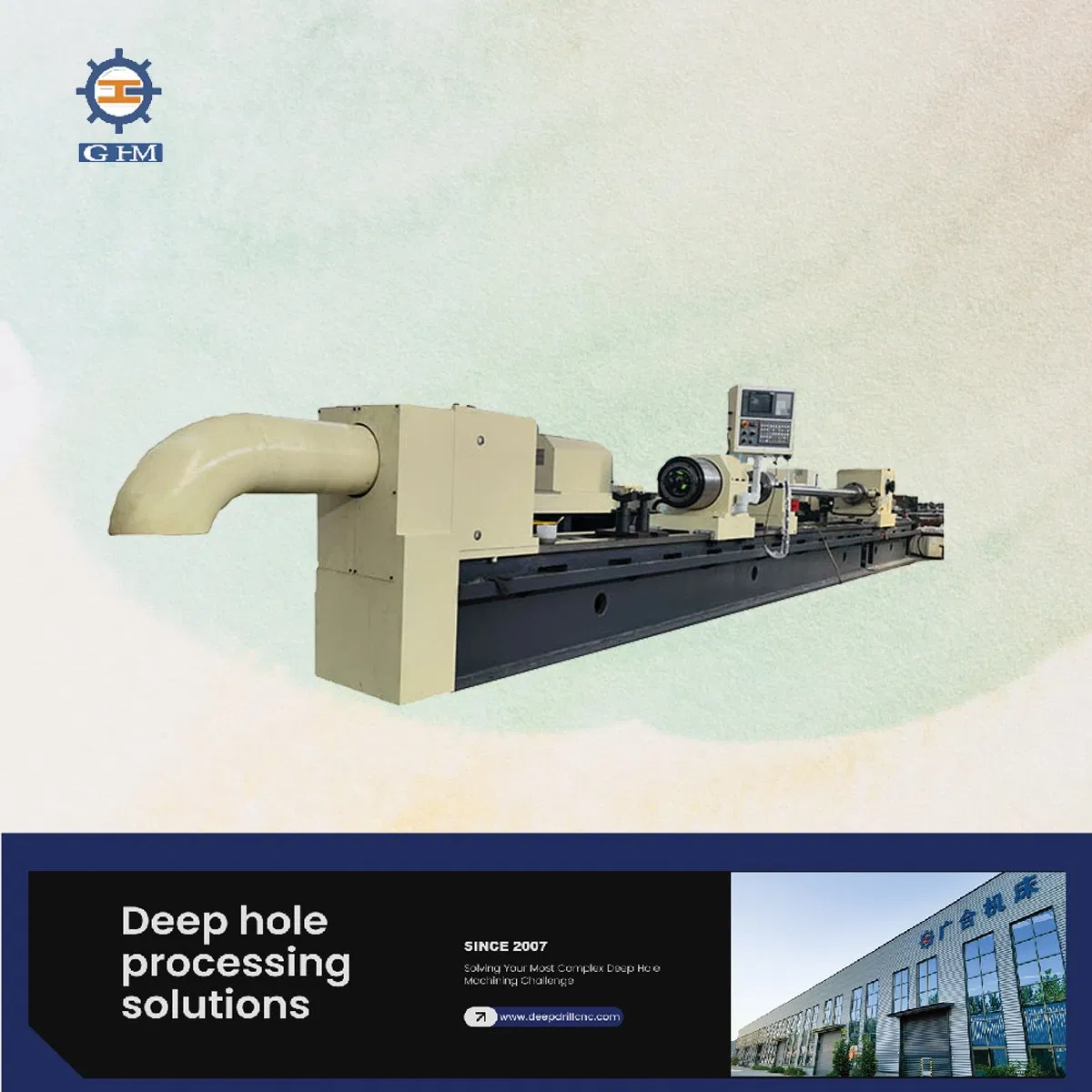

This advanced system achieves remarkable IT7-IT8 dimensional accuracy and superior surface finishes of Ra0.3-0.4μm. Capable of processing both hot-rolled and cold-drawn tubes, it combines multiple operations into one efficient process, significantly reducing production costs.

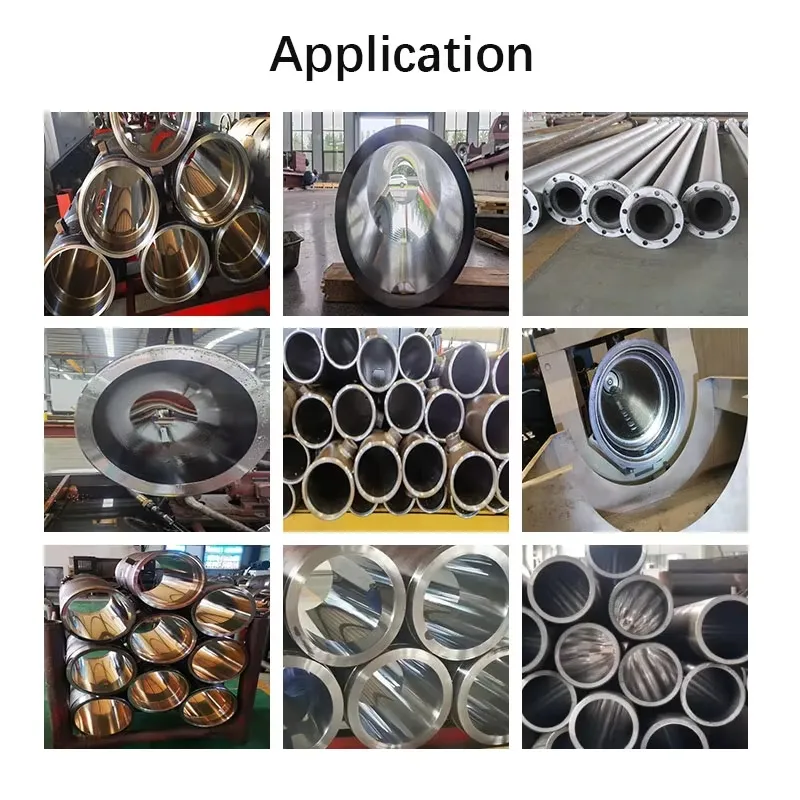

Featuring a robust construction, 10-500r/min variable spindle, and automated chip management, it ensures exceptional stability and consistency for industrial applications. Ideal for hydraulic systems, automotive components, energy equipment, and specialized manufacturing.
Technical Specifications
Custom configurations are available upon request to meet specific industrial needs.
Model
TGK2120
Operating Weight (kg)
800
Engine Power (kW)
4.5
Range of Spindle Speed (r.p.m)
20-255
Drilling Speed (mm/min)
10-3000
Voltage (V)
380
Bore Diameter Range (mm)
40-200
Maximum Depth of Boring Hole (mm)
500-2000
Operational Video
Key Configurations
Spindle System
Main Spindle: 90kW Siemens servo motor (20–255 RPM).
Boring Spindle: 74kW Siemens servo motor (10–500 RPM).
Feed System: 5kW Siemens servo motor + HIWIN/TBI ball screw.
Cooling: Dual centrifugal pumps (36m³/h total flow).
Filtration: Magnetic separator + paper filter (6000L tank).
Details Images

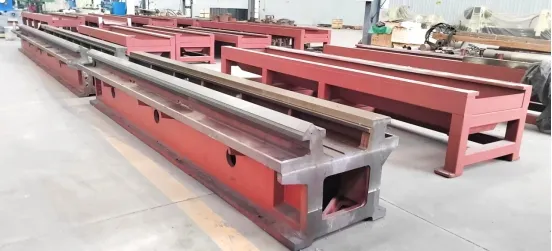

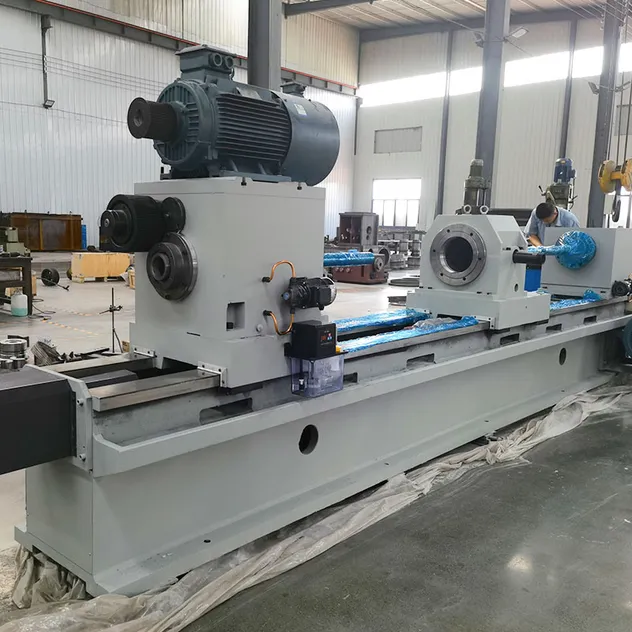

Machine Tool Bed

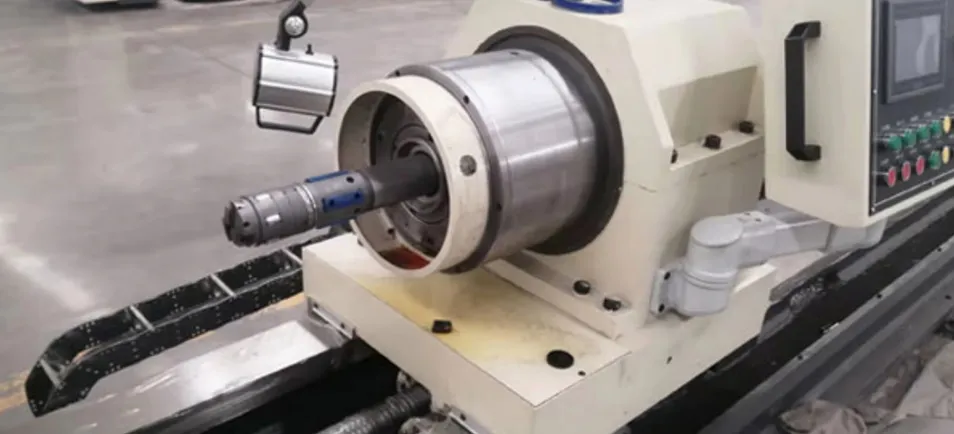

Oil Pressure Head

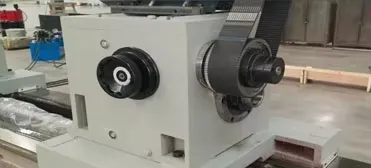

Drill Pipe Box

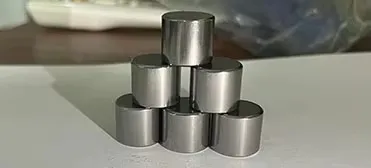

Ball Screw Components

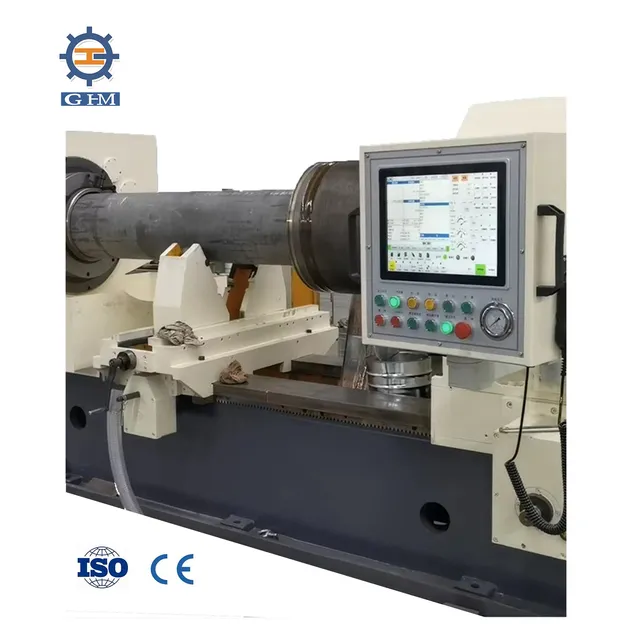

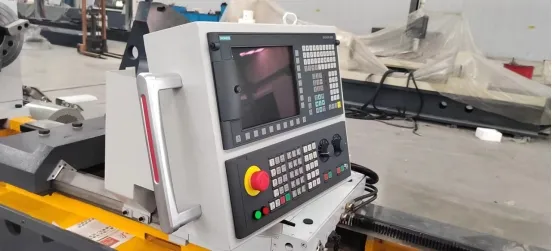

Siemens Control System

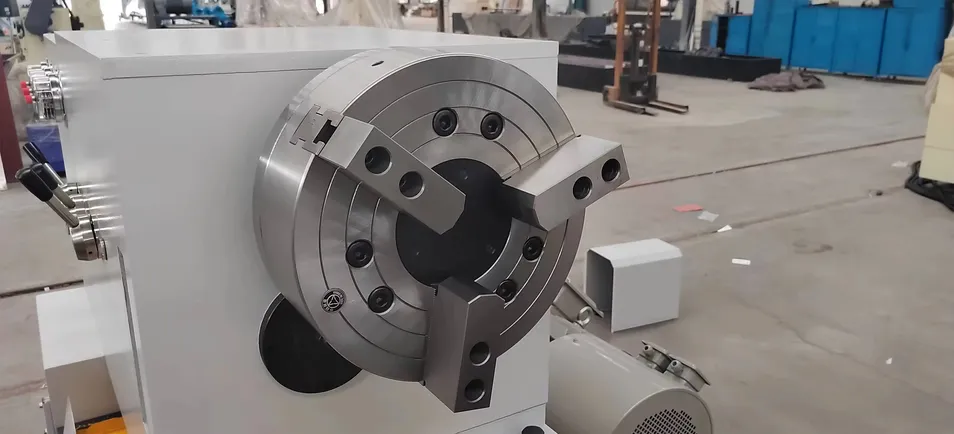

Three-Jaw Chuck
After Sales Service
Standard Warranty: 12-month warranty for mechanical and electrical components.
Global Support: 24/7 technical assistance and spare parts supply.
Professional Training: Remote training via video conference for operators.
Maintenance: Lifetime technical support via phone, email, and video.
Professional Deep-Hole Solutions
Specializing in R&D, production, and sales of high-precision deep-hole machine tools since 2007. Our products include boring machines, drilling units, scraping and rolling tools, and honing equipment. With over 17 years of industry experience, we maintain a focus on innovation and quality management.
Certifications
Frequently Asked Questions
Q: What kind of after-sales support do you provide?
A: We offer free training at our facility and can dispatch engineers overseas for machinery service and installation if required.
Q: What is the standard warranty period?
A: The complete machine comes with a one-year warranty and lifetime maintenance support.
Q: How do you ensure the quality of the machines?
A: Every machine is rigorously tested before packing. We use international well-known brand spare parts and perform layer-by-layer inspections from R&D to production.
Q: What is the typical lead time for an order?
A: It depends on the order quantity. Small quantities typically ship within 7-15 days, while larger or custom orders take approximately 30 days.
Q: Can the machine configurations be customized?
A: Yes, we specialize in CNC deep-hole equipment that can be tailored to meet the specific dimensional and operational requirements of our customers.
Q: Why should we choose your deep-hole machining solutions?
A: We combine 17 years of industry expertise with a large R&D team, ensuring our technology remains ahead in terms of ease of use, durability, and finishing precision.
