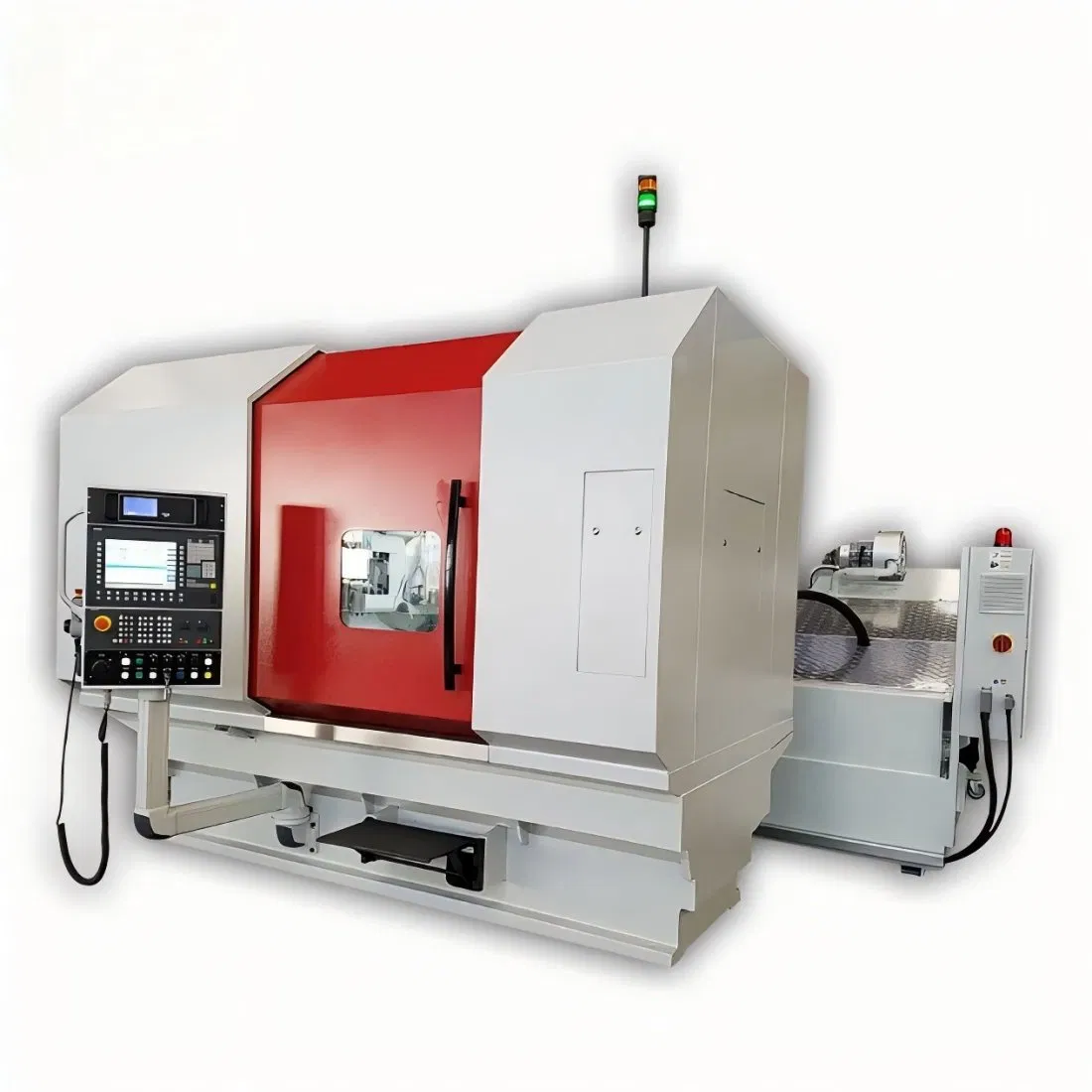

| Project Item | Parameters | Unit |
|---|---|---|
| Maximum workpiece diameter | φ320/360 | mm |
| Maximum workpiece tooth width | 280 | mm |
| Maximum workpiece module | 6-8 | mm |
| Maximum workpiece helix angle | ±45 | ° |
| Horizontal distance (Grinding wheel center to table center) | 90~360 | mm |
| Max vertical movement (Y-axis) | 250 | mm |
| Max speed of grinding wheel (Y-axis) | 7000 | mm/min |
| Vertical distance (Wheel center to table surface) | 130~450 | mm |
| Distance table face to rear column tailstock (W-axis) | 250~850 | mm |
| Max table speed (C-axis) | 7000 | rpm |
| Grinding wheel spindle power (B-axis) | 3000~6000 | rpm |
| Equipment dimensions (L x W x H) | 4300x5600x3500 | mm |
| Main machine weight | about 10000 | kg |
