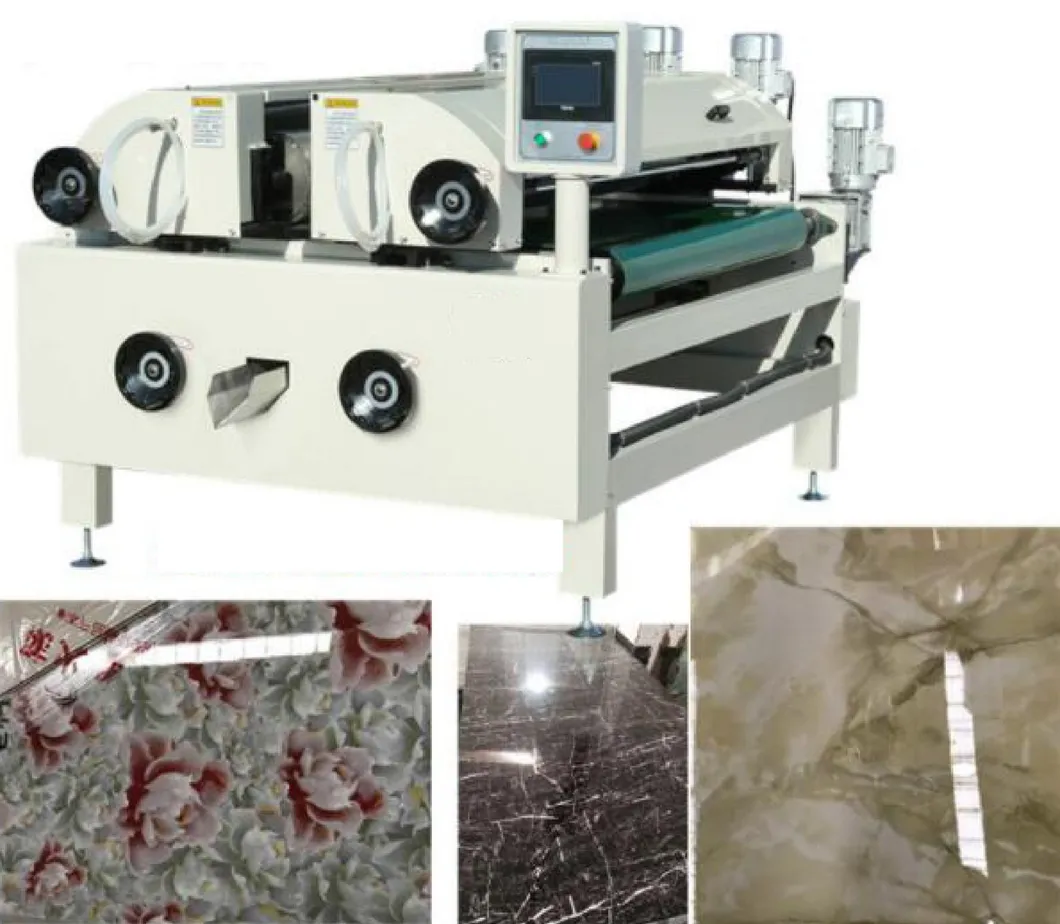

Double Roll Reverse Roller Coater Machine Wood Finishing with UV Curable Coatings Glass Magnesium Board Primer, Top Coat or Coloring of Furniture,

1 / 5

Double Roll Reverse Roller Coater Machine Wood Finishing with UV Curable Coatings Glass Magnesium Board Primer, Top Coat or Coloring of Furniture,

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Machine Color

Made According to Your Need

Package

Safe Wooden Box or Plastic Film Wrapping

Voltage

380V, 220V 50Hz (Customizable)

Delivery Detail

Quick Delivery in 25 days

Warranty Time

12 Months (Free Spare Parts and Service)

Weight

1500 kgs

Type

Electrostatic Spraying Equipment

Application

Wood and Plastic Spraying

Certification

CE, ISO, SGS

Operation

Automatic

HS Code

84198990

Capacity

100 Sets / Year

Production Introduction

It applies rubber coated roller and steel push roller revolve to cover the liquid paint on board surface precisely and circularly, which without any paint waste and environmentally friendly.

Versatile Performance: Able to coat thin even paint film in one pass. By adjusting height, speed, and roller tightness, it easily achieves different paint film thicknesses. Suitable for UV, PU, WB, or NC paint, etc.

Applications: Furniture, flooring, doors, bathroom cabinets, wall boards, glass, PVC, PMMA, tiles, metal, etc.

Main Technical Parameters

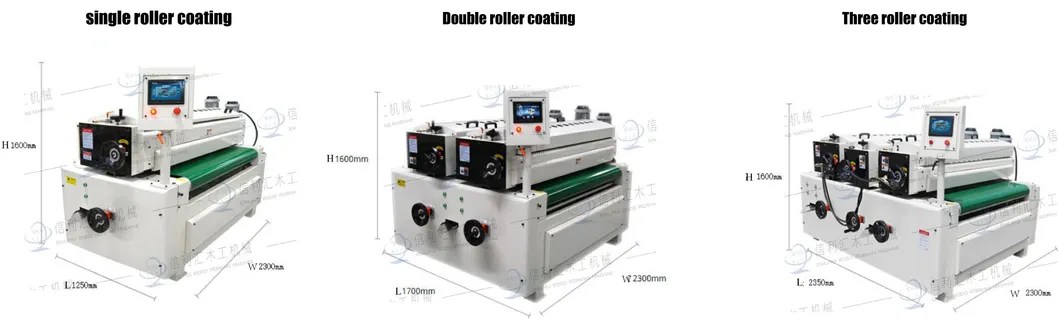

Model	XLH600	XLH1000	XLH1300
Coating Width	600mm	1000mm	1300mm
Feeding Speed	5-30 m/min	5-30 m/min	5-30 m/min
Feeding Power	0.75kw	0.75kw	1.5kw
Coating Roller Power	0.75kw x 2	0.75kw x 2	1.5kw x 2
Smooth Roller Power	0.37kw x 2	0.37kw x 2	0.75kw x 2
Heating Power	3 kw	3 kw	3 kw
Total Motor Power	6 kw	6 kw	9 kw
Dimensions	1600x1350x1300mm	1600x1750x1300mm	1600x2150x1300mm
Weight	1100kg	1400kg	2500kg

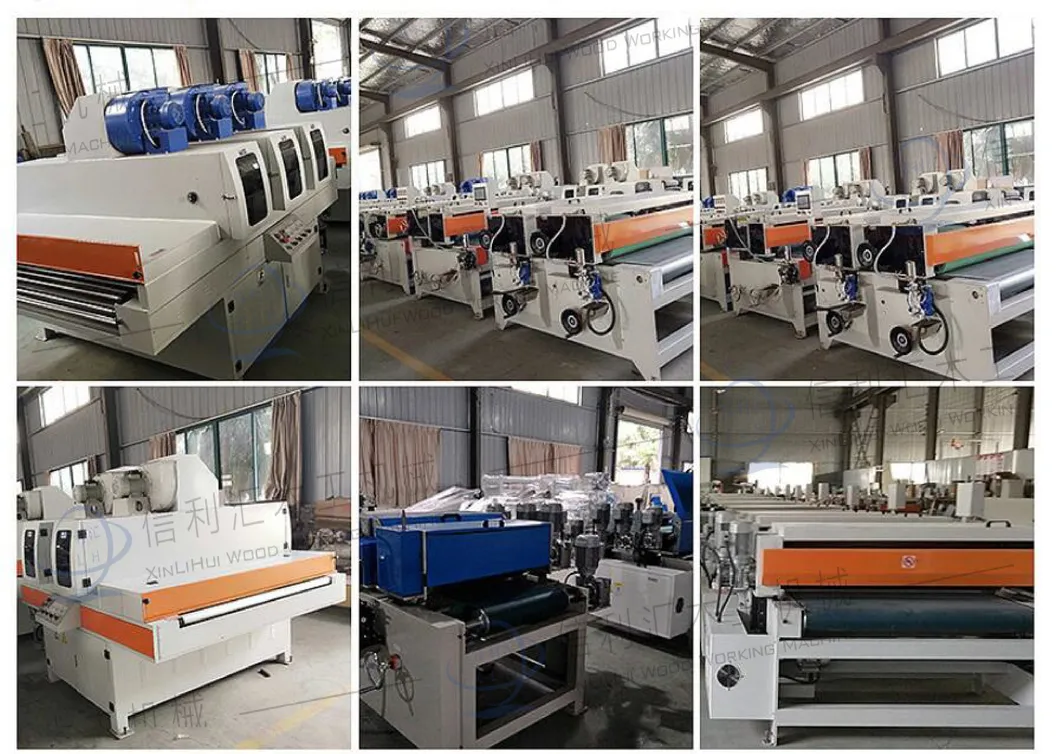

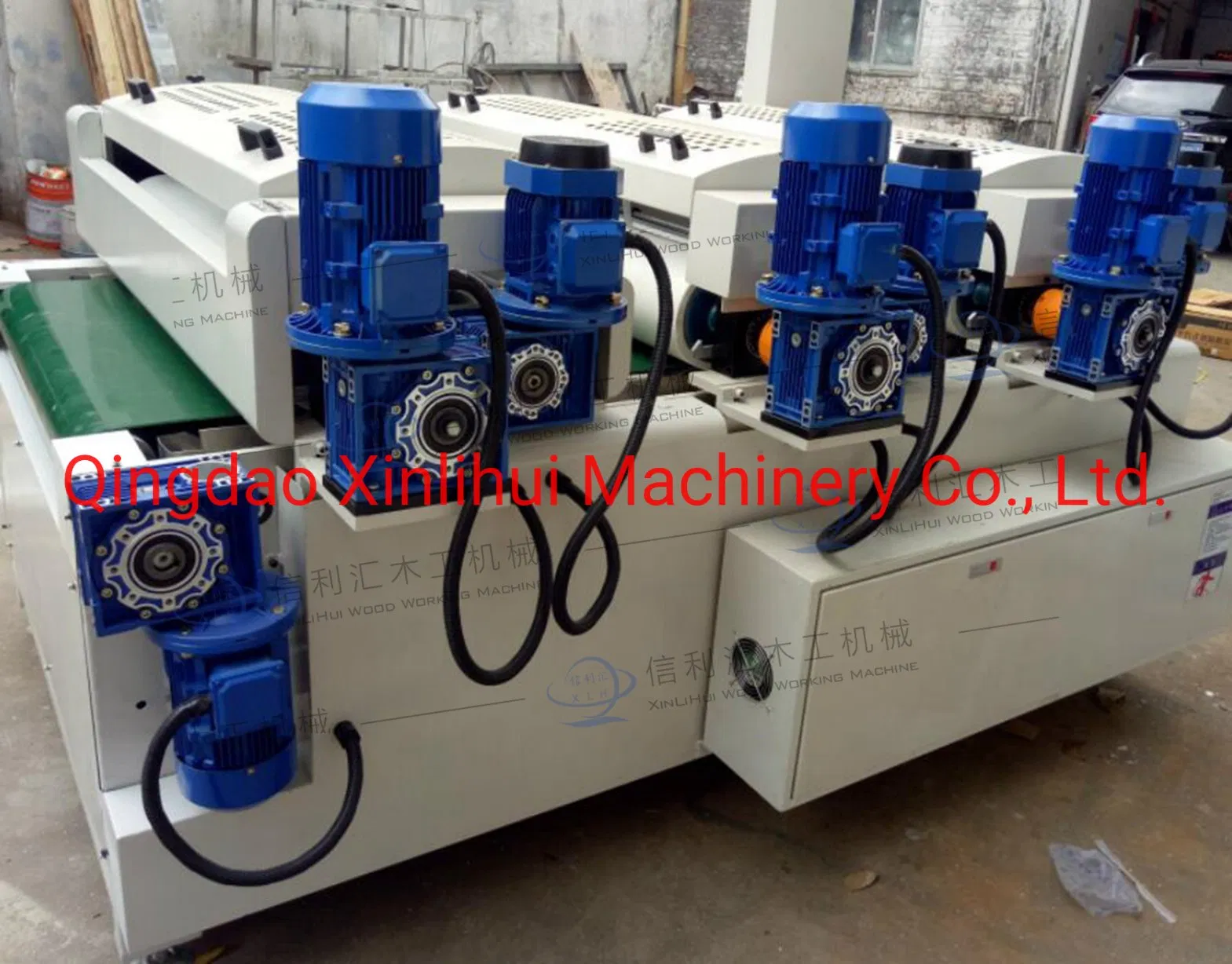

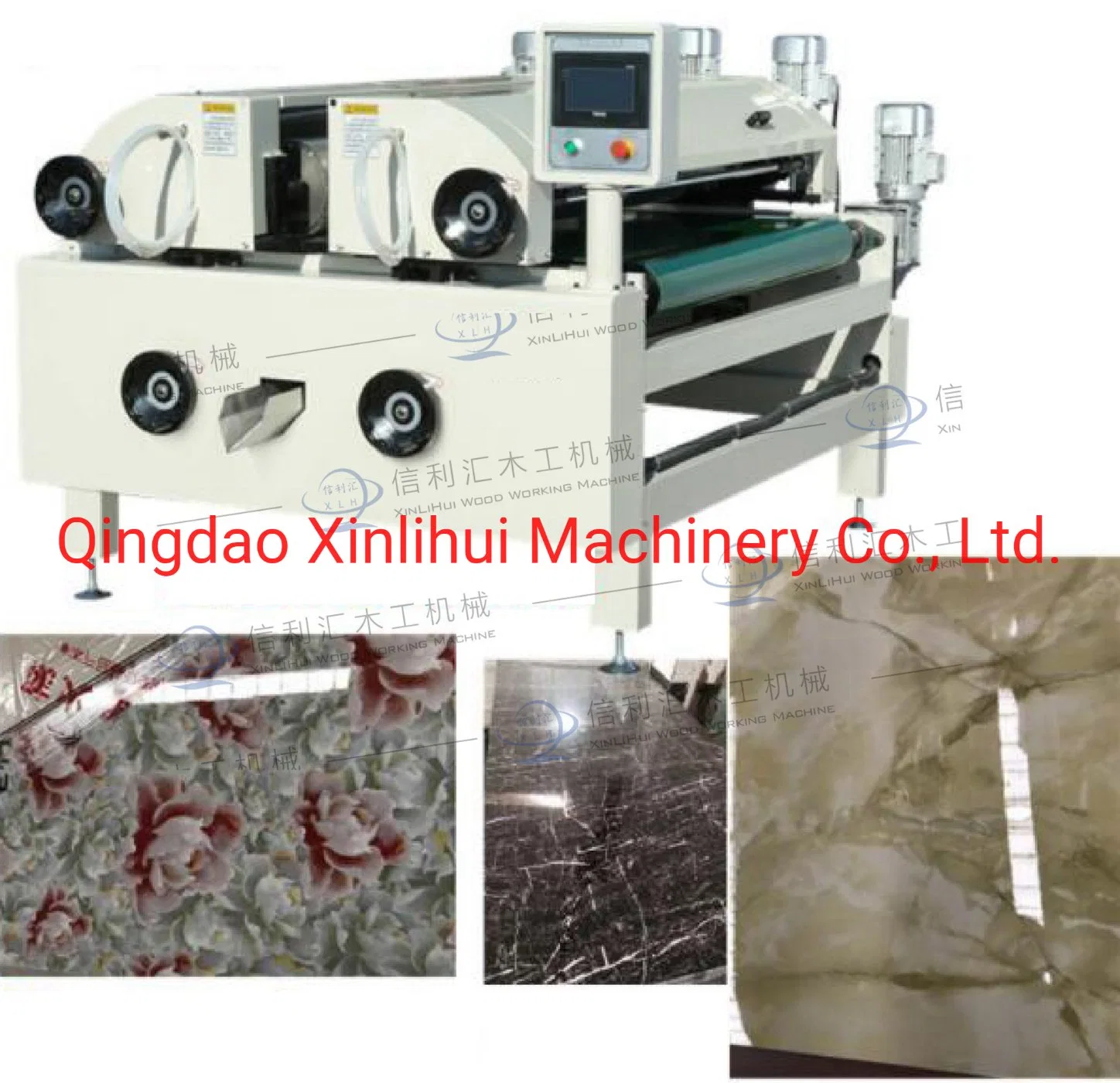

Machine Real Shots

Product Features

A

Designed for flat surface boards such as decorative plates, floors, shutters, and cabinet boards. Ensures a smooth finish with no paint heaping.
B

Conveyor belt, coating wheel, and electro-optical wheel are controlled by imported motors and inverters for precise film thickness.
C

Quick-disassembly coating wheels for easy maintenance and positioning, with height controlled by a digital displacer.
D

Flexible operation with scrapers and electro-optical wheels that can be selected based on working conditions.
E

Equipped with 5 frequency converters, allowing each group to be operated independently for higher accuracy.

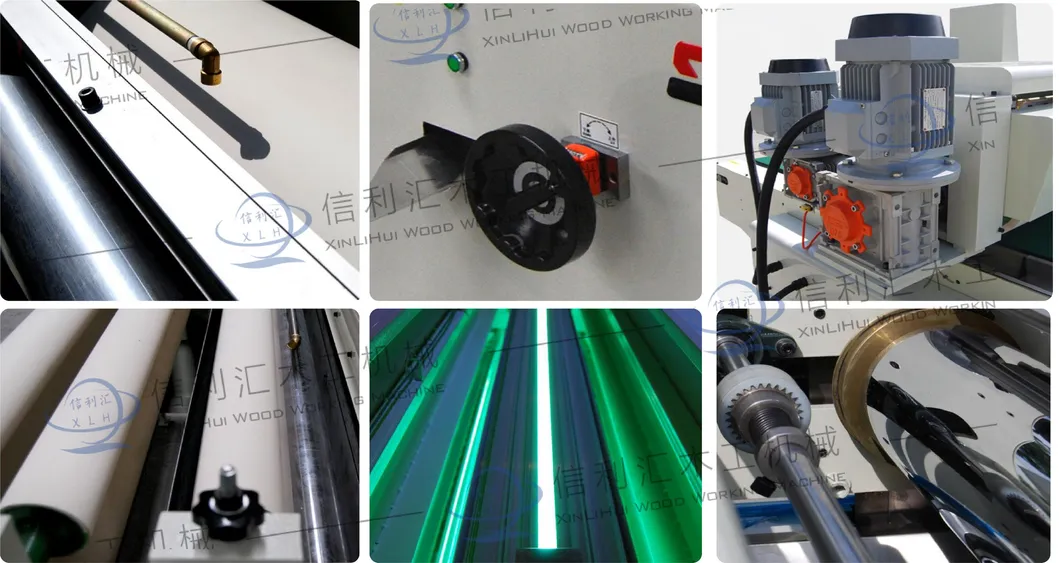

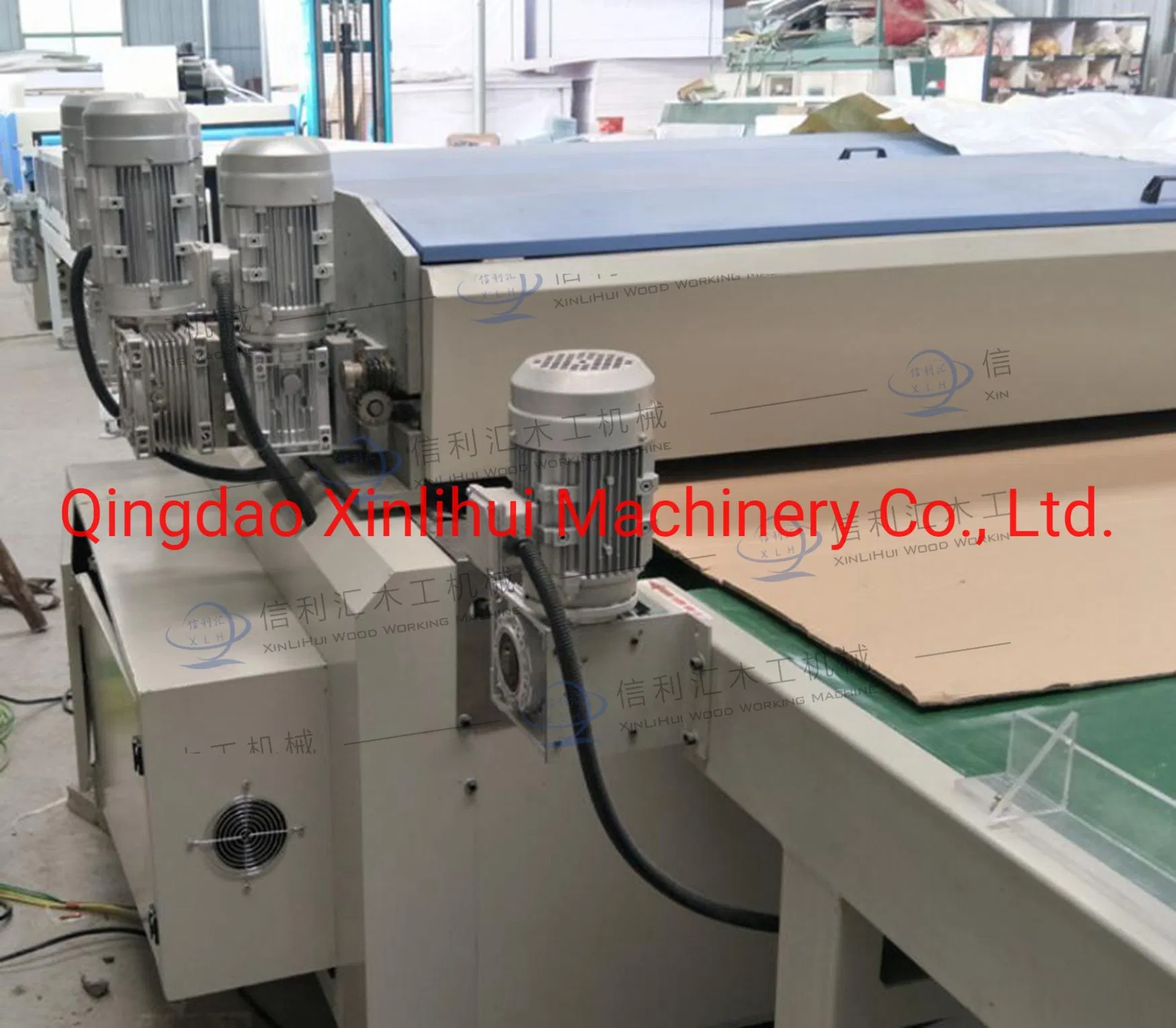

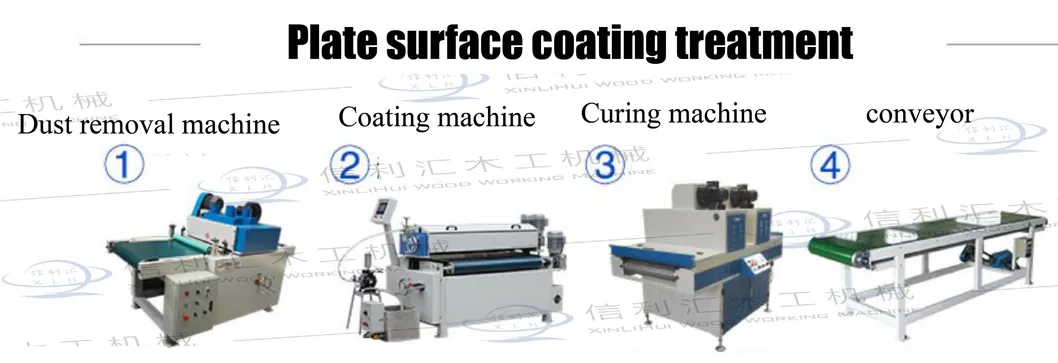

Detail Show & Operation

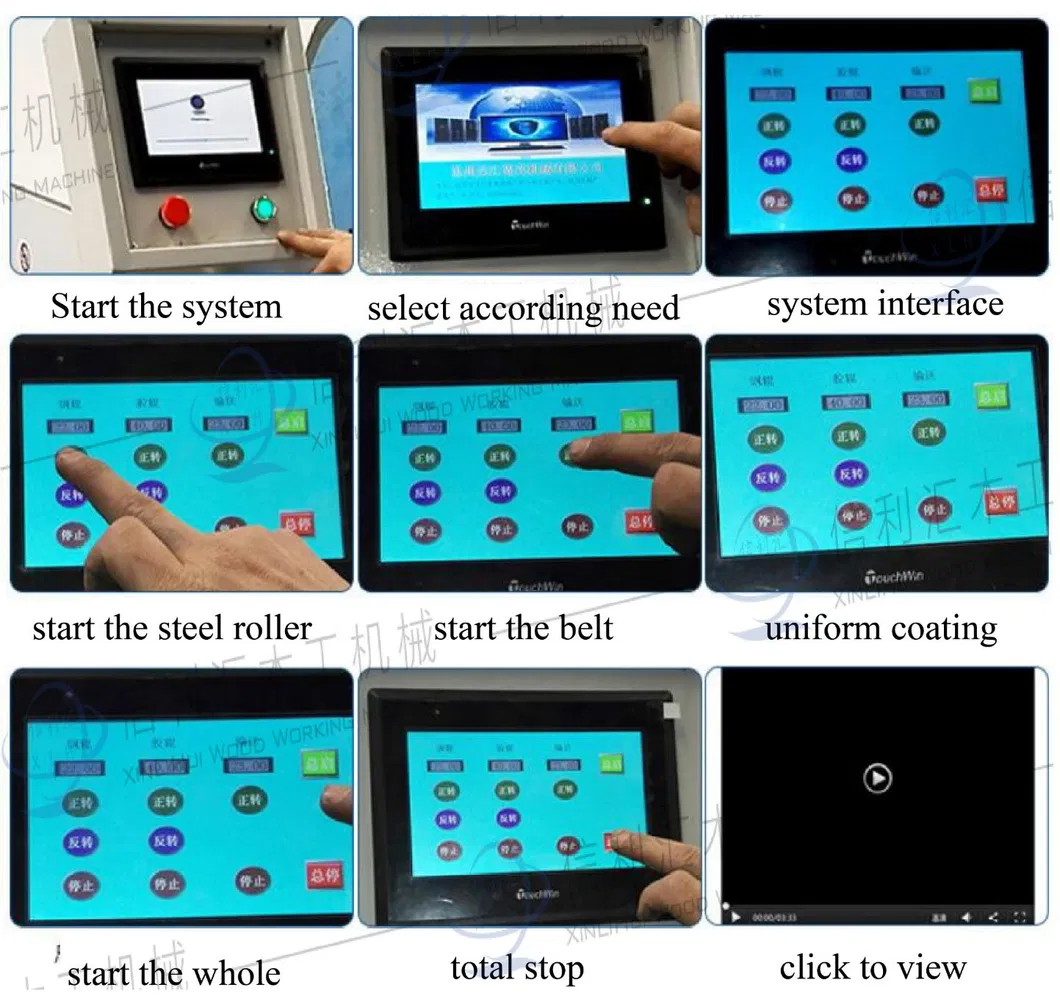

OPERATION PROCEDURE

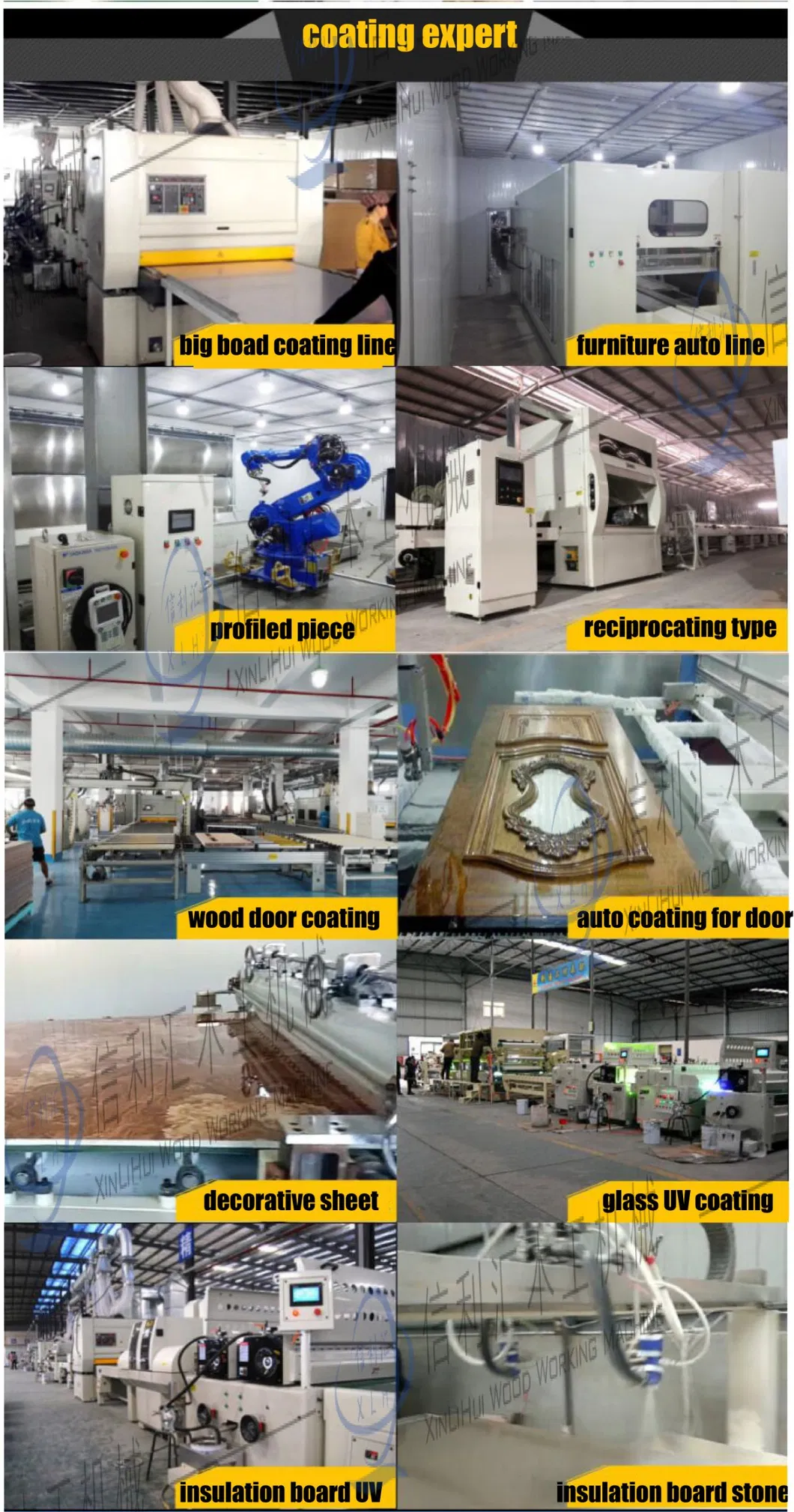

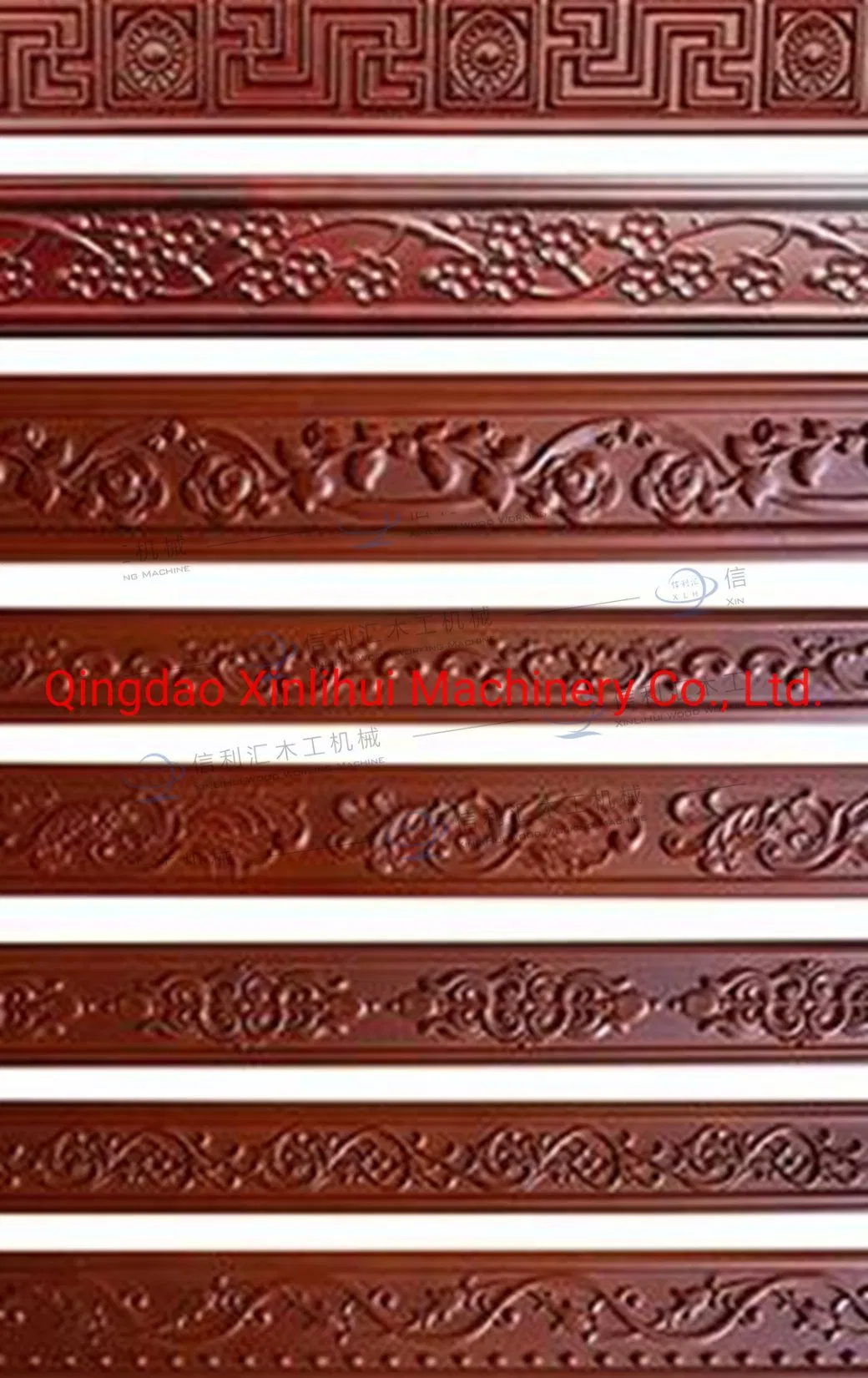

Samples & Coating Cases

Frequently Asked Questions

1. What types of materials can be processed with this roller coater?

This machine is highly versatile and can be used for furniture, flooring, doors, bathroom cabinets, wall boards, glass, PVC, PMMA, tiles, and various metal surfaces.

2. Which types of paint are compatible with the machine?

The equipment is specifically designed to work with UV, PU, WB (Water-based), or NC paints, among others.

3. How is the coating thickness controlled?

Thickness is easily adjustable by synthetically fine-tuning the height, speed, and tightness of the rollers and the conveyor belt. It supports both clockwise and anticlockwise revolving.

4. What is the standard delivery time for an order?

We offer quick delivery, typically within 25 days after the order is confirmed.

5. Does the machine come with a warranty?

Yes, we provide a 12-month warranty which includes free spare parts and professional service support during this period.

6. Can the voltage be customized for my local power supply?

Absolutely. While standard options are 380V or 220V at 50Hz, the voltage system can be fully customized to meet your specific requirements.
