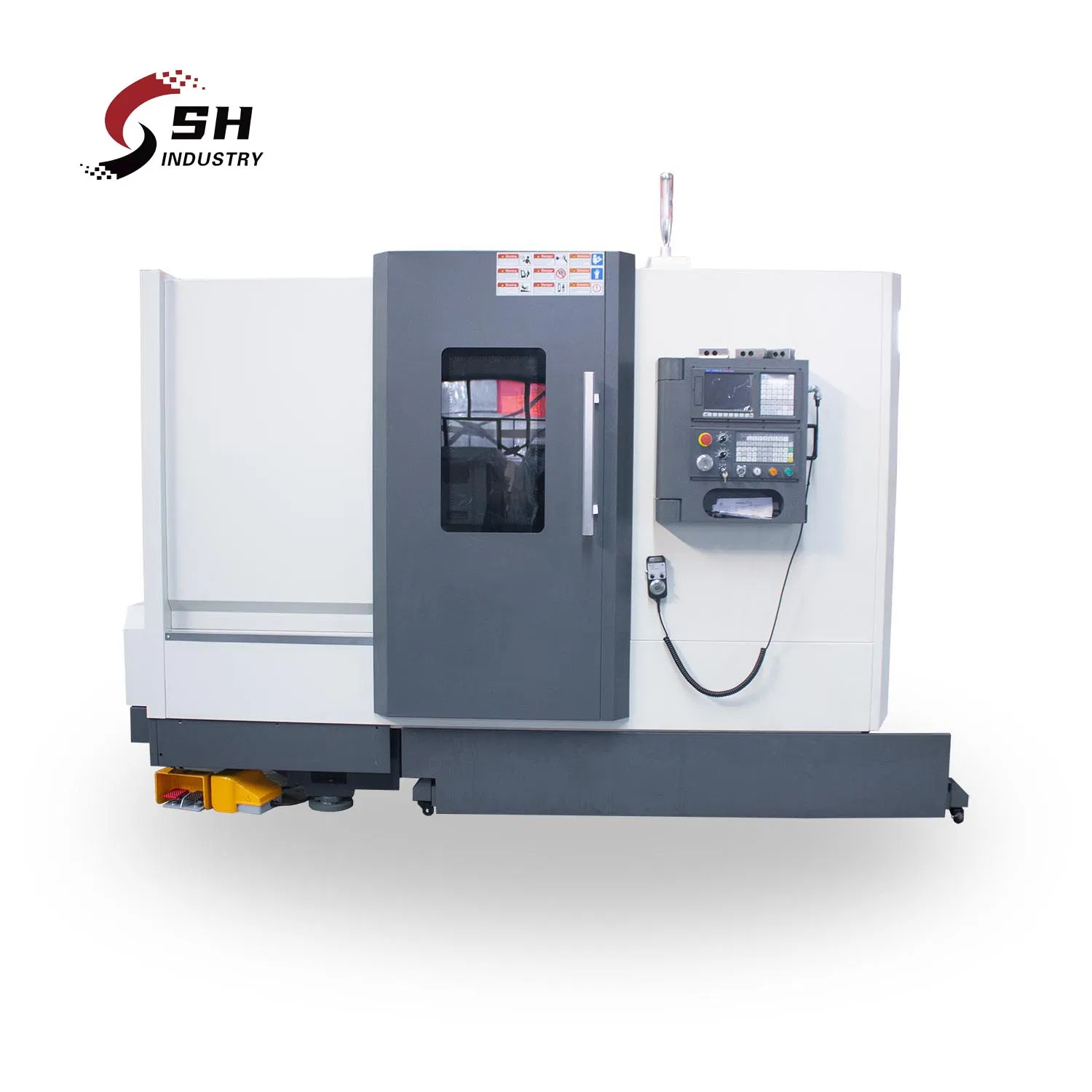

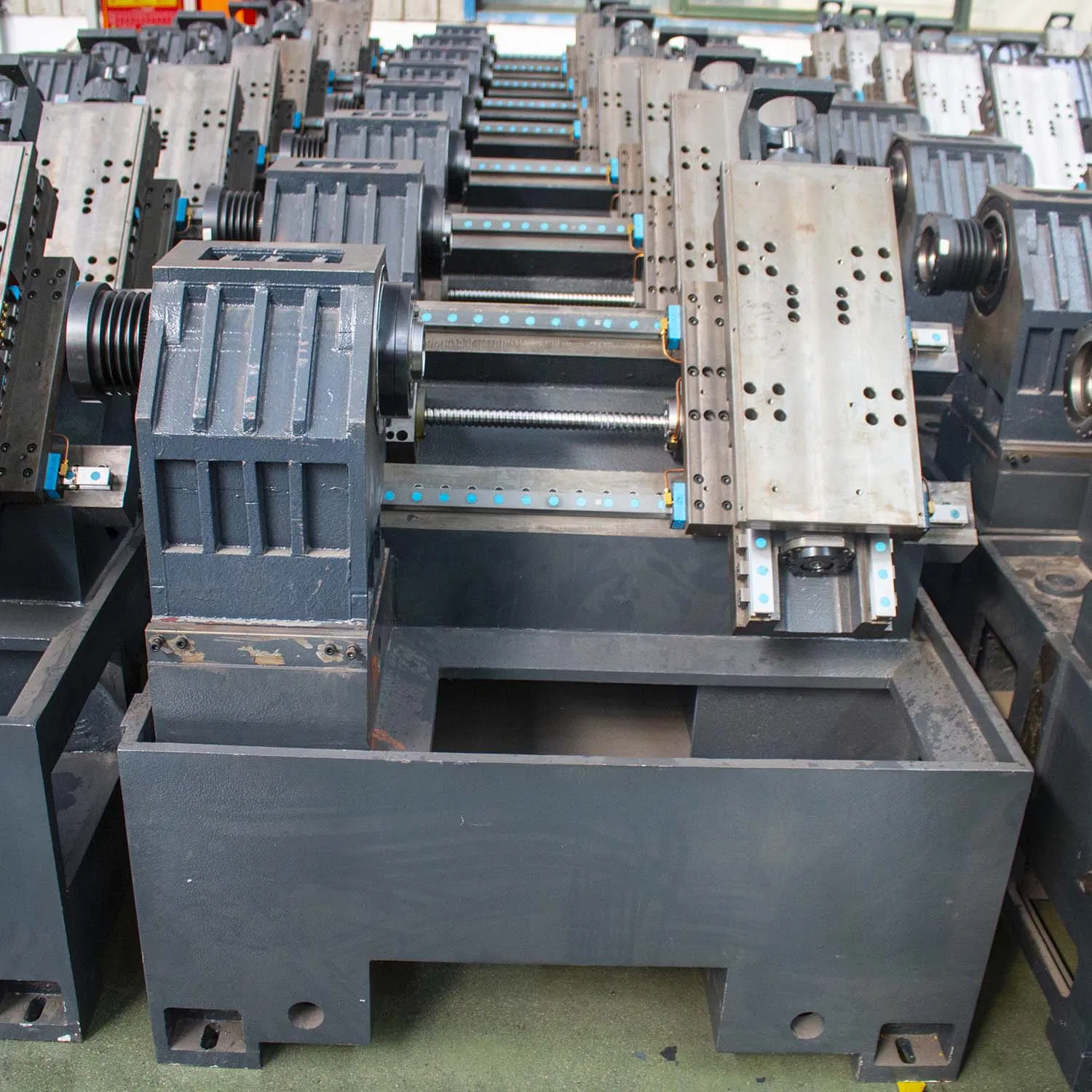

Milling Drilling Functions Tck56y Horizontal 3 Axis Slant Bed CNC Turning Center

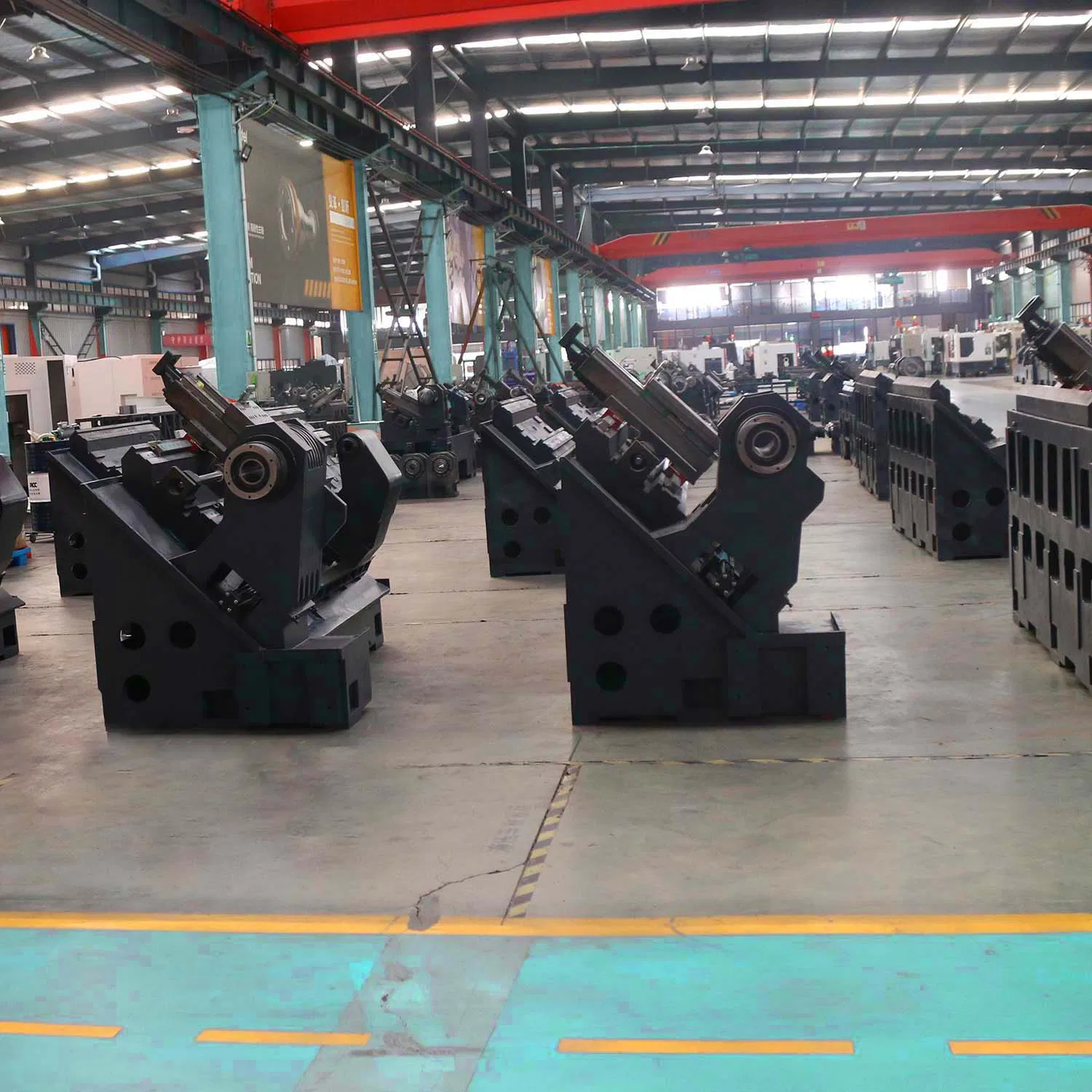

The machine is suitable for automobile, motorcycle, electronics, aerospace, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.
| Specifications | Units | TCK56Y | TCK56Y-BMT55 |
|---|---|---|---|
| Swing over bed | mm | 560 | 600 |
| Max.processing length | mm | 420 | 500 |
| Max.processing diameter | mm | 310 | 460 |
| Spindle nose type | - | A2-6 | A2-6 |
| Spindle bore | mm | 65 | 65 |
| Spindle speed steps | - | stepless | stepless |
| Spindle speed range | rpm | 50-4500 | 50-4500 |
| X axis travel | mm | 200 | 280 |
| Y axis travel | mm | ±30 | ±50 |
| Z axis travel | mm | 500 | 500 |
| Main spindle motor | kw | 30 | 30 |
| X/Y/Z axis rapid traverse | M/min | 30/12/30 | 30/12/30 |
| Turret type | - | 12 station power turret | 12 station power turret |
| Machine weight | kg | 3600 | 4500 |
