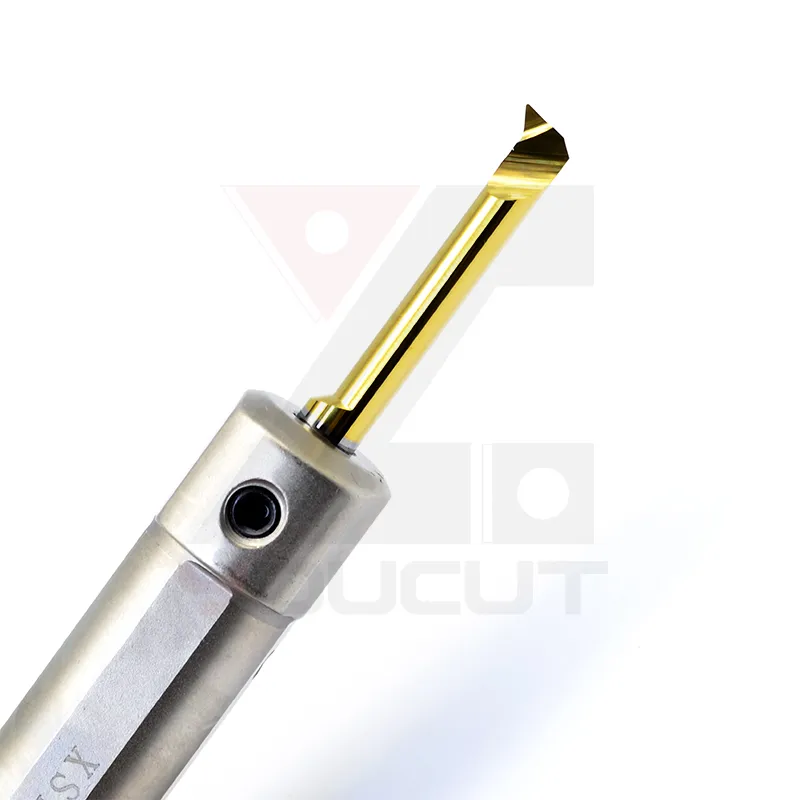

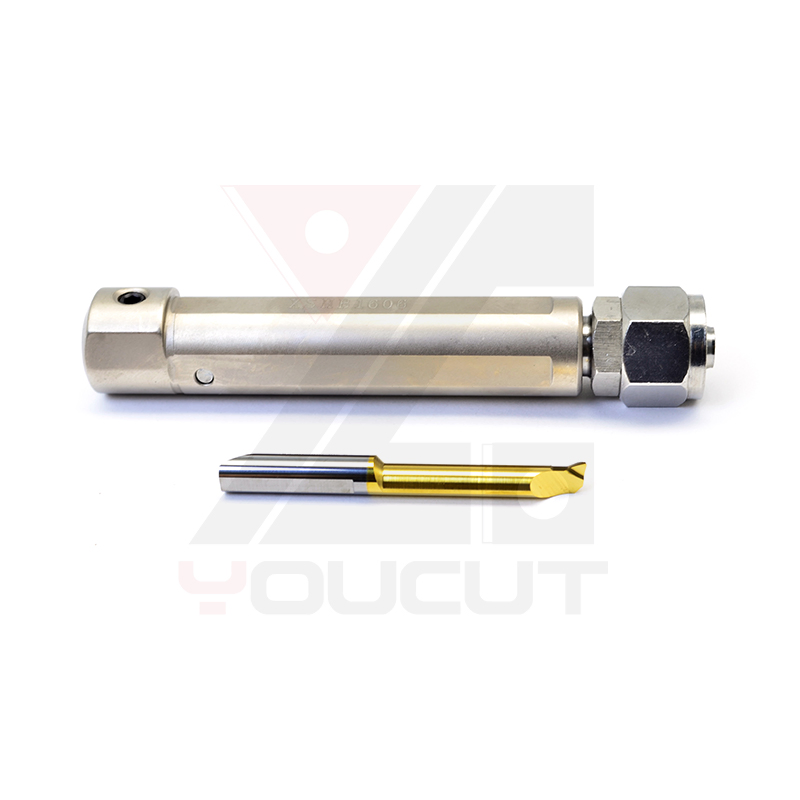

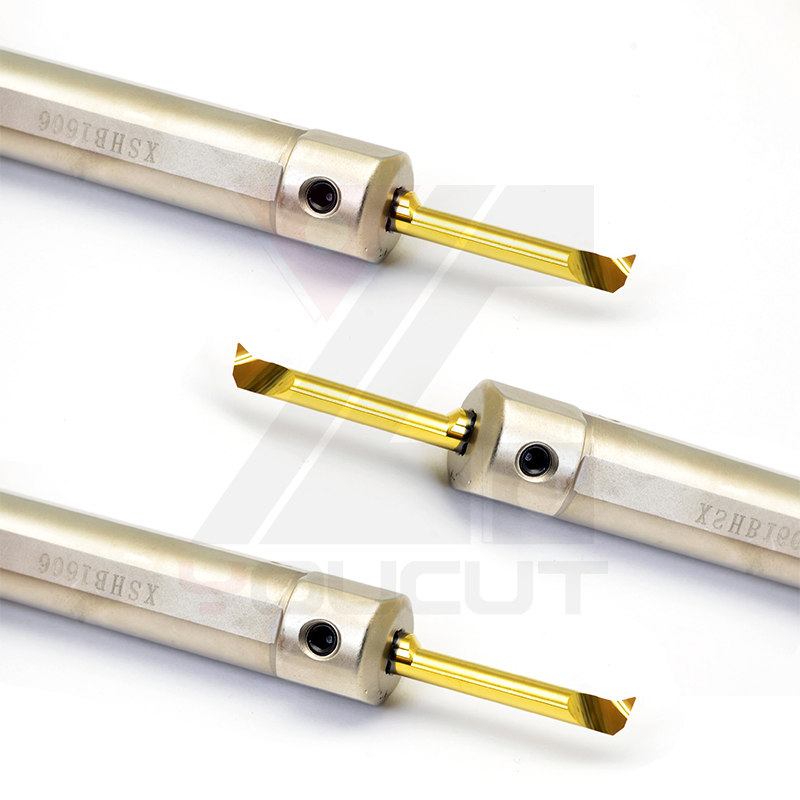

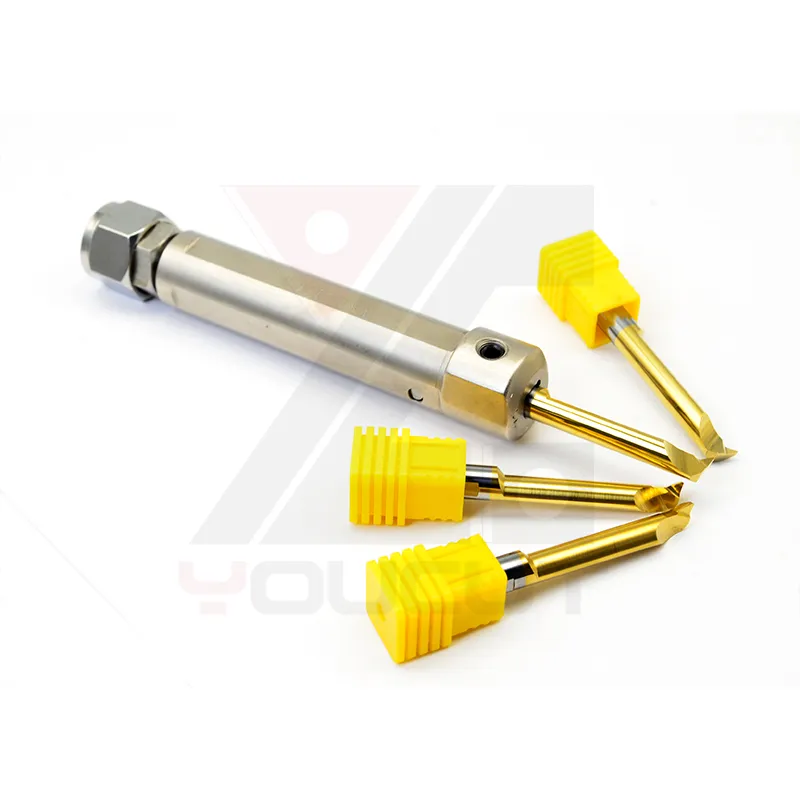

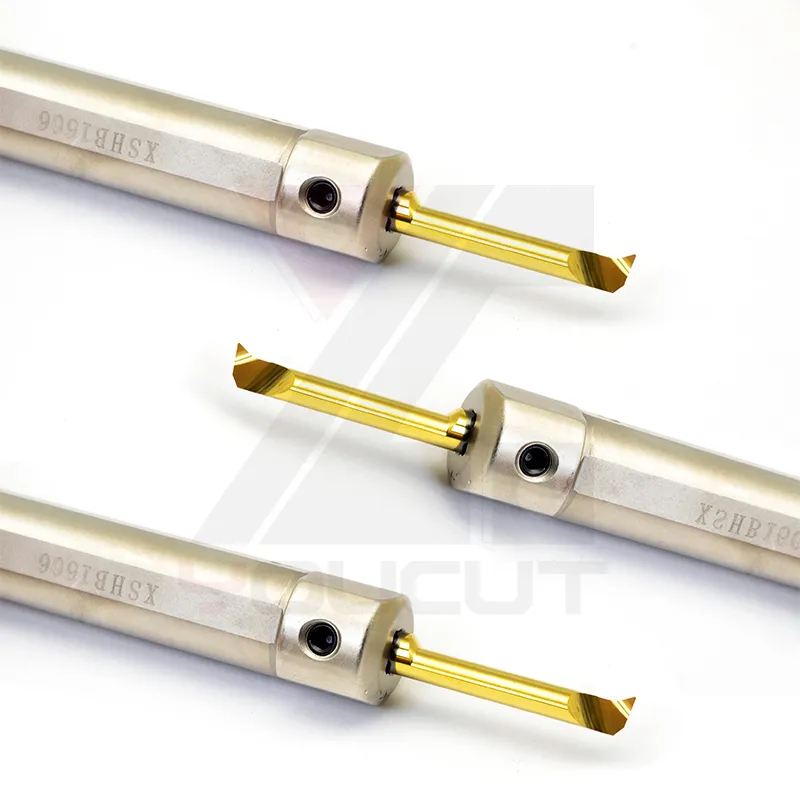

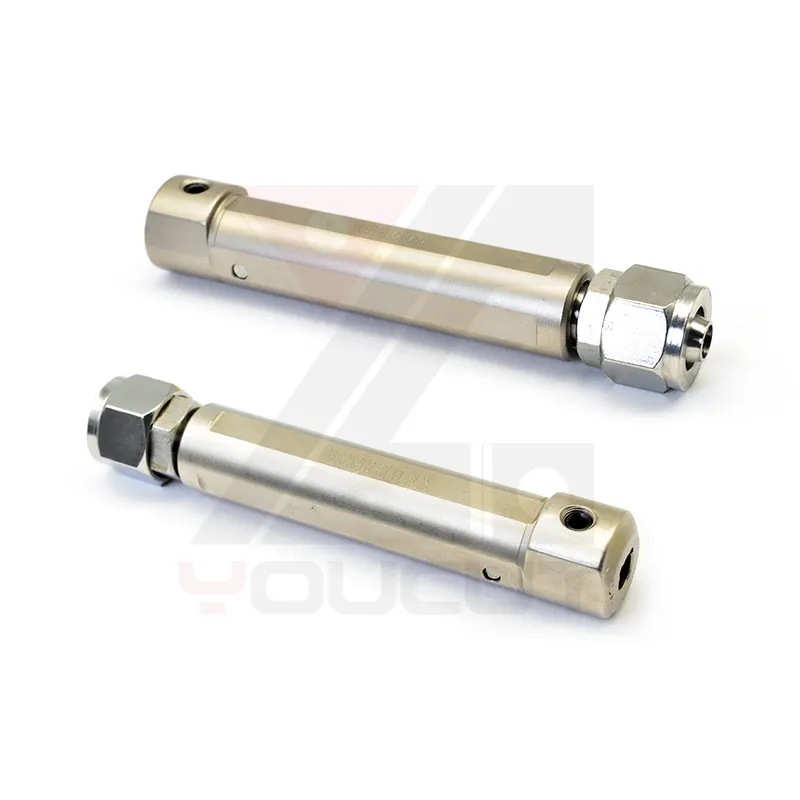

The XSHB1606 Boring Toolholder with SCPR6 Boring Bit is an integrated precision set engineered for seamless compatibility and high-accuracy micro-hole boring in CNC machining. This pre-matched combination eliminates the need for time-consuming toolholder-bit calibration, directly delivering consistent performance for industries like electronics, medical device manufacturing, and aerospace.

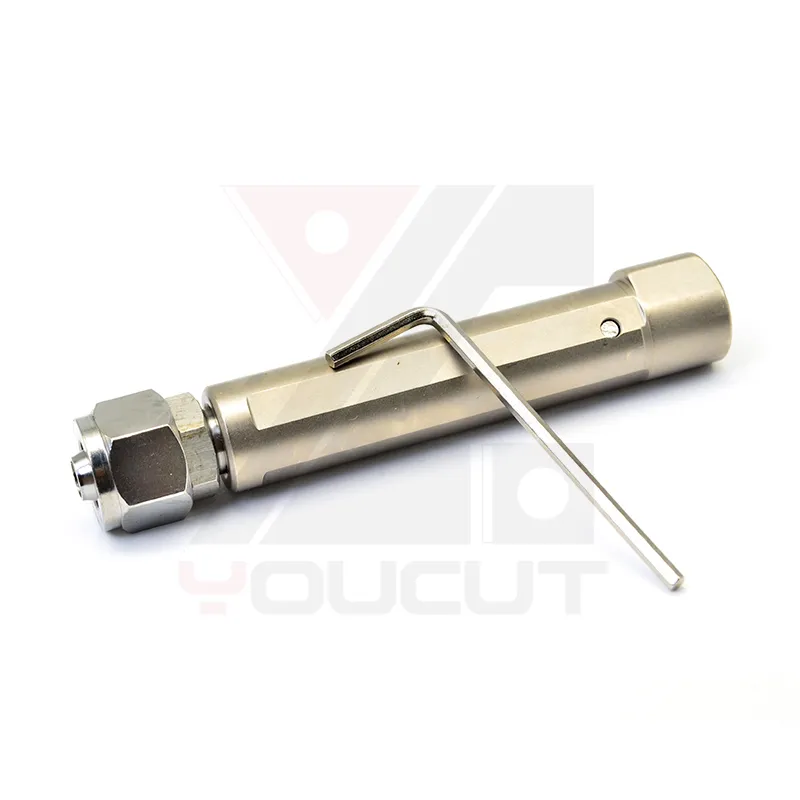

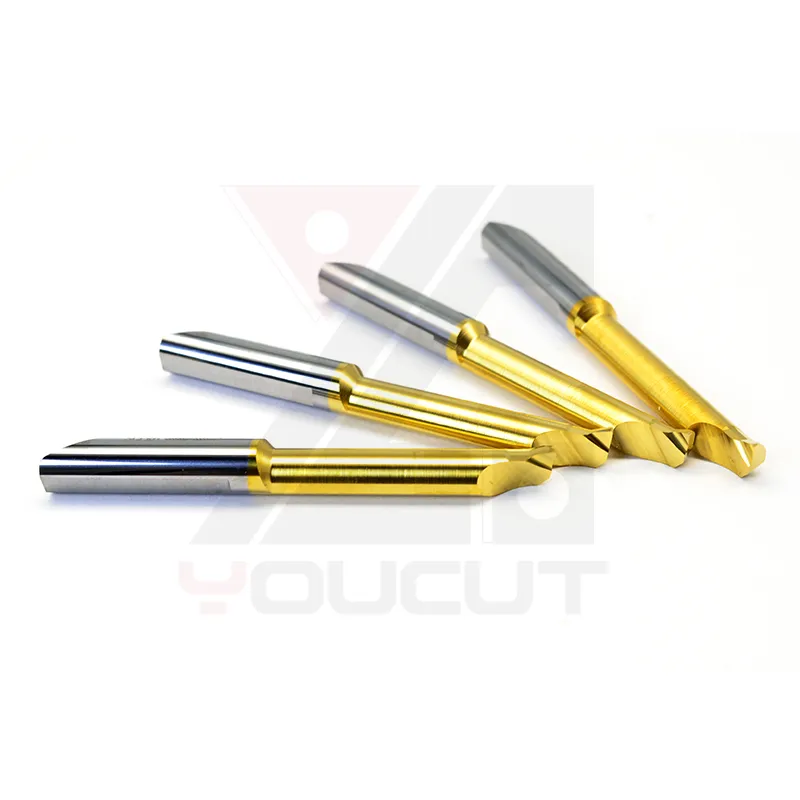

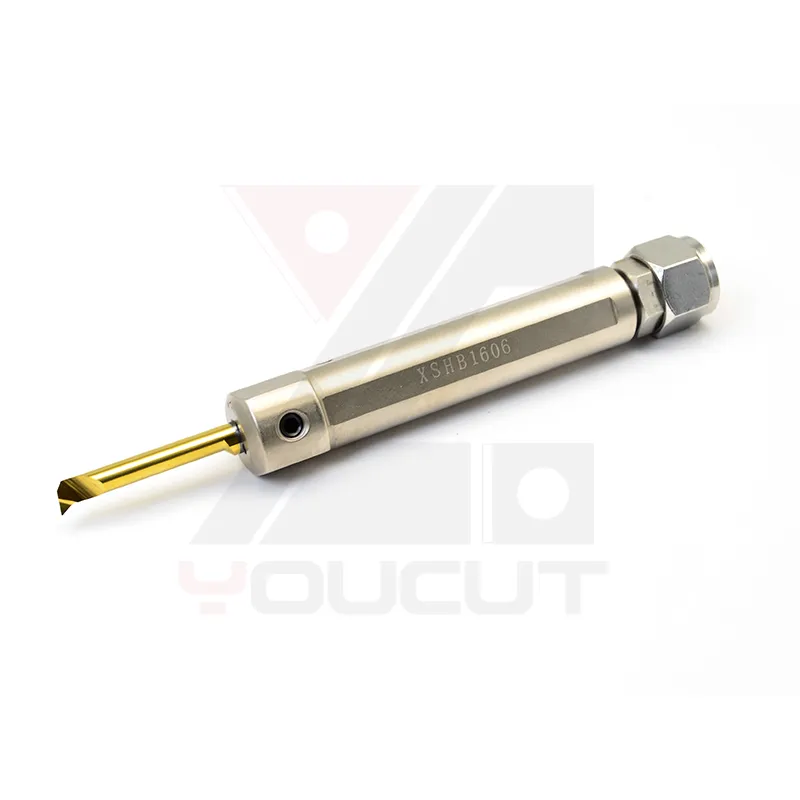

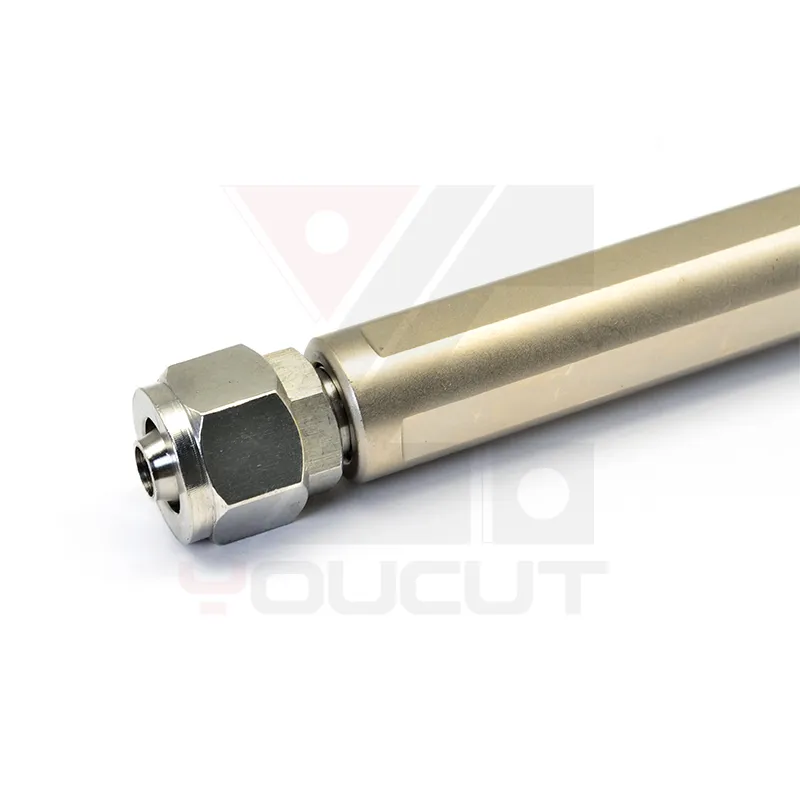

The set leverages the strengths of each component: the XSHB1606 toolholder (rear chamfered, 16mm shank compatibility, H7 inner bore tolerance) ensures stable clamping and repeatable positioning, while the SCPR6 boring bit (optimized for micro-boring, R0.2 nose radius) delivers smooth cuts and tight hole tolerances. Together, they form a reliable solution for 3-10mm diameter hole machining, with runout tolerance ≤0.003mm.
| Component | Parameter | Specification |
|---|---|---|
| XSHB1606 Toolholder | Shank Compatibility | 16mm diameter tool shanks |
| Inner Bore Tolerance | H7 | |
| Material | 45# hardened steel (HRC 58-60) | |
| SCPR6 Boring Bit | Nose Radius | R0.2mm |
| Cutting Diameter Range | 3-10mm | |
| Coating | TiAlN | |
| Set Overall | Concentricity | ≤0.003mm |
| Metric | XSHB1606-SCPR6 System | Standard System |
|---|---|---|
| Total Runout | 0.003mm | 0.01-0.02mm |
| Surface Finish | Ra 0.1-0.2μm | Ra 0.8-1.6μm |
| Tool Life Improvement | +40% | Baseline |
| Setup Time | 5 minutes | 15-20 minutes |
Packaging: Products are packed in plastic boxes (normally 10 pcs/box), protected with bubble wraps, and sealed in thickened hard paper cartons.
Shipping: We utilize fast express services such as FedEx, TNT, DHL, and UPS, with delivery times ranging from 5 to 15 days worldwide.
Payment Methods: We accept T/T and Western Union (USD, EUR, RMB).
