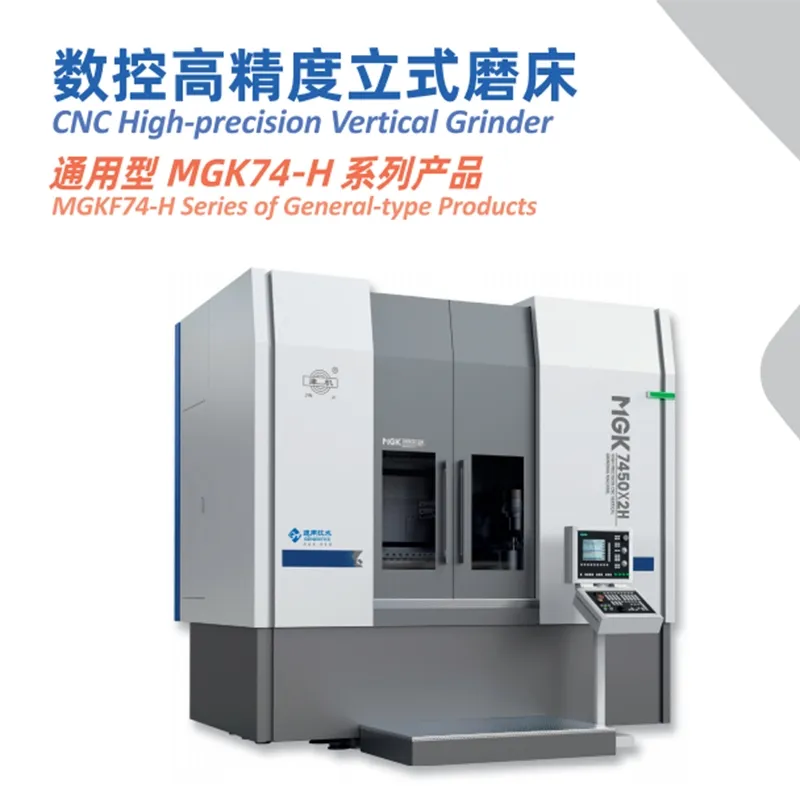

MGKF74-H Series of General-type Products
The MGKF74-H series of CNC high-precision vertical compound grinding centers features a novel and compact structural design, good rigidity, and strong practicability, achieving a high degree of integration of high precision, high speed, and high performance. This series of grinding machines can grind inner holes, outer circles, and end faces in one clamping. It has functions such as automatic tool changing, automatic workpiece measurement, and on-line dynamic balancing of the grinding wheel, enabling a wide processing range.

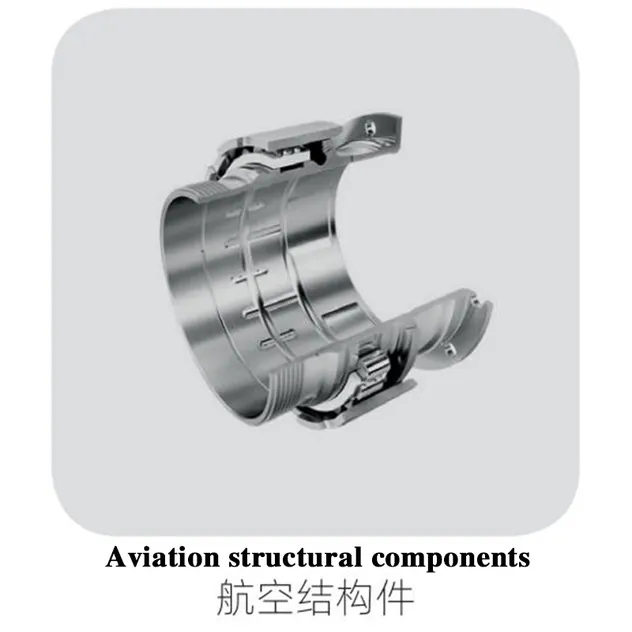

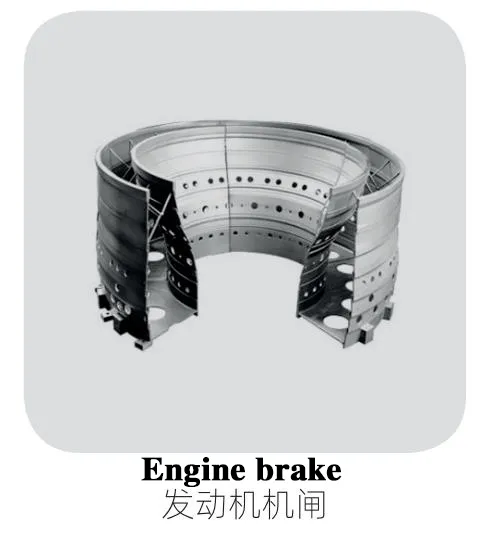

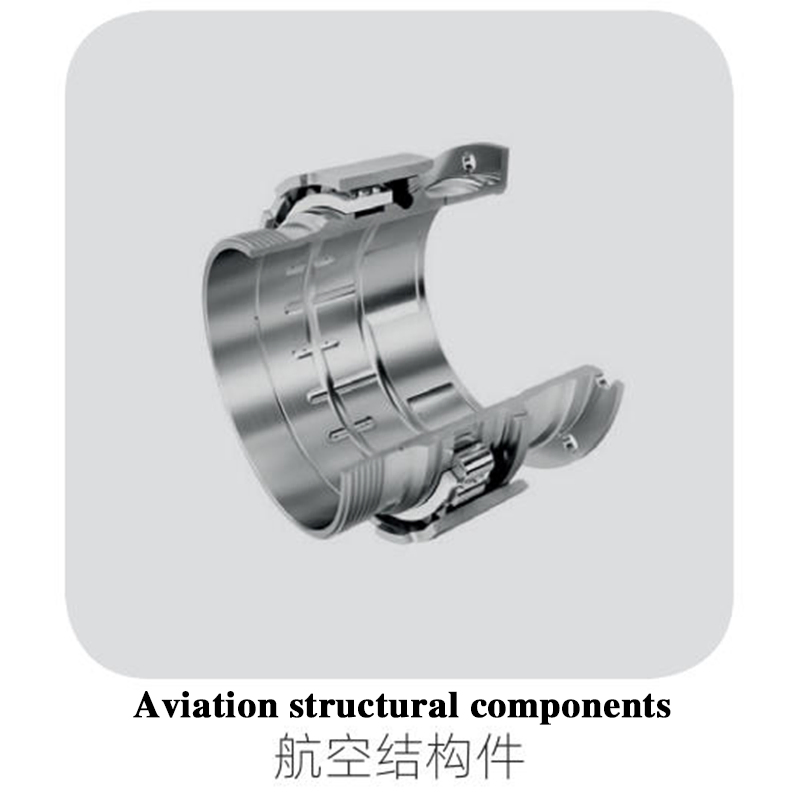

The machine tool is mainly used for the machining and grinding of engine shafts and disk-type parts. It can process materials such as titanium alloys, stainless steels, and high-temperature alloys. The machine tool can also be used for the machining of various circular disk-type parts, gear-type parts, etc. in industries such as bearings, molds, automobiles, ships, and locomotives.
| Items | Unit | MGK7450H | MGK7463H | MGK7480H | MGK74100H |
|---|---|---|---|---|---|
| Worktable Dia. | mm | 500 | 630 | 800 | 1000 |
| Workpiece Height | mm | 300/400 | 300/400 | 450/600 | 650/800 |
| Max. Bearing Capacity | kg | 600 | 800 | 1500 | 3000 |
| Max. Rotation Speed | r/min | 120 | 120 | 100 | 80 |
| Accuracy Items | Unit | Standard Value |
|---|---|---|
| Radial Runout of Worktable | mm | 0.002 |
| Axial Runout of Worktable | mm | 0.002 |
| Radial Runout of Spindle | mm | 0.002 |
| Positioning Accuracy X/Z | mm | 0.008 |
| Repeat Positioning X/Z | mm | 0.004 |
Our manufacturing facility has accumulated more than 70 years of history in the gear machine tool and grinder industry. As a backbone enterprise in the machine tool manufacturing industry, we focus on developing high-end products including gear machining machines, special grinding machines, and precision transmission devices.
Our products are exported to more than 20 countries including Germany, Spain, the United States, Sweden, Brazil, Japan, and India. We utilize world-class high-end precision machining and testing equipment, supported by an experienced R&D team, and have passed the ISO 9001 quality management system certification.
