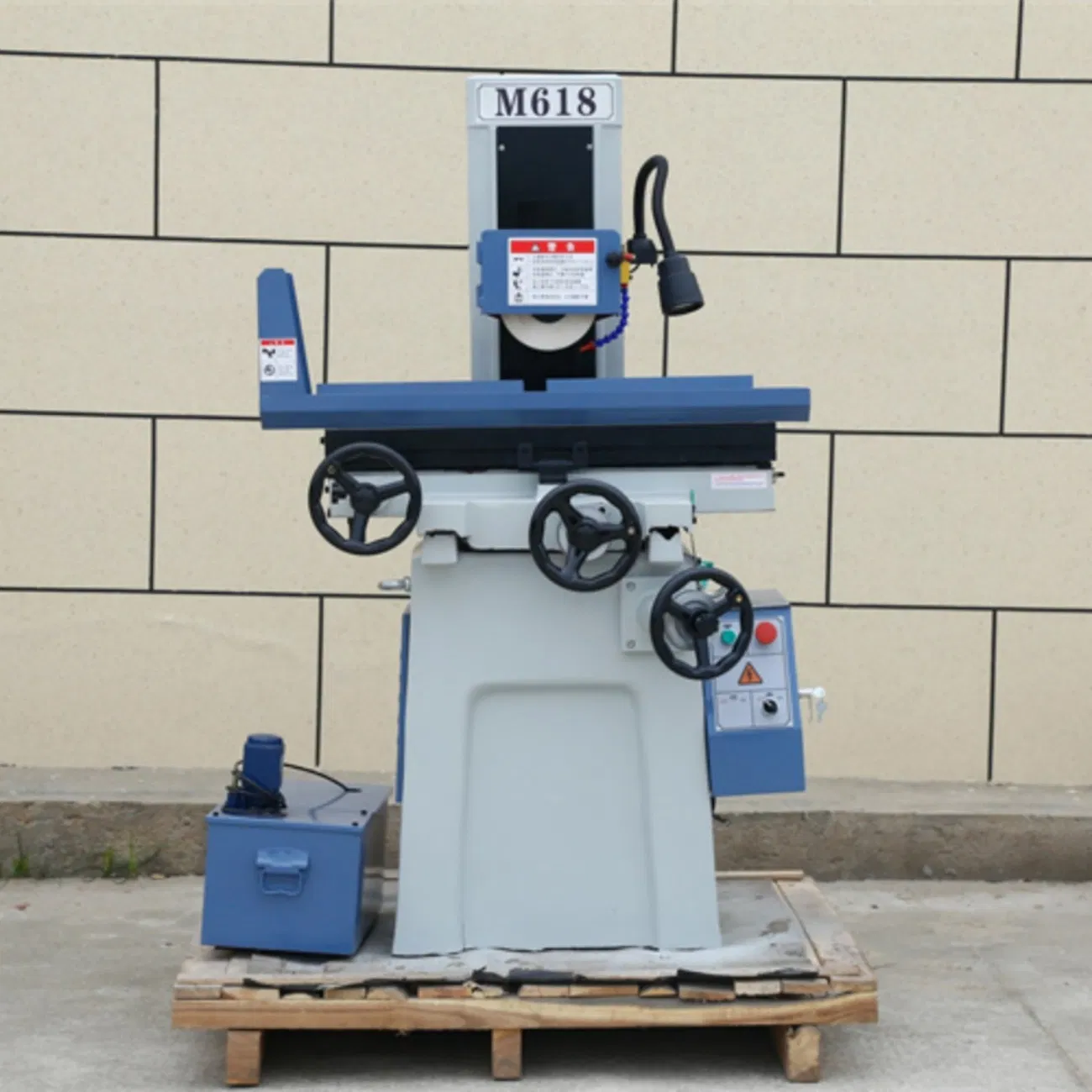

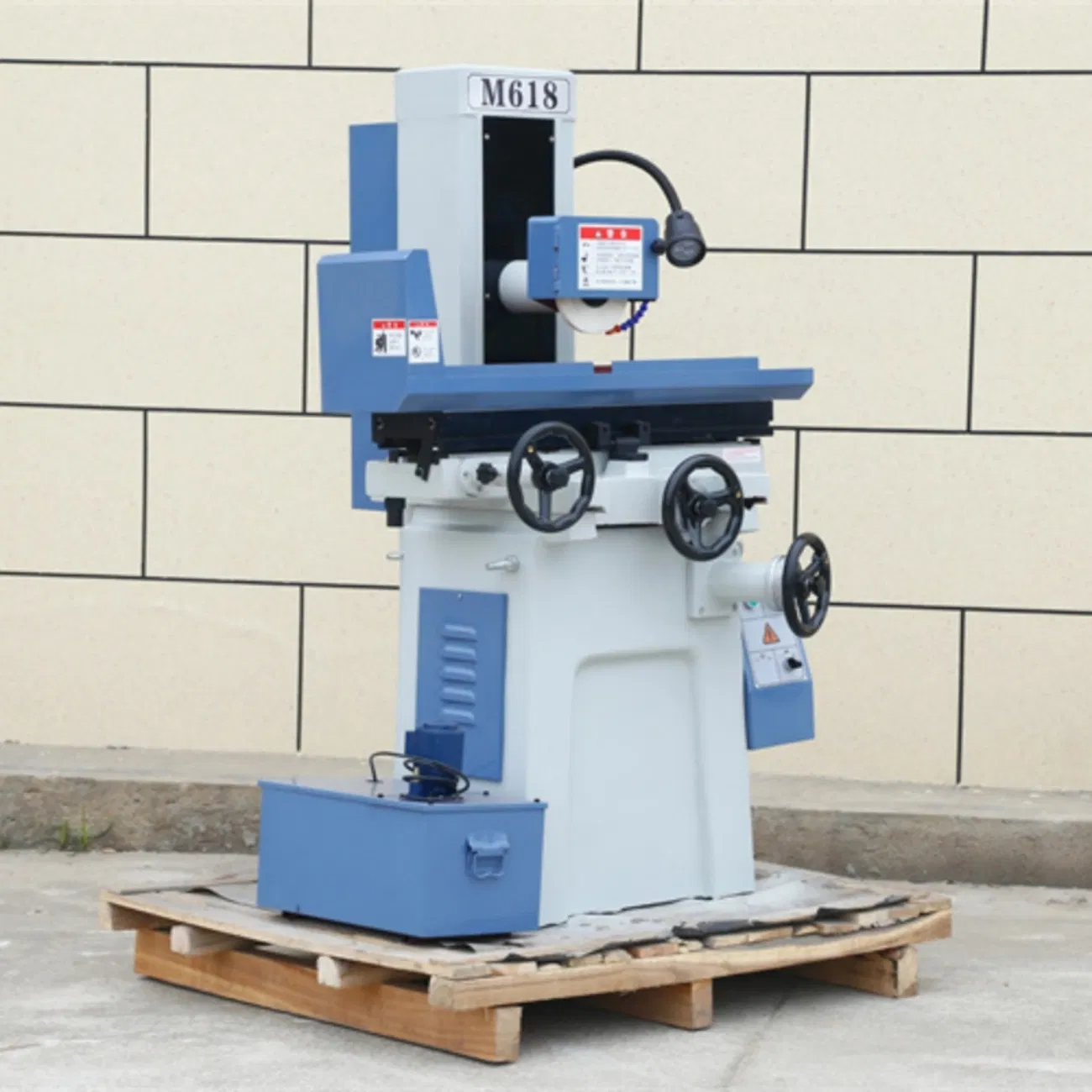

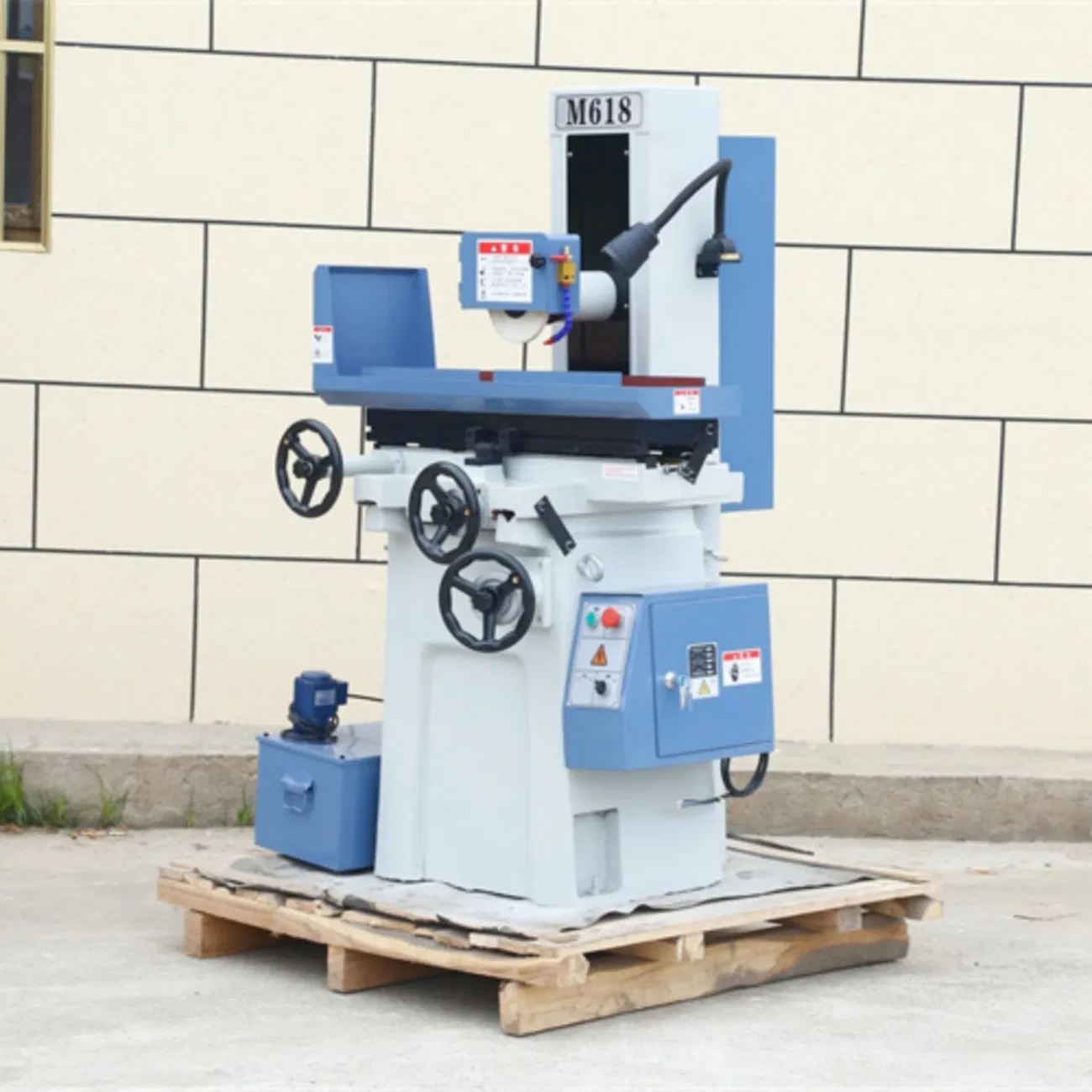

Hot Selling CNC Surface Grinding Machine Saddle Moving Type Surface Grinding

Customization: Available
After-sales Service: Online Coaching, Video Conferencing
Warranty: 1 Year

Product Description

Overview
Model NO.M618
ApplicationMetal
Process UsageMetal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement MethodContour Control
Control MethodClosed-Loop Control
Numerical ControlCNC/MNC
Performance ClassificationHigh-End CNC Machine Tools
CertificationGS, CE, ISO 9001
ConditionNew
Worktable Size450*150mm
Max Distance Spindle Center to Table460mm
Max Travel Worktable (L/R)490mm
Max Travel Workbench180mm
Max Load Capacity200 Kg
Transport PackageWooden Packaging
Specification750kg
Production Capacity1600/Pieces
Surface Grinding Machine Overview 1
Surface Grinding Machine Overview 2
Surface Grinding Machine Overview 3

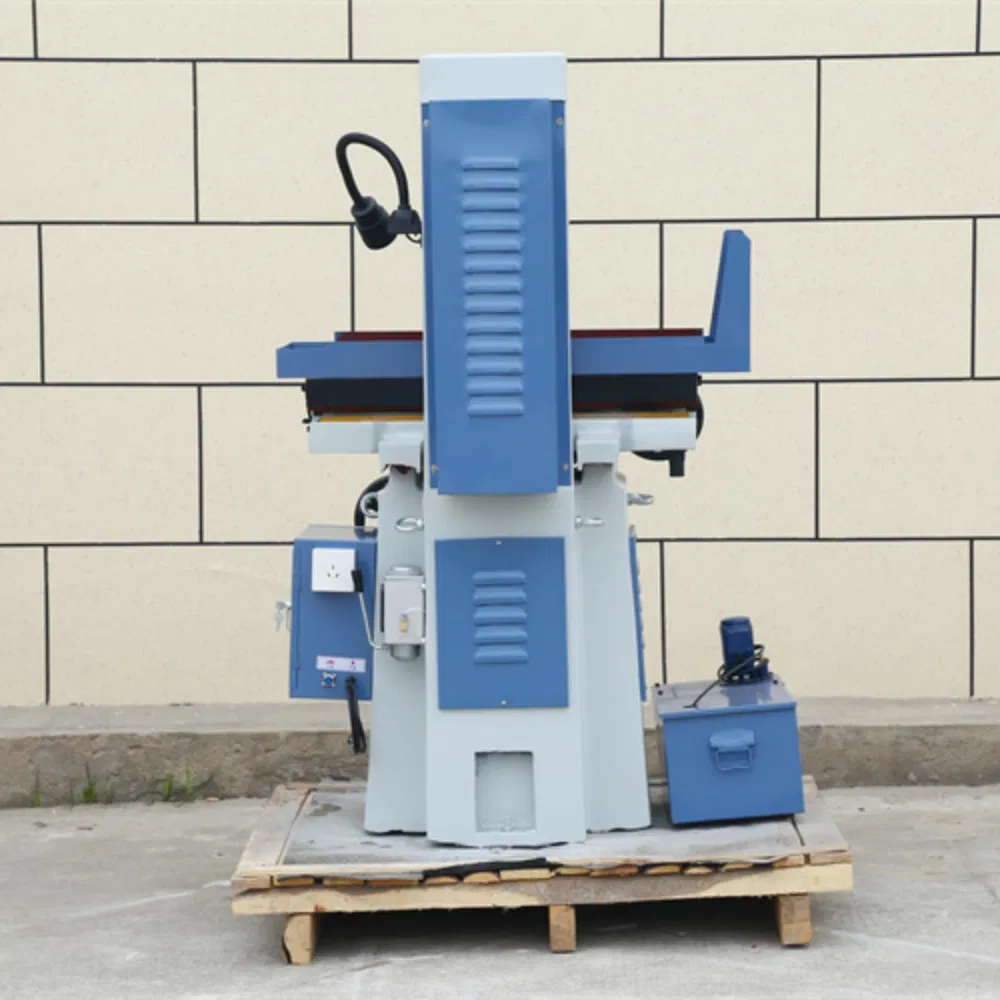

Surface Grinding Machine Overview 4
Product Description
M618 Machine Description
M618 hand-cranked precision surface grinder adopts cross-plate movable type, large span and high thickness symmetrical plate structure, small thermal deformation, stable movement, low noise, and good precision retention. This machine features a compact structure, convenient operation, stable performance, high rigidity, and high precision. It is suitable for grinding various planes and inclined surfaces for small molds, hardware, instruments, meters, and the plastic industry.
Detailed Photos

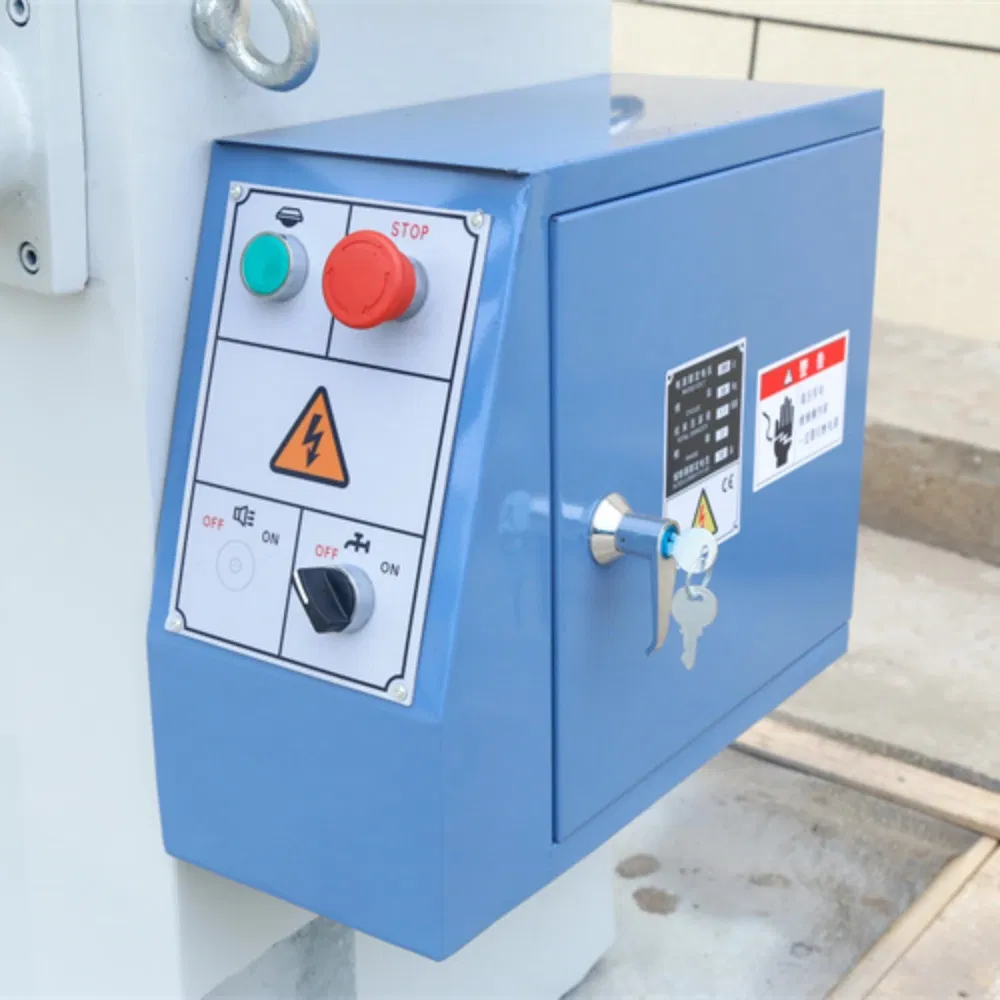

Detail 1

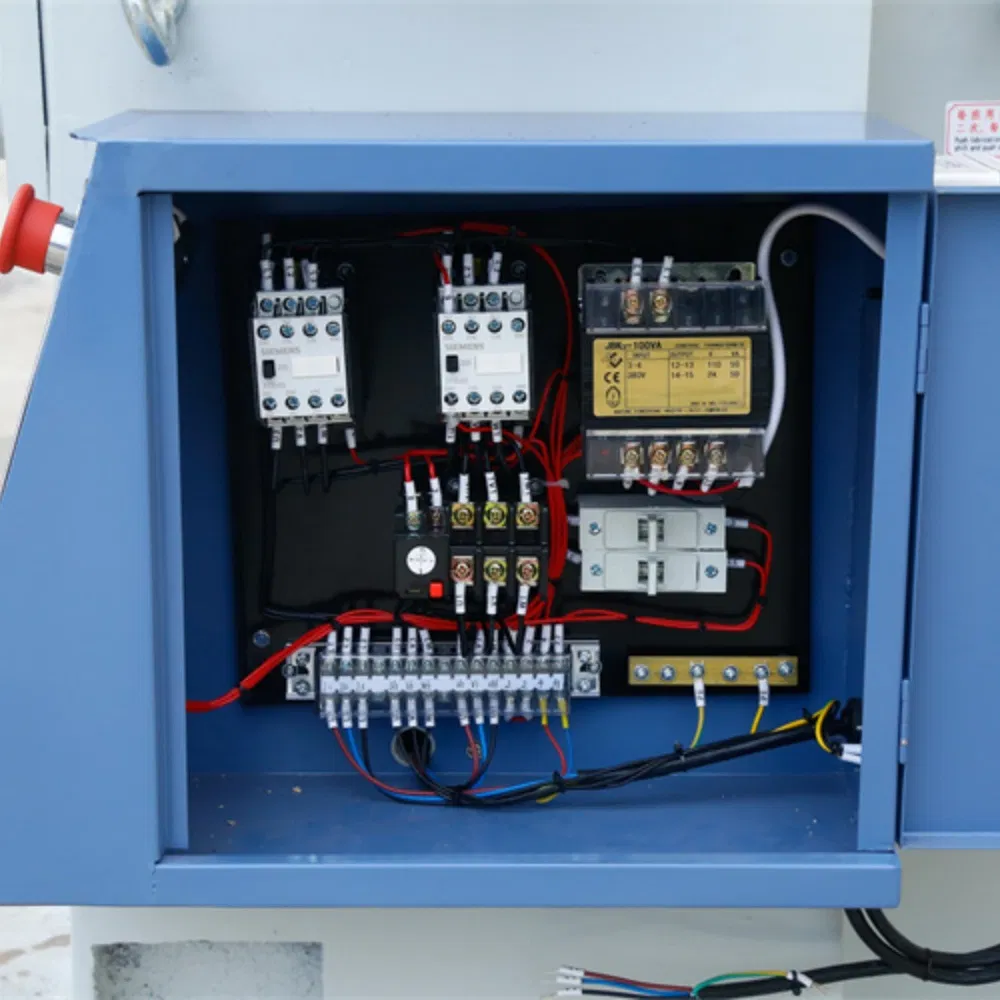

Detail 2

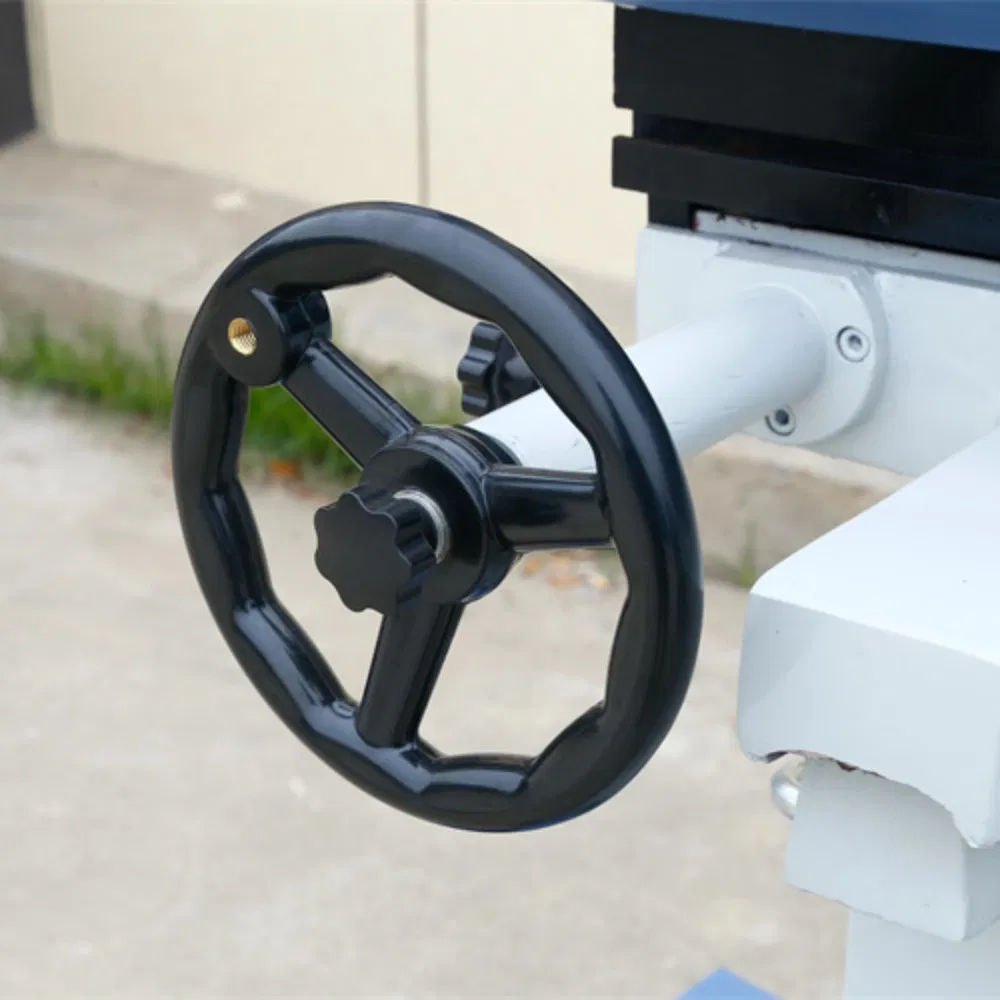

Detail 3
Detail 4

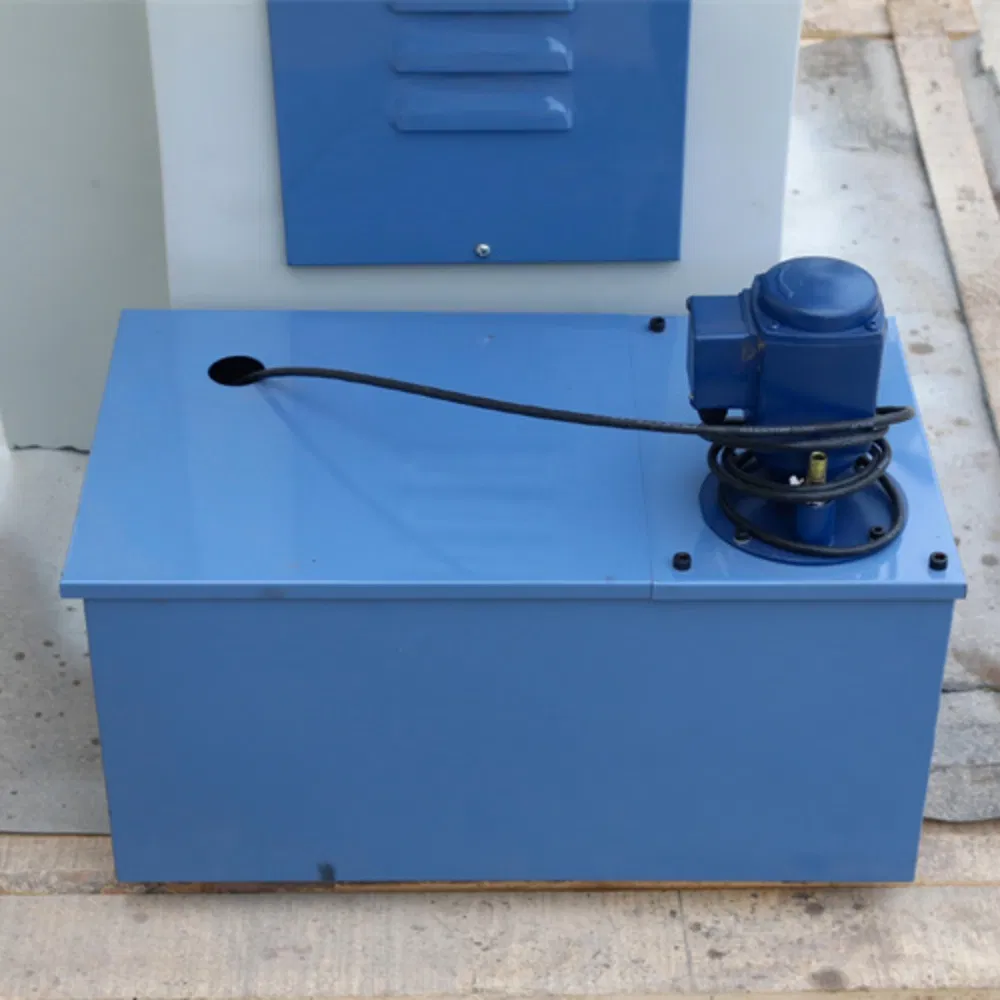

Detail 5
Detail 6

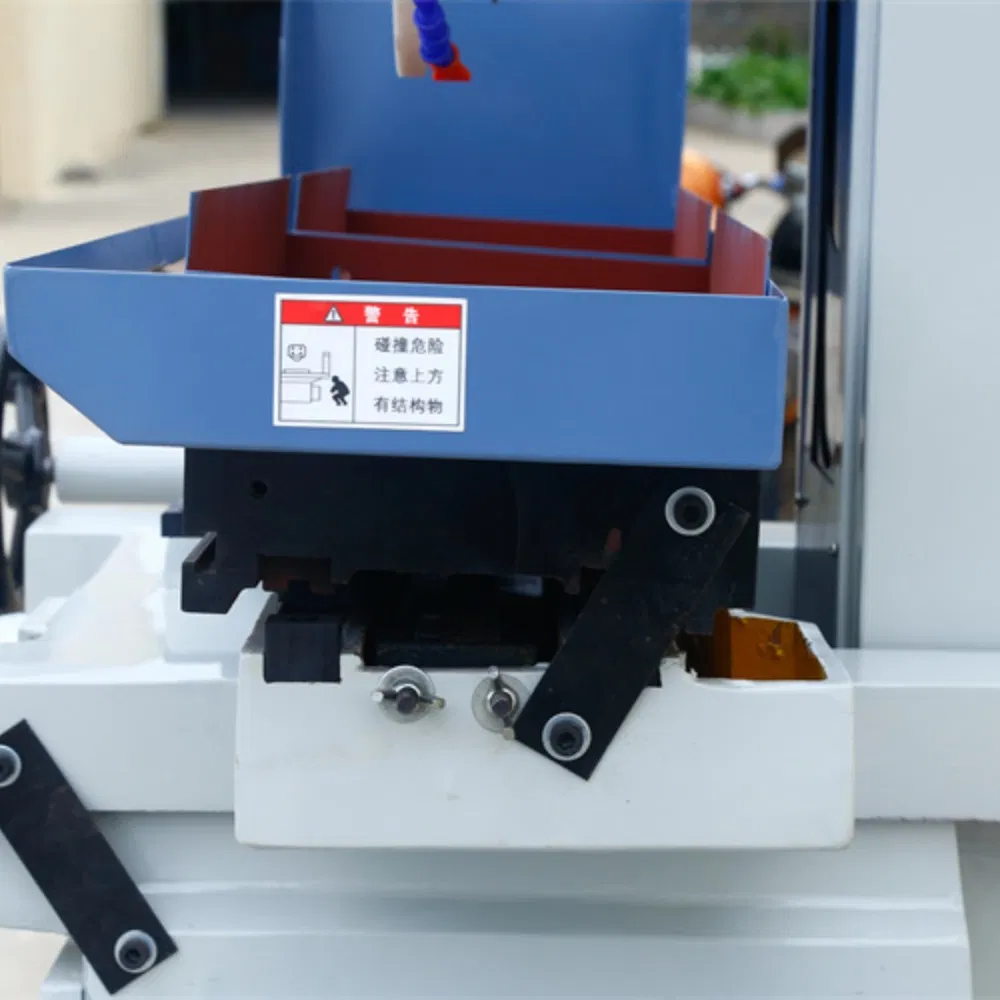

Detail 7

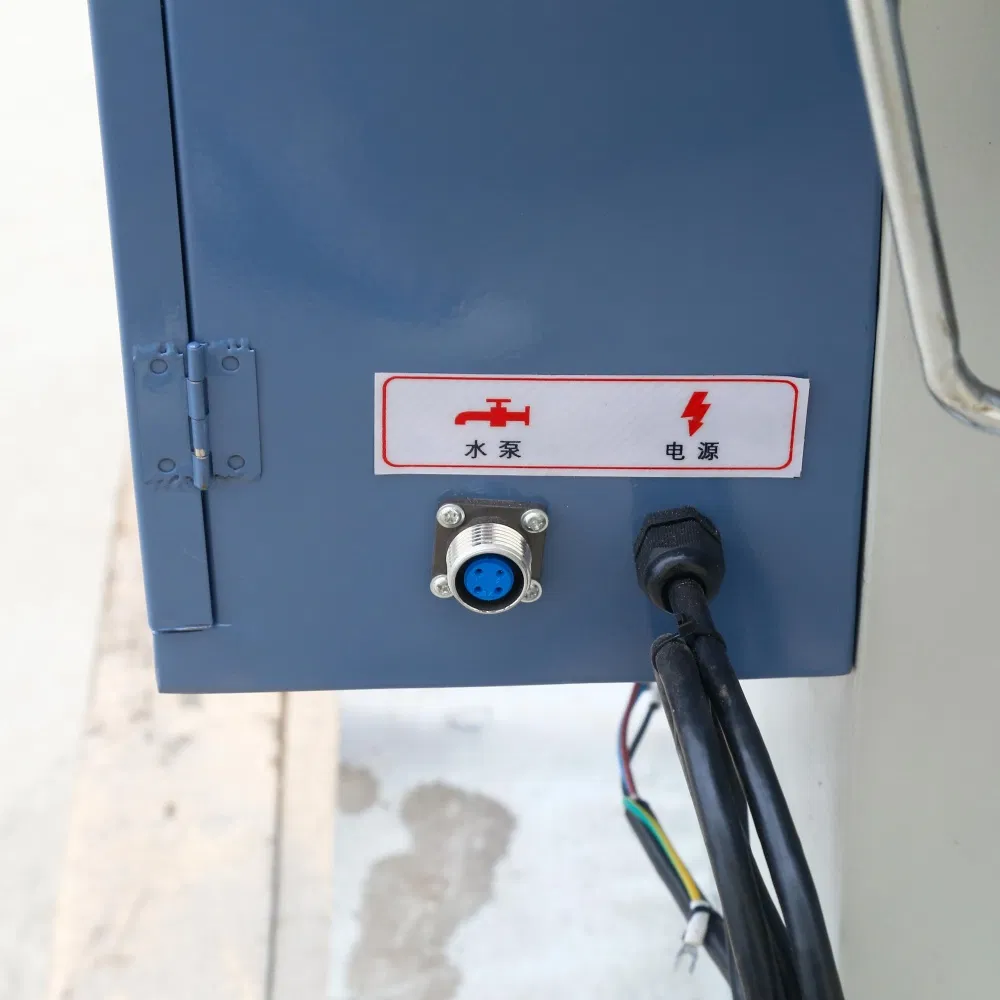

Detail 8

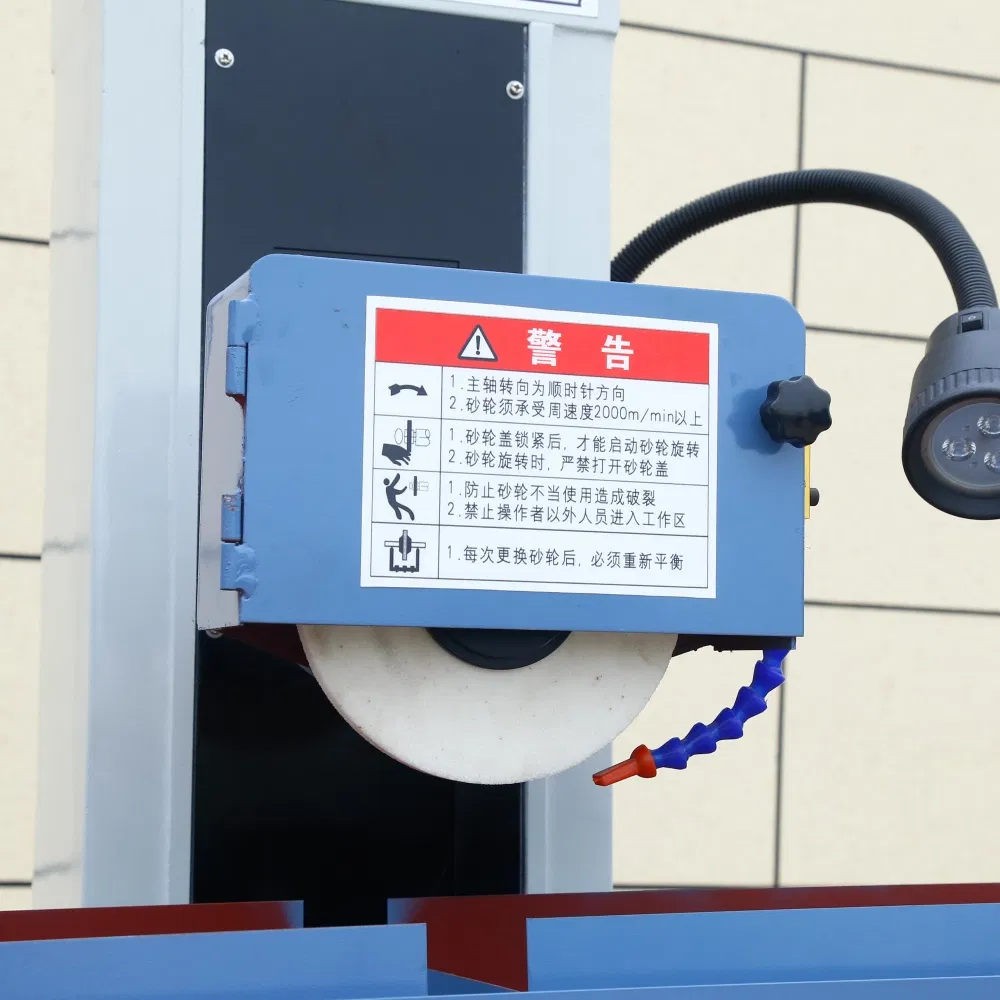

Detail 9
Product Parameters
Specification M618 Data
Work surface size (L x W)450*150mm
Max distance from spindle center to table460mm
Max travel of worktable left and right490mm
Max travel of workbench (Front/Back)180mm
Max load-bearing capacity of workbench200kg
Hand wheel front/rear feed per revolution4.0mm
Hand wheel front/rear feed per grid0.02mm
Handwheel up/down feed per revolution2.0mm
Handwheel up/down feed per grid0.01mm
Spindle motor1.1kw
Cooling pump40w
Grinding wheel speed2850rpm
Grinding wheel sizeφ180*16*φ31mm
Machine gross weight750kg
Machine net weight680kg
Machine tool dimensions (L×W×H)1550*1110*1650mm
Certifications
Certification 1
Certification 2
Customers Visit
Customers visiting our facility
Frequently Asked Questions
Why choose our machines?
We offer high quality at competitive prices, supported by a professional R&D team and 23 years of export experience to over 60 countries. Our machines are CE and ISO certified.
Do you have quality control or safety standards?
Yes, we have established a highly strict quality control department to guarantee the performance and quality of every machine.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set. Only some specific low-cost auxiliary machines may require a higher quantity.
What are the available payment terms?
We accept T/T (30% advance, 70% before shipment), Irrevocable LC at sight, Western Union, and MoneyGram.
What is the warranty period and after-sales service?
The warranty period is one year after delivery. Beyond that, we provide lifetime technical support and service for the machine.
Is online service available for troubleshooting?
Yes, we offer 24-hour online service via various communication platforms, and overseas engineers are available for complex problem resolution.
