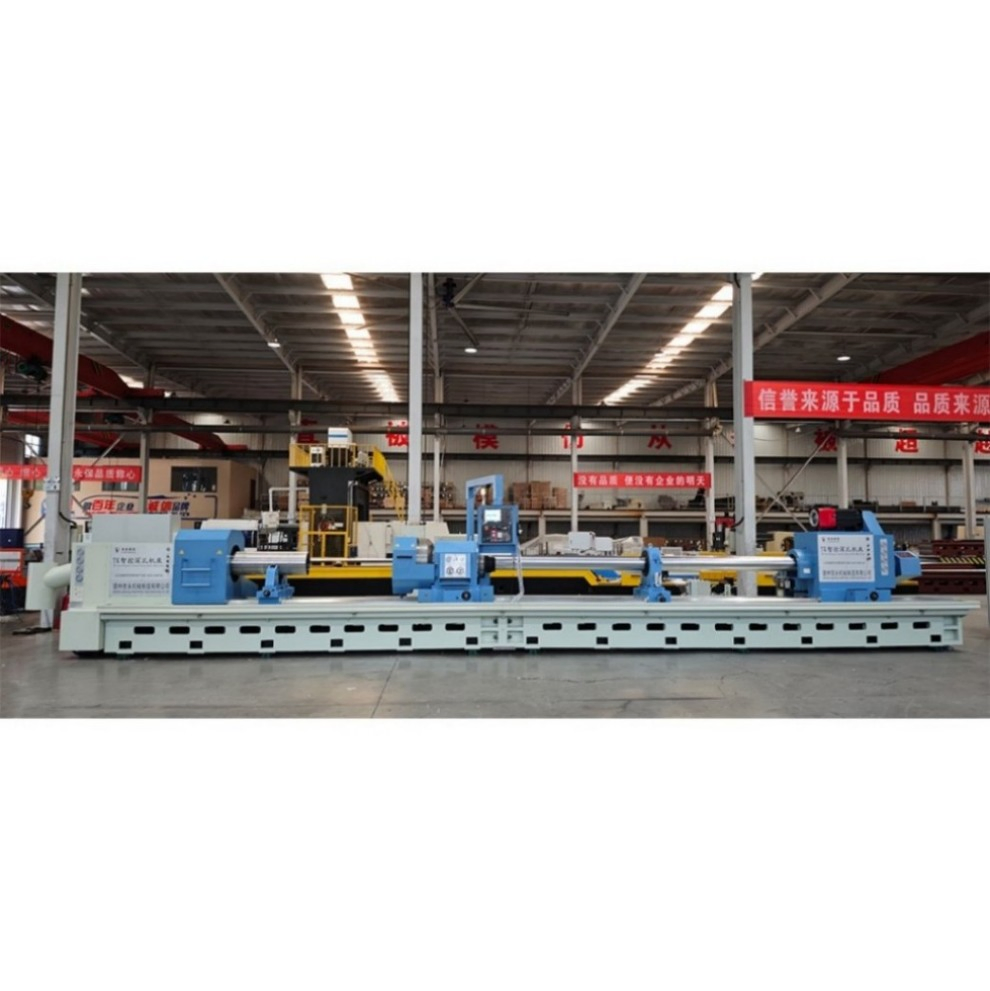

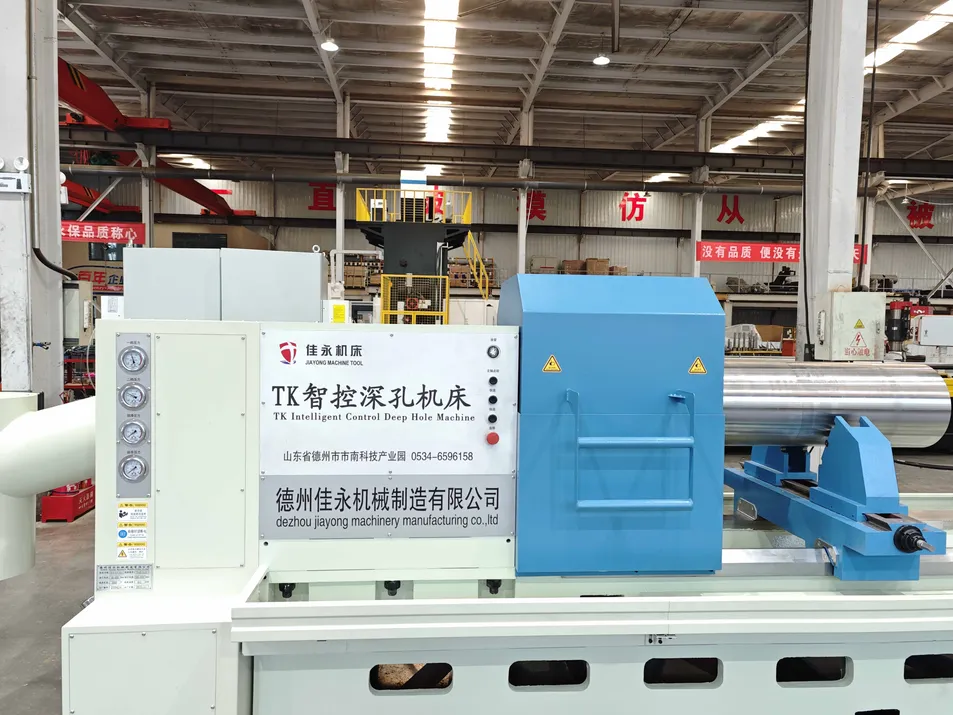

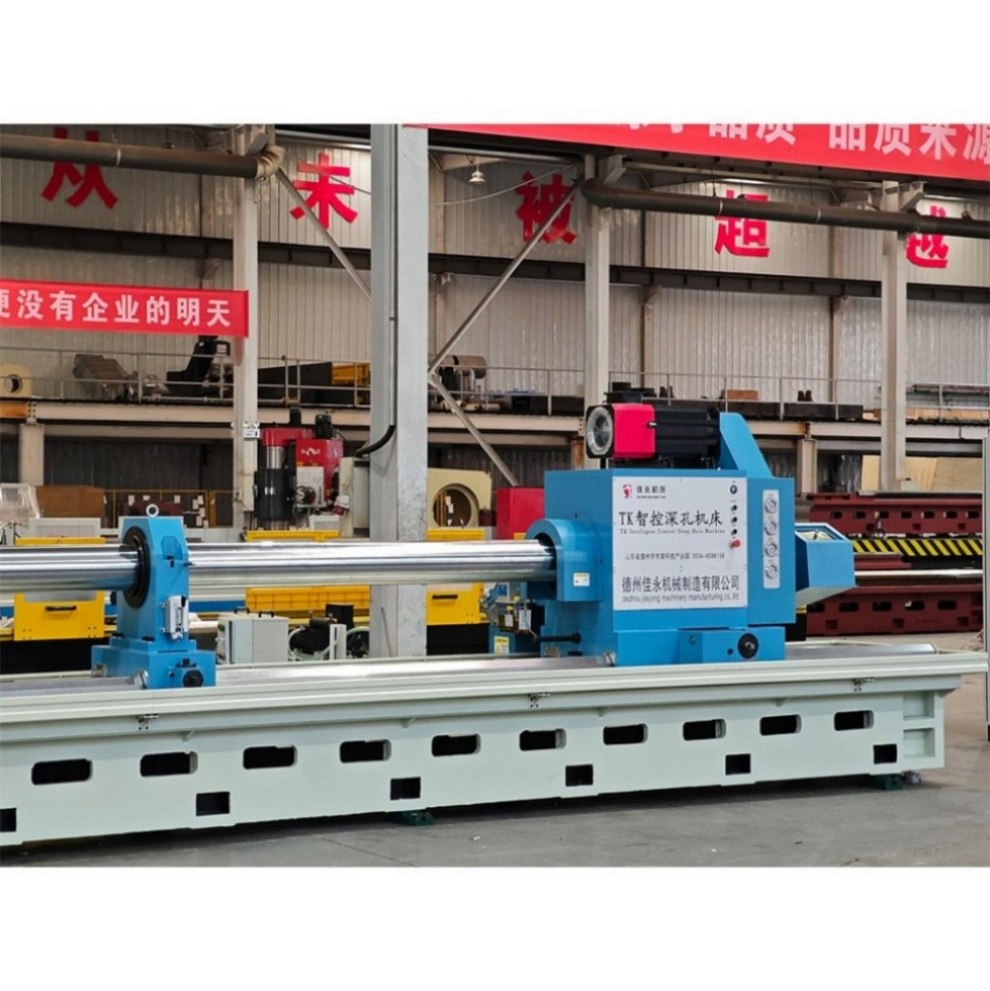

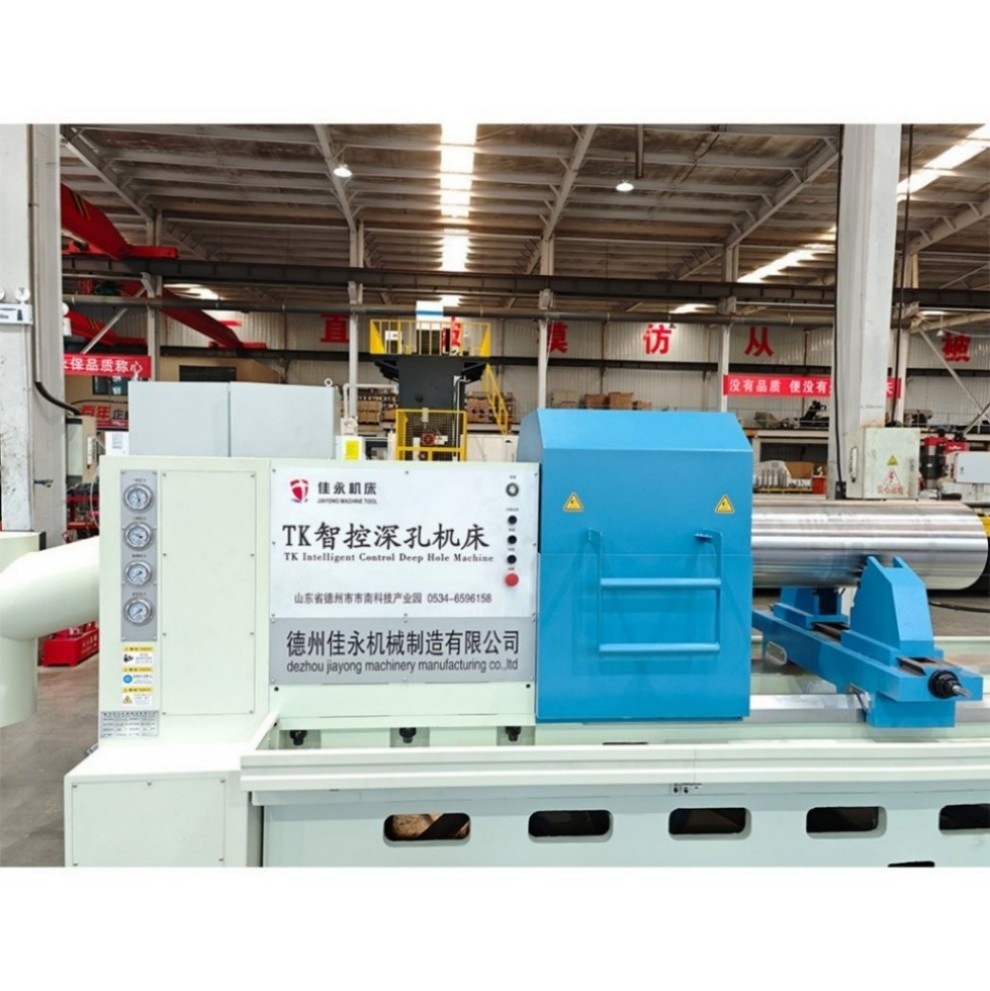

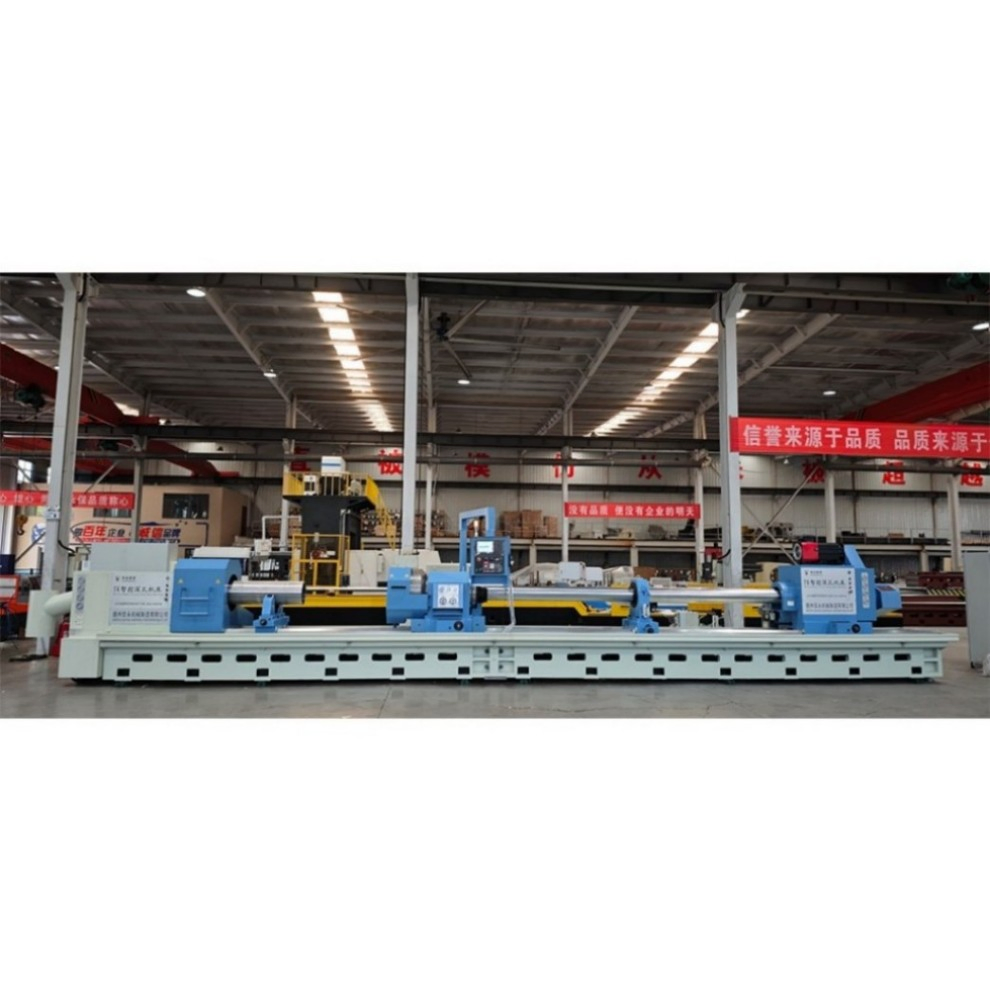

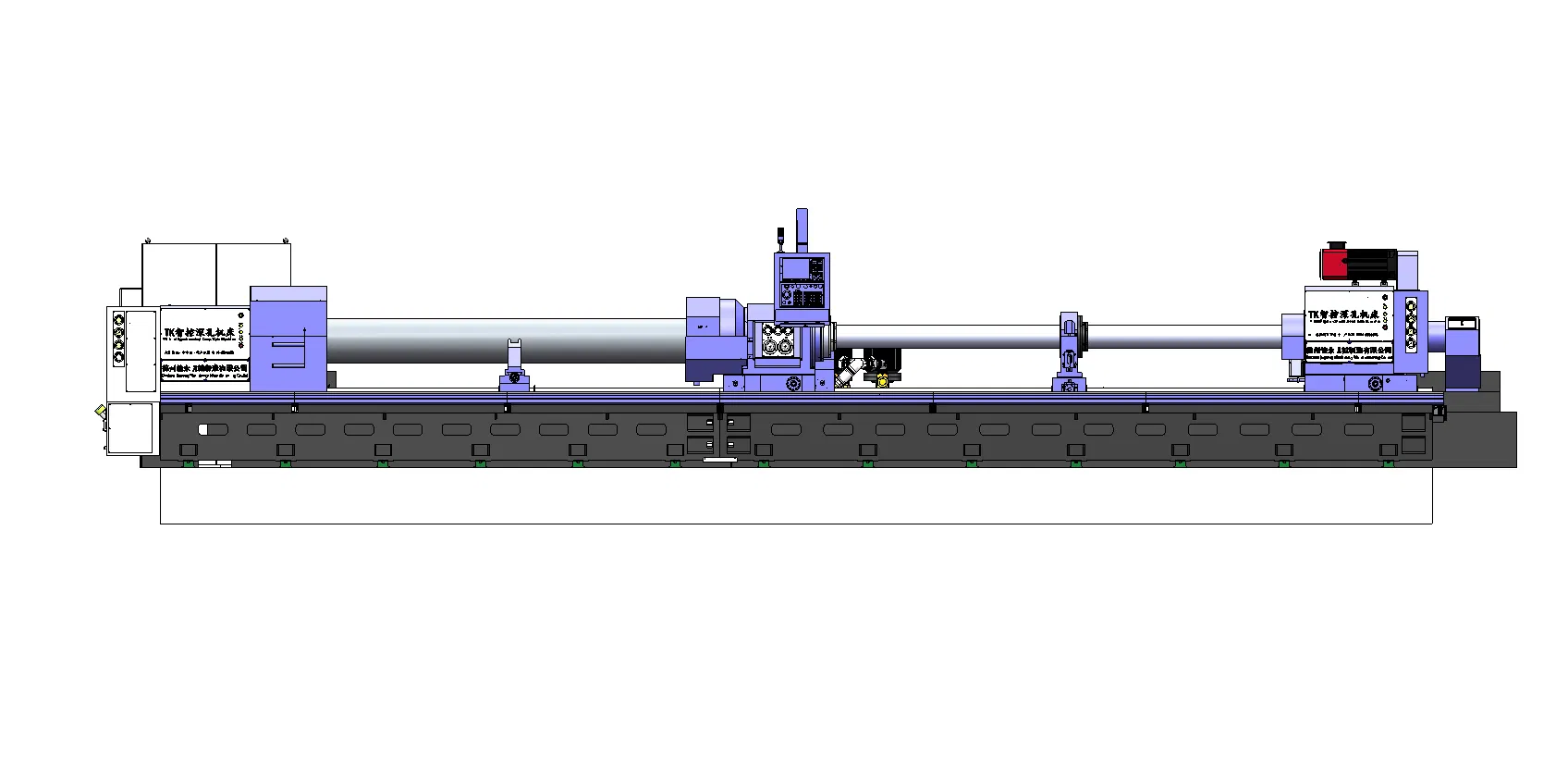

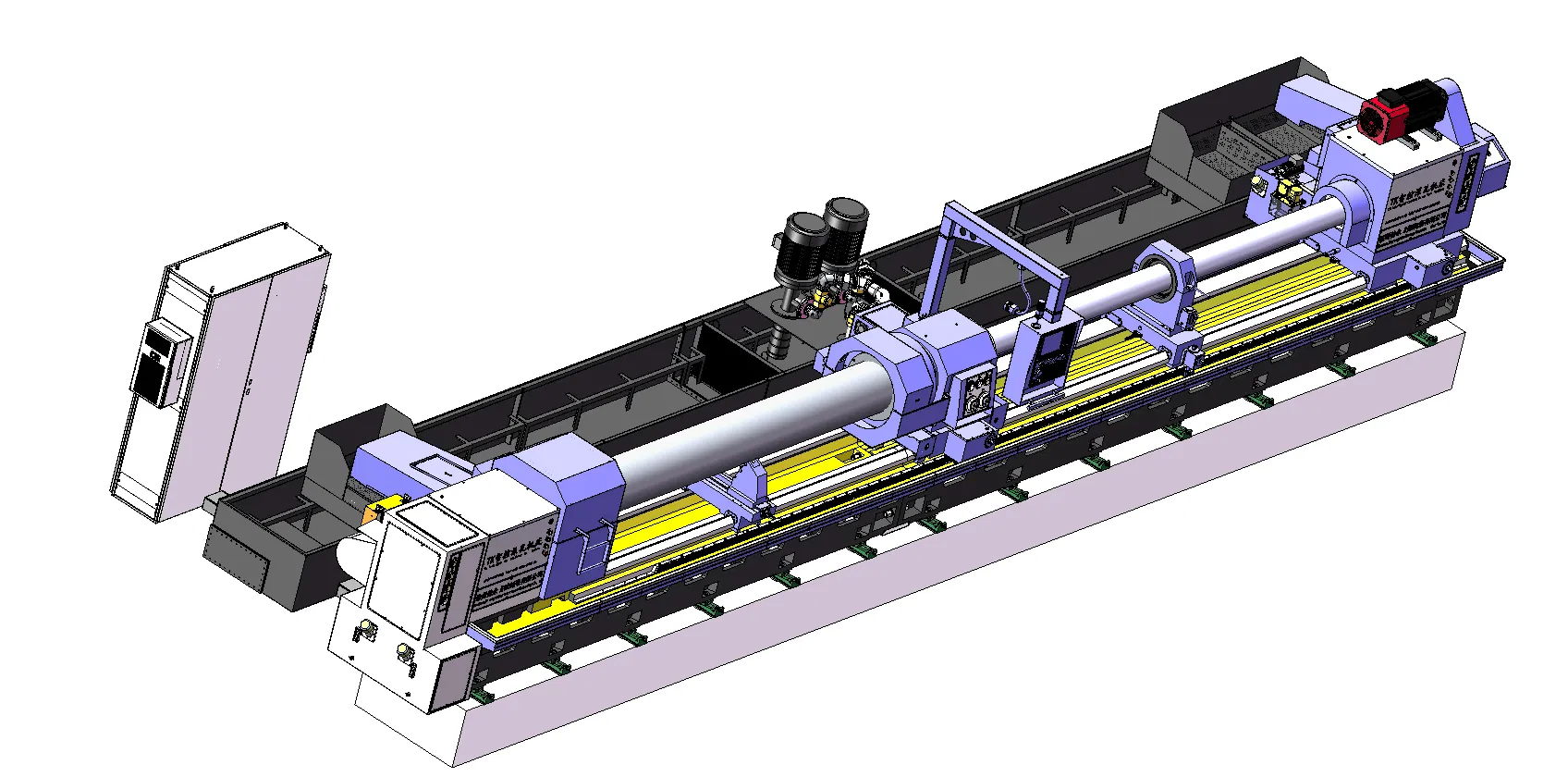

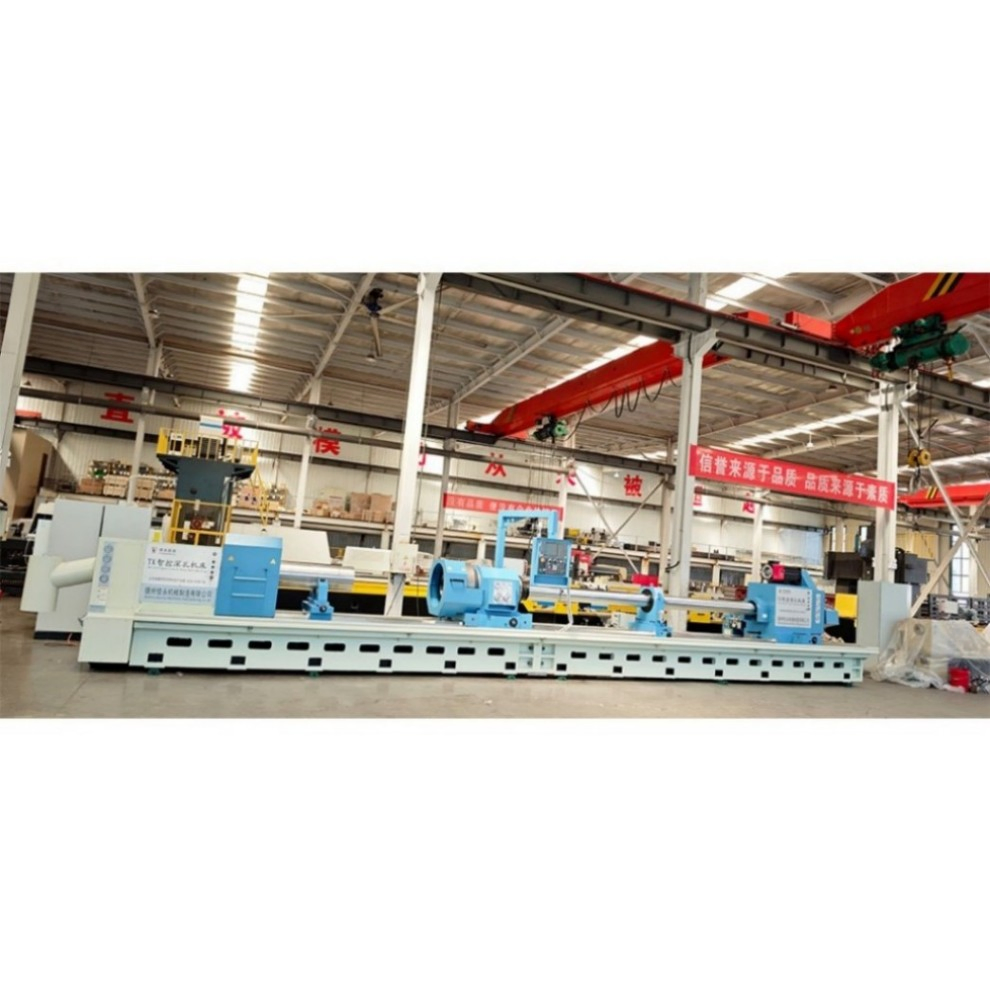

The machine is designed for precision drilling and boring of cold-drawn and hot-rolled steel pipes, as well as non-magnetic materials. It can also perform drilling and trepanning on round steel bars. The use of specialized tools improves the dimensional accuracy and surface quality of the inner holes of steel pipes. Materials that can be processed include ordinary carbon steels, high-quality carbon steels, and low alloy steels such as 20, 45, 16Mn, 25Mn, 27SiMn.

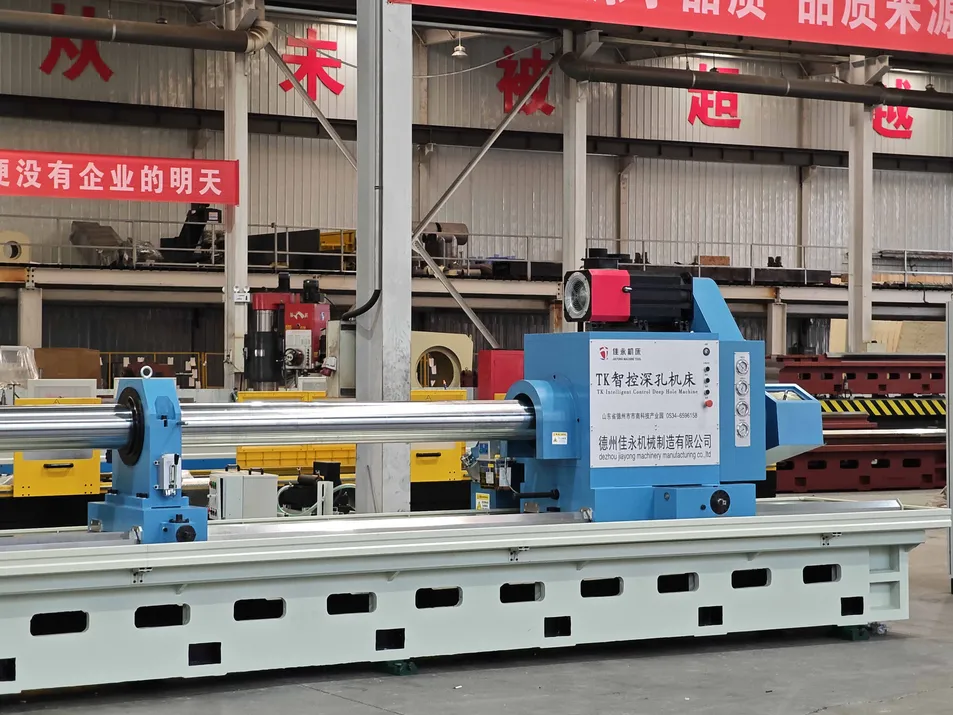

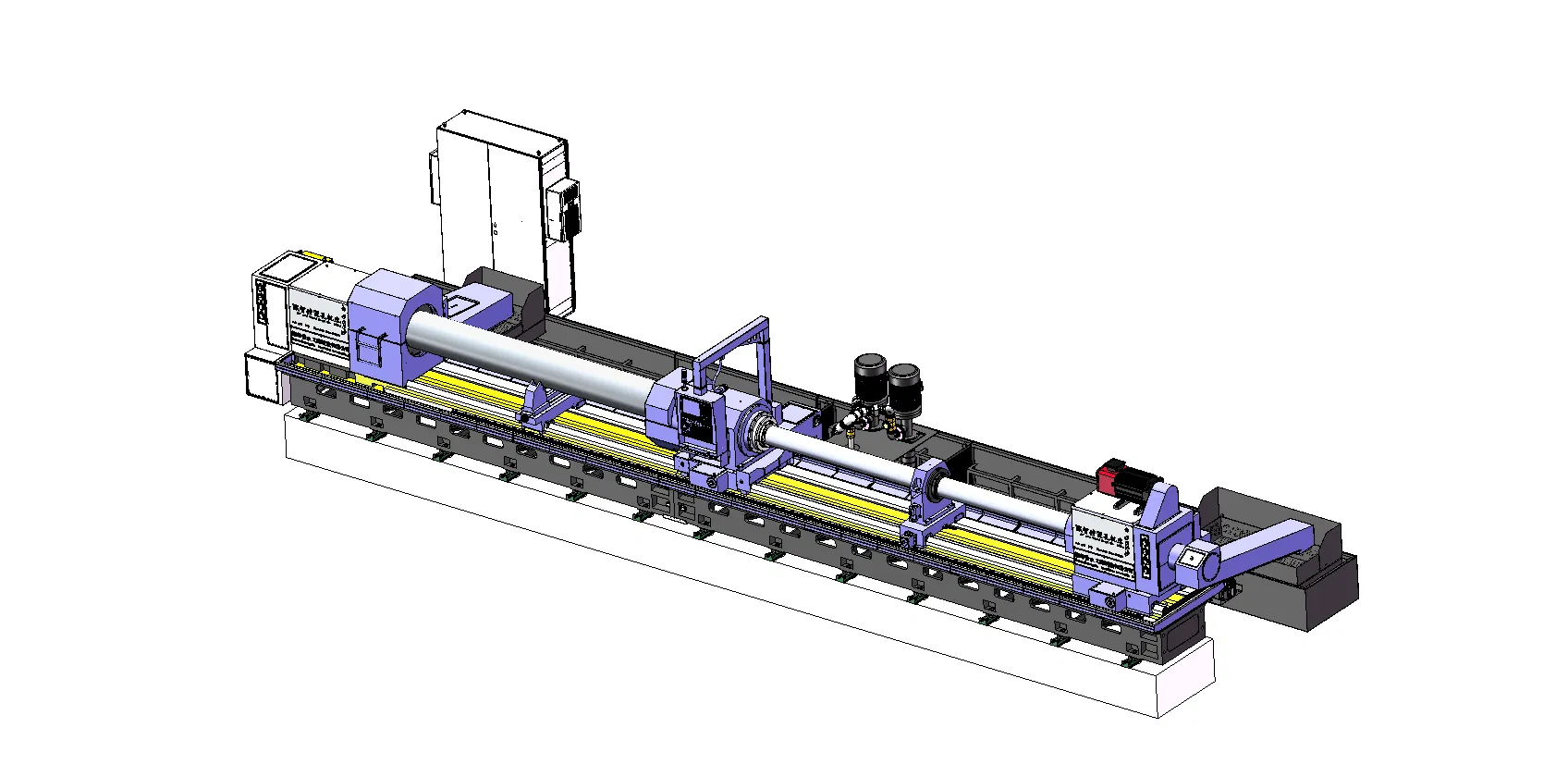

01. Workpiece Rotation (Drill Head Brake)
The headstock drives the workpiece to rotate, while the boring bar drives the combination head, drill bit, and hydraulic fine boring/rolling tools to feed. Used for precision machining on hot-rolled steel pipes.
02. Tool Rotation (Headstock Brake)
The headstock is braked to keep the workpiece stationary. The boring bar head drives the boring bar to rotate. This corrects drilling deviations and is suitable for drill collars and petroleum components.
03. Dual Rotation
The headstock drives the workpiece to rotate while the boring bar rotates and feeds simultaneously, improving straightness and efficiency.
Detailed Specifications
Category
Item
Specification
Working Range
Boring Diameter Range
Ø30-400MM
Drilling Diameter Range
Ø25-150MM
Max. Machining Length
500-12000MM
Spindle Head
Center Height
500MM
Spindle Bore Diameter
Ø210
Spindle Speed Range
10-400r/min
Precision
Boring Surface Roughness
Ra1.6-3.2
Roller Burnishing Roughness
Ra0.2-0.8
Cylindricity
500/0.02mm
Roundness
0.02mm
Power System
Headstock Spindle Motor
30KW AC Servo
Drill Head Motor
30KW AC Servo
Hydraulic System Power
1.5KW

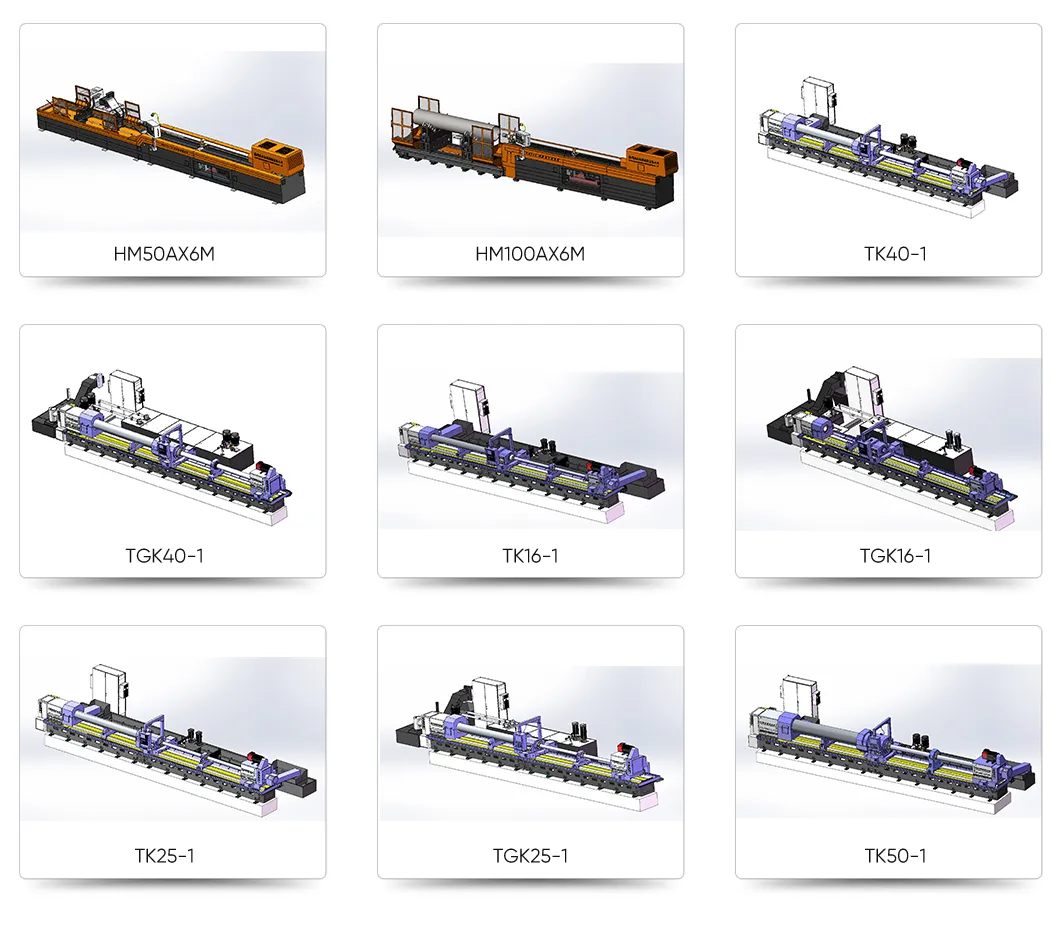

Manufacturing Facility
Established in 2015, our facility covers an area of 16,000 square meters and employs over 360 workers. Specializing in deep-hole machining equipment, the factory produces approximately 220 units annually, including CNC deep-hole drilling & boring machines, honing machines, and gun drilling machines. The production facility is equipped with more than 120 advanced machines, including 4x10 meter CNC gantry machining centers and specialized grinding equipment.
