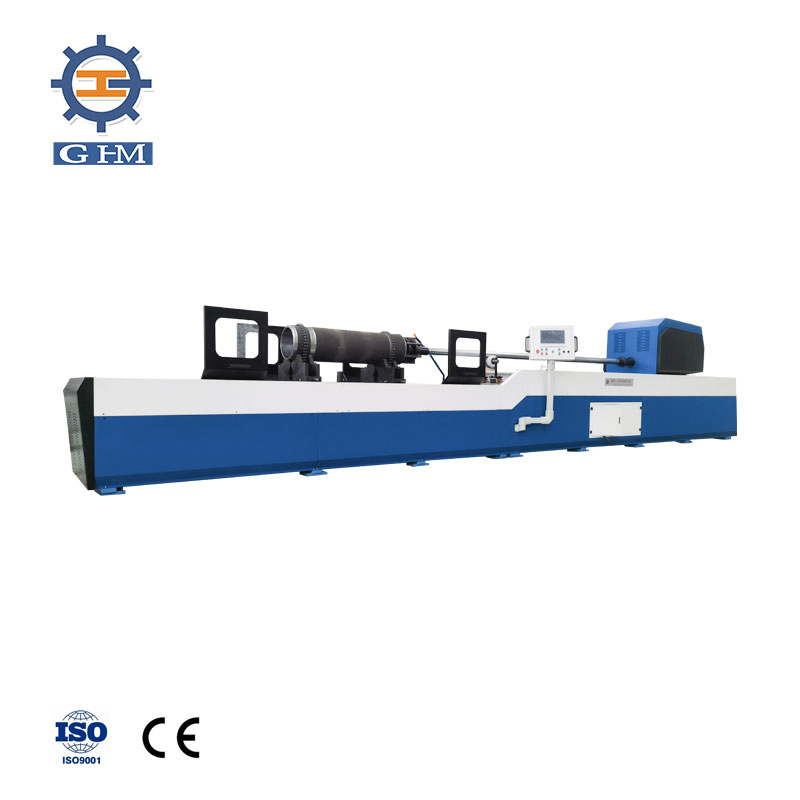

Professional CNC Honing System Enhanced Surface Finishing

1 / 5

Professional CNC Honing System Enhanced Surface Finishing

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Years

Send Inquiry

Product Description

Basic Information

Model NO.:2M2150

CNC or Not:CNC

Structure:Horizontal

Automatic Grade:Semi-Automatic

Voltage:380V, 220V

Core Components:PLC, Motor

Weight:5000 Kg

Origin:China

Production:800 set/Year

High-Performance Honing Solution

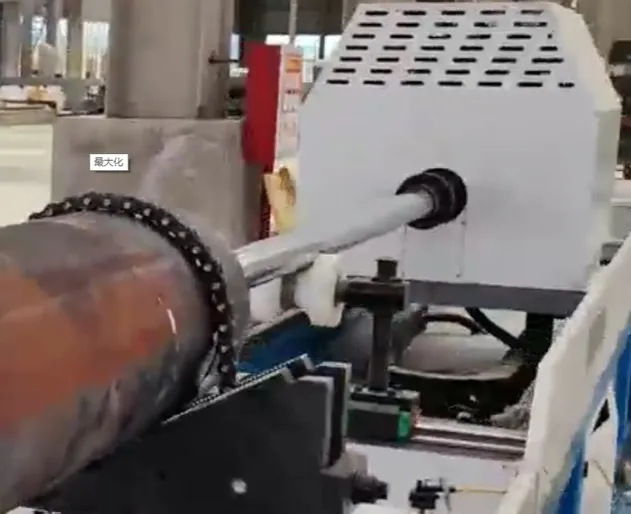

This deep hole honing machine is a specialized equipment designed for precision machining of various cylindrical parts, such as hydraulic cylinders and air cylinders. It ensures exceptional surface finishing and dimensional accuracy for industrial applications.

Core System Features

Spindle System: Driven by high-torque motors for stable rotation and vertical reciprocating motion.

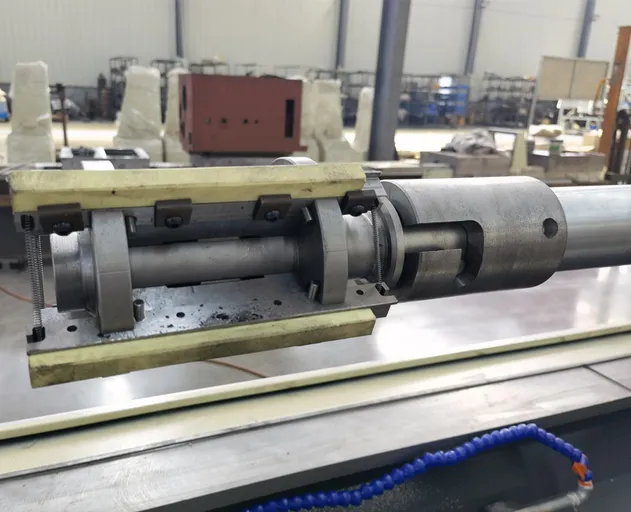

Honing Head: Radial expansion through mechanical or hydraulic control for optimal wall contact.

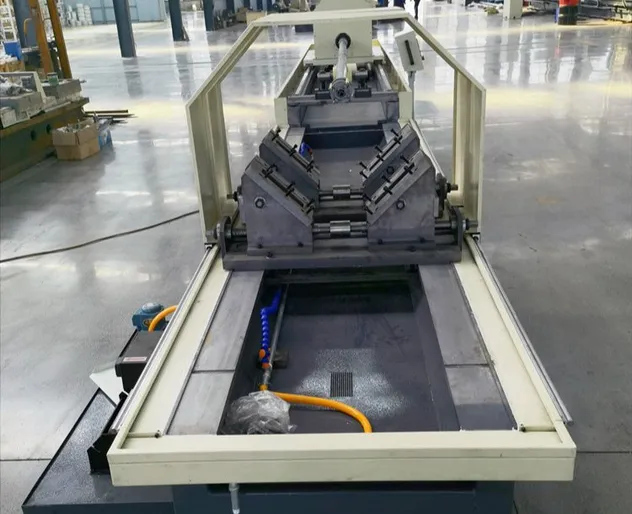

Fixture System: Ensures workpiece stability during compound motion processing.
Cooling & Filtration: High-pressure circulation (up to 200L/min) with paper filtration for chip removal.
Precision Control: Real-time monitoring via PLC to adjust pressure, stroke, and motion parameters.

Product Details

Technical Specifications

Parameter Item	Technical Data
Drilling diameter range	φ40~φ500mm
Maximum depth of honing holes	5000mm
Center height (to the flat guide rail)	500mm
Workpiece clamping diameter range	φ30-φ800mm
Main shaft speed range (grinding rod box)	60~350r/min
Reciprocating speed range	0-20m/min
Motor power (grinding rod box)	22kw (servo motor)
Cooling pump flow rate	100L/min
Control system	Siemens / INVT PLC

* Custom configurations available upon request.

After-Sales & Support

Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and rapid spare parts supply.
Training: Comprehensive on-site or remote operation and maintenance training.

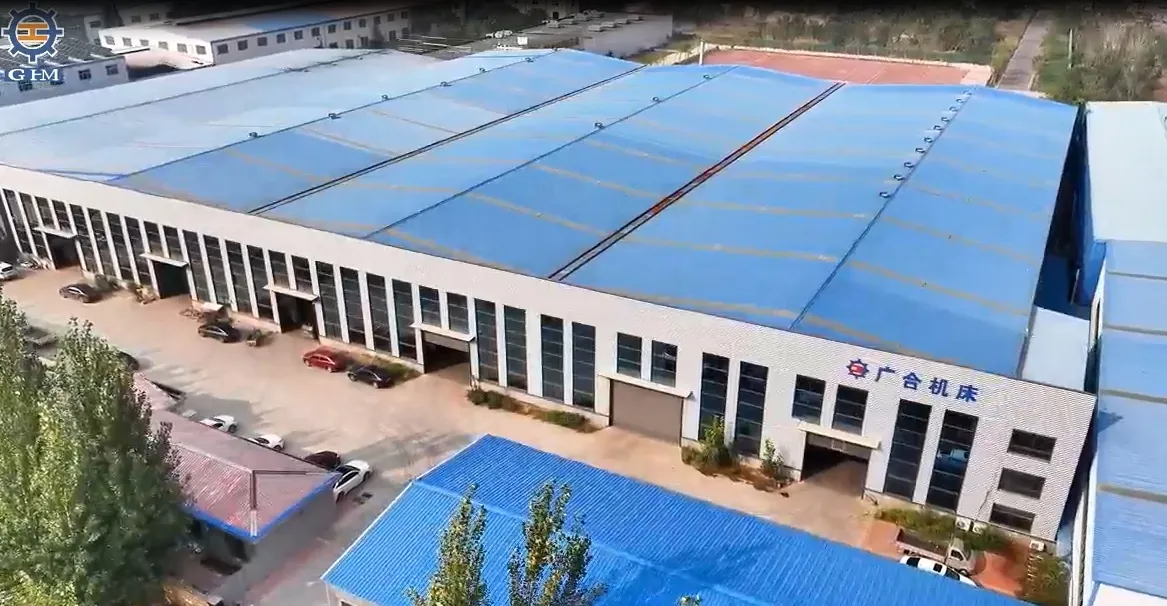

Manufacturing Excellence

We specialize in the R&D, production, and sales of high-precision deep-hole machine tools. Our expertise covers deep-hole boring, drilling, scraping, and honing equipment. With over 17 years of industry experience, we have established a professional team focused on CNC innovation. Our facility holds multiple quality certifications, including ISO9001 and CE, reflecting our unremitting pursuit of product quality and service excellence.

Frequently Asked Questions

Q: What kind of after-sales service is provided?

A: We offer free technical training at our facility. Additionally, our engineers are available for overseas machinery service and troubleshooting if required.

Q: What is the warranty policy for the honing machines?

A: The complete machine comes with a standard one-year warranty and lifetime maintenance support to ensure long-term operational stability.

Q: How is the quality of each machine ensured before shipping?

A: Every machine undergoes rigorous testing using international brand spare parts and a layer-by-layer inspection process from R&D to final production.

Q: What is the typical lead time for an order?

A: Lead time depends on order volume. Generally, small quantities ship within 7-15 days, while larger or customized orders take approximately 30 days.

Q: Can the technical specifications be customized?

A: Yes, we offer customized configurations to meet specific processing requirements for different diameters and hole depths.

Q: Why should we choose your CNC equipment?

A: We combine 17 years of industry expertise with a robust R&D team, high-quality components, and 24/7 online after-sales support to deliver industry-leading performance.
