| Description | Unit | Parameter |
|---|---|---|
| Model Options | - | ZXX-C2010 / C2515 / C3015 / C4020 |
| Control System | set | LEETRO |
| Spindle Power | KW | 7.5KW (24000 RPM) |
| Max Grinding Size | mm | 2500*1450mm |
| Max Milling Size | mm | 2700*1650mm |
| Positioning Accuracy | mm | 0.01 |
| Max Process Speed | M/MIN | 3M/MIN |
| Lubrication | - | Automatic thermostat lubrication |

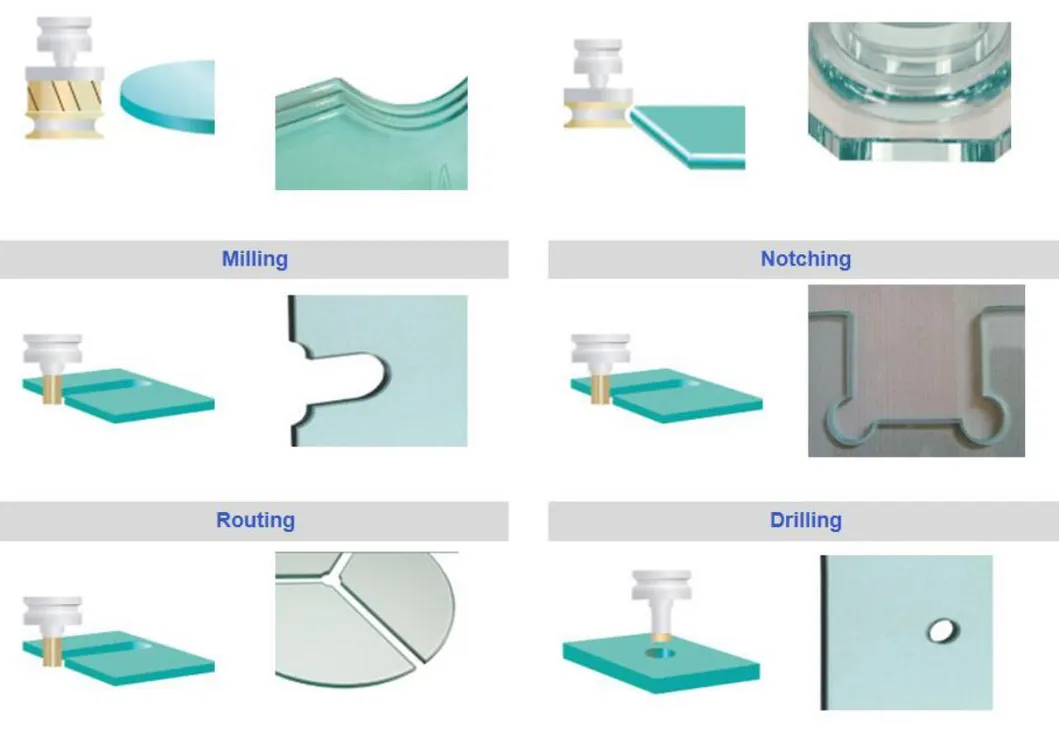

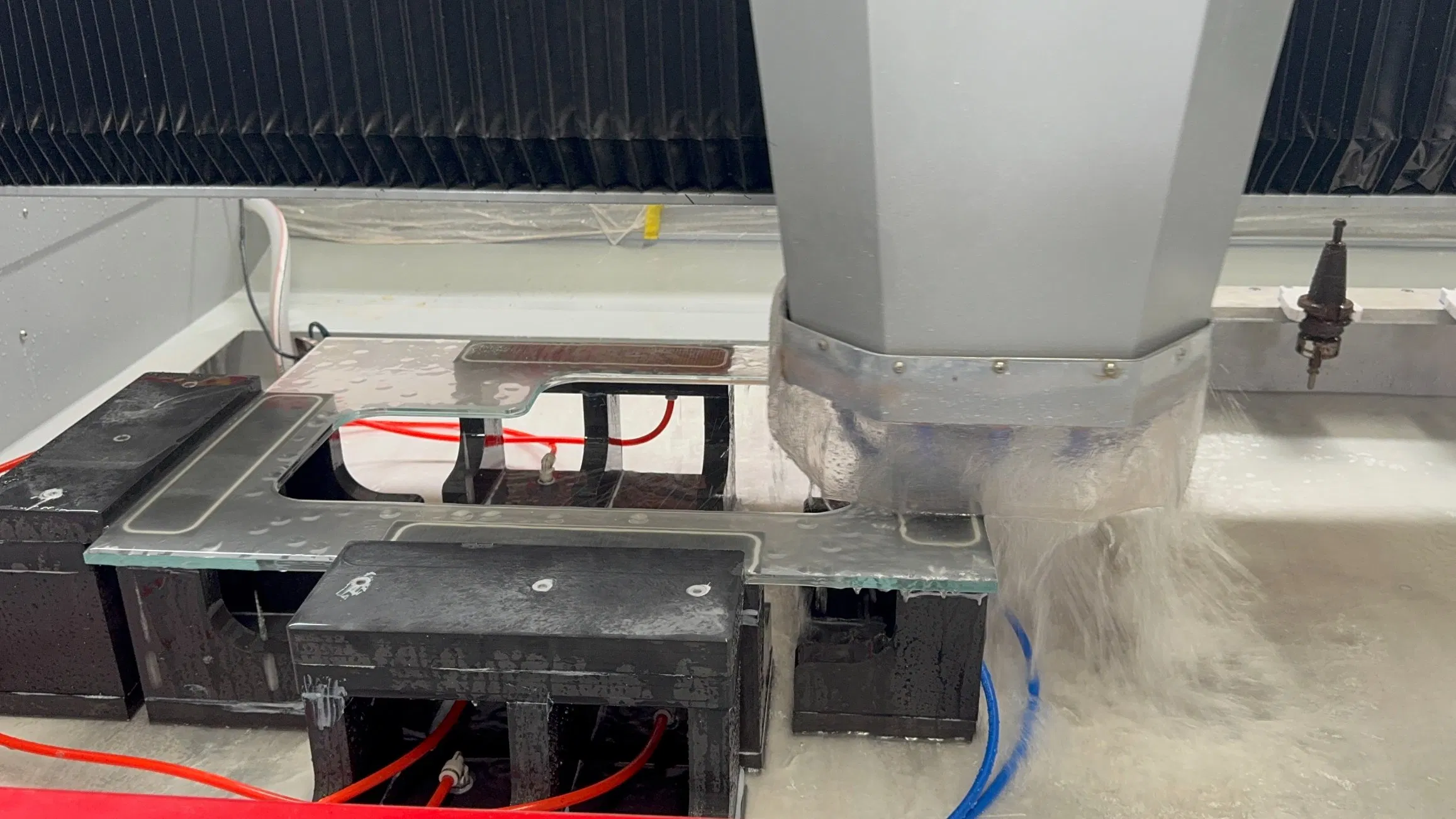

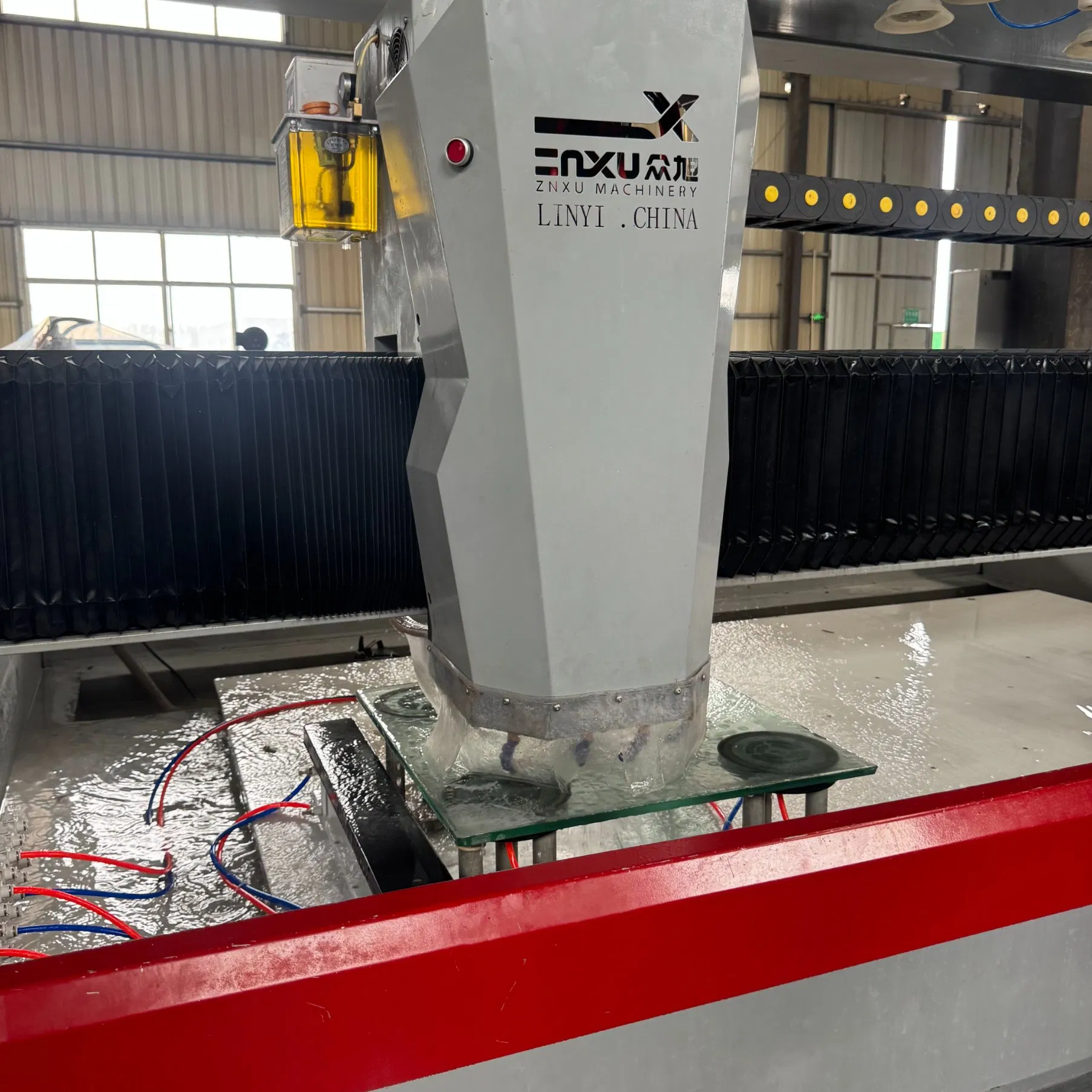

This system is a multi-functional glass processing center capable of drilling, milling, grinding, polishing, and engraving in a single setup.
The machine offers high positioning accuracy of 0.01mm, ensuring precise results for high-end glass products.

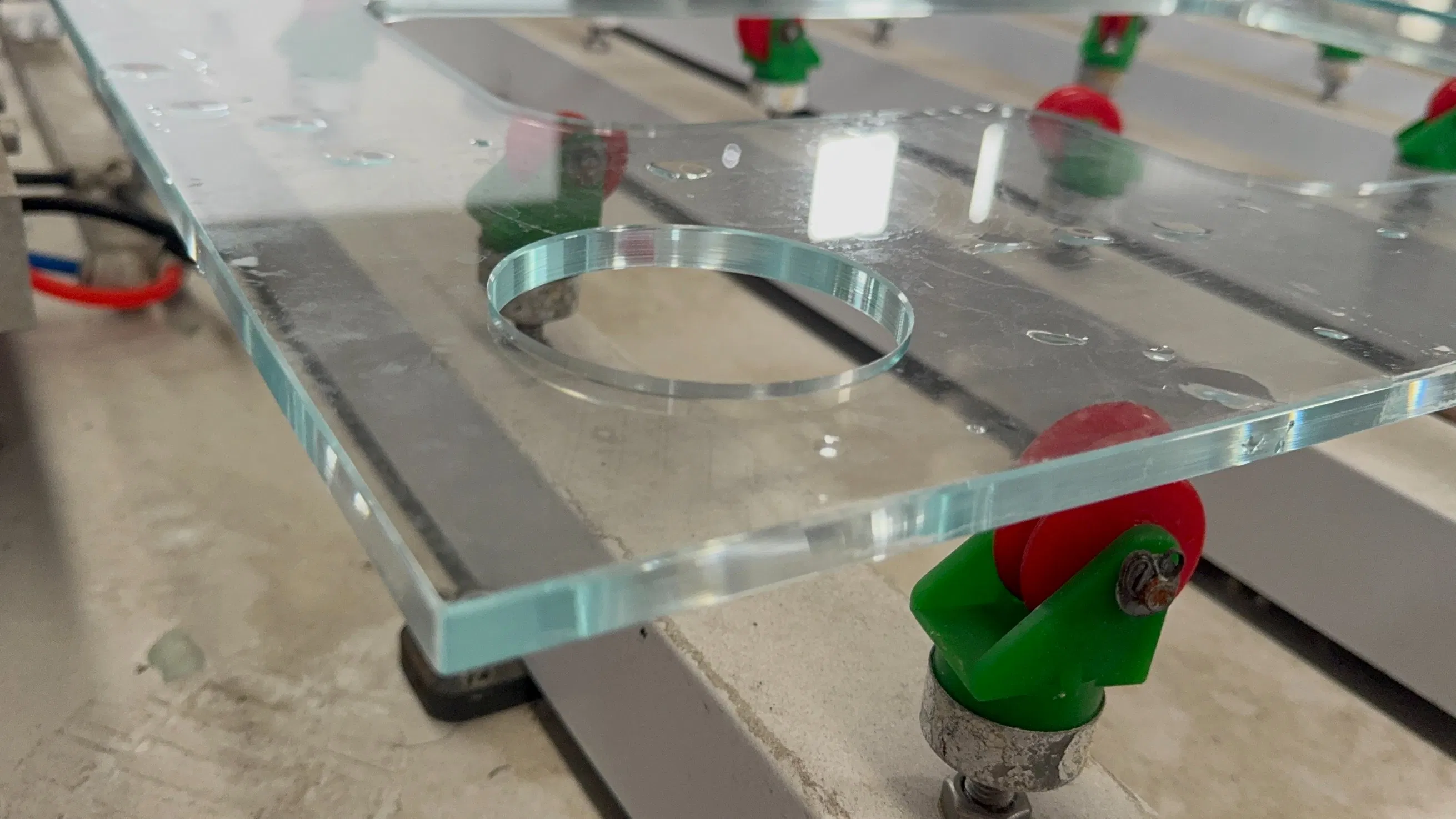

The system is designed to handle glass thicknesses ranging from 3mm to 25mm.
The machine is shipped as one integrated unit to ensure structural integrity. It comes with a complete operation manual and instructional CD.
We provide a one-year warranty. During this period, main parts (excluding consumables) will be replaced free of charge if problems occur.
Lead time varies by quantity: approximately 10 days for 1 unit, 45 days for 2-3 units, and 60 days for 4-5 units.
