Basic Information
Model NO.TPHD5050-2
Controlling ModeCNC
Number of Shaft4
Hole Diameter50-100mm
Automatic GradeAutomatic
PrecisionHigh Precision
CertificationGS, ISO 9001
ConditionNew
Transport PackagePlywood Case
Specification7.2X7.1X3.6m
HS Code8459210000
Production Capacity50 Sets/Year
Product Description
Applicable Industry:

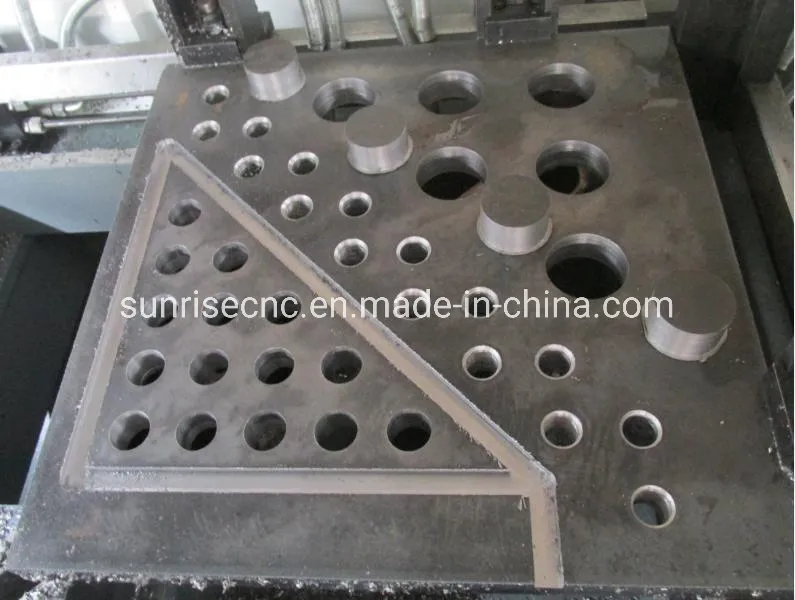

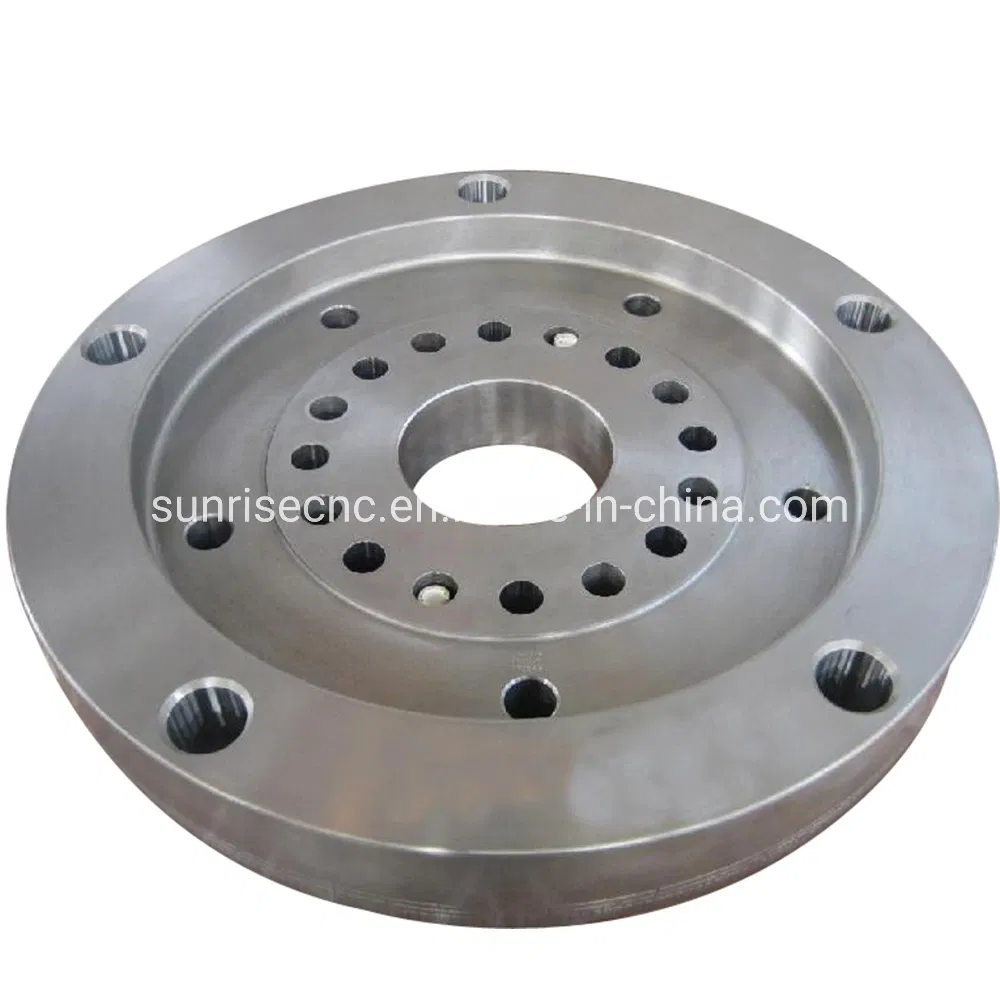

Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product Features:

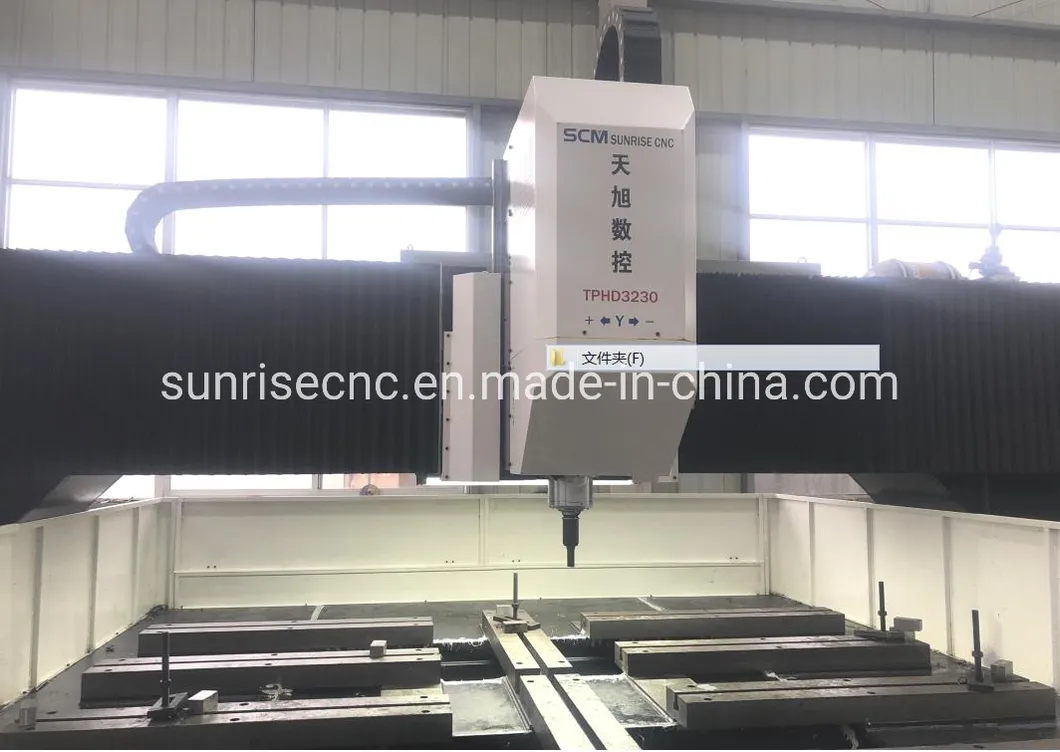

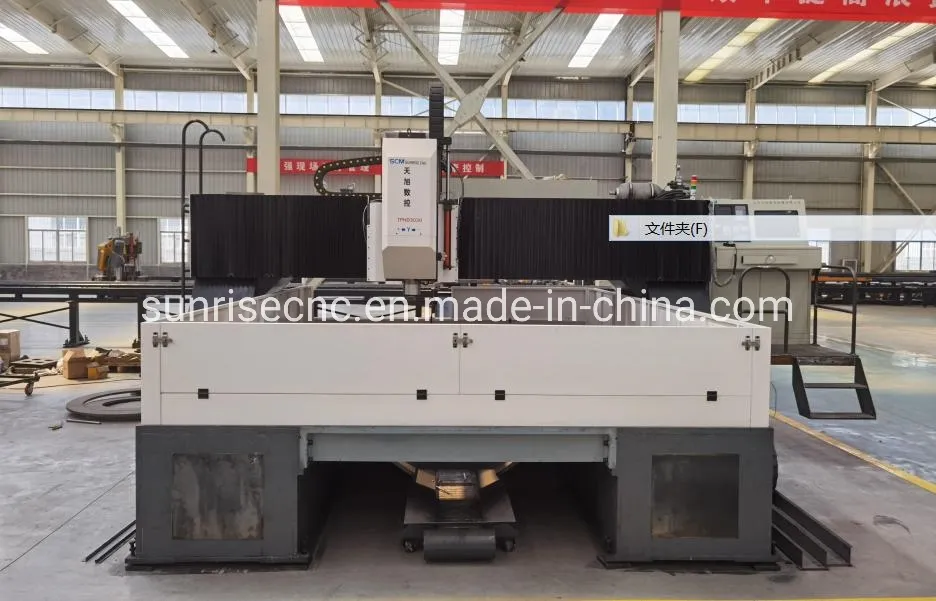

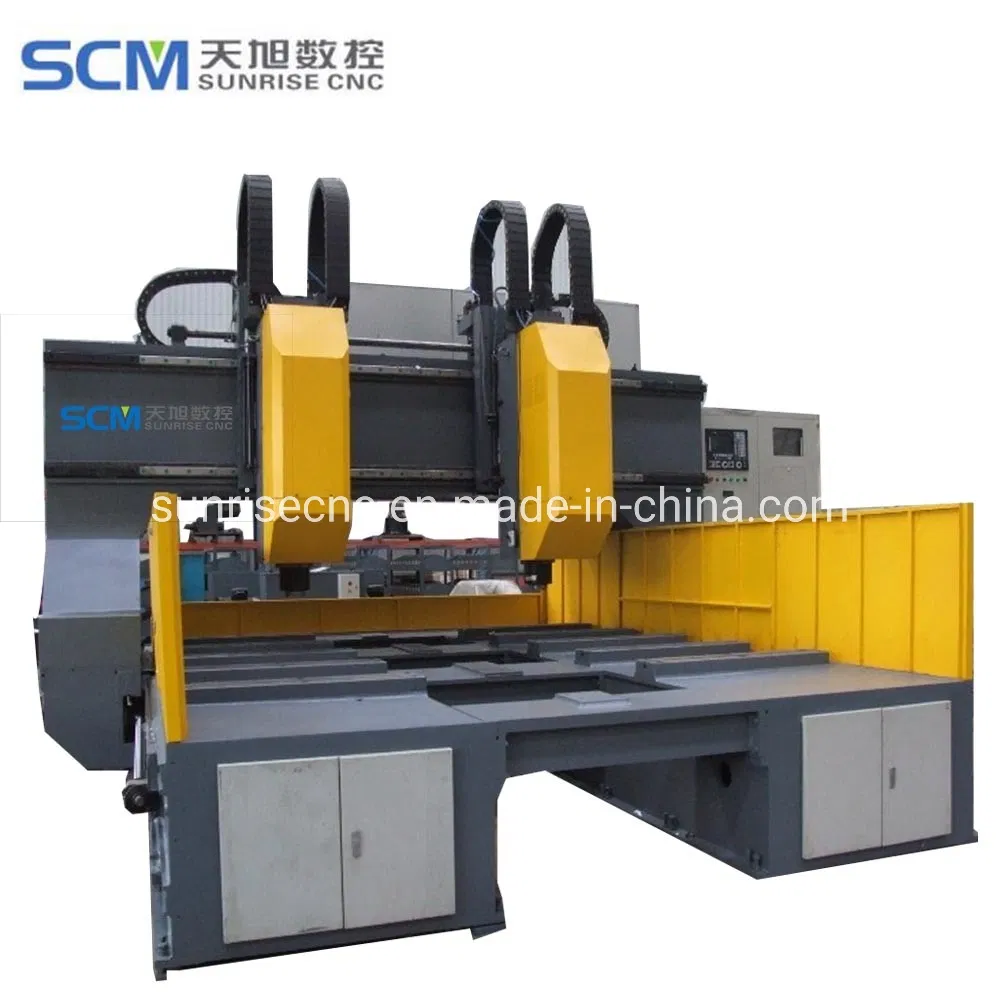

- The machine consists of work table, gantry, slide carriage, power head, CNC system, cooling chips discharge system etc.
- The machine works in mode of work table being fixed and gantry moving.
- The gantry and work table are weld assembly, which was high temperature annealed before processing, was annealed again after half finished machining to remove stress, then finished machining so that ensure stable precision.
- The machine has 3 numeric control axes; The gantry can make longitudinal movement along the guide (X axis); the power head can make lateral movement along the guide (Y axis).

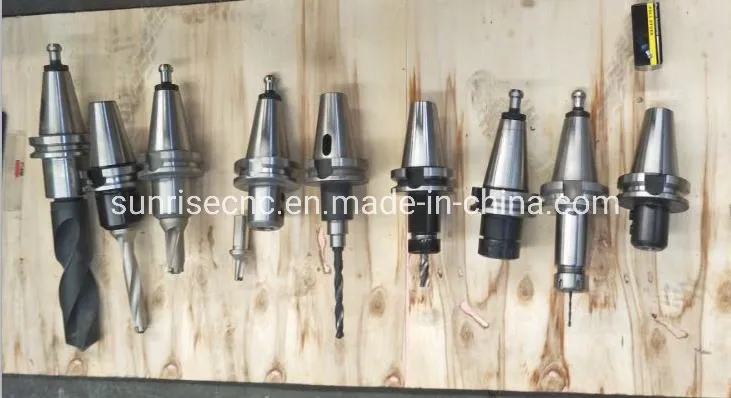

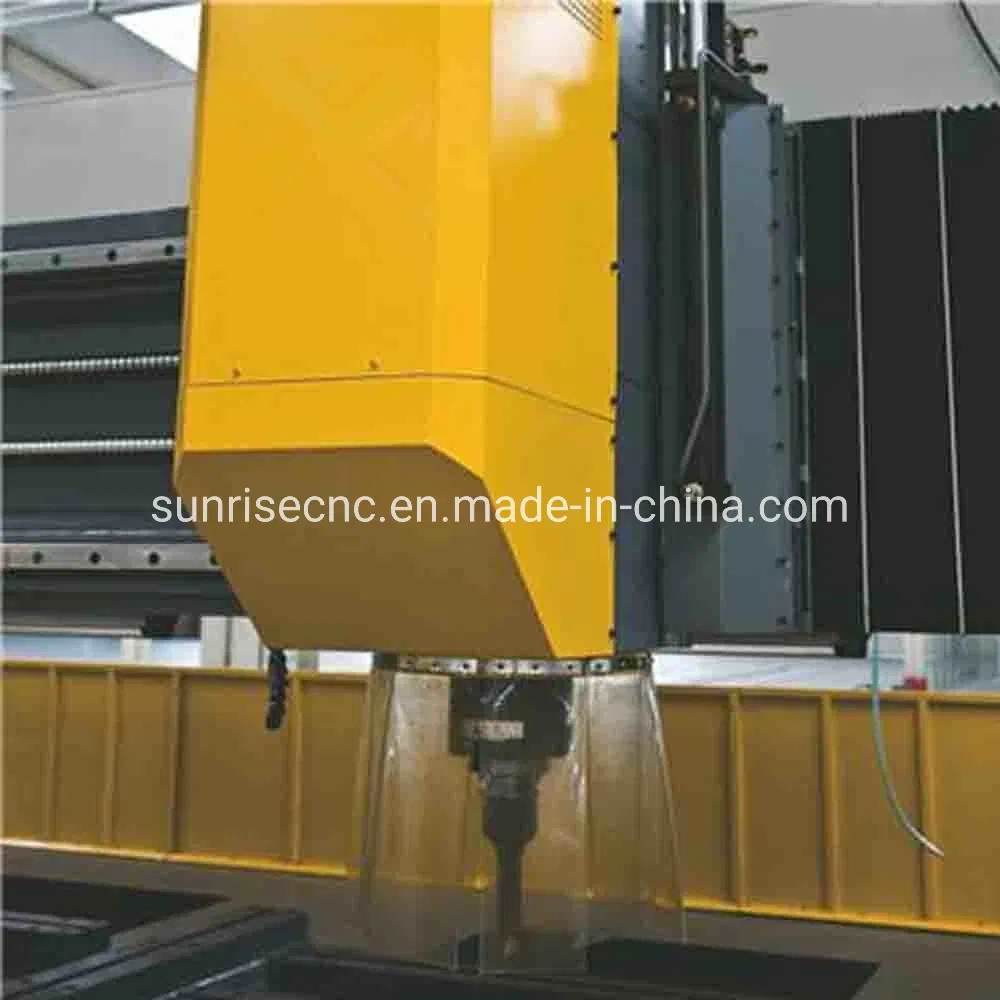

- The power head spindle is precision spindle which is driven by special frequency conversion motor and can make stepless speed regulation according to needs. The spindle is BT50 taper hole.

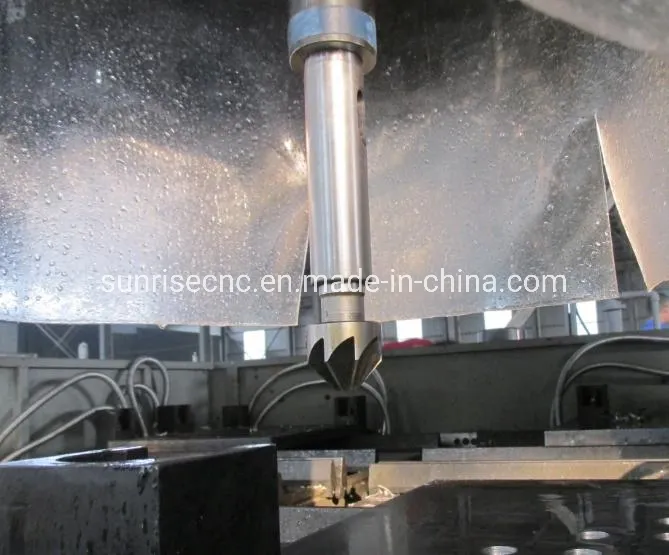

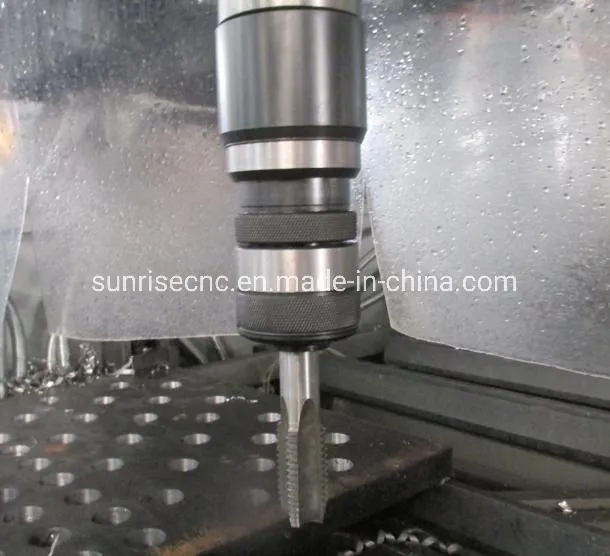

- The chip cleaner equipped beside of work table can discharge chips automatically. The drilling use water cooling with the system of cooling liquid providing, recycling, circulating and filtrating.

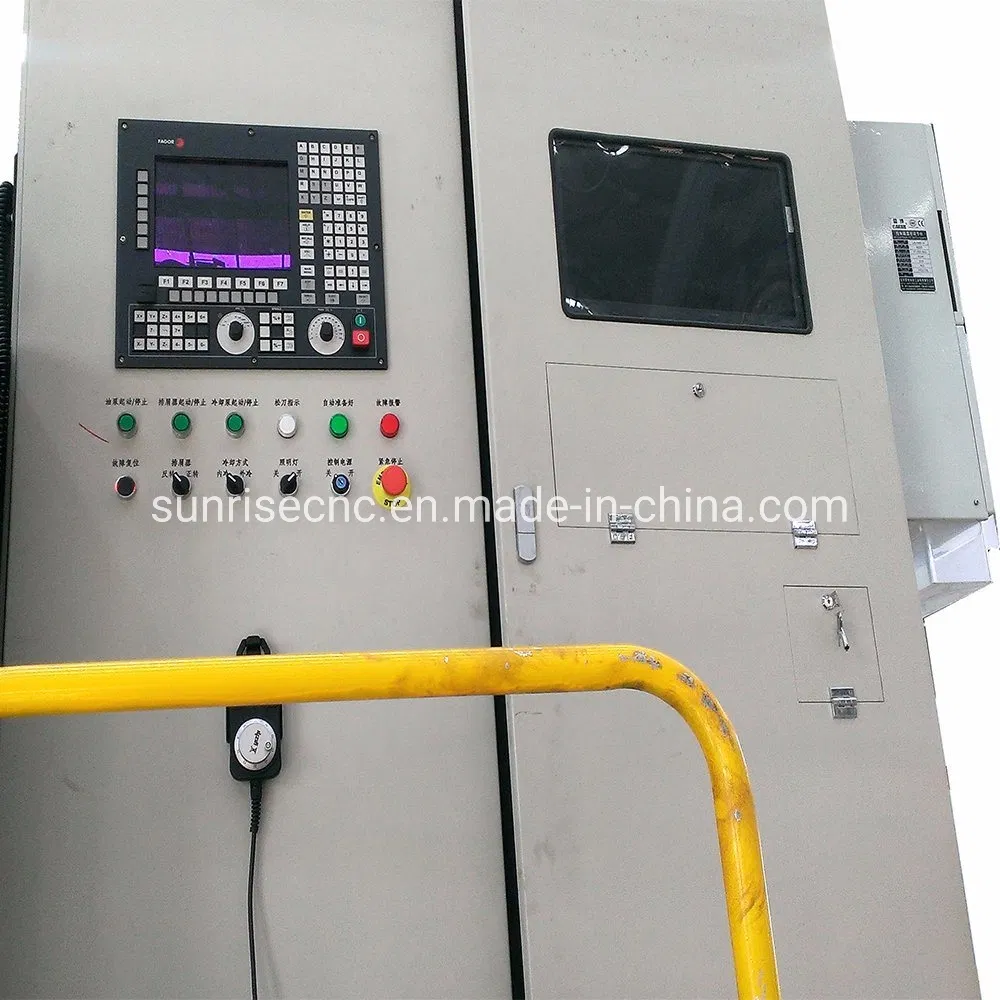

- Numerical control uses FAGOR8055 system, with RS232 connector and LED monitor.
- Protective covers are equipped for X/Y axis guides and lead screw of the lathe. Iron sheet cover is for X axis, and organ-protective cover for Y axis.
- For ensuring the reliability of the machine, the key components use high quality imported products.
Frequently Asked Questions
What industries is this CNC gantry drilling machine suitable for?
This machine is primarily designed for high-precision drilling in petrochemical, boiler, wind power, and flange industries, as well as for connection plates in building, bridges, and iron tower construction.
What is the maximum hole diameter the machine can drill?

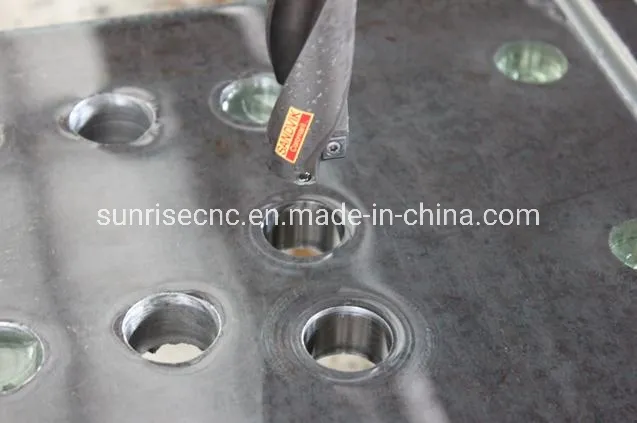

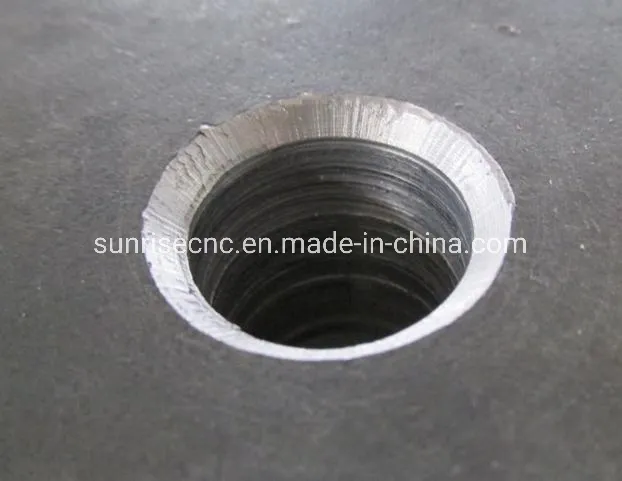

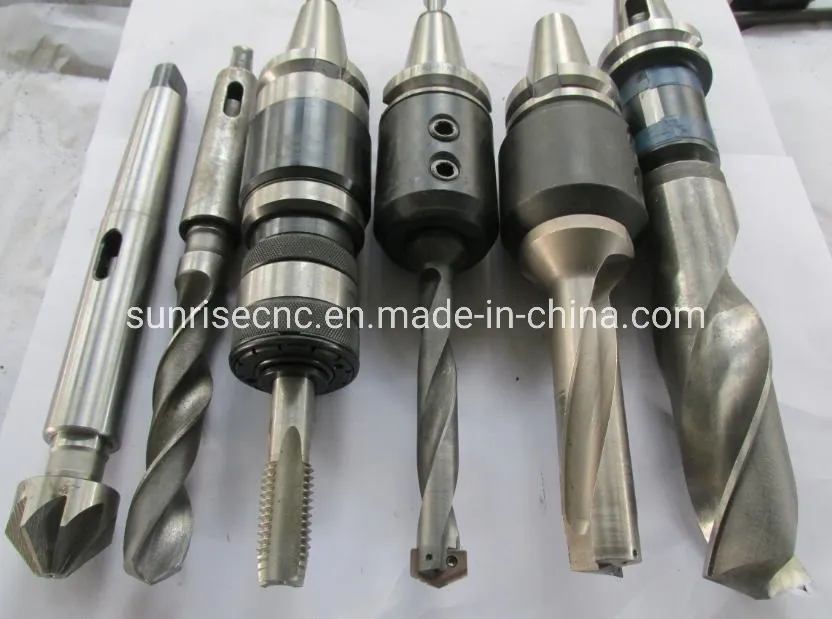

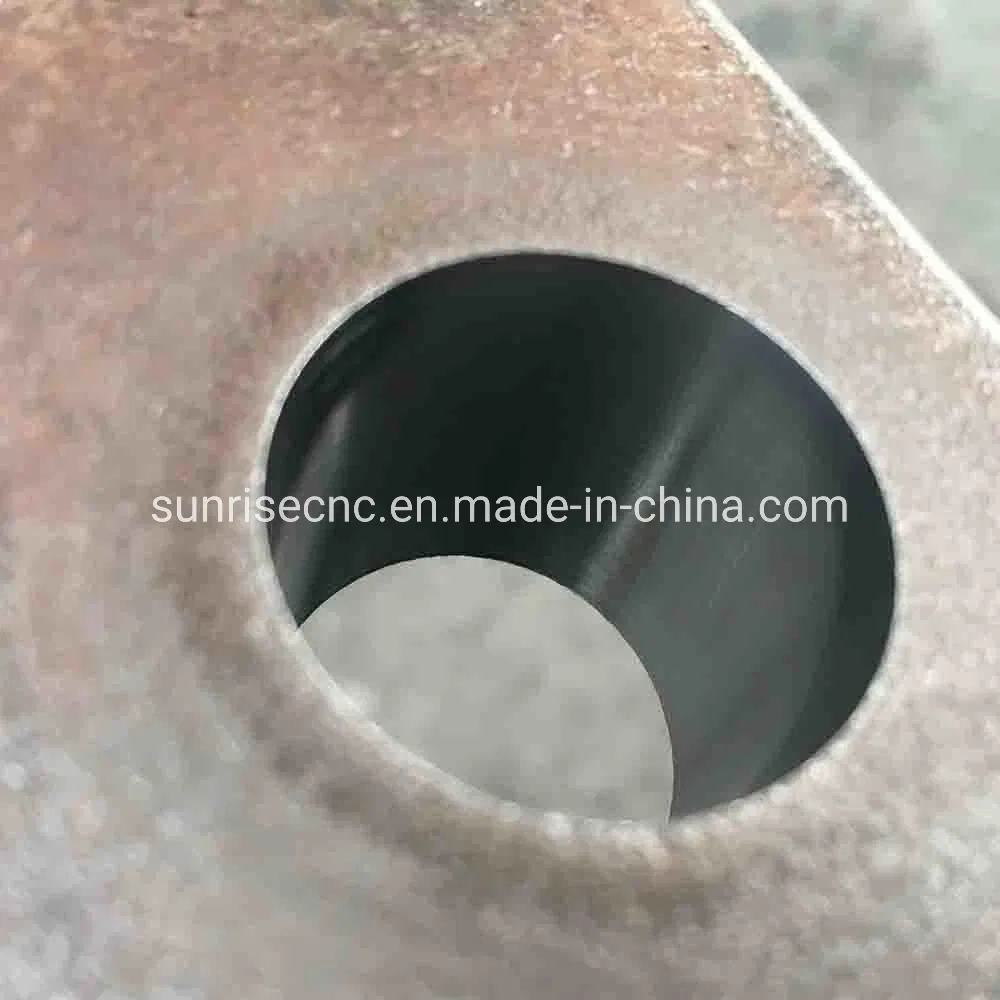

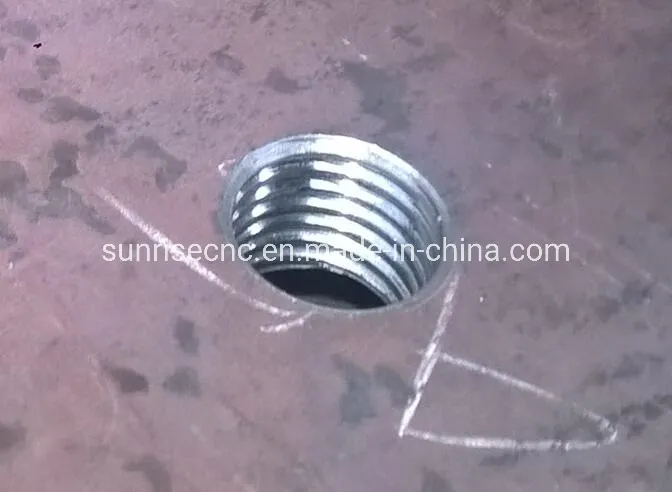

The machine supports a hole diameter range of 50-100mm. Specifically, it can handle φ40mm with carbide drills, φ50mm with high-speed twist drills, and up to φ120mm with hollow drills.
Does the machine feature an automatic cooling and chip removal system?
Yes, it is equipped with a plate chain type automatic chip cleaner and a comprehensive water cooling system (inner and outer cooling) for recycling and filtrating cooling liquid.
How is the precision of the machine ensured during manufacturing?
The gantry and work table undergo high-temperature annealing before processing and are annealed again after semi-finishing to remove internal stress, ensuring long-term stable precision.
What control system does the machine use?
The machine utilizes the FAGOR8055 CNC system, which includes 3 to 6 numeric control axes, an RS232 connector, and a high-clearance LED monitor for precise operations.
What are the positioning and repositioning accuracy specs?
The positioning accuracy is ≤0.10mm over the full length, and the repositioning accuracy is ≤0.05mm for the X/Y axes, ensuring high-quality output for large-scale workpieces.
