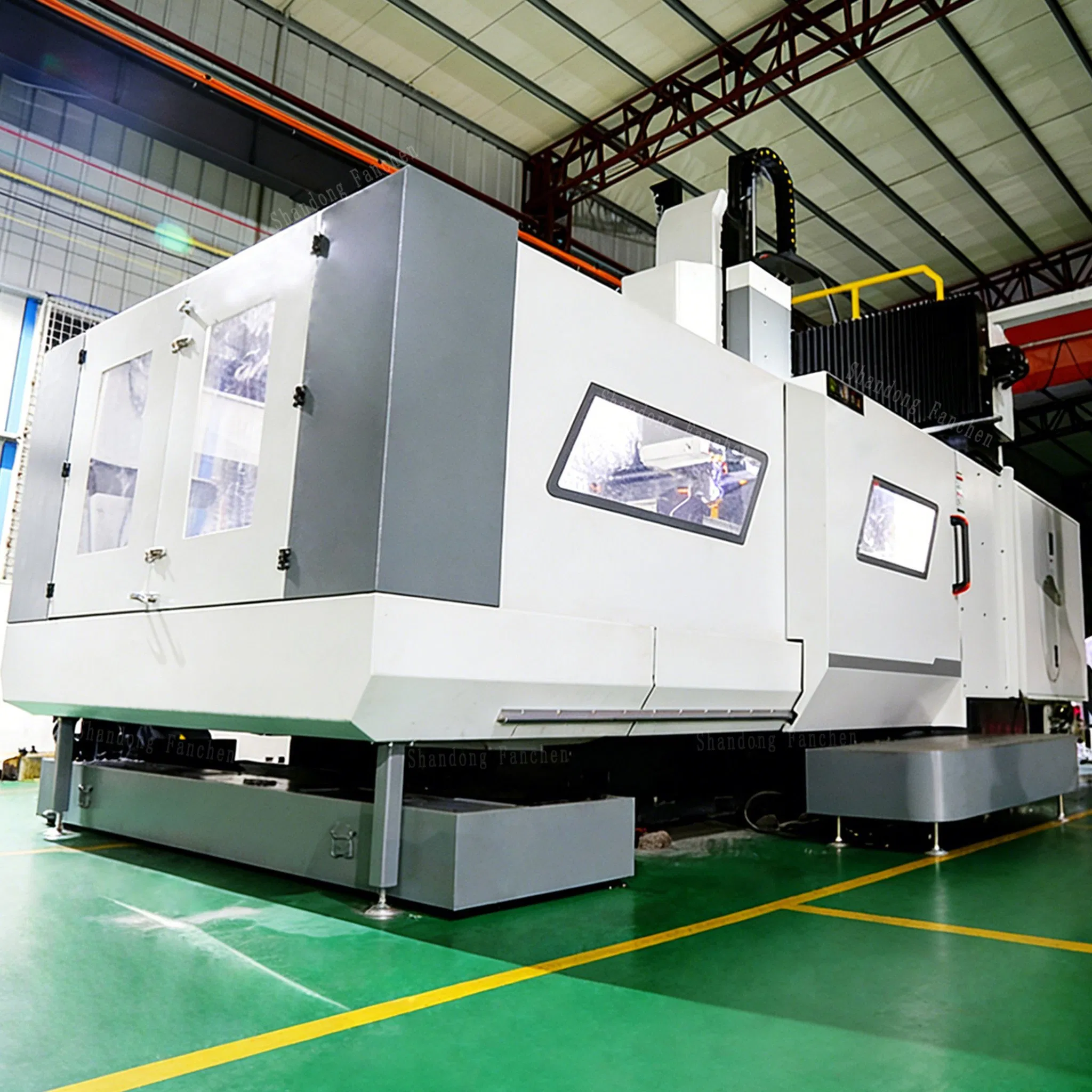

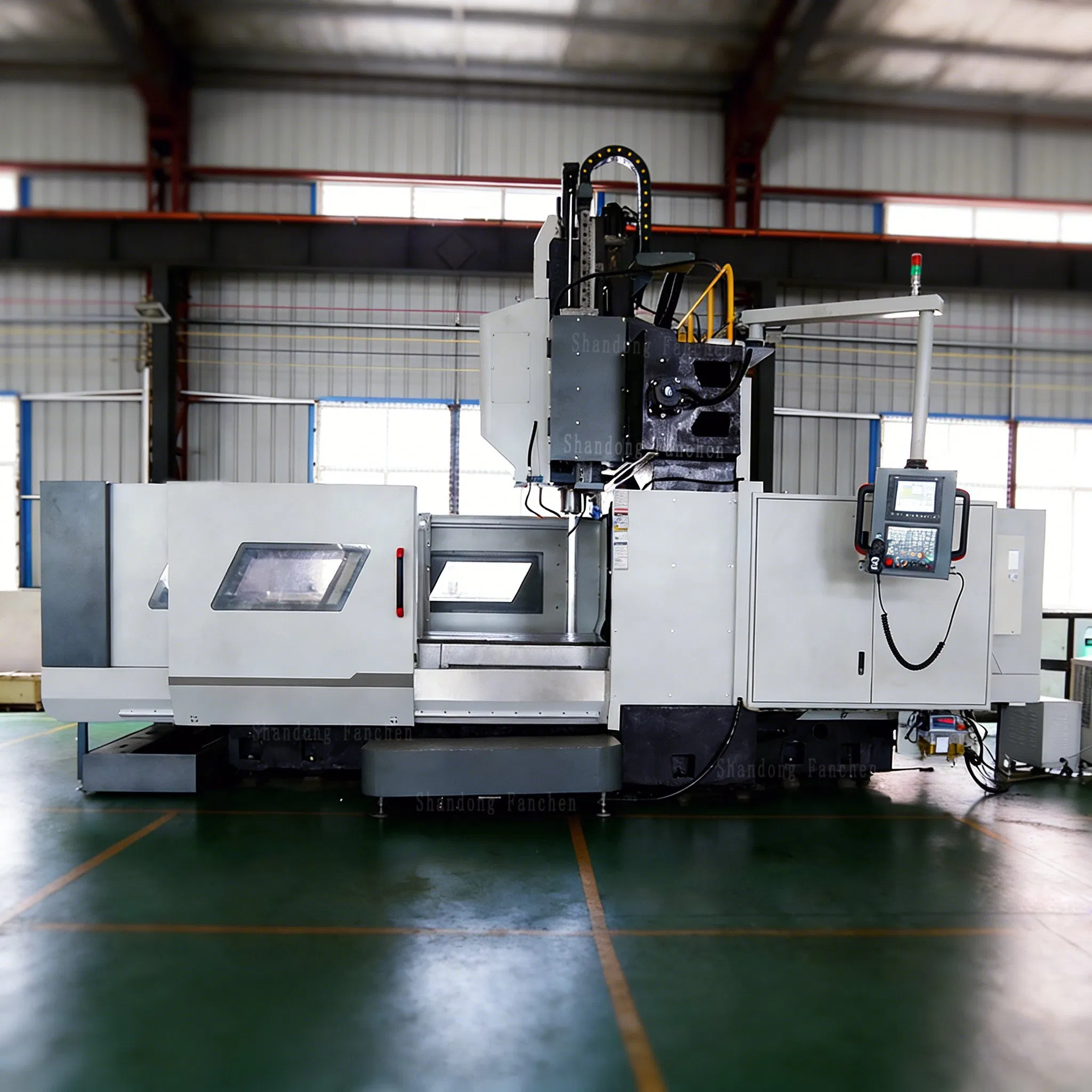

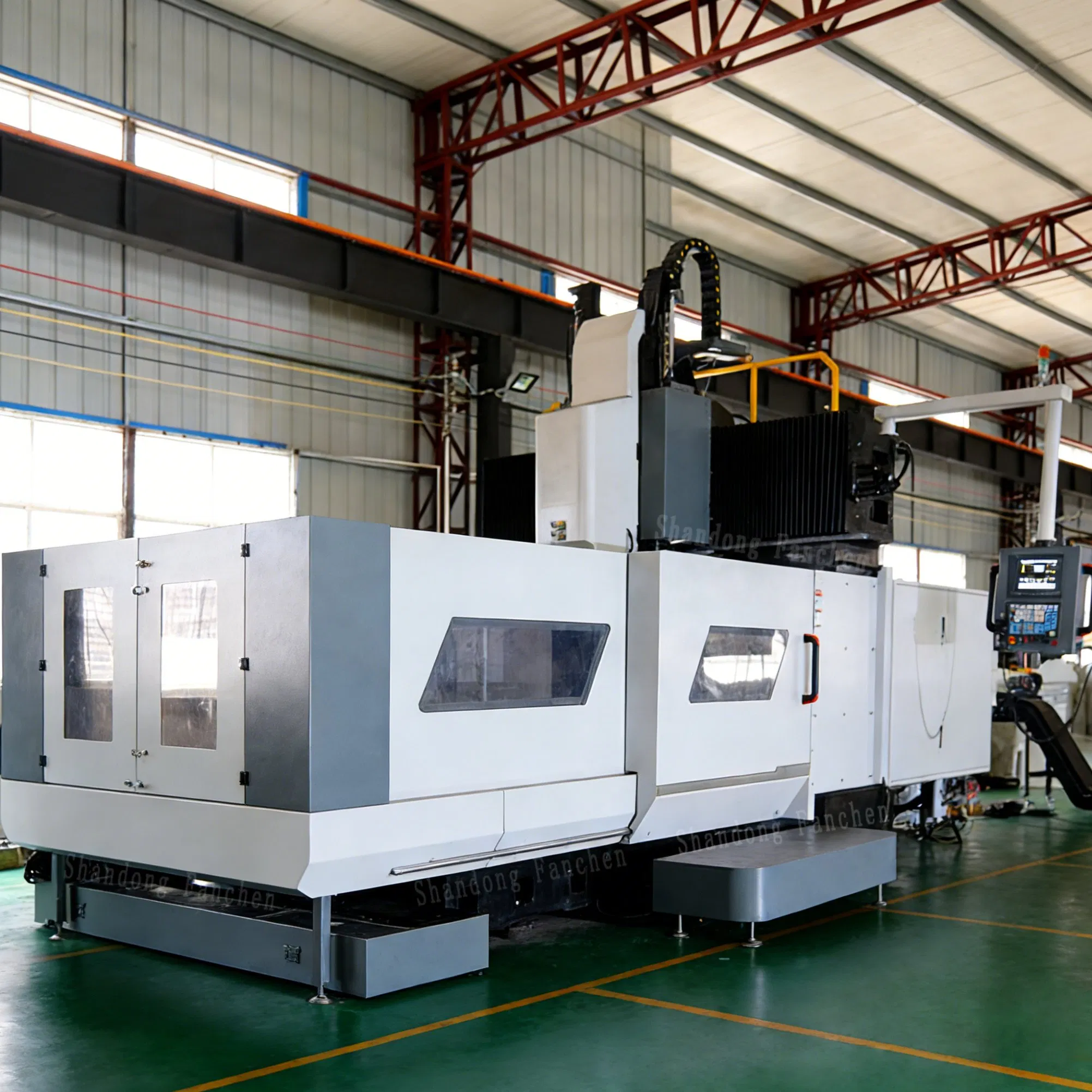

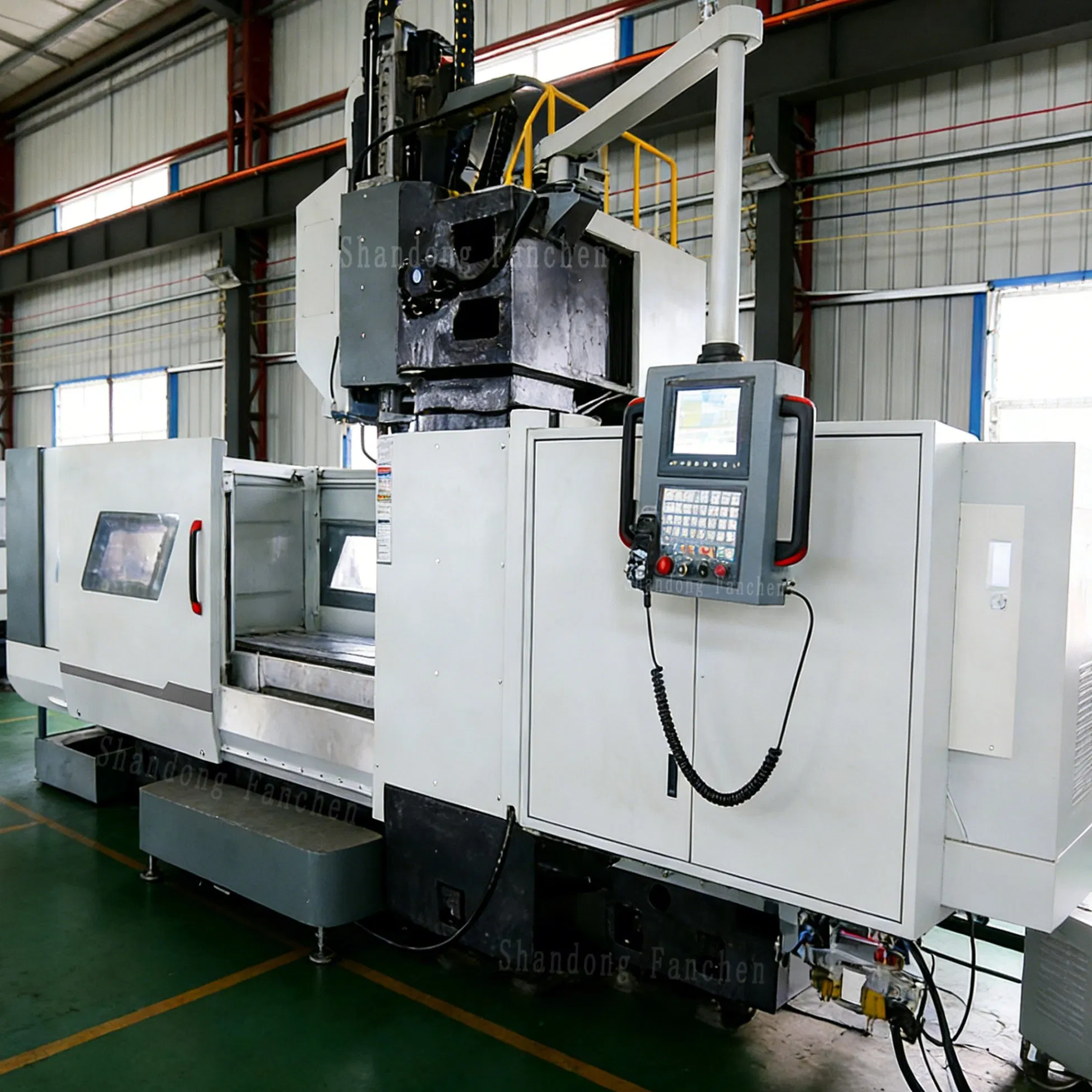

CNC Five Axis Gantry Machining Intelligent Production 2016 2518 3022

1 / 5

CNC Five Axis Gantry Machining Intelligent Production 2016 2518 3022

Customization:	Available
After-sales Service:	Online
Warranty:	Two Years

Send Inquiry

Product Description

Basic Specifications

Model

GMB2016

Application

Gantry Machining Center

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Bed Dimension

3000/1800mm

X-Axis Itinerary

3200mm

Y-Axis Itinerary

2200mm

Z-Axis Itinerary

1000mm

Range of Speeds

6000rpm

Certification

GS, CE, ISO 9001

Spindle Taper

Bt50 190

Max Workbench Load

8000kg

Product Overview

Technical Parameters

Content	Name	Specifications
Staging	Bed dimension	3000mm X 1800mm
Staging	Maximum load-bearing	8000kg
Range	X/Y/Z Itinerary	3200 / 2200 / 1000 mm
Principal axis	Range of speeds	6000 r/min
Principal axis	Spindle taper	BT50 / φ190
Feed	Quick travel (X/Y/Z)	20 / 20 / 15 m/min
Tool Magazine	Knife library capacity	30 pcs
System	Control System	Siemens
Accuracy	Positioning (X/Y/Z)	0.03 / 0.020 / 0.015 mm

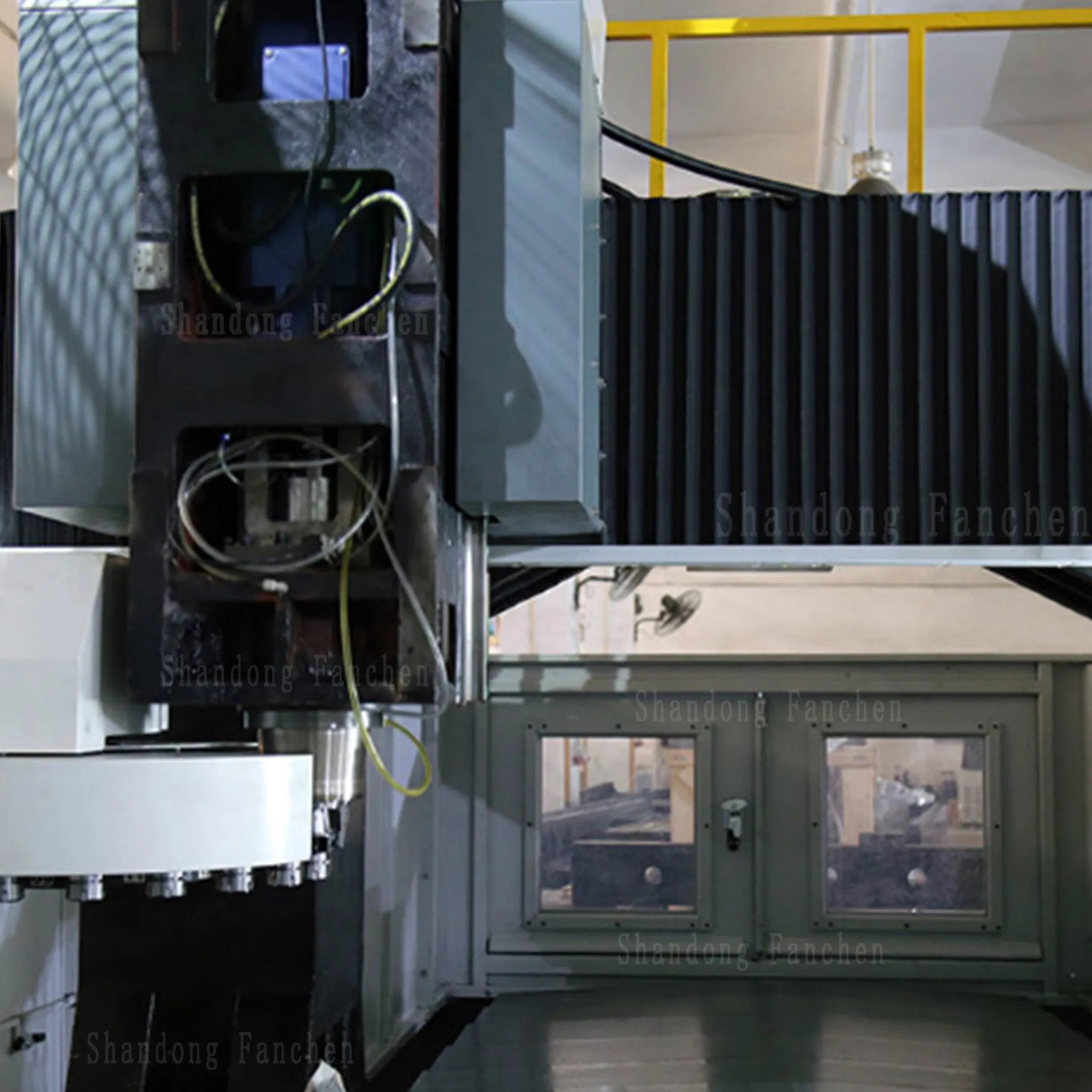

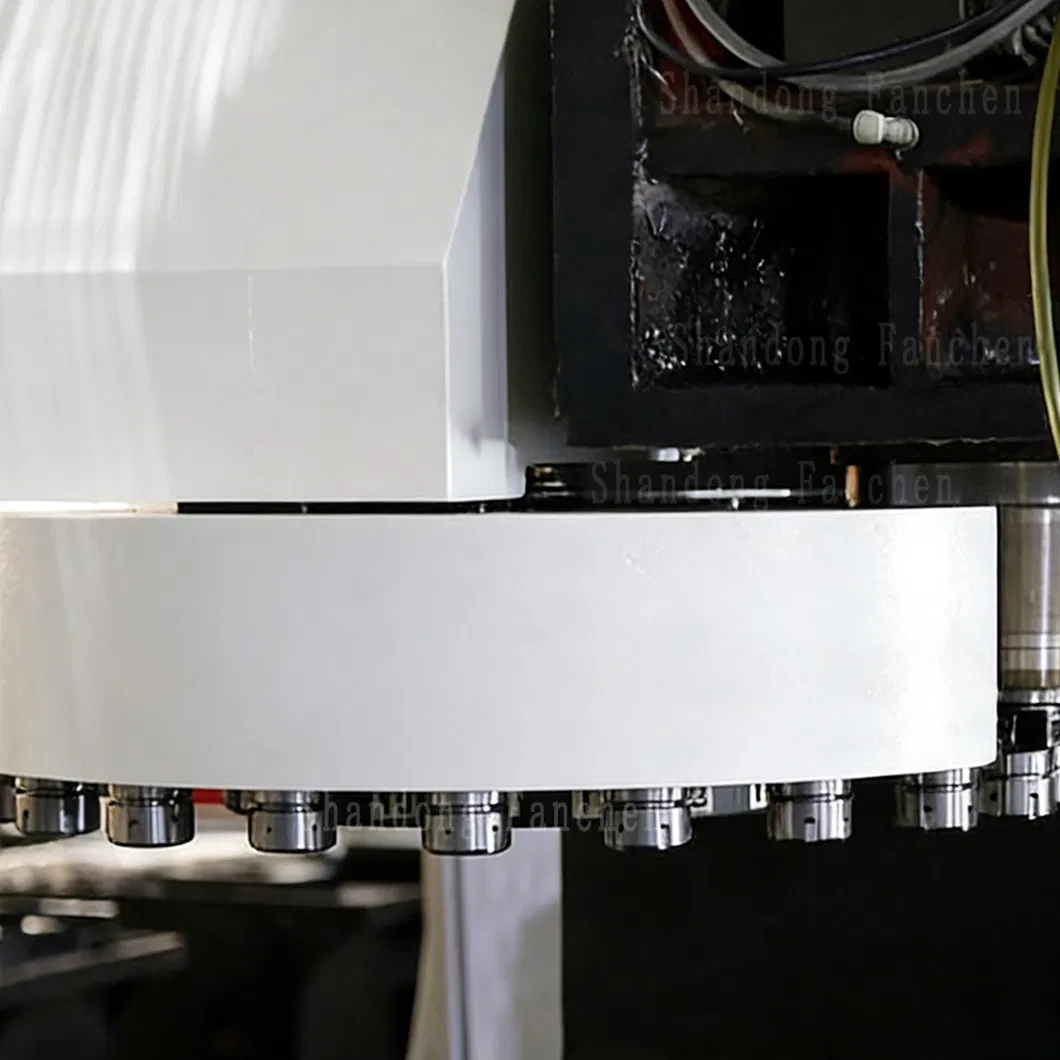

Detailed Gallery

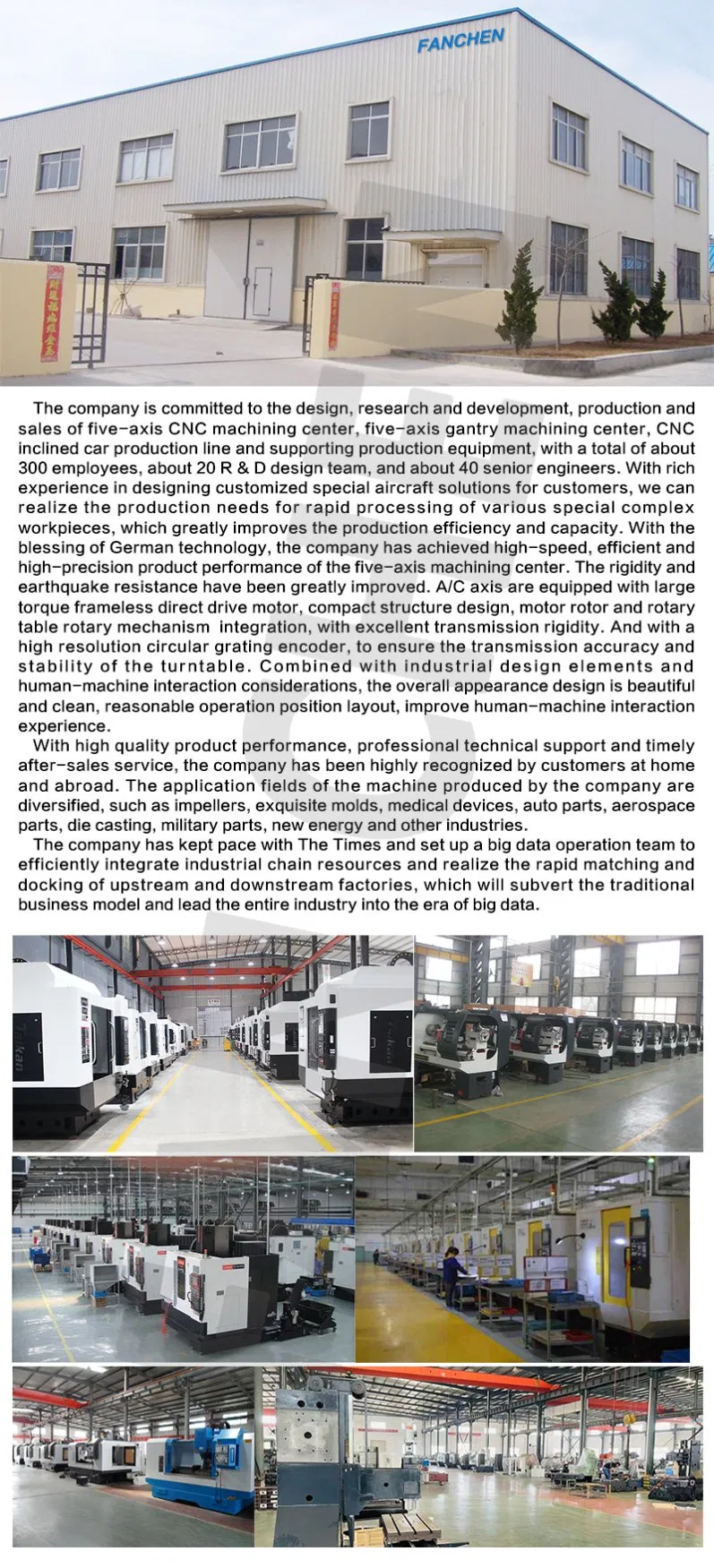

Production & Engineering

Frequently Asked Questions

How can I choose the most suitable machine for my needs?

Please provide your specific requirements or product drawings, and our technical team will recommend the most suitable model based on your processing needs.

What are the main products available?

We specialize in a wide range of CNC machinery, including CNC Lathes, CNC Milling Machines, Vertical Machining Centers, Drilling Machines, and Gantry Machining Centers.

What are the standard trade terms?

We accept various international trade terms, including FOB, CFR, and CIF, to ensure a smooth transaction process.

What are the payment terms for orders?

Typically, we require a 30% initial payment upon order placement, with the remaining 70% balance due before shipment via T/T. Irrevocable LC at sight is also accepted.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set for most of our industrial machines.

What certifications do the machines hold?

Our machines are manufactured to high standards and hold GS, CE, and ISO 9001 certifications to ensure quality and safety.
