❓ Frequently Asked Questions

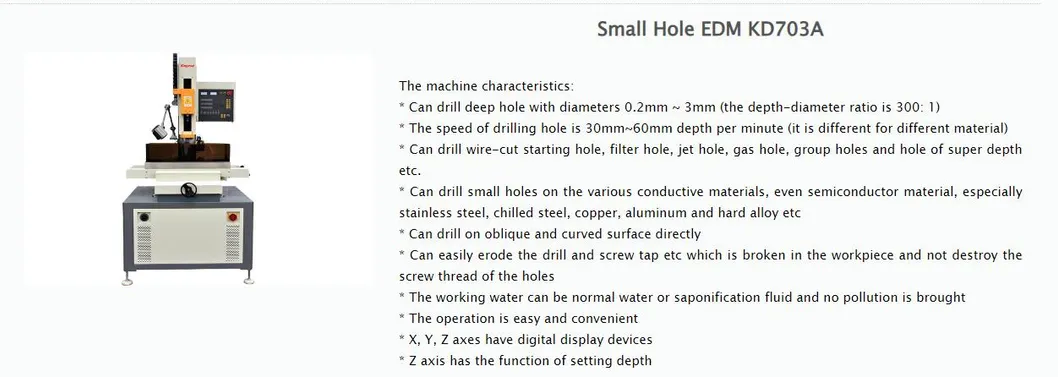

1. What materials can this CNC EDM machine process?
It can drill small holes in various conductive materials, including stainless steel, chilled steel, copper, aluminum, and hard alloys. Even some semiconductor materials can be processed.
2. What is the maximum drilling depth ratio?
The machine is capable of deep hole drilling with a depth-to-diameter ratio of up to 300:1.
3. Can the machine drill on irregular surfaces?
Yes, the machine is designed to drill directly on both oblique and curved surfaces without special fixtures.
4. What kind of working fluid does it require?
The machine can use normal tap water or saponification fluid, making it environmentally friendly and cost-effective.
5. How fast can the machine drill?
The drilling speed typically ranges from 30mm to 60mm in depth per minute, depending on the specific material being processed.

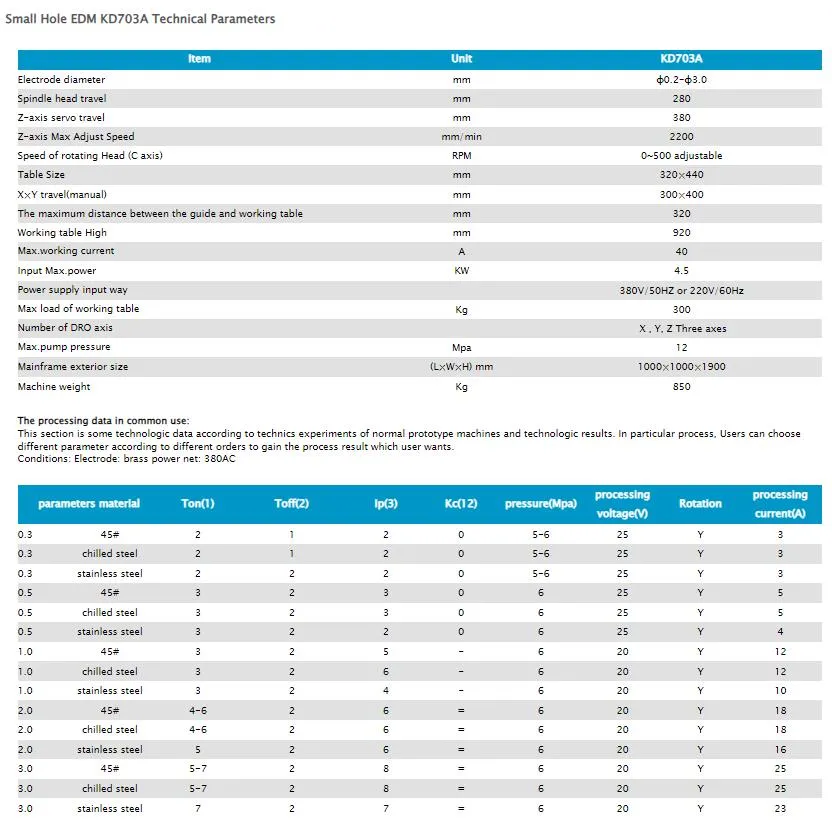

6. What range of electrode diameters can be used?
The standard range is 0.1mm to 3.0mm, and depending on the specific model, it can support electrodes up to 6.0mm.
