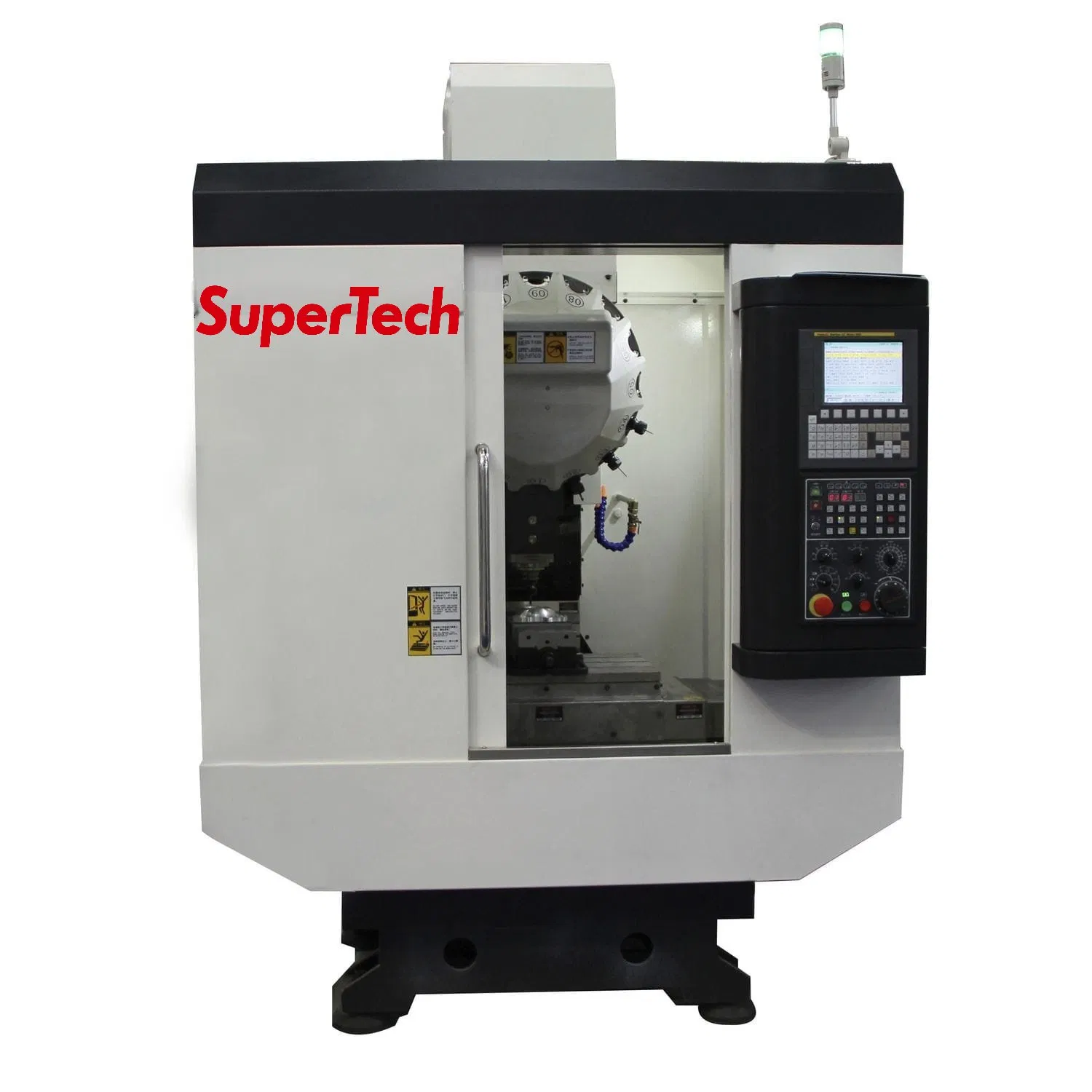

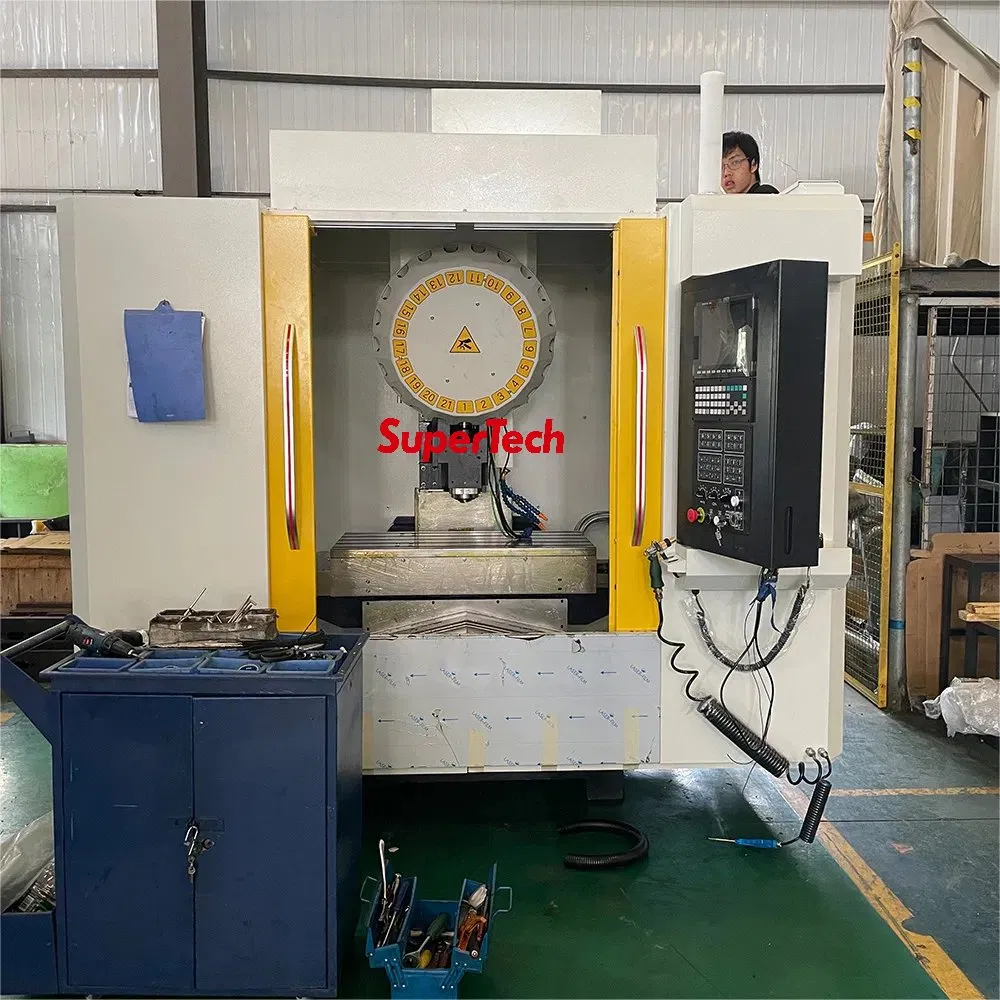

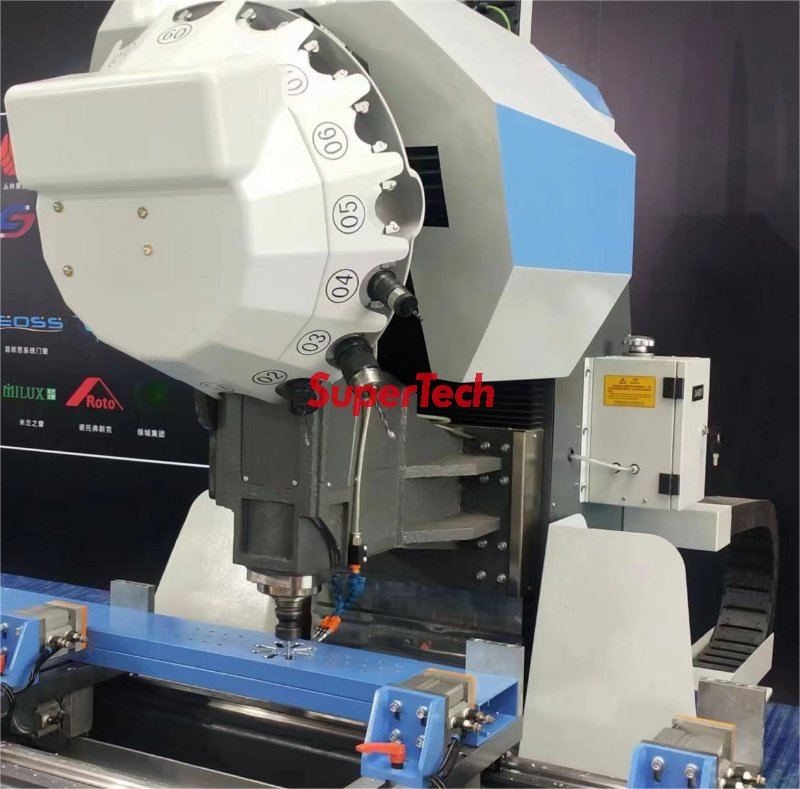

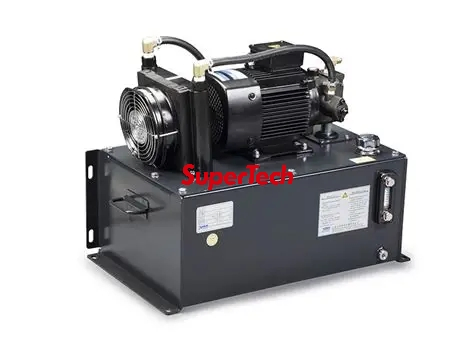

CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
1 / 5
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing
CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing

CNC Drilling and Tapping Rigid Tapping (±0.01mm accuracy) , Blind Hole/Through Hole Thread Processing

Customization: Available
After-sales Service: Online Service
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
TP500/600/700
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
650*400mm
Max Table Load
250kg
Product Description

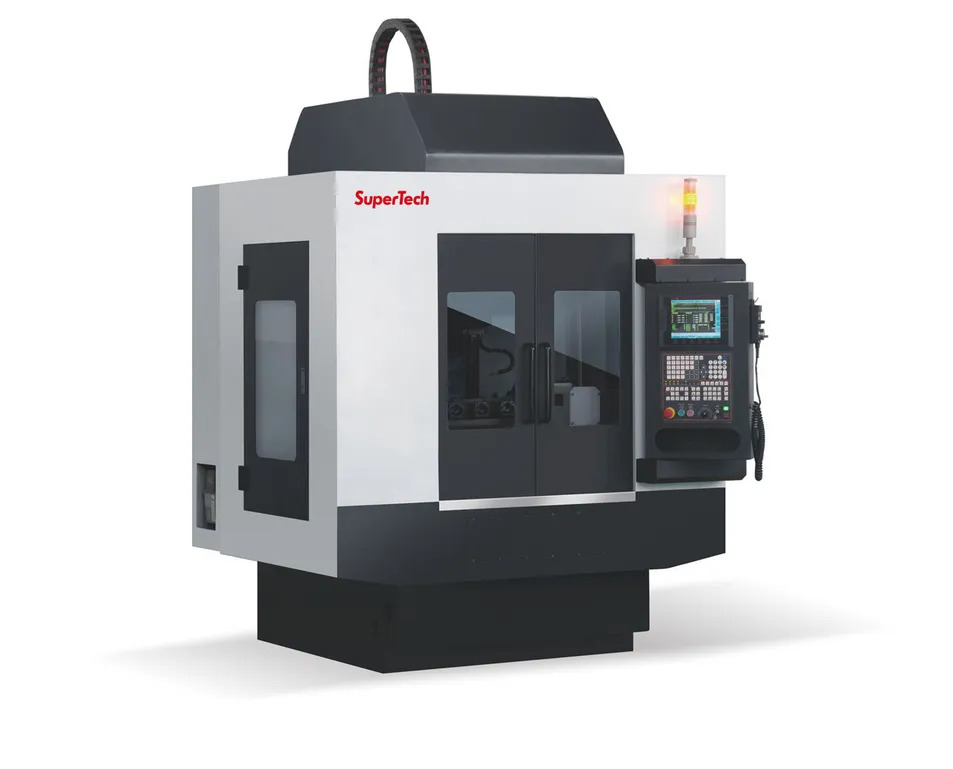

CNC Drilling Machine

Support heavy duty cutting processing.

The herringbone column is widened with the span of the joint surface.

The whole system adopts HT300 advanced resin sand casting, which is annealed and vibration-aging treatment to eliminate internal stress.

3 axis high precision ball screw and linear guideway.

TP500 is a cost-effective CNC machine specifically designed for drilling and tapping, while also capable of light milling.

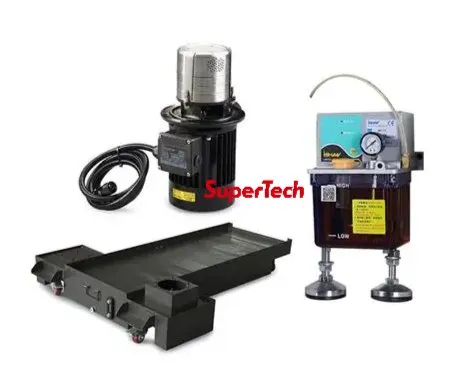

Feature 1

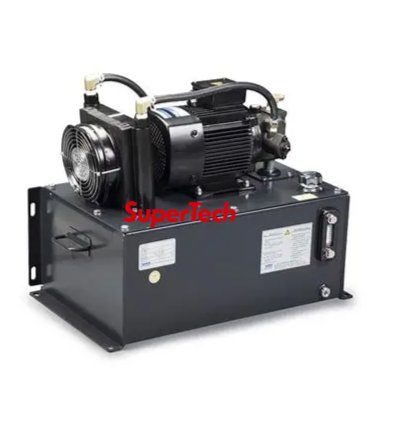

Feature 2

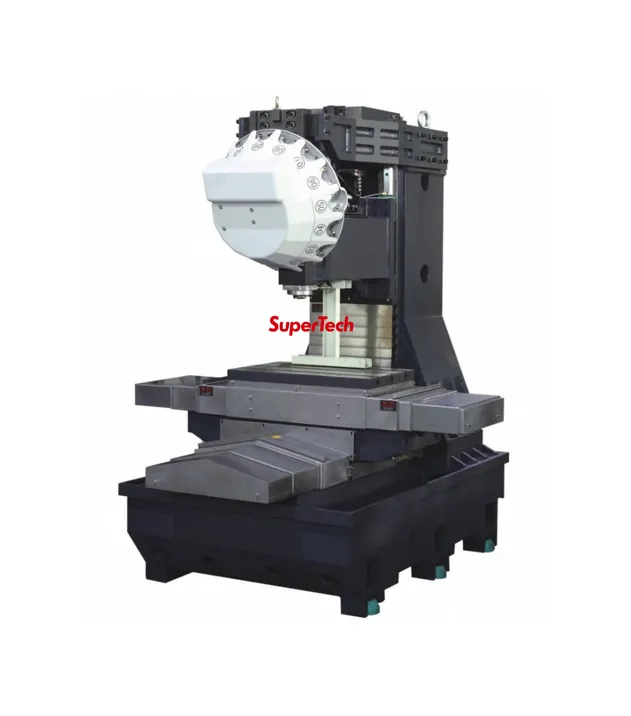

Feature 3
Specifications
Main specifications Unit TP500 TP600 TP700
Table sizemm650*400700*420800*420
T-slots(N/W/D)mm3/14/1253/14/1253/14/125
Max. table load weightkg250250250
X axis travelmm500600700
Y axis travelmm400400450
Z axis travelmm300300300
X/Y/Z axis fast travelmm/min36/36/3636/36/3636/36/36
Spindle hole taper/BT30BT30BT30
Max. spindle speedrpm200002000020000
Magazine capacitypcs21T/26T21T/26T21T/26T
Power of spindle motorKW5.55.55.5
Net weightkg290032003400
Manufacturing Excellence

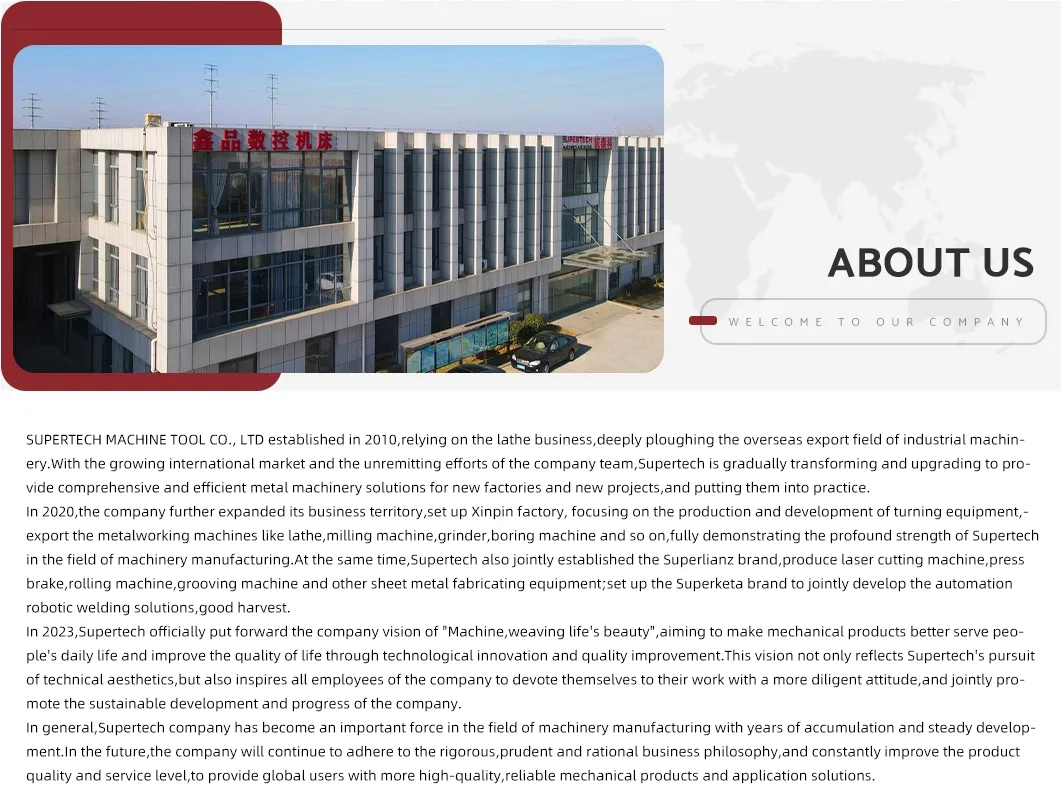

Production Line

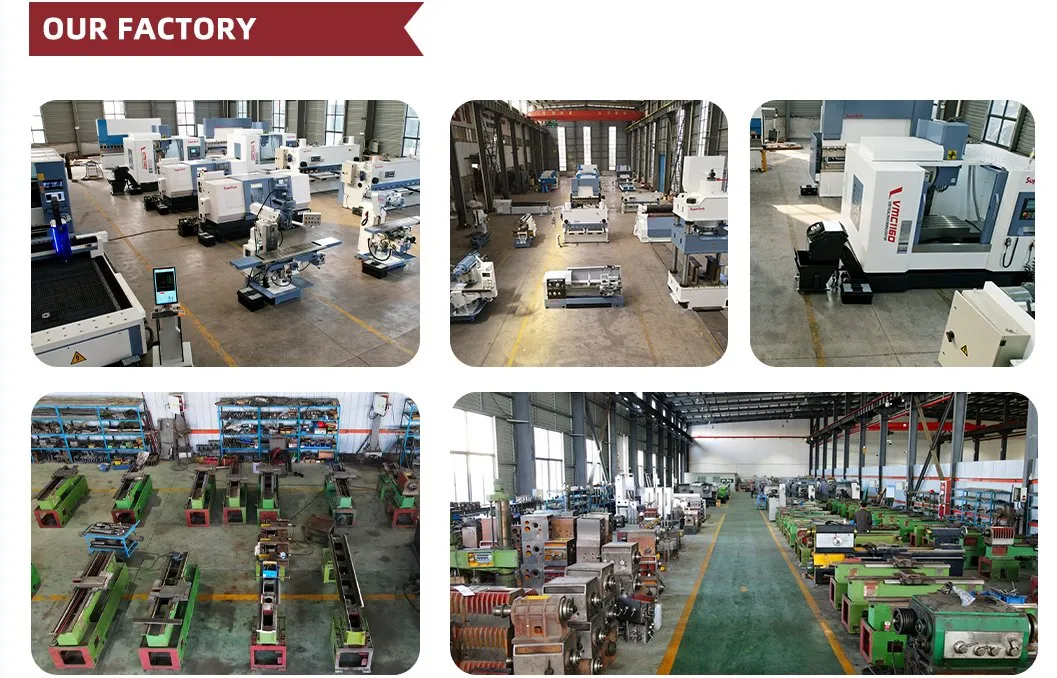

Process Detail
Certifications & Global Presence
Certificates
Exhibition 1

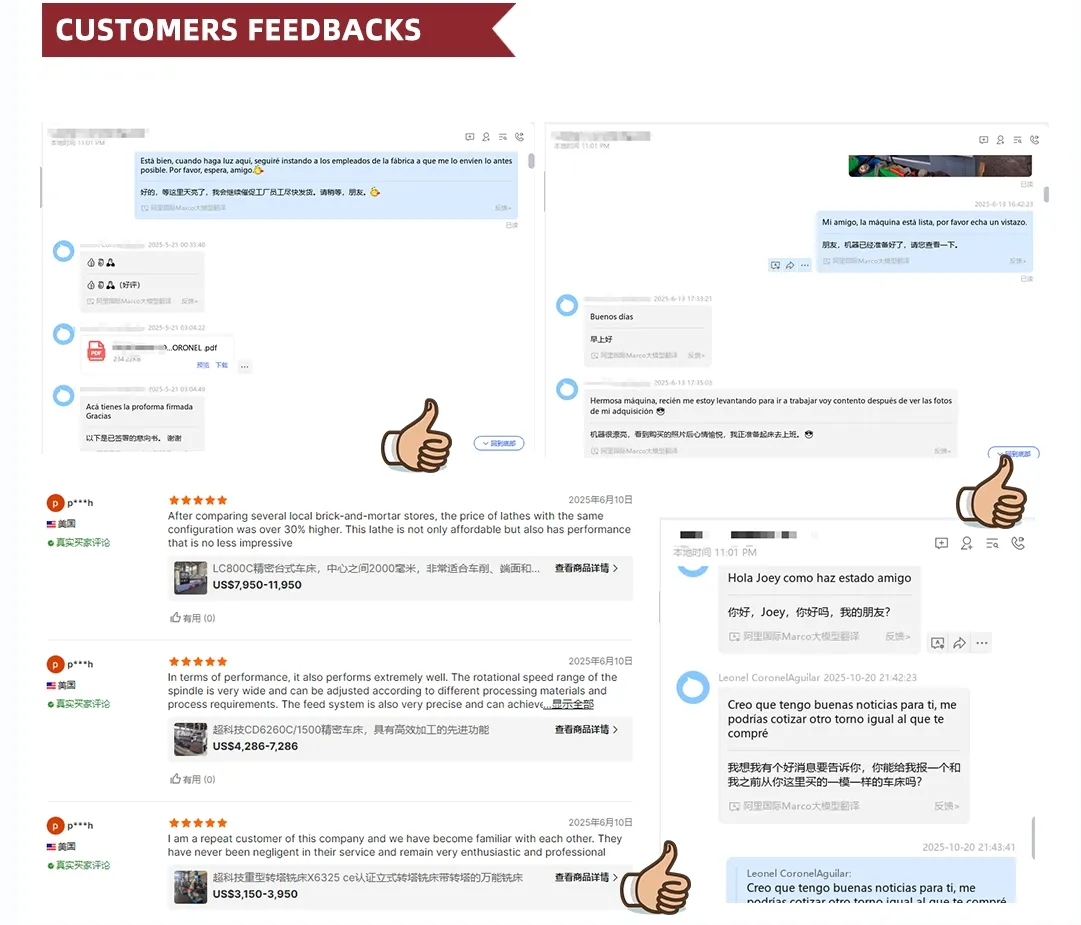

Exhibition 2
Packing & Delivery
After the machines' model and contract confirmed, we calculate the required container space. We professionalize in loading and fixing for trucks, sea containers, and trains to ensure safety during transit. We support EXW terms and coordinated loading.

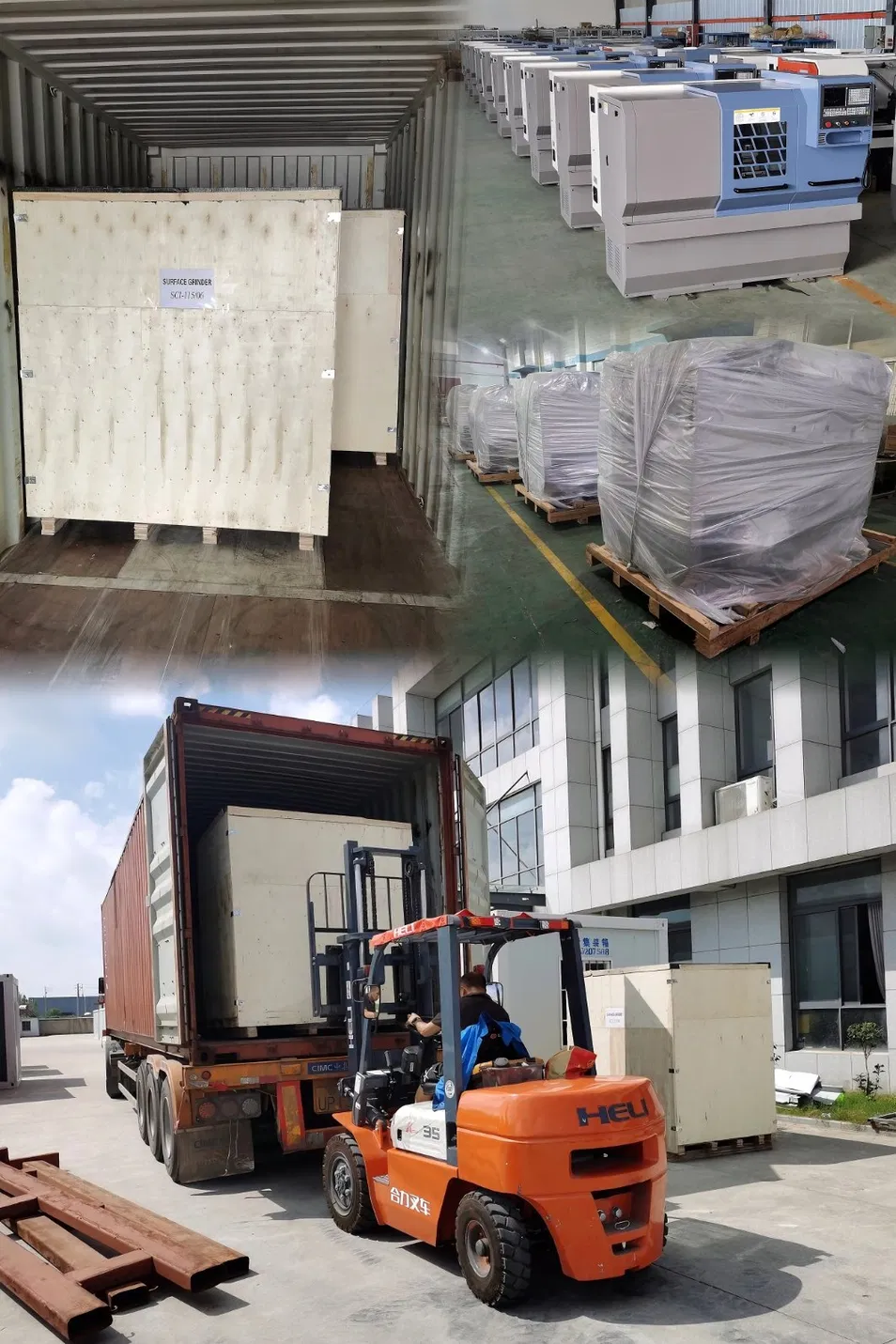

Packing 1
Packing 2
Frequently Asked Questions
How can I visit your production facility?
Our facility is easily accessible. It is approximately a 2.5-hour train ride from major nearby transport hubs or a 2-hour flight from primary domestic airports.
What is the typical lead time for an order?
Lead time depends on order quantity. Standard machines usually take 15-30 days, while special configurations require 30-45 calendar days.
Which ports do you primarily use for shipping?
We mainly utilize major international ports for export, but other locations can be discussed based on your requirements.
What are the available payment terms?
We accept a 30% T/T deposit with the balance due before shipment, or a 100% LC at sight.
Can you provide the necessary customs clearance documents?
Yes, we have extensive export experience and provide CE certificates, Form E, price certifications, and other standard documents. Special documentation is available upon discussion.
What is the warranty period for the machinery?
Our machines come with a 15-month guarantee from the date they leave the factory, supported by lifetime technical assistance.
