Product Description

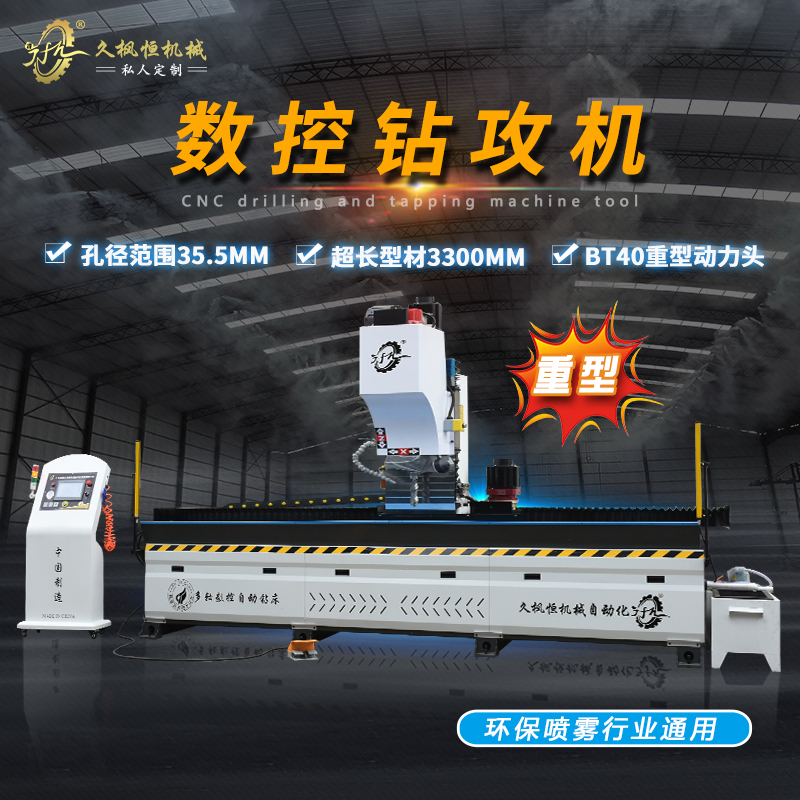

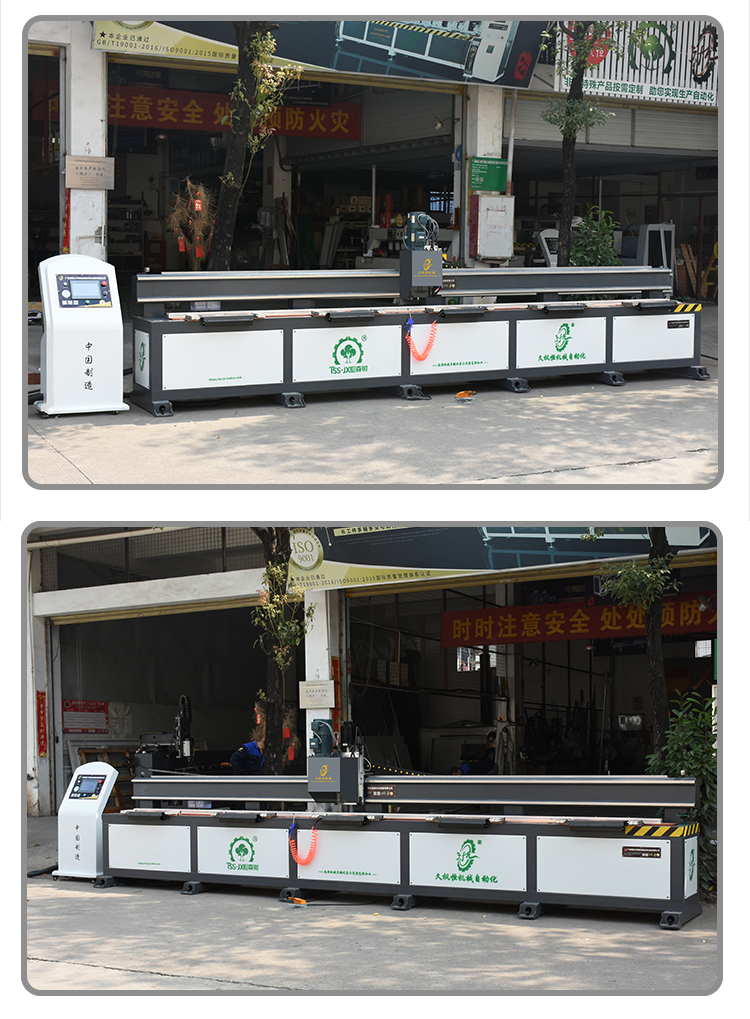

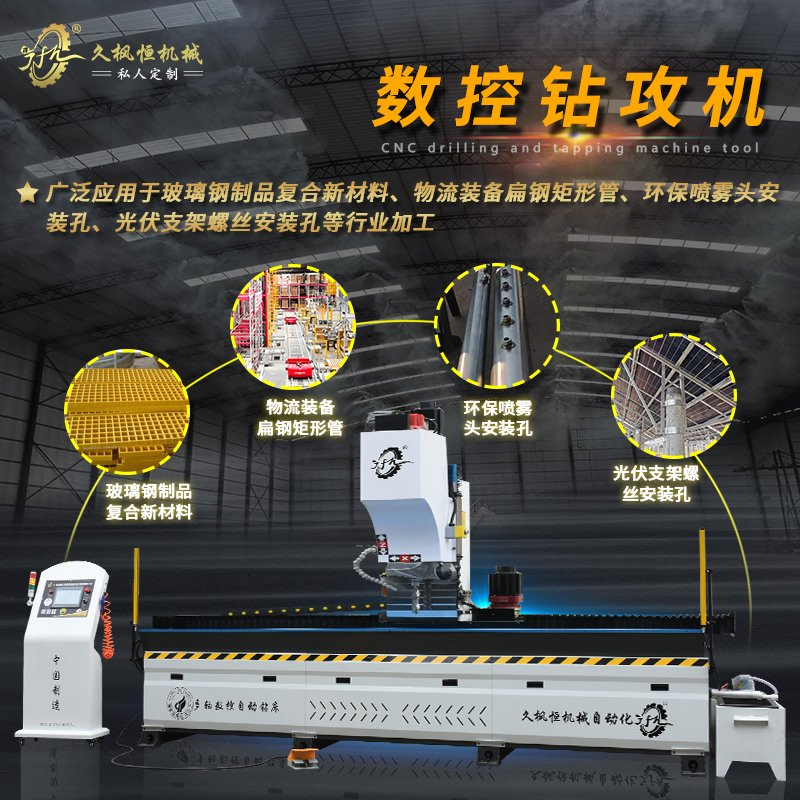

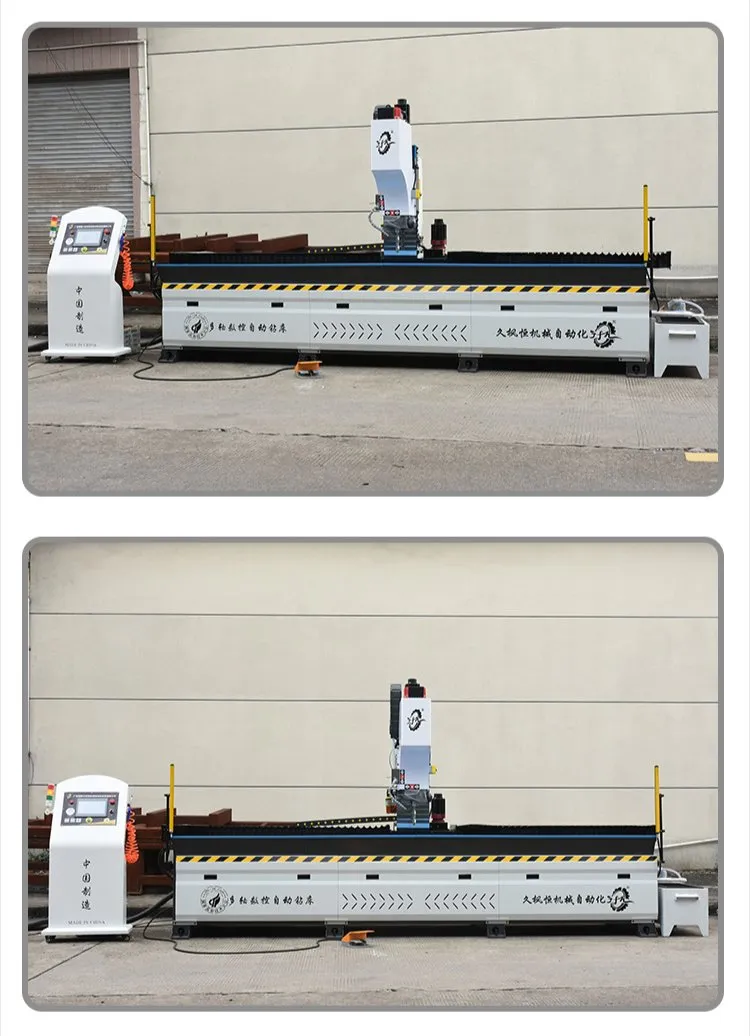

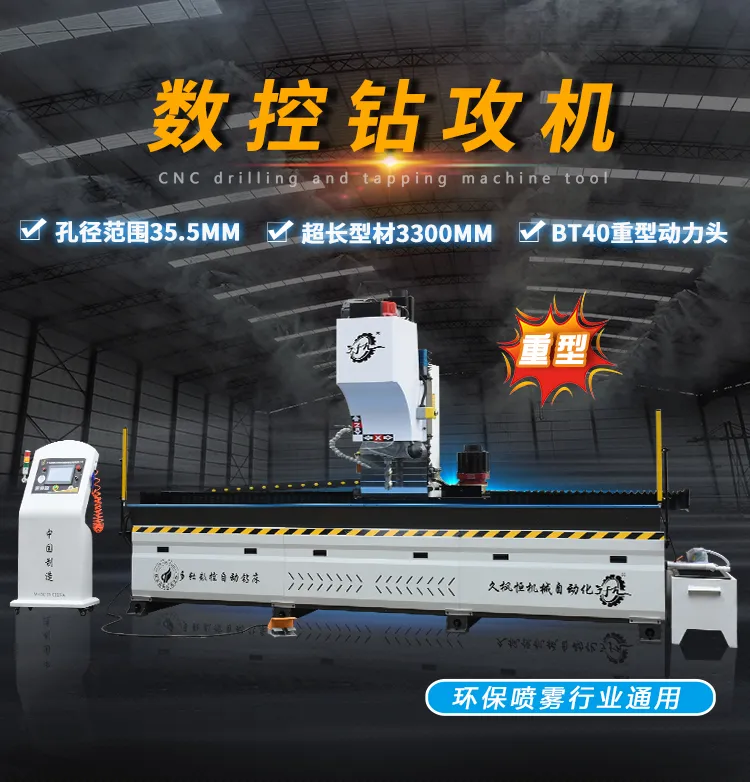

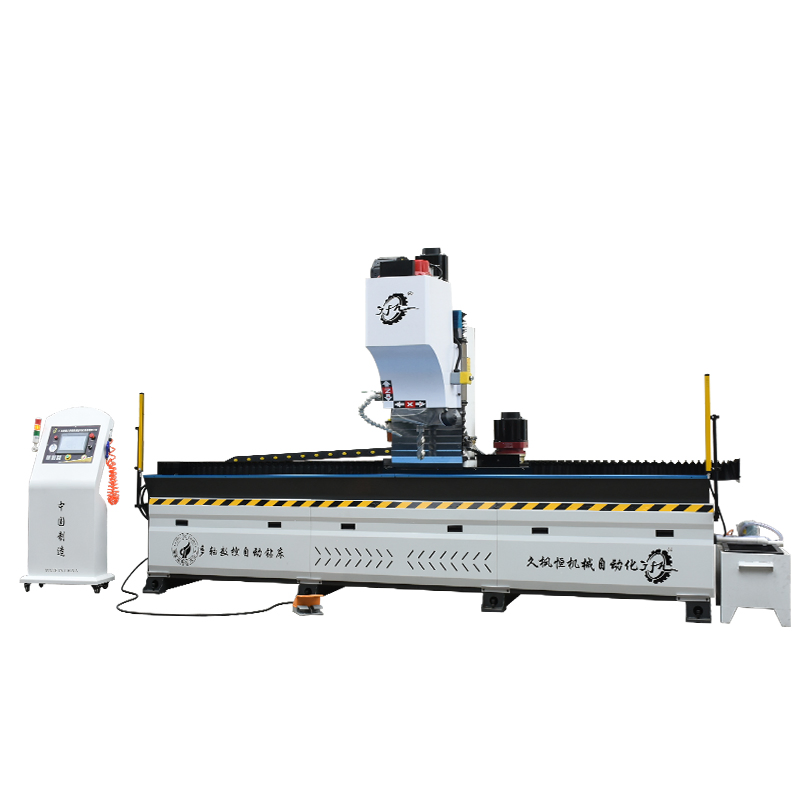

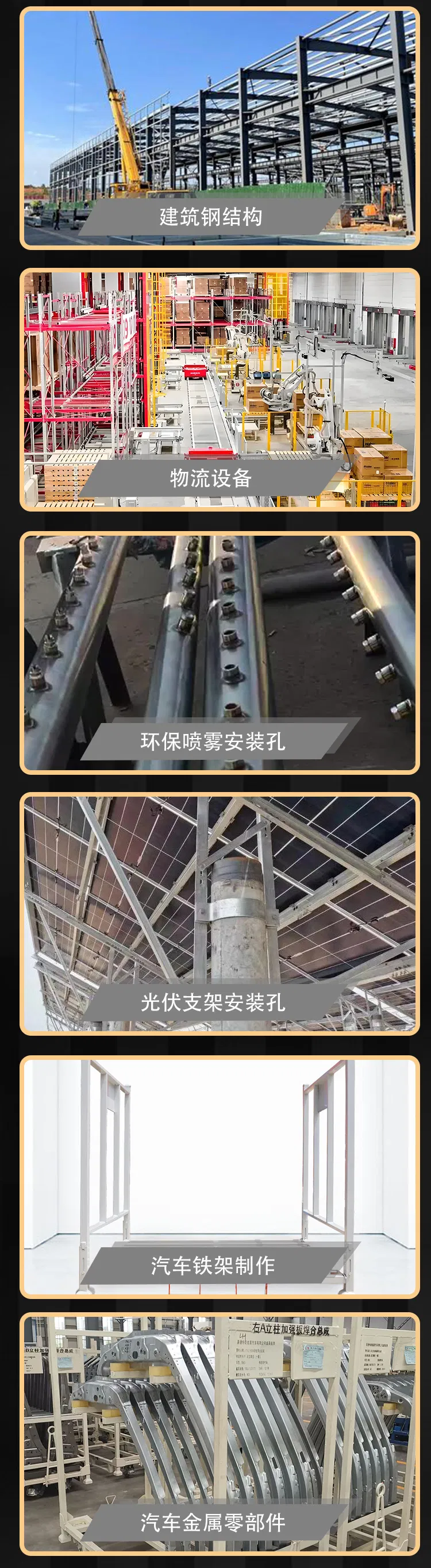

The JFH-JX-ZG01-L3500 CNC drilling and tapping machine is widely used in the processing of complex workpieces such as building steel structures, rail transit vehicle frames, new energy vehicle chassis, and industrial pipelines. It is specially designed for drilling and tapping of steel round pipes (diameter ≤ 150mm, wall thickness ≤ 6mm), aluminum profiles, stainless steel (303/316/310), PTFE, and silicon carbide. The machine supports vertical drilling and tapping composite processing with a hole diameter range of 3-35.5mm and tapping specifications covering M3-M36.
Product Features

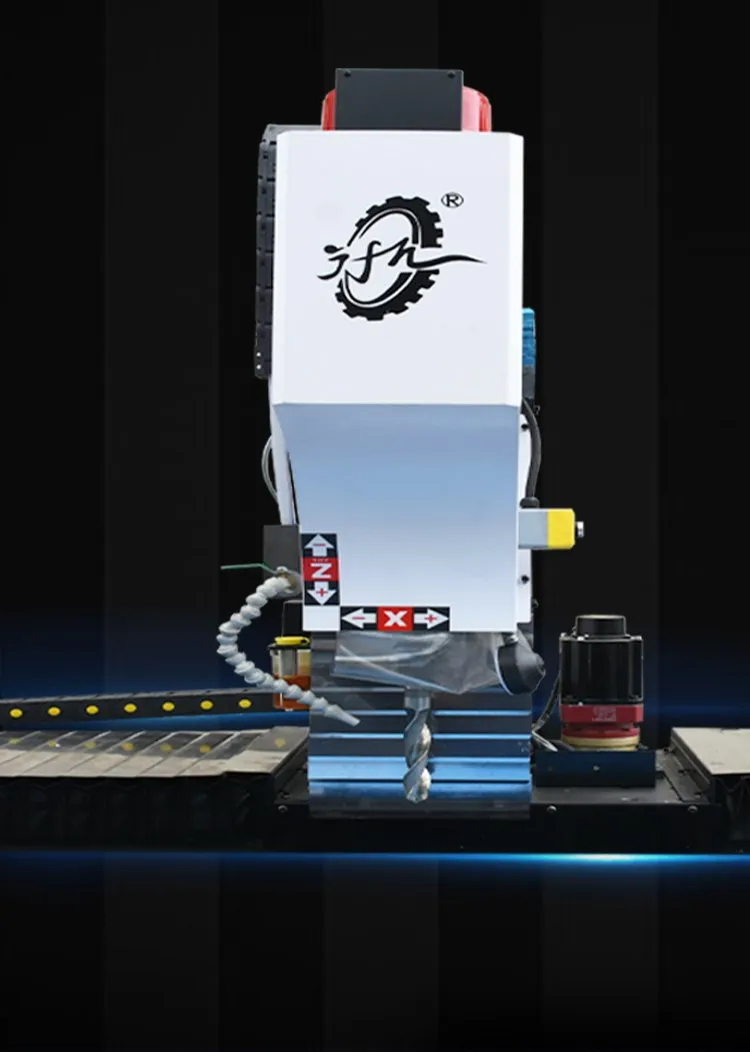

BT40 Heavy-duty Power Head
High rigidity BT40 handle achieves ultra-stable clamping and anti-vibration protection. Integrated with intelligent overload protection and dynamic balance spindle technology.
Ultra-long Profile Processing
Supports efficient processing of 3300-6000mm ultra-long profiles. Intelligent storage of data such as hole spacing and tooth depth without minimum spacing restrictions.
Multi-Process Integration

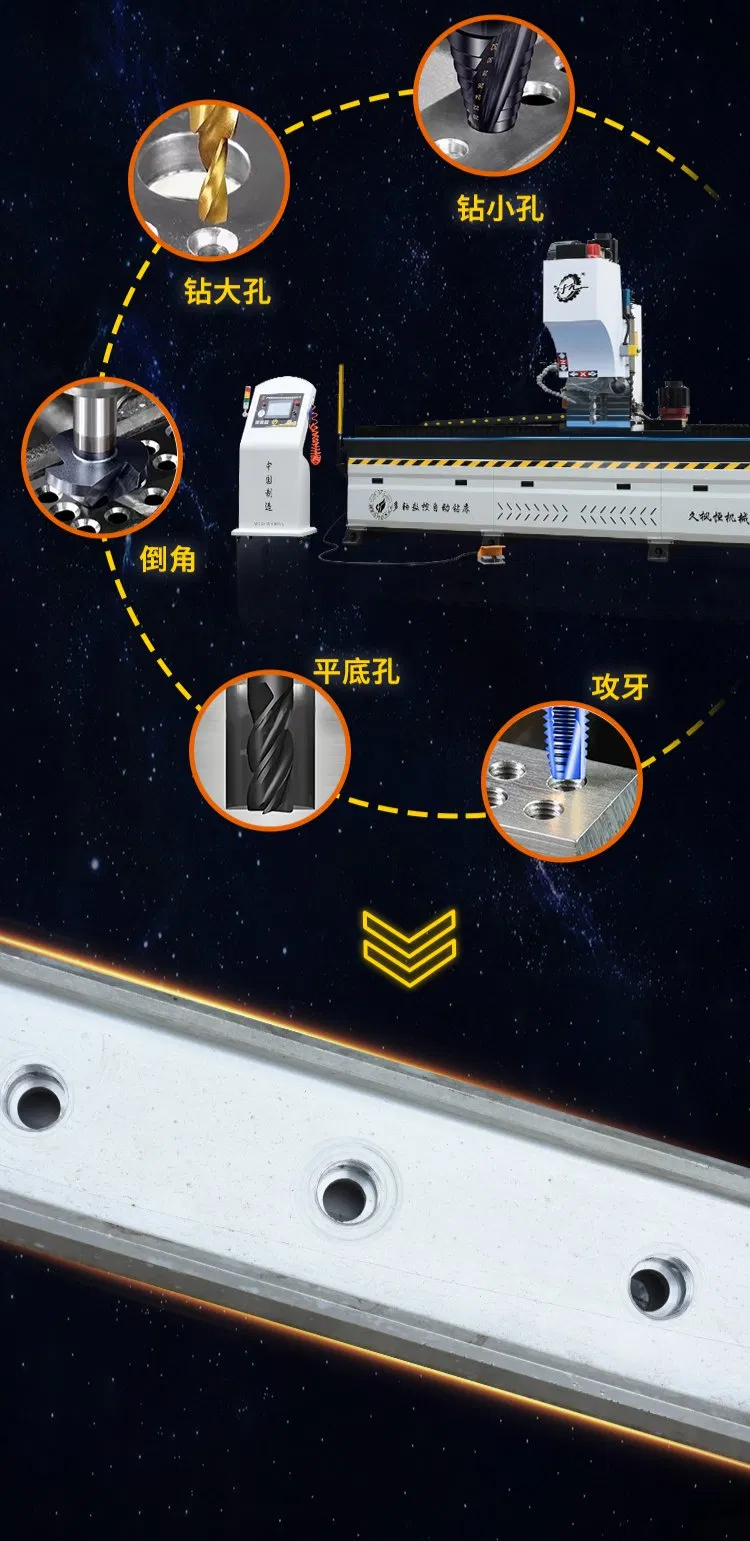

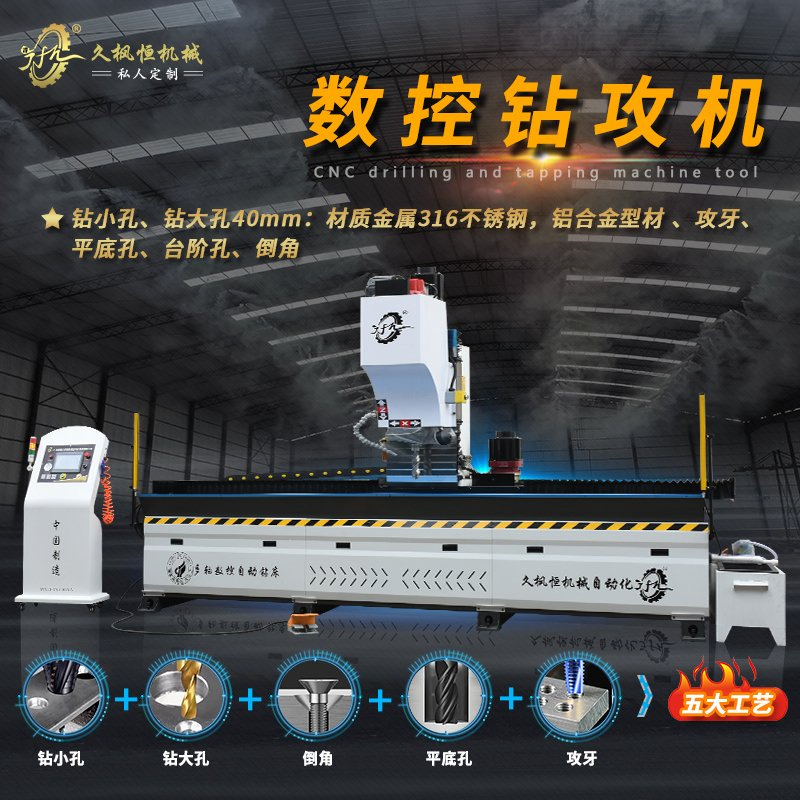

Continuously completes drilling small/large holes, chamfering, flat-bottomed holes, and tapping in a single workstation using five types of tools.
Safety & Smart Control
Equipped with infrared grating and dual-beam protection net. Touch screen parameter input system supports non-programming operations and pre-stores multiple processing sets.
Widely Processed Materials

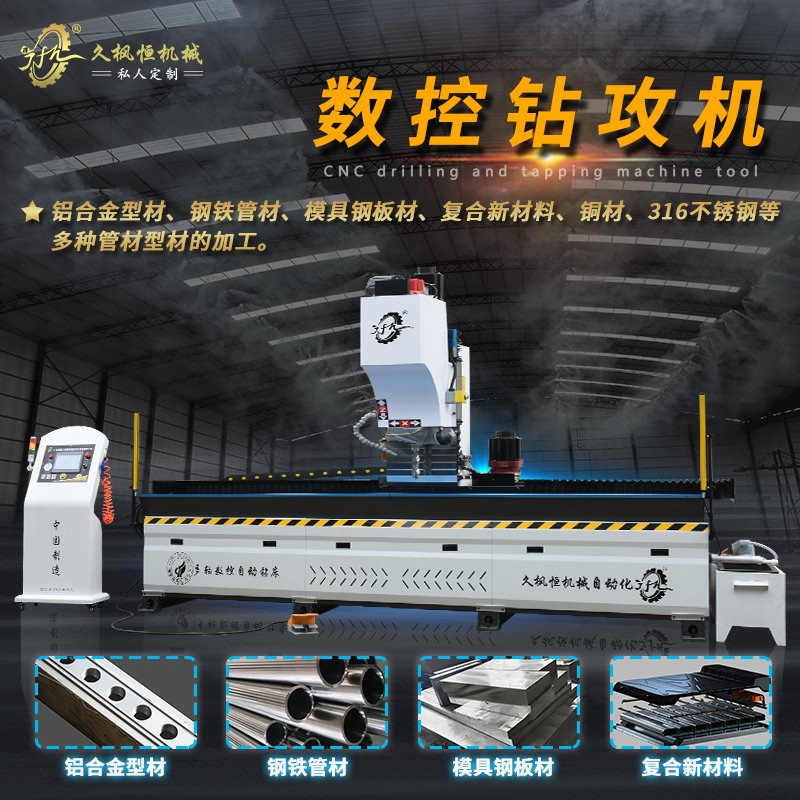

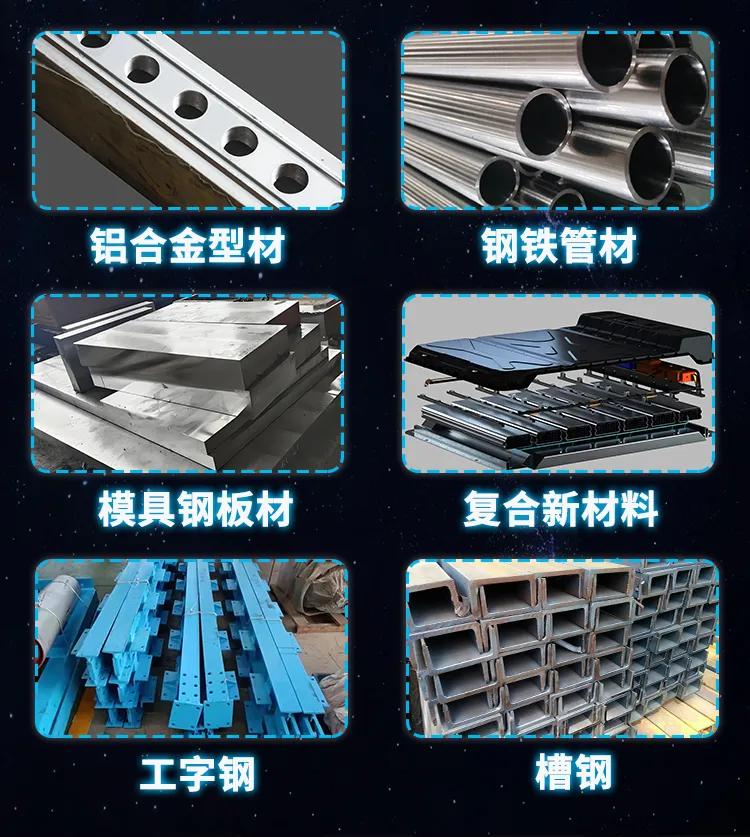

This CNC machine is compatible with aluminum alloy profiles, steel pipes, mold steel plates, 316 stainless steel, I-beams, channel steel, and other composite materials. Its high-rigidity structure ensures stability across different material hardness and ductility.
Frequently Asked Questions
What is the maximum hole diameter this machine can drill?

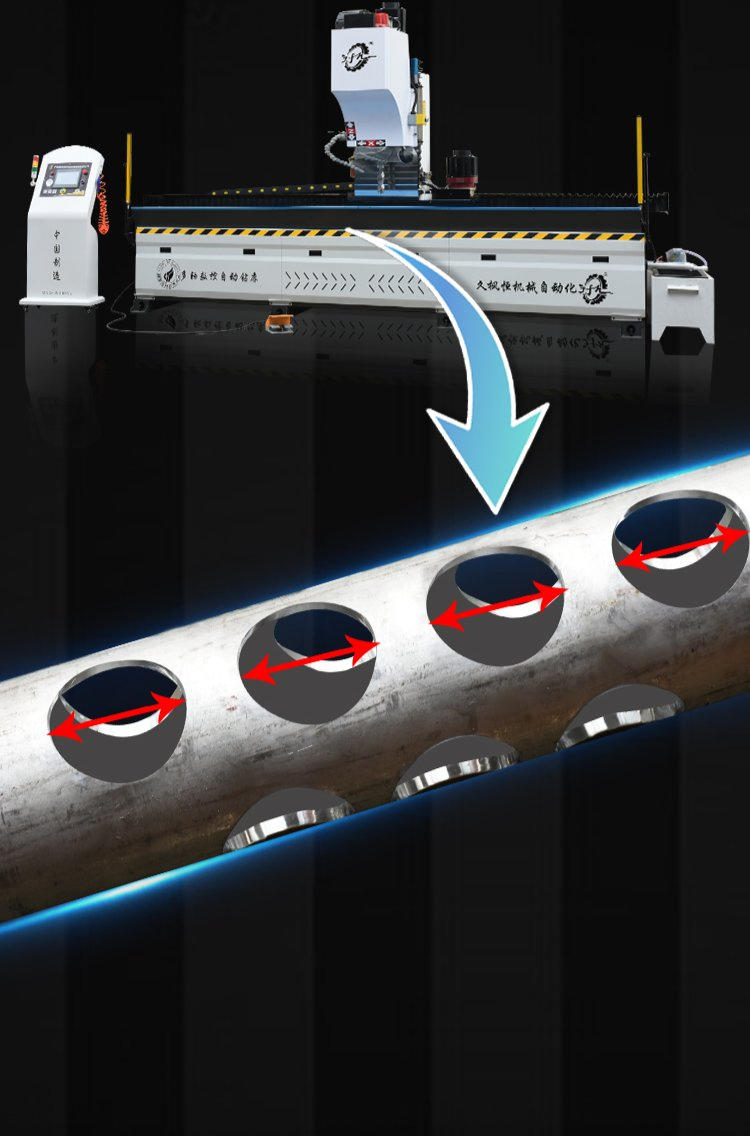

The machine can stably achieve a maximum aperture of 35.5mm with precise positioning and high-quality hole wall finish.
What materials are compatible with this CNC drilling machine?
It is suitable for aluminum alloy, steel pipes, stainless steel (303/316/310), I-beams, PTFE, silicon carbide, and various other metals and composite materials.
Does the machine support both drilling and tapping?
Yes, it supports composite processing, allowing for drilling and tapping (range M3-M36) to be completed in one workstation sequence.
What are the safety features for the operators?

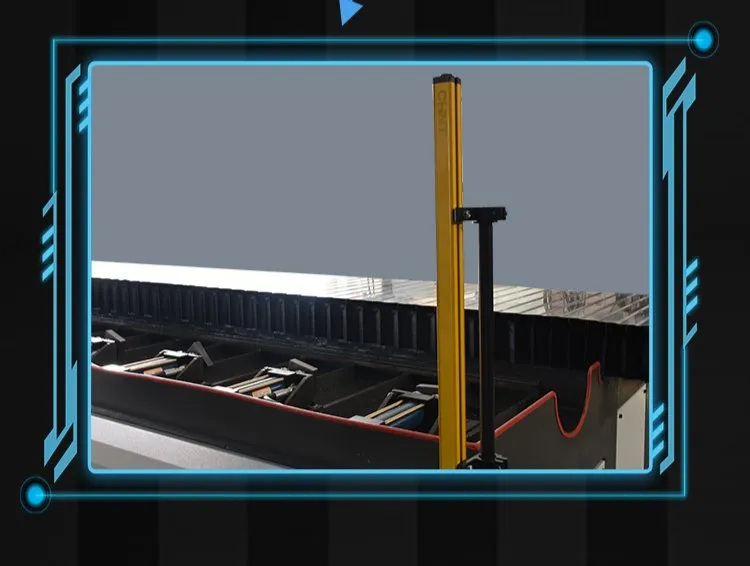

The machine is equipped with an infrared grating and dual-beam infrared protection net which automatically shuts down the machine if foreign object intrusion is detected.
Is programming required to operate the machine?
No, the machine features a touch-screen parameter input system that supports non-programming operations, making it easy to store and call processing parameters.
What is the maximum processing length for profiles?
The standard model supports a 3300mm stroke, but it is designed to efficiently handle ultra-long profiles ranging from 3300mm to 6000mm.
