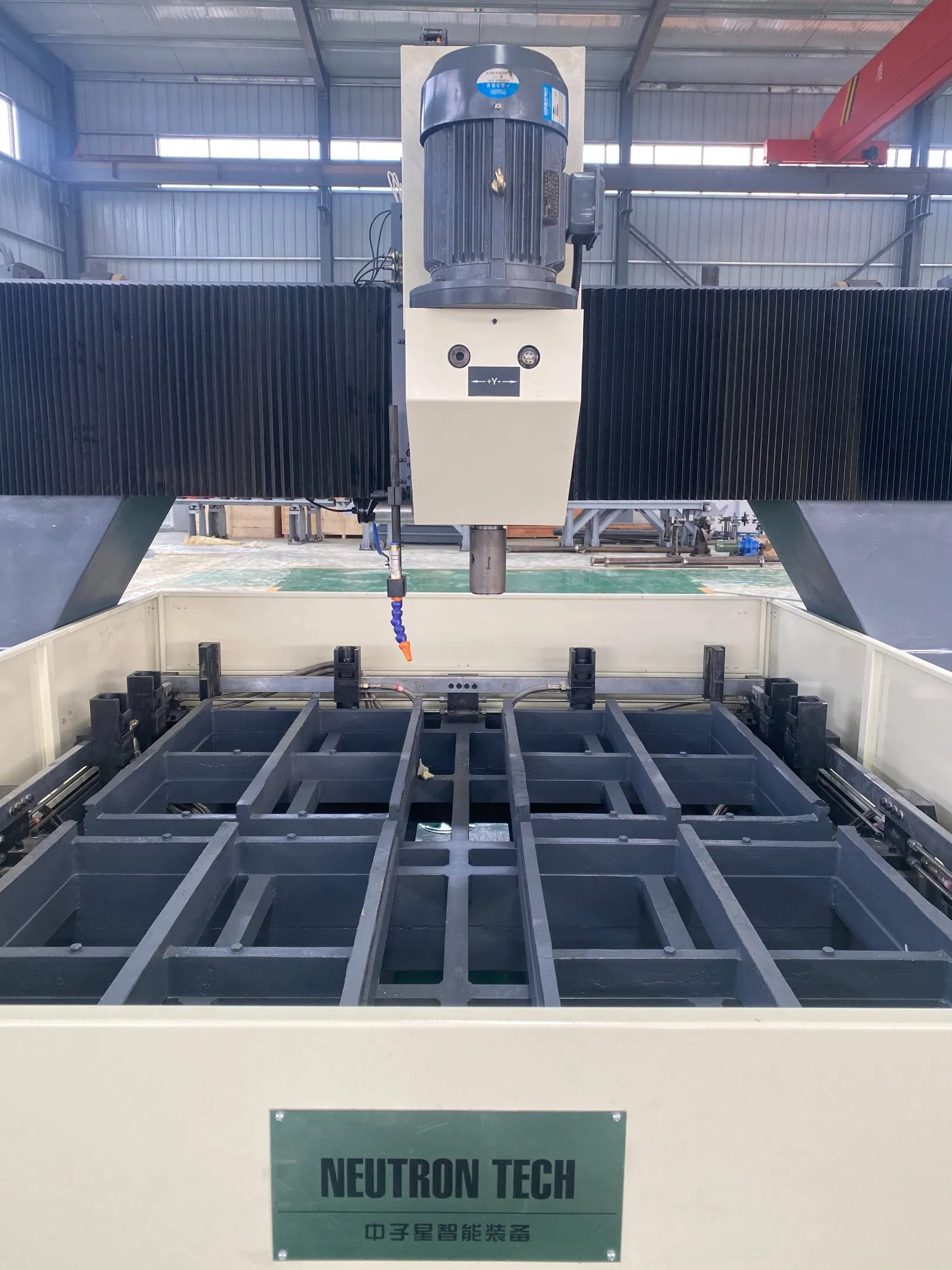

Gantry Moveable CNC Plate Drilling Millingmachine Tool Worktable Drilling Equipment Tube Sheet Steel Structure Heat Exchanger Vertical Drilling

Structure: CNC Drilling Machine
Layout: Vertical
Controlling Mode: CNC

Product Description

Basic Information
Model NO.
PLD3016
Automatic Grade
Automatic
Condition
New
Processing
Drilling Machine
Processing Types
Metal Drilling Machine
Industry
Steel Structure
Workpiece
Plate Steel
Type
CNC Machine
Production Capacity
50 Set/Sets Per
Product Description & Parameters

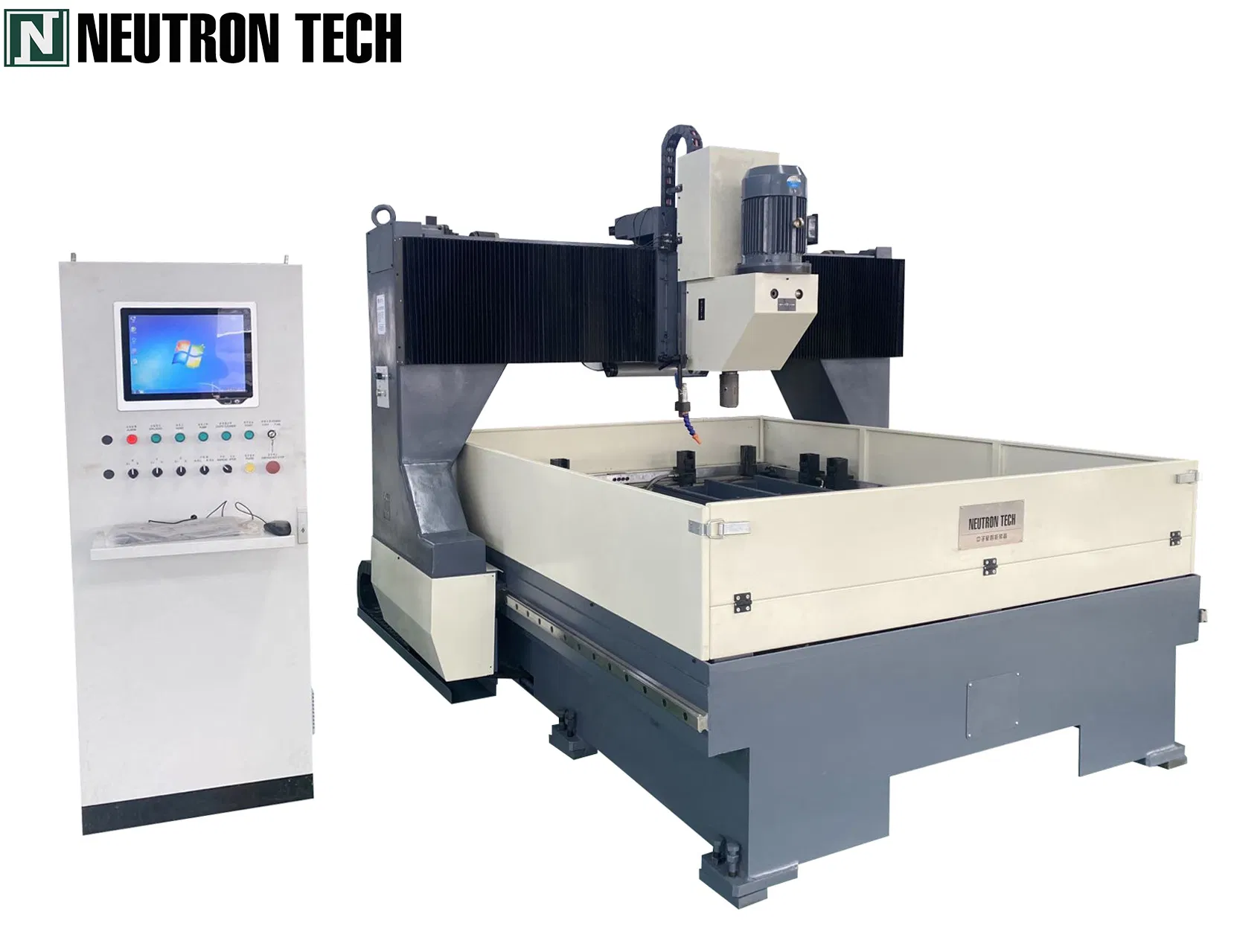

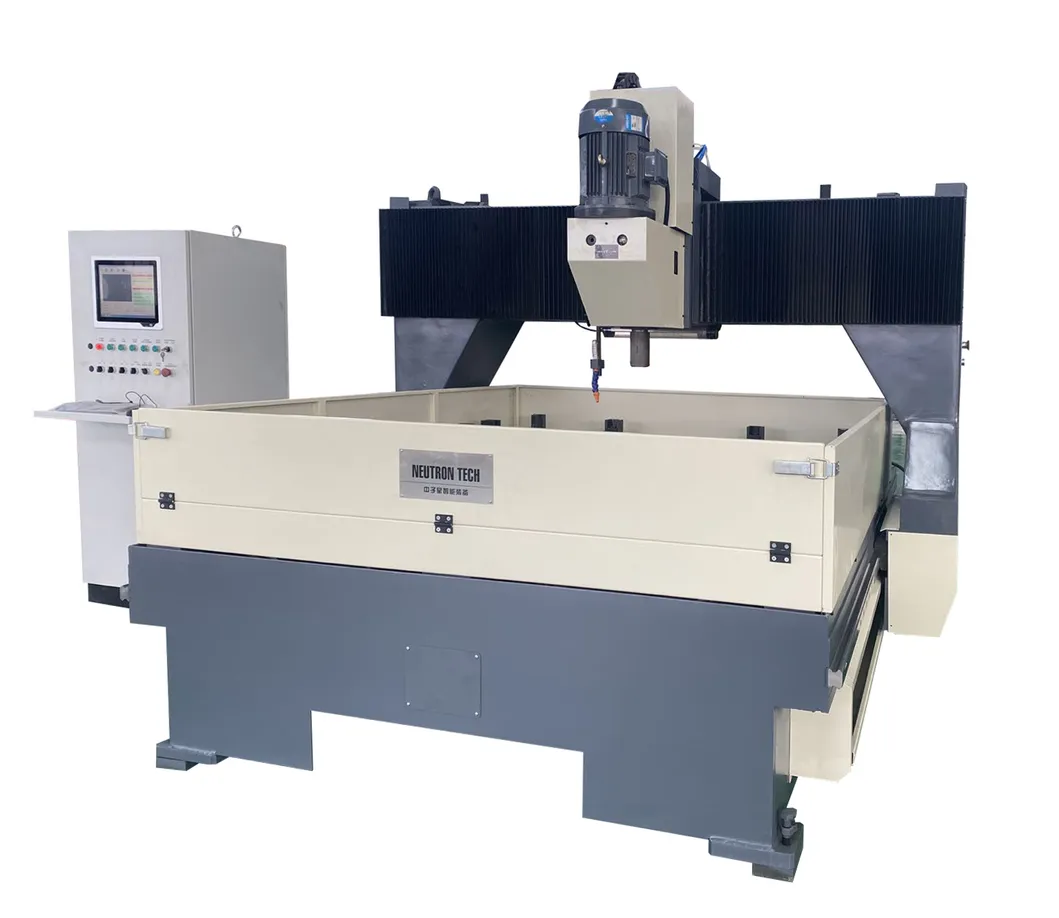

CNC Plate Drilling Machine
Category Detail Specification
Workpiece SizeMax Thickness80mm
Worktable AreaWidth × Length1600mm × 3000mm (1 piece)
Spindle AxisQuick Change ChuckMorse Taper 3# / 4#
Drilling RangeDrilling Head DiameterΦ12mm - Φ50mm
Speed ControlVariable Speed ModeStepless speed adjustment
Rotation SpeedRange120-560 r/min
FeedingFeeding Stroke/Mode240mm / Hydraulic Stepless
ClampingForce / Quantity7.5KN / 12 pieces
Power SystemServo Motor X/Y/Z1.5KW / 1.0KW / 1.0KW
DimensionsL × W × H5560 × 4272 × 2449mm
WeightTotal Machine7600kg

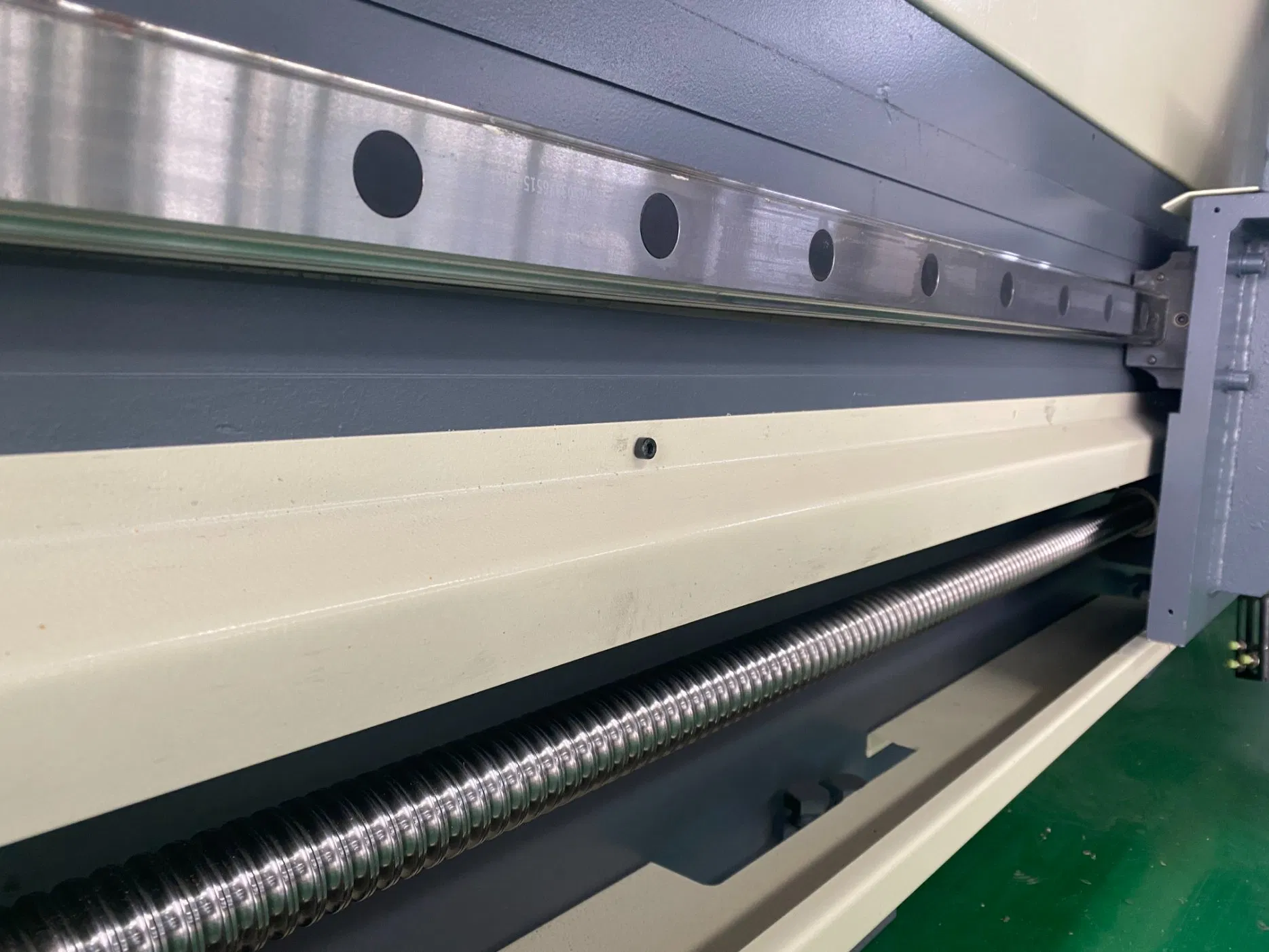

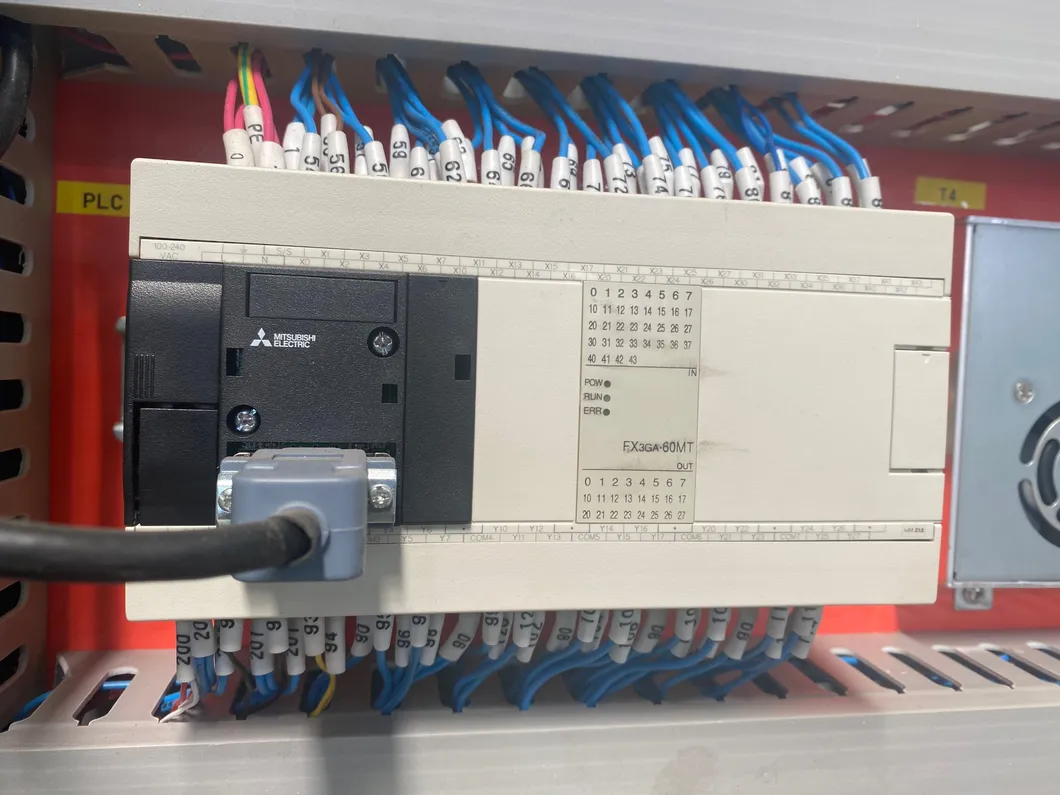

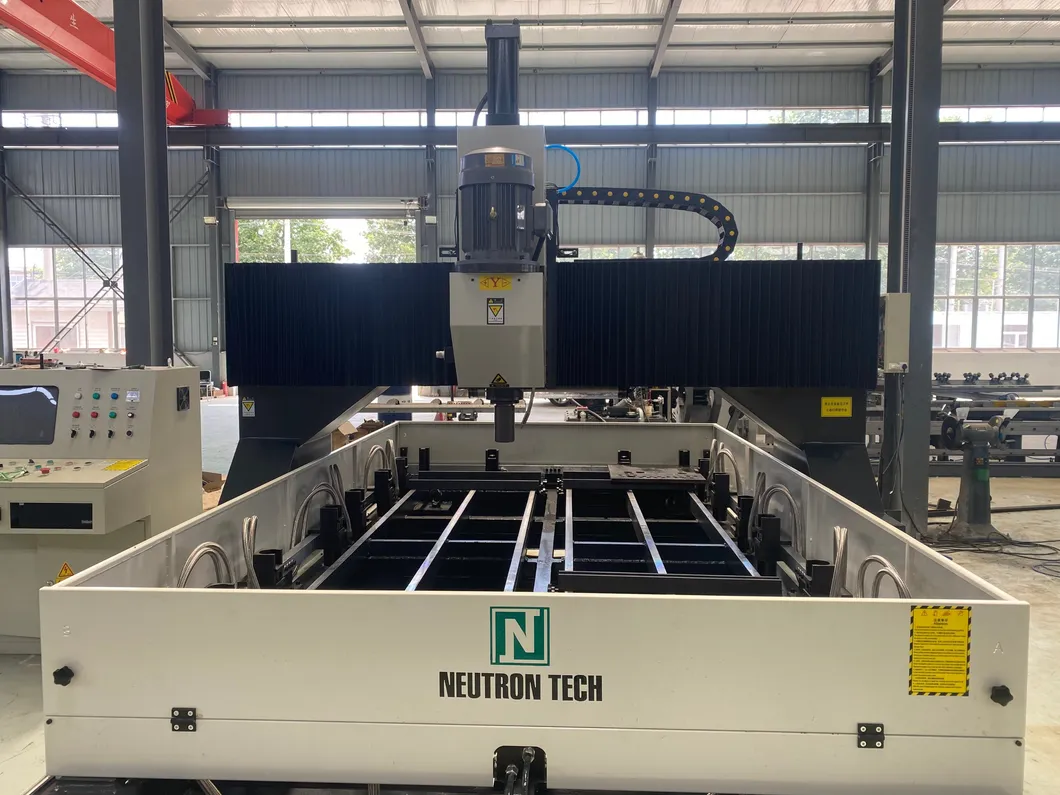

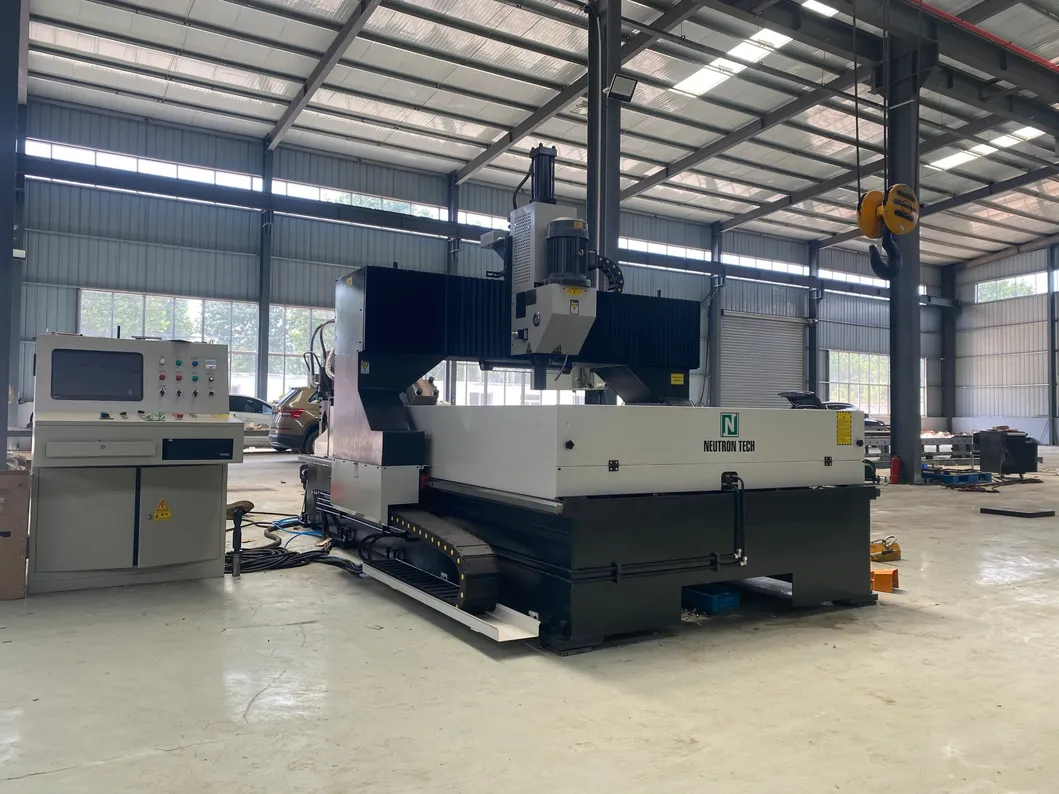

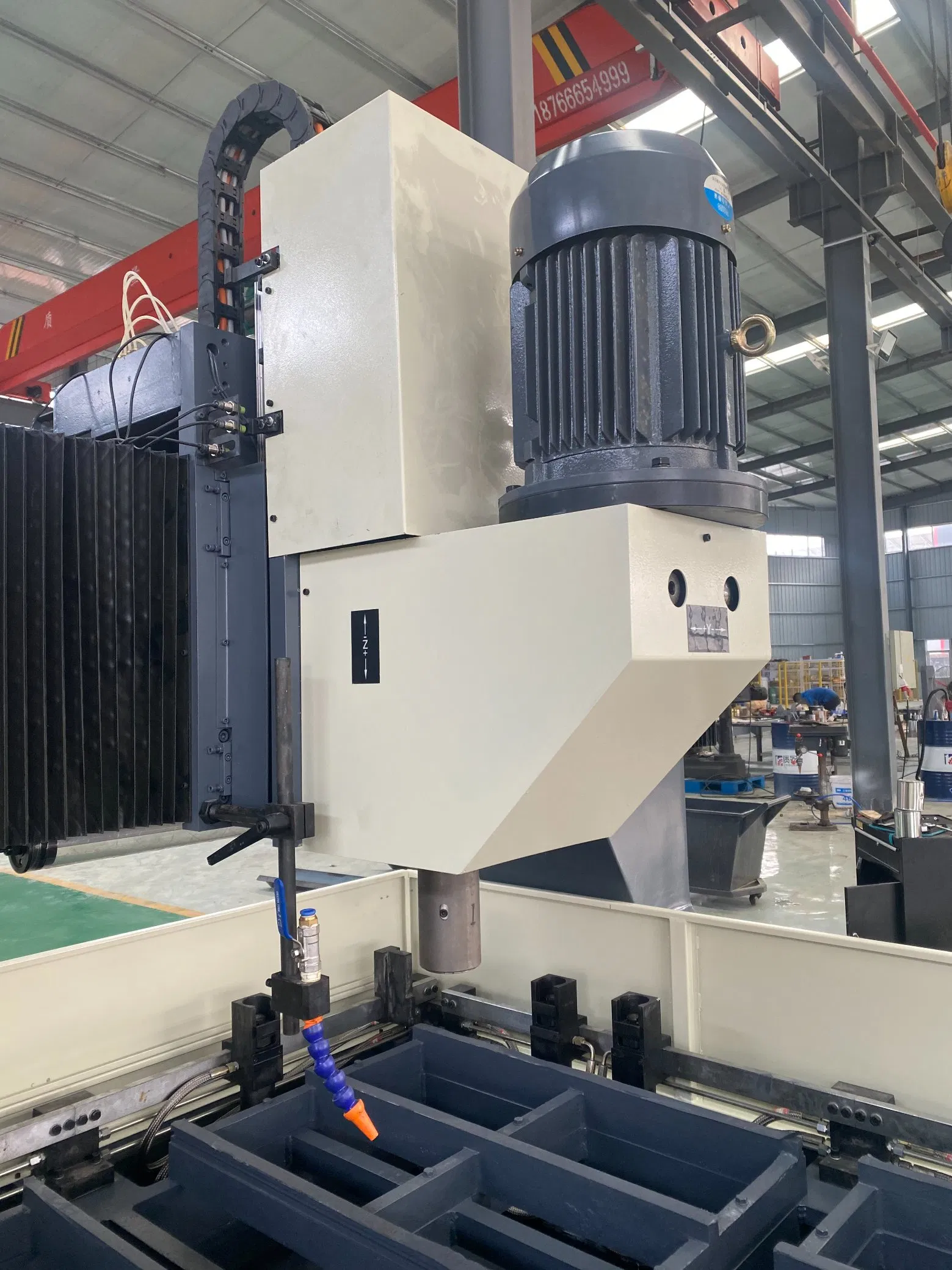

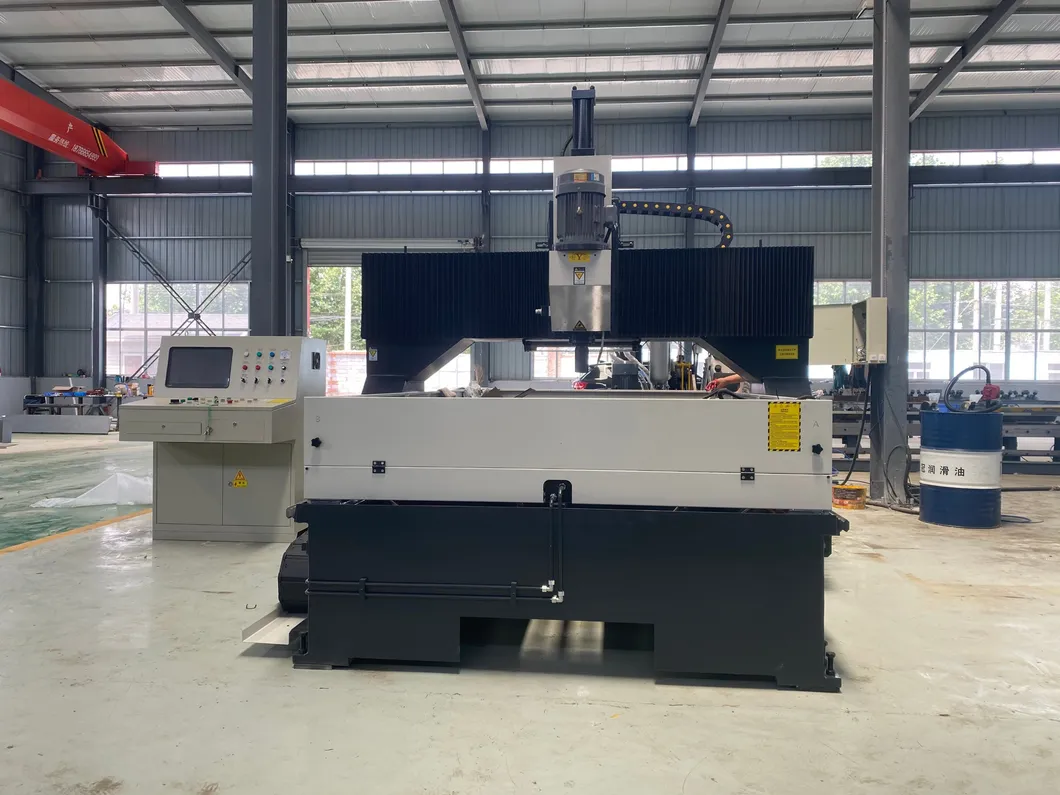

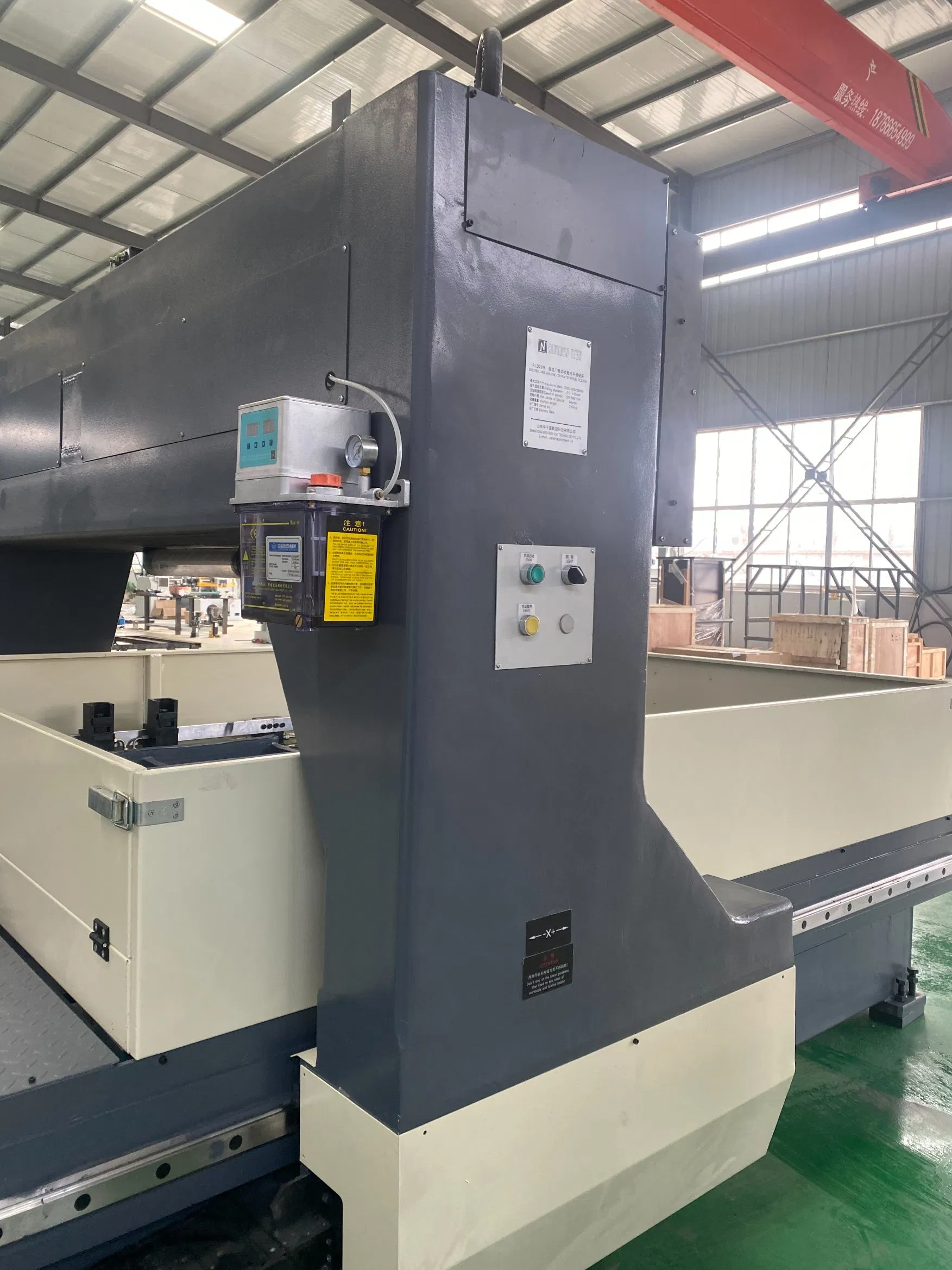

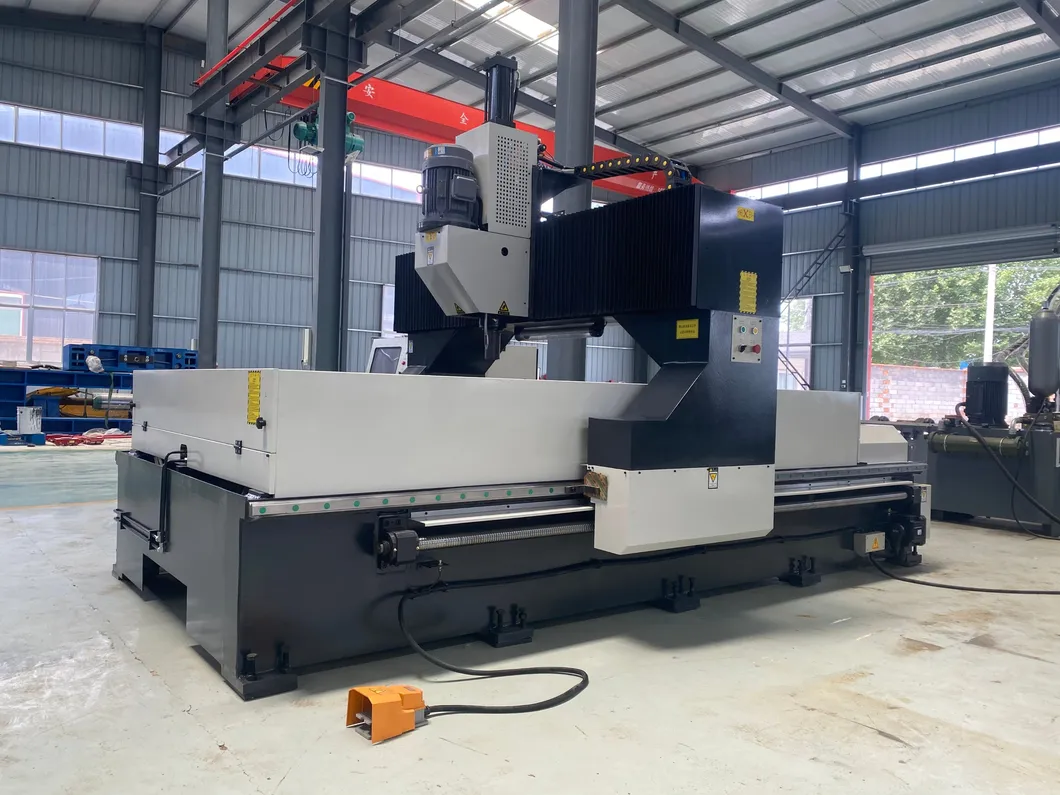

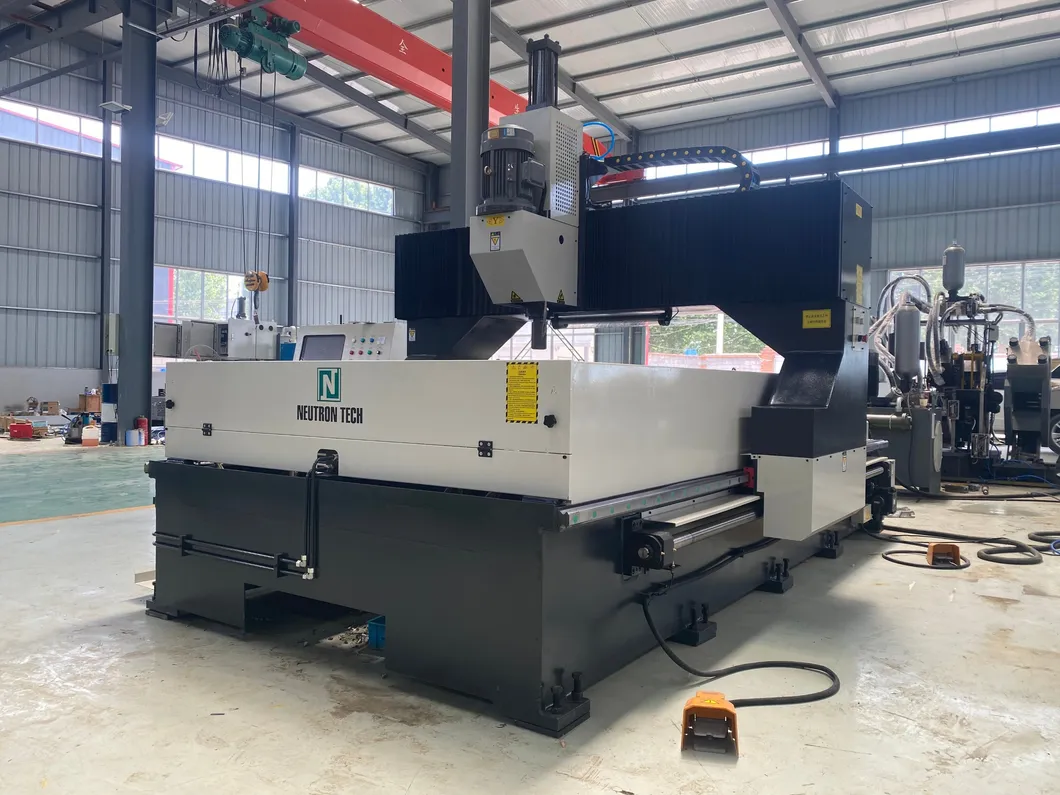

Product Display
Quality Assurance & Certifications

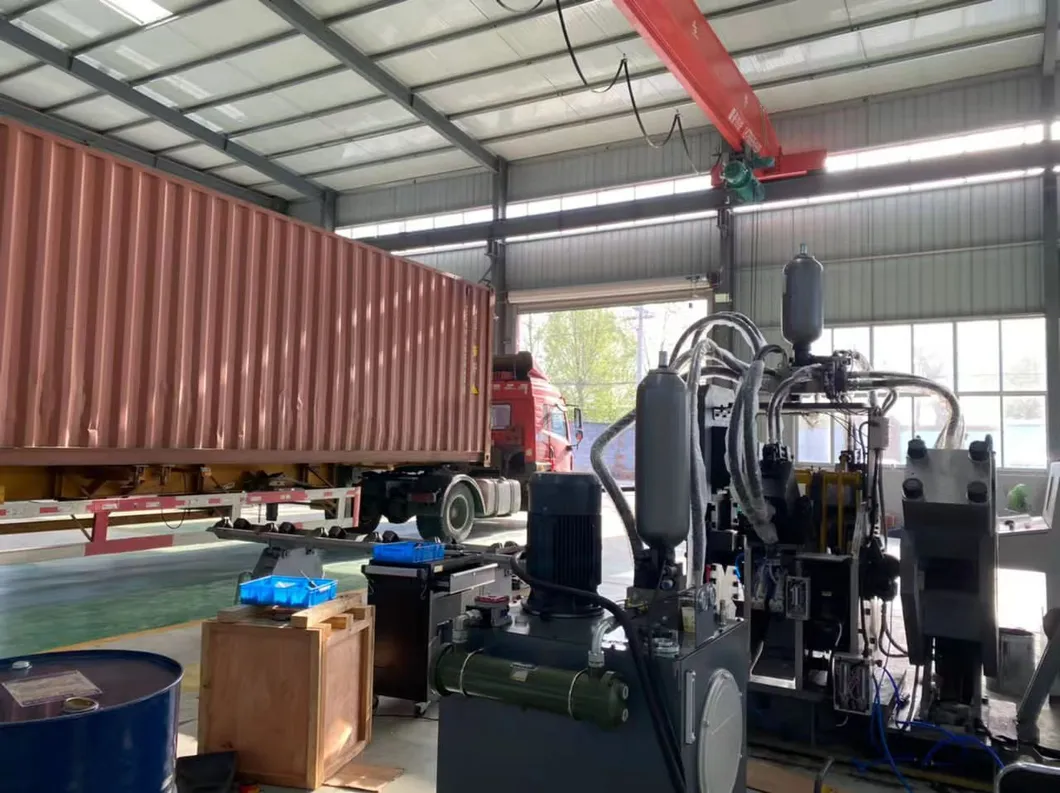

Manufacturing Capabilities
We specialize in various industrial equipment including high-speed railing molding, U-shaped column forming, iron tower processing, and steel structure processing machinery. Our products are widely utilized in road and bridge construction, electric power towers, automobile manufacturing, and decoration industries.
Why Choose Us?
  • Strict quality inspection and double-checks before shipment.
  • Optimized logistics and rapid shipping arrangement (within 1-7 working days).
  • Comprehensive after-sales support and technical consultation.
  • Factory-direct pricing and global competitive edge.

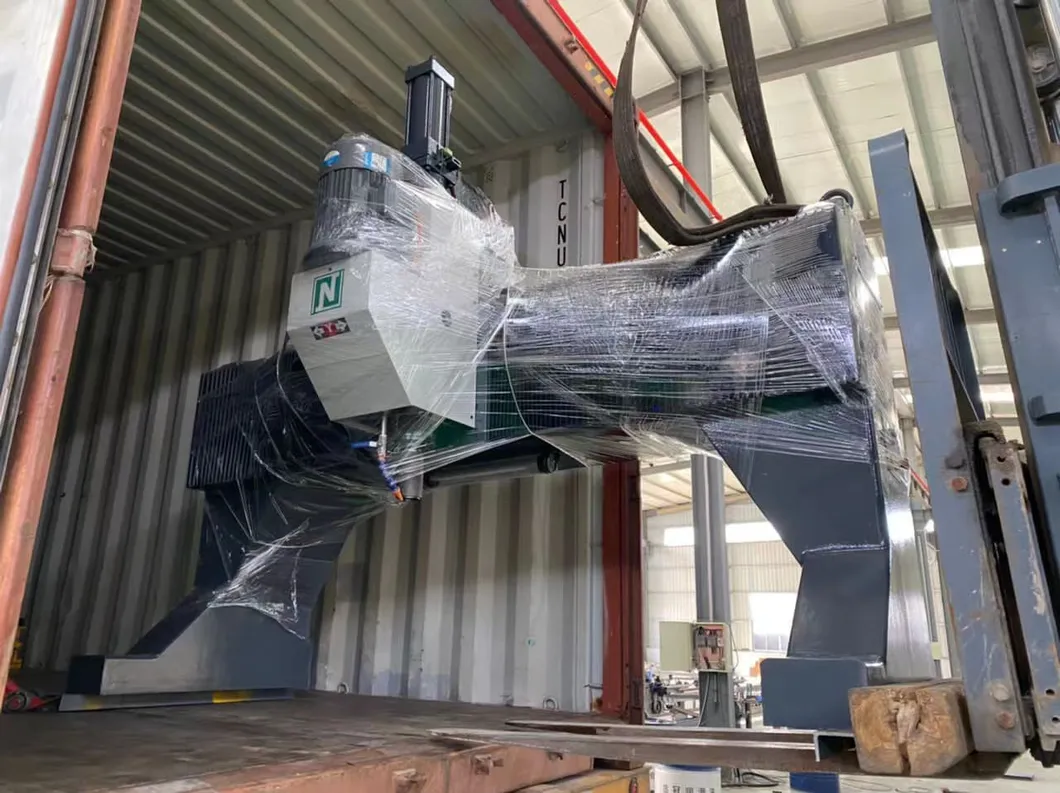

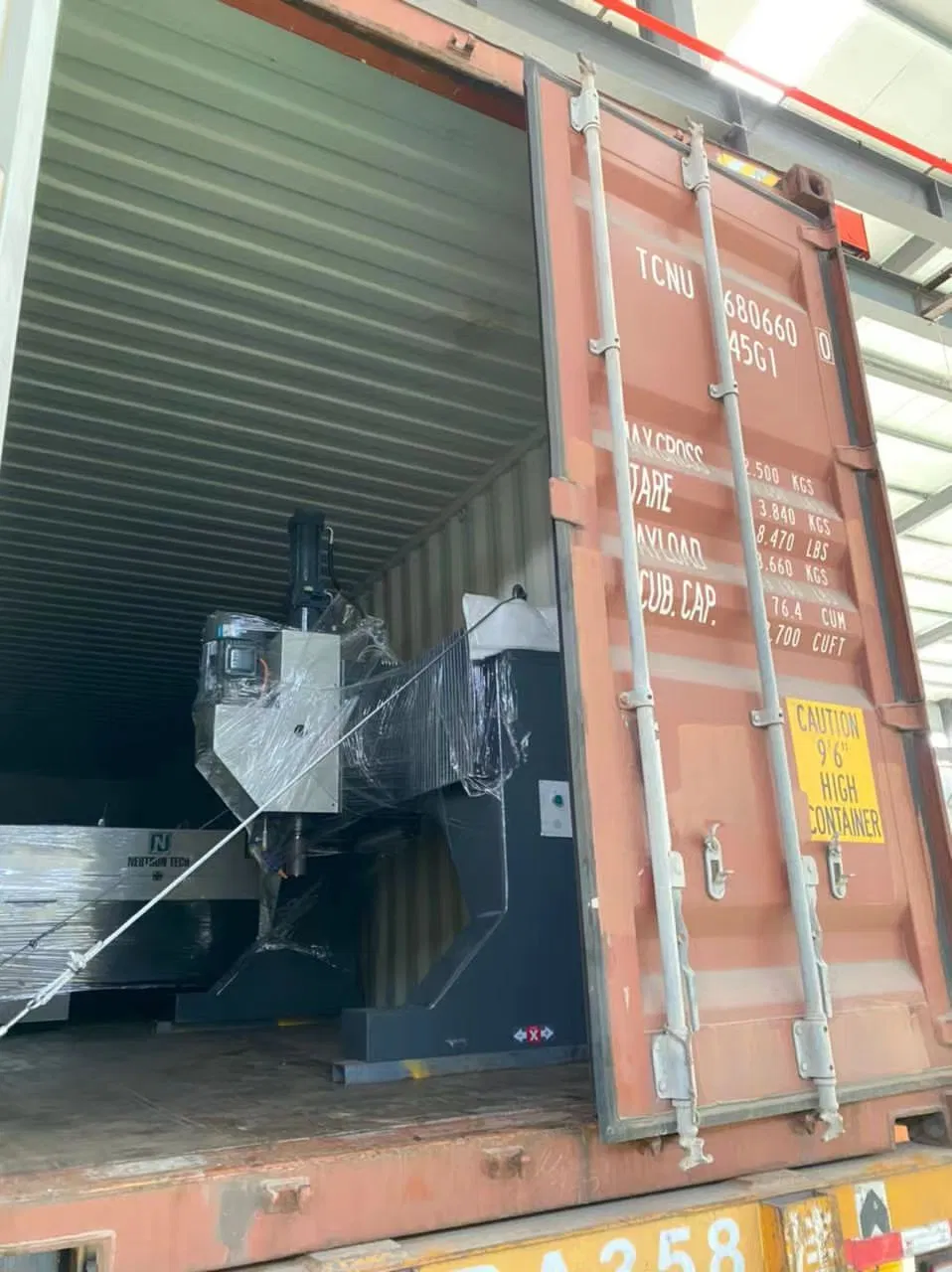

Packaging & Shipping
Frequently Asked Questions
Q: How can I get a quotation for the CNC machine?
A: Please provide your specific purchase requirements and processing needs. We will analyze your specifications and reply with a detailed quote as soon as possible.
Q: What is the typical lead time for shipment?
A: Standard shipments are usually arranged within 10 to 30 days. For specialized CNC equipment, the delivery time is approximately 30-45 days.
Q: Do you offer operation training for CNC machines?
A: Yes, we provide complimentary training sessions at our facility to ensure your operators are fully proficient with the equipment.
Q: What is your policy for technical issues?
A: During the warranty period, we provide free replacement components for any defects. We can also dispatch engineers for on-site repairs when necessary.
Q: What are the warranty terms?
A: We offer an 18-month warranty starting from the bill of lading date. This covers any parts proven to be defective. Extended warranty options are also available.
Q: How are the machines packaged for international transport?
A: All CNC machines are packed using sea-worthy wooden boxes to ensure safety during long-distance maritime transportation.
