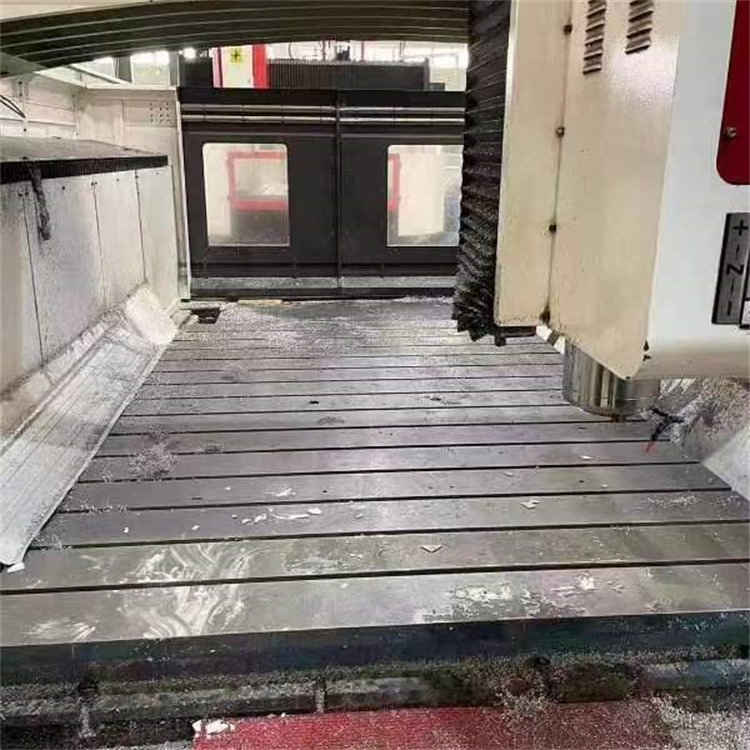

High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
1 / 5
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center
High Precision 5 Axis CNC Drilling Milling Machine Center

High Precision 5 Axis CNC Drilling Milling Machine Center

Customization: Available
After-sales Service: Provide
Warranty: One Year
Send Inquiry

Product Description

CNC Drilling Milling Machine Center
High Precision 5 Axis CNC
Overview & Basic Info
Model NO.
BMI4016
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Certification
CE, ISO 9001
Workbench Area
3000*1600mm
Max Load-Bearing
30t
X/Y/Z Travel
3200*1600*600mm
Condition
New
Production Capacity
300 Sets/Month
Origin
Cn
Product Description
🚀
High speed, high precision, and large load capacity.
📐
Small footprint with high rigidity.
⚡
Super high speed machining; Acceleration up to 0.4G.

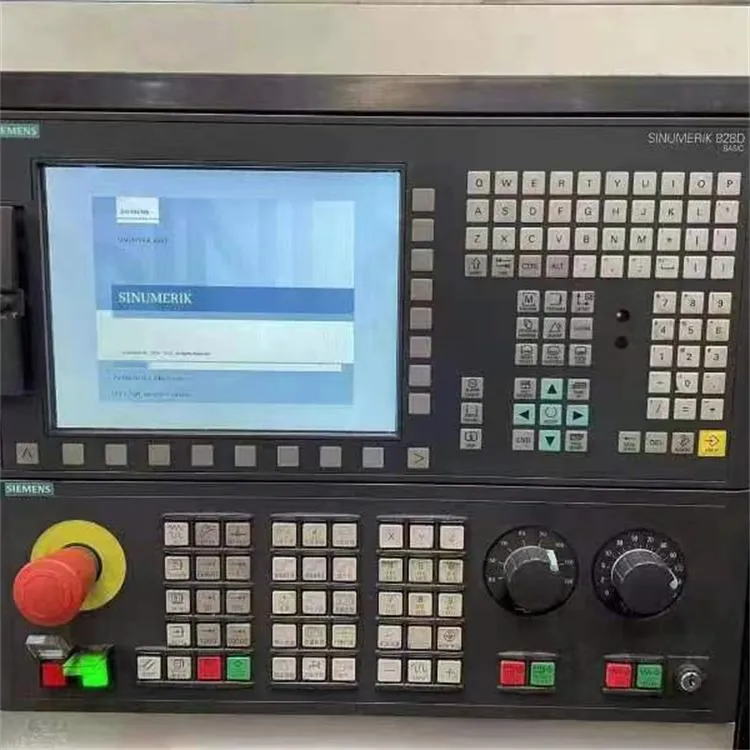

Control System: Siemens 828D

Guideway: Three axis 55 roller line rail

Spindle: Taiwan 190/BT50 spindle 6000rpm

Gantry Specs: Over-width 2580 mm / Over-height 1300 mm

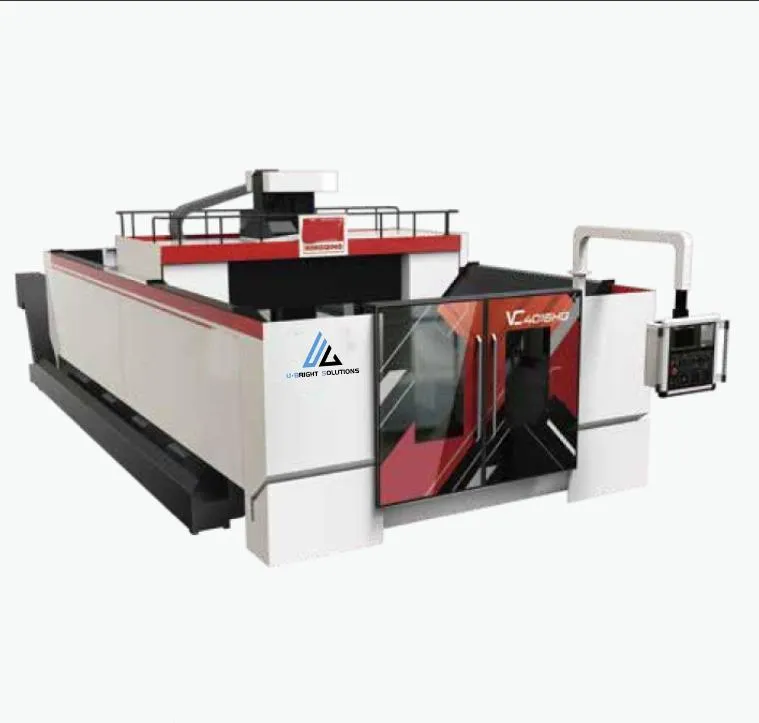

Machine Detail 1
Machine Detail 2
Machine Detail 3
Machine Detail 4

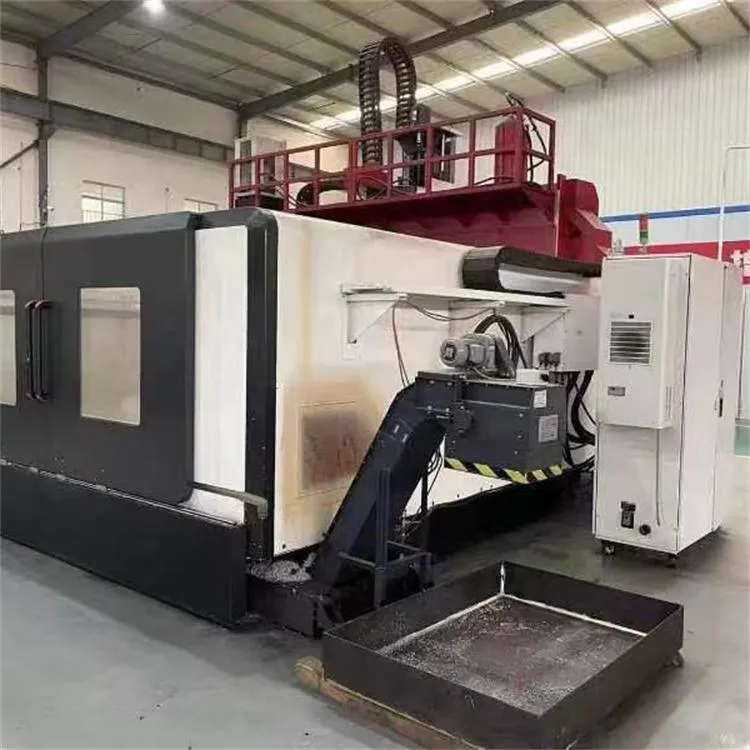

Machine Detail 5
Product Parameters
Technical Parameter Unit BMI2515 BMI2516 BMI3016 BMI3020 BMI4016/6016
Workbench area mm 2500×1600 2500×1600 3000×1600 3000×2000 4000/6000×1600
Maximum load-bearing t 15 15 20 30 25/35
X / Y / Z travel mm 2500×1500×800 2500×1600×600 3200×1600×600 3200×2000×600 4200/6200×1600×600
Guide track form - X: four sides rails parallel; Y: vertical upper/lower rails; Z: four roller rails
Spindle end to work surface mm 200-1000 80-680
Fast shift / feed speed m/min 20/0-15 - 40/0-20
Positioning accuracy mm 0.01 / 0.005
  • Standard tool magazine capacity: 20 positions.
  • Standard electric spindle; optional BBT50-155 12000rpm directly connected spindle (Y direction stroke reduces by 100mm).
  • Length 25/30 series uses screw bar for X-direction; 40+ series uses double rack and pinion.
  • Advanced chip discharge systems: scraper or punching types depending on series length.
Structure Layout
Operational View
Frequently Asked Questions
🔹 What is the processing precision of this CNC machine?
The machine offers high processing precision of 0.005mm and repeat positioning accuracy of 0.005mm.
🔹 What control system does the BMI series use?
The standard configuration comes equipped with the Siemens 828D system for high-end contour and closed-loop control.
🔹 What are the travel ranges for the BMI4016 model?
The X/Y/Z travel for the BMI4016 is 3200mm x 1600mm x 600mm respectively.
🔹 What is the maximum load the workbench can handle?
Depending on the specific model, the workbench can support a maximum load-bearing capacity of up to 30 tons.
🔹 Does the machine come with any certifications?
Yes, the machine is certified with CE and ISO 9001 standards, ensuring compliance with international quality and safety regulations.
🔹 Can the spindle be customized?
Standard models use an electric spindle or Taiwan BT50 spindle (6000rpm). You can also choose a BBT50-155 12000rpm directly connected spindle.
