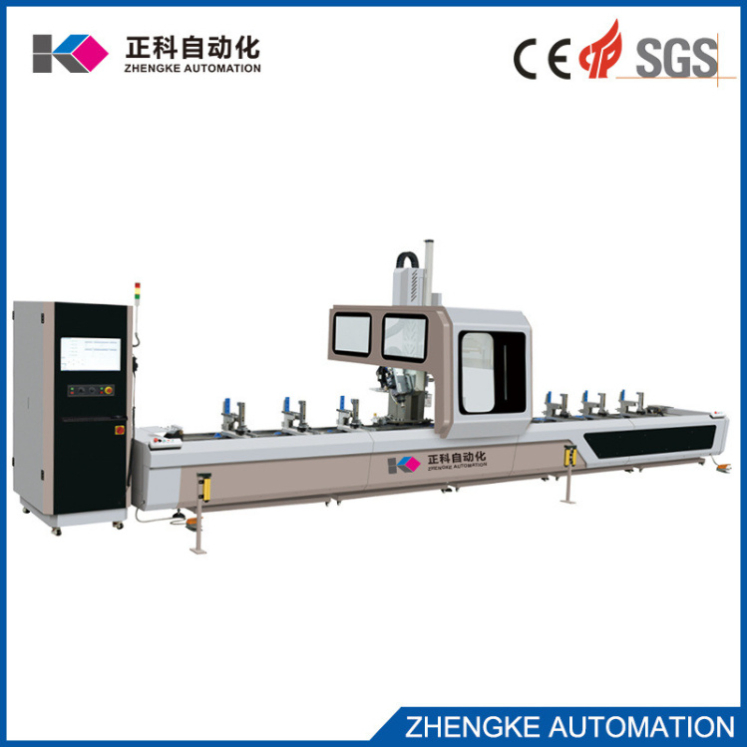

4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
1 / 5
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining
4 Axis CNC Precision Milling High Speed Machining

4 Axis CNC Precision Milling High Speed Machining

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

i
Basic Information
Model NO.
WDJ4-CNC-7000
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power
380V/3phase/50Hz or Customized
Spindle Power
12kw
Type
4 Axis Processing Center
Maximum Speed
24000/Min
Air Pressure
0.6-0.8MPa
Spindle Taper
ISO-30
P
Product Description

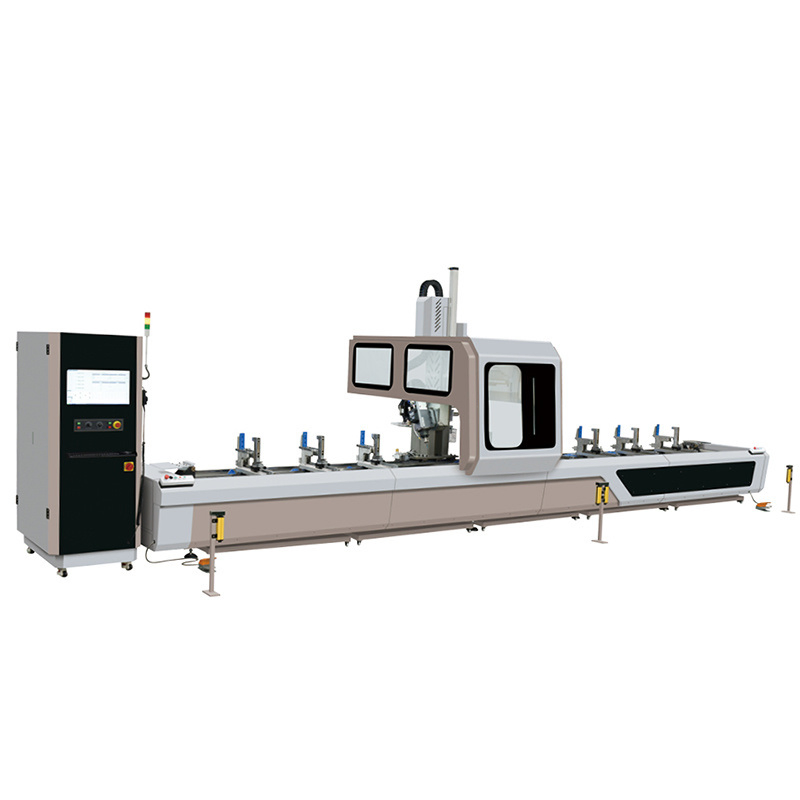

High-Speed Four-Axis CNC Machining Center

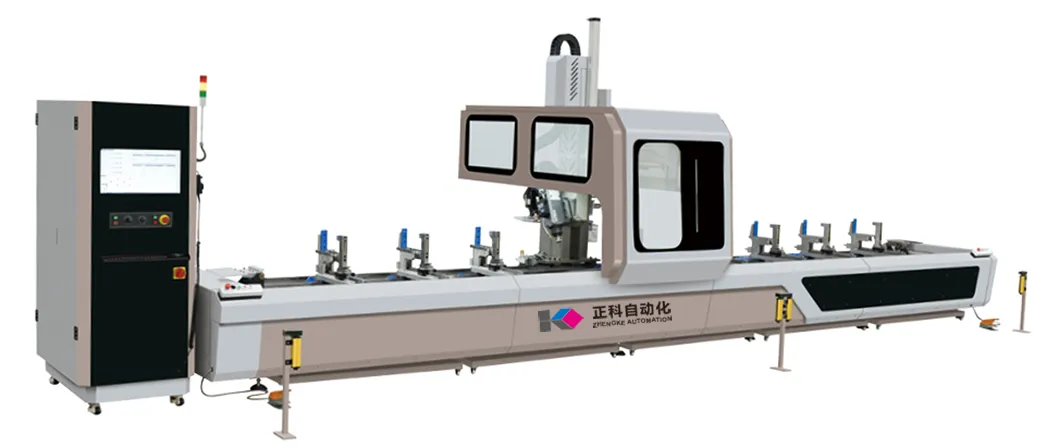

4 Axis CNC Precision Milling High Speed Machining
Power supply380V / 3Phase / 50Hz or customized
Spindle power12kW
Maximum speed24000/min
Air pressure0.6 ~ 0.8Mpa
Spindle taper holeISO-30
Tool magazine formRotary tool magazine
Tool magazine capacity12
X/Y/Z axis stroke7000mm / 1500mm / 600mm
X axis feeding speed0~55m/min
Y/Z axis feeding speed0~40m/min
C-axis rotation range±110º
Machining accuracy±0.1mm/m
Weight4500kg

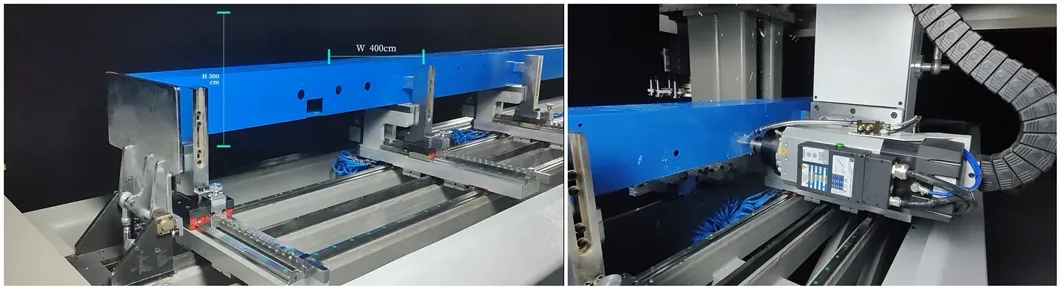

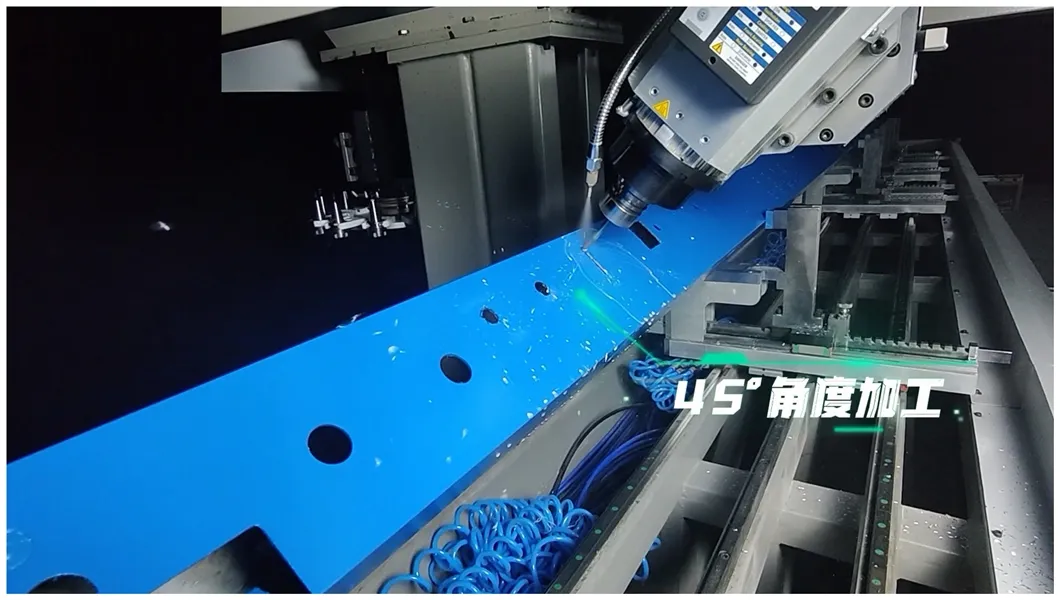

Machining Detail CNC System
F
Key Features
✓
Realizes one-time clamping for multi-process processing: milling keyhole grooves, flow grooves, air pressure balance holes, and installation holes.
✓
Equipped with Han's (PA) machine tool numerical control system for continuous automatic milling of various profile specifications.
✓
Seamless CAD drawing import; compatible with international window, door, and curtain wall system software.
✓
Versatile processing for aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.
✓
Uses high-quality imported servo motors, ball screws, and linear guides to ensure high stability and machining accuracy.
T
Tool Magazine & Samples

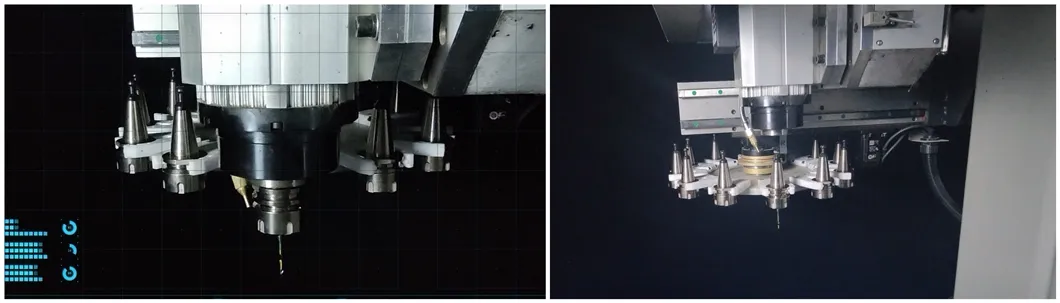

Tool magazine

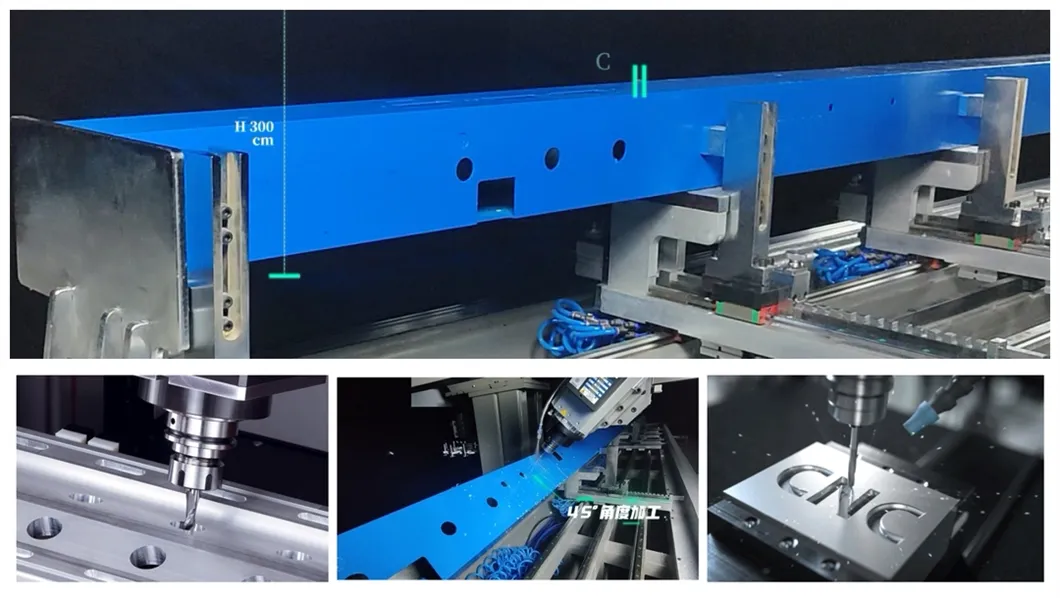

Sample Photos
C
Company Overview

Founded in 2014, the company operates a 5,000 square meter facility with a core team of 50 professionals. With independent technology design and R&D teams, it stands as a professional high-tech enterprise specializing in glass and profile machinery.

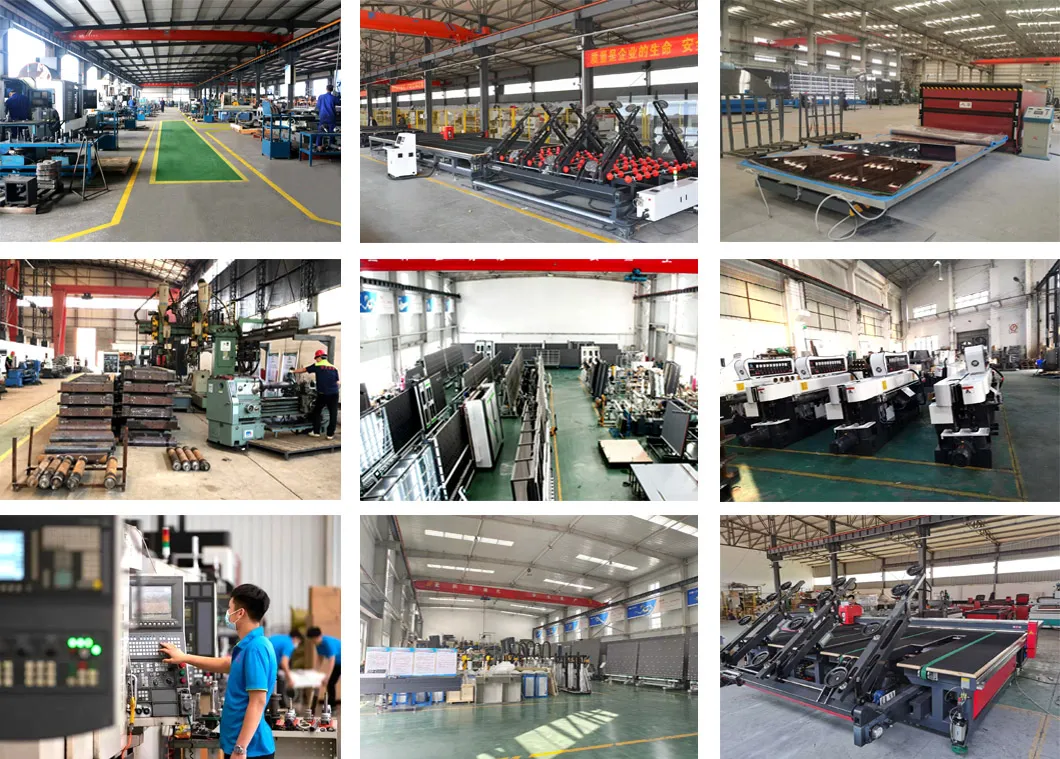

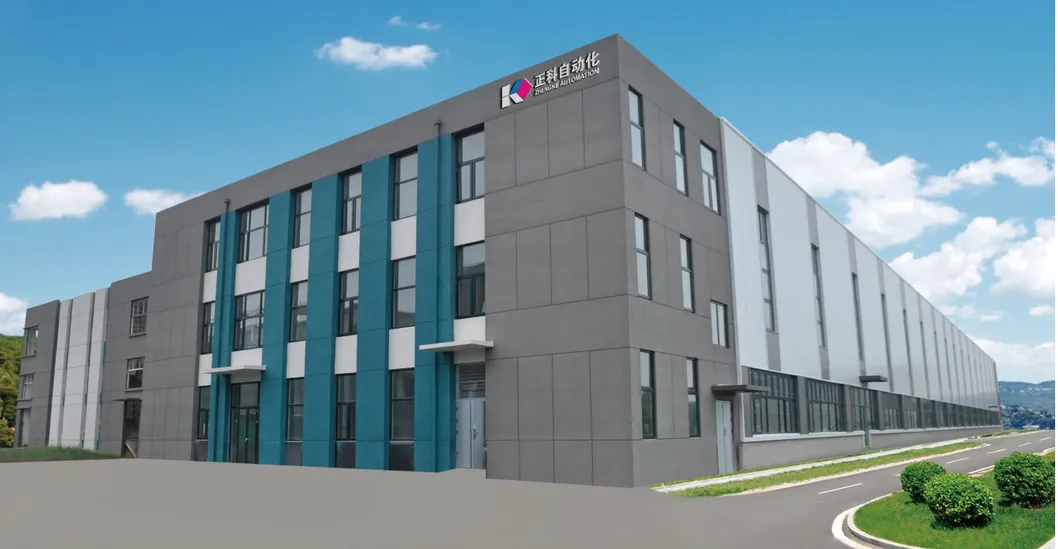

Facility Workshop

The company focuses on a wide range of machinery including glass cutting, edging, washing, tempering, and insulating glass machines. We hold multiple independent technical patents and copyrights, ensuring advanced technology, high production efficiency, and automation across our product lines.

A
Our Advantages
Professional Solutions: Comprehensive glass and profile production strategies.
Rapid Response: Online service team replying to inquiries within 24 hours.
Customization: OEM & ODM services for design, logos, and packaging.
Quality Control: Strict testing systems and advanced production equipment.
Competitive Pricing: Direct manufacturer pricing with no middlemen.
Advantage 1 Advantage 2
Frequently Asked Questions
What materials can this 4-axis CNC center process?
This machine is suitable for processing various complex parts made of aluminum, copper, PVC, industrial profiles, and materials used in building curtain walls and sun rooms.
Is the machine compatible with external design software?
Yes, CAD drawings can be imported easily. The system is compatible with major window, door, and curtain wall software such as Klaes, Duter, Schüco, and others.
What is the capacity of the tool magazine?
The machine features a rotary tool magazine with a capacity of 12 tools, allowing for efficient multi-process automation.
What ensures the machining accuracy of the center?
High machining accuracy (±0.1mm/m) is ensured through the use of high-quality imported servo motors, ball screws, and linear guide pairs, along with a pre-stretched feed movement.
Does the company provide after-sales support?
Yes, we provide comprehensive after-sales service including case debugging, technical consulting, and staff operation training.
Can the machine perform one-time clamping?
Absolutely. The machine can realize one-time clamping of raw materials to complete multi-process processing like milling keyhole grooves and installation holes.
